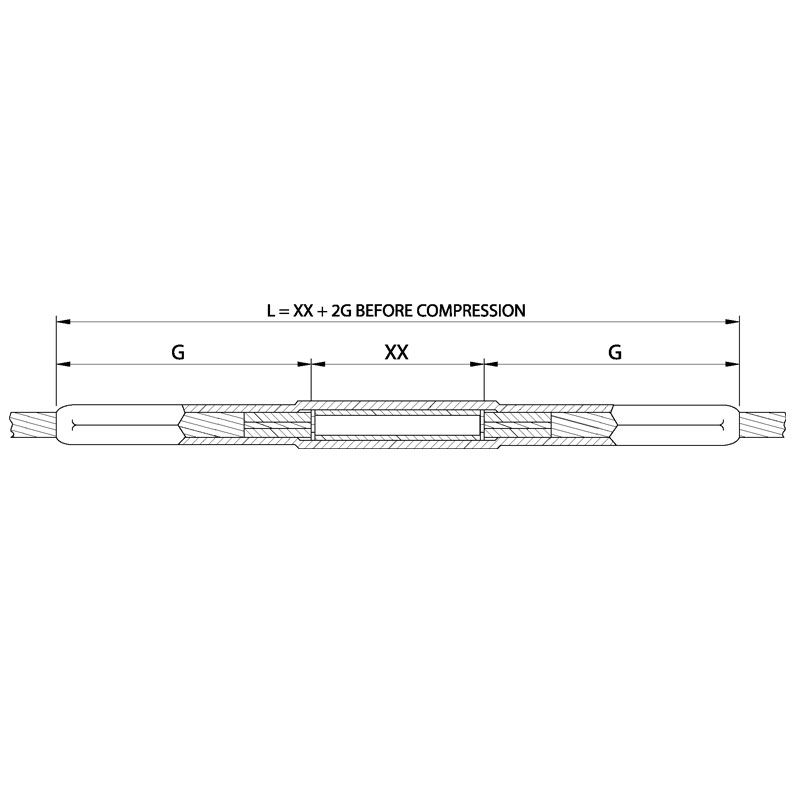

171 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress CJ Series Joints are designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites while maintain - ing a minimum 95% of the ASTM rated strength. The core grip eliminates the need for a steel sleeve. The compression joint is pre-filled, eliminating an installation step. Each compression joint has a center stop to ensure proper insertion of the conductor. The end tapers of all compression accessories are supplied with a high voltage finish for die size sections 12CD and above. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Example: A compression joint for 795 Drake conductor, the complete catalog number is: CJ126 Notes: 1. Assembly Catalog Number includes one aluminum joint and two core grips. 2. Installation Instructions for Compression Joints are on page 269. 3. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Compression Joints for ACSR Conductor, CJ Series ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL AL IN LBS KG IN MM CJ075 Owl 266.8 6/7 0.633 07CD 0.7 0.30 11.2 284 CJ072 Waxwing 266.8 18/1 0.609 07CD 0.6 0.29 11.2 284 CJ076 Partridge 266.8 26/7 0.642 07CD 0.7 0.30 11.2 284 CJ085 Ostrich 300.0 26/7 0.680 08CD 1.0 0.44 12.8 325 CJ082 Merlin 336.4 18/1 0.684 08CD 0.9 0.43 12.8 325 CJ086 Linnet 336.4 26/7 0.720 08CD 1.0 0.45 12.8 325 CJ096 Oriole 336.4 30/7 0.741 09CD 1.4 0.64 14.4 366 CJ083 Chickadee 397.5 18/1 0.743 08CD 1.0 0.45 12.8 325 CJ095 Brant 397.5 24/7 0.772 09CD 1.4 0.64 14.4 366 CJ096 Ibis 397.5 26/7 0.783 09CD 1.4 0.64 14.4 366 CJ106 Lark 397.5 30/7 0.806 10CD 2.0 0.91 16.0 406 CJ092 Pelican 477.0 18/1 0.814 09CD 1.3 0.59 14.4 366 CJ095 Flicker 477.0 24/7 0.846 09CD 1.4 0.64 14.4 366 CJ105 Hawk 477.0 26/7 0.858 10CD 1.9 0.86 16.0 406 CJ116 Hen 477.0 30/7 0.883 11CD 2.6 1.18 17.6 447 CJ102 Osprey 556.5 18/1 0.879 10CD 1.9 0.86 16.0 406 CJ105 Parakeet 556.5 24/7 0.914 10CD 2.0 0.91 16.0 406 CJ106 Dove 556.5 26/7 0.927 10CD 2.7 1.22 16.0 447 CJ117 Eagle 556.5 30/7 0.953 11CD 2.6 1.18 17.6 447 CJ115 Peacock 605.0 24/7 0.953 11CD 2.6 1.18 17.6 447 CJ116 Squab 605.0 26/7 0.966 11CD 3.4 1.54 17.6 488 CJ126 Teal 605.0 30/19 0.994 12CD 1.9 0.86 19.2 406 © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 172 Quick Compress ® QuickCompress ® – ACSR ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL AL IN LBS KG IN MM CJ103 Kingbird 636.0 18/1 0.940 10CD 2.6 1.18 16.0 447 CJ115 Rook 636.0 24/7 0.977 11CD 2.6 1.18 17.6 447 CJ116 Grosbeak 636.0 26/7 0.990 11CD 3.4 1.54 17.6 488 CJ126 Egret 636.0 30/19 1.019 12CD 1.8 0.82 19.2 406 CJ101 Swift 636.0 36/1 0.930 10CD 2.6 1.18 16.0 447 CJ115 Flamingo 666.6 24/7 1.000 11CD 2.6 1.18 17.6 447 CJ115 Stilt 715.5 24/7 1.036 11CD 3.4 1.54 17.6 488 CJ126 Starling 715.5 26/7 1.051 12CD 4.4 2.00 19.2 528 CJ136 Redwing 715.5 30/19 1.081 13CD 3.4 1.54 20.8 488 CJ125 Cuckoo 795.0 24/7 1.092 12CD 3.4 1.54 19.2 488 CJ126 Drake 795.0 26/7 1.108 12CD 5.3 2.40 19.2 569 CJ146 Mallard 795.0 30/19 1.140 14CD 2.5 1.13 22.4 447 CJ111 Coot 795.0 36/1 1.040 11CD 3.3 1.50 17.6 488 CJ123 Tern 795.0 45/7 1.063 12CD 3.4 1.54 19.2 488 CJ125 Condor 795.0 54/7 1.093 12CD 3.4 1.54 19.2 488 CJ124 Ruddy 900.0 45/7 1.131 12CD 4.3 1.95 19.2 523 CJ135 Canary 900.0 54/7 1.162 13CD 3.2 1.45 20.8 488 CJ121 Catbird 954.0 36/1 1.140 12CD 4.2 1.91 19.2 528 CJ133 Rail 954.0 45/7 1.165 13CD 4.3 1.95 20.8 528 CJ135 Cardinal 954.0 54/7 1.196 13CD 4.1 1.86 20.8 528 CJ131 Tanger 1033.5 36/1 1.186 13CD 4.3 1.95 20.8 528 CJ134 Ortolan 1033.5 45/7 1.212 13CD 5.2 2.36 20.8 569 CJ145 Curlew 1033.5 54/7 1.244 14CD 5.1 2.31 22.4 569 CJ143 Bluejay 1113.0 45/7 1.259 14CD 5.2 2.36 22.4 569 CJ145 Finch 1113.0 54/19 1.293 14CD 5.2 2.36 22.4 569 CJ144 Bunting 1192.5 45/7 1.302 14CD 6.4 2.90 22.4 610 CJ155 Grackle 1192.5 54/19 1.333 15CD 6.2 2.81 24.0 610 CJ153 Bittern 1272.0 45/7 1.345 15CD 6.4 2.90 24.0 610 CJ155 Pheasant 1272.0 54/19 1.382 15CD 6.3 2.86 24.0 610 CJ154 Dipper 1351 5 45/7 1.385 15CD 6.4 2.90 24.0 610 CJ155 Martin 1351.5 54/19 1.424 15CD 7.6 3.45 24.0 650 CJ163 Bobolink 1431.0 45/7 1.427 16CD 7.9 3.58 25.6 650 CJ165 Plover 1431.0 54/19 1.465 16CD 7.8 3.54 25.6 650 CJ164 Nuthatch 1510.5 45/7 1.466 16CD 7.9 3.58 25.6 650 CJ165 Parrot 1510.5 54/19 1.506 16CD 7.8 3.54 25.6 650 CJ164 Lapwing 1590.0 45/7 1.504 16CD 9.5 4.31 25.6 691 CJ175 Falcon 1590.0 54/19 1.545 17CD 9.3 4.22 27.2 691 CJ174 Chukar 1780.0 84/19 1.602 17CD 10.9 4.94 27.2 732 CJ183 — 2034.0 72/7 1.681 18CD 13.0 5.90 28.8 772 CJ194 Bluebird 2156.0 84/19 1.762 19CD 12.8 5.81 30.4 772 CJ193 Kiwi 2167.0 72/7 1.737 19CD 12.8 5.81 30.4 772 CJ193 Thrasher 2312.0 76/19 1.802 19CD 12.8 5.81 30.4 772 CJ203 Joree 2515.0 76/19 1.880 20CD 14.5 6.58 32.0 813 Quick Compress Compression Joints for ACSR Conductor, CJ Series (cont.) 173 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Replacement Joints are used to replace damaged conductor in midspan. They are designed for fast and easy installation. By using a high strength alloy, the compres - sion length has been shortened for less compression bits, while maintaining a minimum 95% of the ASTM rated strength. The replacement joint is pre-filled, eliminating an installation step. The end tapers of all compression accessories are supplied with a high voltage finish for die size sections 12CD and above. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Determine Length of Conductor Removed (XX) Determine the length of conductor (XX) that will be cut out, to the nearest inch (Maximum 48"). Step 3: Assemble Catalog Number Example: A replacement compression joint for 795 Drake conductor with a removed conductor length of 24 inches, the complete catalog number is: CJ126R24 Notes: 1. Assembly Catalog Number includes one aluminum joint and two core grips. 2. Installation Instructions for Compression Joints are on page 269. 3. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Replacement Compression Joints for ACSR Conductor, CJR Series Catalog Number Removed Conductor Length (XX) + ASSEMBLY CATA - LOG NUMBER CONDUCTOR DIE SIZE DIMENSION G CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN IN MM CJ075RXX Owl 266.8 6/7 0.633 07CD 7.56 192 CJ072RXX Waxwing 266.8 18/1 0.609 07CD 7.56 192 CJ076RXX Partridge 266.8 26/7 0.642 07CD 7.56 192 CJ085RXX Ostrich 300.0 26/7 0.680 08CD 8.36 212 CJ082RXX Merlin 336.4 18/1 0.684 08CD 8.36 212 CJ086RXX Linnet 336.4 26/7 0.720 08CD 8.36 212 CJ096RXX Oriole 336.4 30/7 0.741 09CD 9.16 233 CJ083RXX Chickadee 397.5 18/1 0.743 08CD 8.36 212 CJ095RXX Brant 397.5 24/7 0.772 09CD 9.16 233 CJ096RXX Ibis 397.5 26/7 0.783 09CD 9.16 233 CJ106RXX Lark 397.5 30/7 0.806 10CD 9.96 253 CJ092RXX Pelican 477.0 18/1 0.814 09CD 9.16 233 CJ095RXX Flicker 477.0 24/7 0.846 09CD 9.16 233 CJ105RXX Hawk 477.0 26/7 0.858 10CD 9.96 253 CJ116RXX Hen 477.0 30/7 0.883 11CD 10.76 273 CJ102RXX Osprey 556.5 18/1 0.879 10CD 9.96 253 CJ105RXX Parakeet 556.5 24/7 0.914 10CD 9.96 253 CJ106RXX Dove 556.5 26/7 0.927 10CD 9.96 253 CJ117RXX Eagle 556.5 30/7 0.953 11CD 10.76 273 CJ115RXX Peacock 605.0 24/7 0.953 11CD 10.76 273 © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 174 Quick Compress ® QuickCompress ® – ACSR ASSEMBLY CATA - LOG NUMBER CONDUCTOR DIE SIZE DIMENSION G CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN IN MM CJ116RXX Squab 605.0 26/7 0.966 11CD 10.76 273 CJ126RXX Teal 605.0 30/19 0.994 12CD 11.66 294 CJ103RXX Kingbird 636.0 18/1 0.940 10CD 9.96 253 CJ115RXX Rook 636.0 24/7 0.977 11CD 10.76 273 CJ116RXX Grosbeak 636.0 26/7 0.990 11CD 10.76 273 CJ126RXX Egret 636.0 30/19 1.019 12CD 11.56 294 CJ101RXX Swift 636.0 36/1 0.930 10CD 9.96 253 CJ115RXX Flamingo 666.6 24/7 1.000 11CD 10.76 273 CJ115RXX Stilt 715.5 24/7 1.036 11CD 10.76 273 CJ126RXX Starling 715.5 26/7 1.051 12CD 11.56 294 CJ136RXX Redwing 715.5 30/19 1.081 13CD 12.36 314 CJ125RXX Cuckoo 795.0 24/7 1.092 12CD 11.56 294 CJ126RXX Drake 795.0 26/7 1.108 12CD 11.56 294 CJ146RXX Mallard 795.0 30/19 1.140 14CD 13.16 334 CJ111RXX Coot 795.0 36/1 1.040 11CD 10.76 273 CJ123RXX Tern 795.0 45/7 1.063 12CD 11.56 294 CJ125RXX Condor 795.0 54/7 1.093 12CD 11.56 294 CJ124RXX Ruddy 900.0 45/7 1.131 12CD 11.56 294 CJ135RXX Canary 900.0 54/7 1.162 13CD 12.36 314 CJ121RXX Catbird 954.0 36/1 1.140 12CD 11.56 294 CJ133RXX Rail 954.0 45/7 1.165 13CD 12.36 314 CJ135RXX Cardinal 954.0 54/7 1.196 13CD 12.36 314 CJ131RXX Tanger 1033.5 36/1 1.186 13CD 12.36 314 CJ134RXX Ortolan 1033.5 45/7 1.212 13CD 12.36 314 CJ145RXX Curlew 1033.5 54/7 1.244 14CD 13.16 334 CJ143RXX Bluejay 1113.0 45/7 1.259 14CD 13.16 334 CJ145RXX Finch 1113.0 54/19 1.293 14CD 13.16 334 CJ144RXX Bunting 1192.5 45/7 1.302 14CD 13.16 334 CJ155RXX Grackle 1192.5 54/19 1.333 15CD 13.96 355 CJ153RXX Bittern 1272.0 45/7 1.345 15CD 13.96 355 CJ155RXX Pheasant 1272.0 54/19 1.382 15CD 13.96 355 CJ154RXX Dipper 1351.5 45/7 1.385 15CD 13.96 355 CJ155RXX Martin 1351.5 54/19 1.424 15CD 13.96 355 CJ163RXX Bobolink 1431.0 45/7 1.427 16CD 14.76 375 CJ165RXX Plover 1431.0 54/19 1.465 16CD 14.76 375 CJ164RXX Nuthatch 1510.5 45/7 1.466 16CD 14.76 375 CJ165RXX Parrot 1510.5 54/19 1.506 16CD 14.76 375 CJ164RXX Lapwing 1590.0 45/7 1.504 16CD 14.76 375 CJ175RXX Falcon 1590.0 54/19 1.545 17CD 15.56 395 CJ174RXX Chukar 1780.0 84/19 1.602 17CD 15.56 395 CJ183RXX — 2034.0 72/7 1.681 18CD 16.36 416 CJ194RXX Bluebird 2156.0 84/19 1.762 19CD 17.16 436 CJ193RXX Kiwi 2167.0 72/7 1.737 19CD 17.16 436 CJ193RXX Thrasher 2312.0 76/19 1.802 19CD 17.16 436 CJ203RXX Joree 2515.0 76/19 1.880 20CD 17.96 456 Quick Compress Replacement Compression Joints for ACSR Conductor, CJR Series (cont.)
