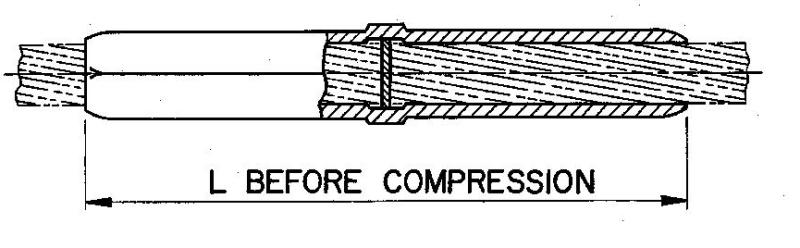

211 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Jumper Connector is designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites The jumper connector is pre-filled, eliminating an installation step Each jumper connector has a center stop, making it easy to center the jumper on the conductor All Quick Compress Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: A jumper connector for 795 Arbutus conductor, the complete catalog number is: JC11 Notes: 1 Installation Instructions for Jumpers are on page 271 2 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Jumper Connector for AAC Conductor, JC Series CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL IN LBS KG IN MM JC07 Peony 300 6 19 0 629 07CD 0 3 0 12 5 6 142 JC07 Tulip 336 4 19 0 666 07CD 0 3 0 12 5 6 142 JC07 Daffodil 350 0 19 0 679 07CD 0 3 0 12 5 6 142 JC08 Canna 397 5 19 0 724 08CD 0 4 0 19 6 4 163 JC09 Goldentuft 450 0 19 0 770 09CD 0 6 0 27 7 2 183 JC09 Cosmos 477 0 19 0 793 09CD 0 6 0 27 7 2 183 JC09 Zinnia 500 0 19 0 811 09CD 0 6 0 27 7 2 183 JC10 Dahlia 556 5 19 0 856 10CD 0 8 0 37 8 0 203 JC10 Meadowsweet 600 0 37 0 891 10CD 0 8 0 37 8 0 203 JC10 Orchid 636 0 37 0 918 10CD 0 8 0 37 8 0 203 JC10 Heuchera 650 0 37 0 928 10CD 0 8 0 37 8 0 203 JC11 Verbena 700 0 37 0 963 11CD 1 1 0 50 8 8 224 JC11 Violet 715 5 37 0 974 11CD 1 1 0 50 8 8 224 JC11 Petunia 750 0 37 0 997 11CD 1 1 0 50 8 8 224 JC11 Arbutus 795 0 37 1 026 11CD 1 1 0 50 8 8 224 JC11 — 800 0 61 1 031 11CD 1 1 0 50 8 8 224 © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 212 Quick Compress ® QuickCompress ® – AAC CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL IN LBS KG IN MM JC12 Cockscomb 900 0 37 1 092 12CD 1 4 0 64 9 6 244 JC12 Magnolia 954 0 37 1 124 12CD 1 4 0 64 9 6 244 JC13 Hawkweed 1000 0 37 1 151 13CD 1 7 0 77 10 4 264 JC13 Bluebell 1033 5 37 1 170 13CD 1 7 0 77 10 4 264 JC13 Marigold 1113 0 61 1 216 13CD 1 7 0 77 10 4 264 JC14 Hawthorn 1192 5 61 1 258 14CD 2 2 1 00 11 2 284 JC14 — 1250 0 91 1 289 14CD 2 2 1 00 11 2 284 JC14 Narcissus 1272 0 61 1 300 14CD 2 2 1 00 11 2 284 JC14 — 1300 0 91 1 315 14CD 2 2 1 00 11 2 284 JC15 Columbine 1351 5 61 1 340 15CD 2 7 1 22 12 0 305 JC15 Carnation 1431 0 61 1 379 15CD 2 7 1 22 12 0 305 JC15 — 1500 0 91 1 412 15CD 2 7 1 22 12 0 305 JC15 Gladiolus 1510 5 61 1 417 15CD 2 7 1 22 12 0 305 JC16 Coreopsis 1590 0 61 1 454 16CD 3 3 1 50 12 8 325 JC17 Jessamine 1750 0 61 1 525 17CD 3 9 1 77 13 6 345 JC18 Cowslip 2000 0 91 1 630 18CD 4 7 2 13 14 4 366 JC19 Sagebrush 2250 0 91 1 729 19CD 5 4 2 45 15 2 386 JC19 — 2300 0 91 1 750 19CD 5 4 2 45 15 2 386 JC20 Lupine 2500 0 91 1 823 20CD 6 4 2 90 16 0 406 Quick Compress Jumper Connector for AAC Conductor, JC Series (cont.)
