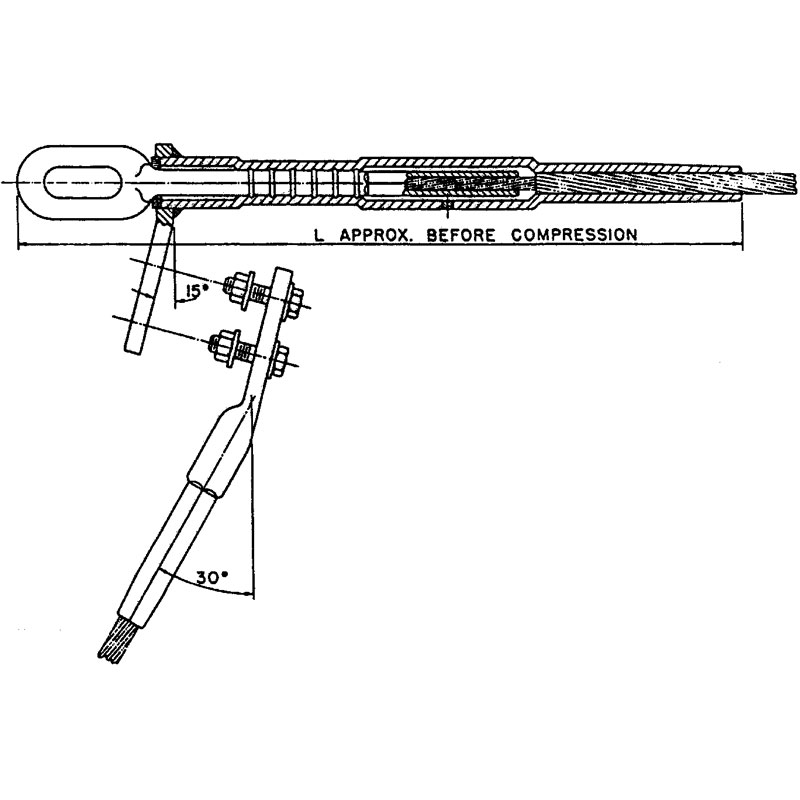

www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 89 AAAC & ACAR ACCESSORIES Standard Compression Compression Dead Ends—33700 Series for AAAC and ACAR Conductors, Eye Type, Single Tongue The 33700 Series Dead End Assembly is specifically designed for AAAC and ACAR conductors. The aluminum body of the dead end is fabricated from AFL seamless drawn aluminum. The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight or 30º position. All dead ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used. Each dead end assembly comes with a dead end body, steel eye, 15º terminal and aluminum hardware. For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Corona bolts are furnished as standard on 15º terminals for these section sizes. The square edges of bolted pads on compression accessories could cause Corona in environments greater than or equal to 345 kV. Pads with edges and corners rounded can be supplied by adding the catalog suffix "EHV". Notes: 1. Eye Dimensions are on page 119. 2. Pad Dimensions are on page 117. 3. AFL Filler Compound (AFC) Requirements are on page 115. 4. Installation Instructions for Dead Ends are on page 133. 5. Installation Instructions for Terminals are on page 131. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. For Standard Finish, leave blank. Step 4: Assemble Catalog Number. Example: For 927.2 Greeley conductor with no terminal, the complete catalog number is: E33714NT Assy Catalog Number Terminal Connector EHV Finish + + www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 90 Standard Compression AAAC & ACAR ACCESSORIES Compression Dead Ends—33700 Series for AAAC and ACAR Conductors, Eye Type, Single Tongue (cont.) DEAD END ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM BODY SINGLE TONGUE STEEL COMPONENT 15º TERMINAL CONNECTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIA. STEEL EYE ALUMINUM HEX DIES LBS KG IN MM KCMIL AL IN E33703 — 155.4 4/3 0.447 7612.484 9000 5112.484 12AH 2.6 1.16 16.0 406 B E33703 Anaheim 155.4 7 0.447 7612.484 9000 5112.484 12AH 2.6 1.16 16.0 406 B E33704 — 195.7 4/3 0.502 7613.542 9000 5113.542 13AH 3.0 1.38 16.0 406 B E33704 Amherst 195.7 7 0.502 7613.542 9000 5113.542 13AH 3.0 1.38 16.0 406 B E33705 — 246.9 4/3 0.563 7613.625 9100 5113.625 13AH 3.0 1.57 17.0 432 B E33705 Alliance 246.9 7 0.563 7613.625 9100 5113.625 13AH 3.0 1.57 17.0 432 B E33707 Butte 312.8 19 0.642 7614.719 9100 5114.719 14AH 4.0 1.81 17.8 451 B E33708 Canton 394.5 19 0.721 7624.781 9200 5124.781 24AH 6.1 2.77 20.3 516 B E33709 Cairo 465.4 19 0.783 7624.875C 9200 5124.875 24AH 5.9 2.68 21.6 548 B E33709 — 503.6 15/4 0.814 7624.875C 9200 5124.875 24AH 5.9 2.68 21.6 548 B E33710 Darlen 559.5 19 0.858 7627.906 9300 5127.906 27AH 8.0 3.63 23.3 591 D E33712 — 634.9 12/7 0.914 7627.100 9200 5127.100 27AH 7.2 3.27 23.3 592 D E33716 — 649.5 18/19 0.928 7627.100C 9300 5127.100 27AH 7.8 3.54 23.3 592 D E33716 — 649.5 24/13 0.928 7627.100C 9300 5127.100 27AH 7.8 3.54 23.3 592 D E33716 — 649.5 30/7 0.928 7627.100C 9300 5127.100 27AH 7.8 3.54 23.3 592 D E33713 Elgin 652.4 19 0.927 7630.109 9300 5130.109 30AH 9.7 4.40 24.8 629 D E33712 — 657.3 15/4 0.930 7627.100 9200 5127.100 27AH 7.2 3.29 23.3 592 D E33713 Flint 740.8 37 0.991 7630.109 9300 5130.109 30AH 9.7 4.40 24.8 629 D E33717 — 853.7 18/19 1.063 7630.116 9300 5130.116 30AH 8.9 4.04 21.6 548 D E33717 — 853.7 24/13 1.063 7630.116 9300 5130.116 30AH 8.9 4.04 21.6 548 D E33717 — 853.7 30/7 1.063 7630.116 9300 5130.116 30AH 8.9 4.04 21.6 548 D E33714 Greeley 927.2 37 1.108 7634.122 9300 5134.122 34AH 11.9 5.40 25.3 641 D E33714 — 927.2 18/19 1.108 7634.122 9300 5134.122 34AH 11.9 5.40 25.3 641 D E33714 — 927.2 24/13 1.108 7634.122 9300 5134.122 34AH 11.9 5.40 25.3 641 D E33714 — 927.2 30/7 1.108 7634.122 9300 5134.122 34AH 11.9 5.40 25.3 641 D E33714 — 1024.5 18/19 1.165 7634.122 9300 5134.122 34AH 11.9 5.40 25.3 641 D E33714 — 1024.5 24/13 1.165 7634.122 9300 5134.122 34AH 11.9 5.40 25.3 641 D E33714 — 1024.5 30/7 1.165 7634.122 9300 5134.122 34AH 11.9 5.40 25.3 641 D E33715 — 1080.6 18/19 1.196 7634.128 9400 5134.128 34AH 12.8 5.81 27.0 686 D E33715 — 1080.6 24/13 1.196 7634.128 9400 5134.128 34AH 12.8 5.81 27.0 686 D E33715 — 1080.6 30/7 1.196 7634.128 9400 5134.128 34AH 12.8 5.81 27.0 686 D E33715 — 1108.6 24/13 1.212 7634.128 9400 5134.128 34AH 12.8 5.81 27.0 686 D E33715 — 1172.3 18/19 1.246 7634.128 9400 5134.128 34AH 12.8 5.81 27.0 686 D E33715 — 1172.3 24/13 1.246 7634.128 9400 5134.128 34AH 12.8 5.81 27.0 686 D E33723 — 1127.0 42/19 1.222 7638.138 E9500 5138.138 38AH 14.6 6.62 23.9 607 D E33718 — 1534.0 42/19 1.427 7638.150 E9600 5138.150 38AH 14.2 6.44 24.3 617 D E33718 — 1534.0 54/7 1.427 7638.150 E9600 5138.150 38AH 14.2 6.44 24.3 617 D E33719 — 1700.0 42/19 1.502 7640.162 E9600 5140.162 40AH 16.5 7.48 24.3 617 E E33719 — 1700.0 54/7 1.502 7640.162 E9600 5140.162 40AH 16.5 7.48 24.3 617 E E33722 — 1691.0 — 1.498 7644.159 E9700 5144.159 44AH 23.2 10.52 25.6 649 E E33720 — 2303.5 54/37 1.750 7648.184 E9800 5148.184 48AH 26.1 11.83 27.3 694 E E33720 — 2303.5 63/28 1.750 7648.184 E9800 5148.184 48AH 26.1 11.83 27.3 694 E E33720 — 2338.0 42/19 1.762 7648.184 E9800 5148.184 48AH 26.1 11.83 27.3 694 E www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 91 AAAC & ACAR ACCESSORIES Standard Compression Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. For Standard Finish, leave blank. Step 4: Assemble Catalog Number. Example: For 927.2 Greeley conductor with no terminal, the complete catalog number is: E43114NT Compression Dead Ends—43100 Series for AAAC and ACAR Conductors, Eye Type, Double Tongue The 43100 Series Double Tongue Dead End Assembly is specifically designed for AAAC and ACAR conductors. The aluminum body of the dead end is fabricated from AFL seamless drawn aluminum. The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight or 30º position. All dead ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used. Each dead end assembly comes with a dead end body, steel eye, two 15º terminals and aluminum hardware. For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Corona bolts are furnished as standard on 15º terminals for these section sizes. The square edges of bolted pads on compression accessories could cause Corona in environments greater than or equal to 345 kV. Pads with edges and corners rounded can be supplied by adding the catalog suffix "EHV". Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1. Eye Dimensions are on page 119. 2. Pad Dimensions are on page 117. 3. AFL Filler Compound (AFC) Requirements are on page 115. 4. Installation Instructions for Dead Ends are on page 133. 5. Installation Instructions for Terminals are on page 131. www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 92 Standard Compression AAAC & ACAR ACCESSORIES Compression Dead Ends—43100 Series for AAAC and ACAR Conductors, Eye Type, Double Tongue (cont.) DEAD END ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM BODY DOUBLE TONGUE STEEL EYE 15º TERMINAL CONNECTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIA. ALUM. HEX DIES LBS KG IN MM KCMIL AL IN E43103 — 155.4 4/3 0.447 7712.484 9000 5112.484 12AH 2.9 1.30 16.0 406 B E43103 Anaheim 155.4 7 0.447 7712.484 9000 5112.484 12AH 2.9 1.30 16.0 406 B E43104 — 195.7 4/3 0.502 7713.542 9000 5113.542 13AH 3.3 1.51 16.0 406 B E43104 Amherst 195.7 7 0.502 7713.542 9000 5113.542 13AH 3.3 1.51 16.0 406 B E43105 — 246.9 4/3 0.563 7713.625 9100 5113.625 13AH 3.3 1.50 17.0 432 B E43105 Alliance 246.9 7 0.563 7713.625 9100 5113.625 13AH 3.3 1.50 17.0 432 B E43107 Butte 312.8 19 0.642 7714.719 9100 5114.719 14AH 4.5 2.04 17.8 451 B E43108 Canton 394.5 19 0.721 7724.781 9200 5124.781 24AH 6.6 3.00 20.3 516 B E43109 Cario 465.4 19 0.783 7724.875C 9200 5124.875 24AH 6.4 2.91 21.6 548 B E43109 — 503.6 15/4 0.814 7724.875C 9200 5124.875 24AH 6.4 2.91 21.6 548 B E43110 Darien 559.5 19 0.858 7727.906 9300 5127.906 27AH 8.5 3.85 23.3 591 D E43112 — 634.9 12/7 0.914 7727.100 9200 5127.100 27AH 7.7 3.49 23.3 592 D E43112 — 657.3 15/4 0.930 7727.100 9200 5127.100 27AH 7.7 3.51 23.3 592 D E43113 Flint 740.8 37 0.991 7730.109 9300 5130.109 30AH 9.9 4.49 24.8 629 D E43113 Elgin 652.4 19 0.927 7730.109 9300 5130.109 30AH 9.9 4.49 24.8 629 D E43114 Greeley 927.2 37 1.108 7734.122 9300 5134.122 34AH 12.0 5.45 25.3 641 D E43114 — 927.2 18/19 1.108 7734.122 9300 5134.122 34AH 12.0 5.45 25.3 641 D E43114 — 927.2 24/13 1.108 7734.122 9300 5134.122 34AH 12.0 5.45 25.3 641 D E43114 — 927.2 30/7 1.108 7734.122 9300 5134.122 34AH 12.0 5.45 25.3 641 D E43114 — 1024.5 18/19 1.165 7734.122 9300 5134.122 34AH 12.0 5.45 25.3 641 D E43114 — 1024.5 24/13 1.165 7734.122 9300 5134.122 34AH 12.0 5.45 25.3 641 D E43114 — 1024.5 30/7 1.165 7734.122 9300 5134.122 34AH 12.0 5.45 25.3 641 D E43115 — 1080.6 18/19 1.196 7734.128 9400 5134.128 34AH 12.9 5.85 27.0 686 D E43115 — 1080.6 24/13 1.196 7734.128 9400 5134.128 34AH 12.9 5.85 27.0 686 D E43115 — 1080.6 30/7 1.196 7734.128 9400 5134.128 34AH 12.9 5.85 27.0 686 D E43115 — 1108.6 24/13 1.212 7734.128 9400 5134.128 34AH 12.9 5.85 27.0 686 D E43115 — 1172.3 18/19 1.246 7734.128 9400 5134.128 34AH 12.9 5.85 27.0 686 D E43115 — 1172.3 24/13 1.246 7734.128 9400 5134.128 34AH 12.9 5.85 27.0 686 D E43116 — 649.5 18/19 0.928 7727.100C 9300 5127.100 27AH 8.3 3.76 23.3 592 D E43116 — 649.5 24/13 0.928 7727.100C 9300 5127.100 27AH 8.3 3.76 23.3 592 D E43116 — 649.5 30/7 0.928 7727.100C 9300 5127.100 27AH 8.3 3.76 23.3 592 D E43117 — 853.7 24/13 1.063 7730.116 9300 5130.116 30AH 9.1 4.13 21.6 548 D E43117 — 853.7 30/7 1.063 7730.116 9300 5130.116 30AH 9.1 6.13 21.6 548 D E43117 — 853.7 18/19 1.063 7730.116 9300 5130.116 30AH 9.1 6.13 21.6 548 D www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 93 AAAC & ACAR ACCESSORIES Standard Compression Compression Dead Ends—43100 Series for AAAC and ACAR Conductors, Eye Type, Double Tongue (cont.) DEAD END ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM BODY DOUBLE TONGUE STEEL EYE 15º TERMINAL CONNECTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIA. ALUM. HEX DIES LBS KG IN MM KCMIL AL IN E43118 — 1534.0 42/19 1.427 7738.150 E9600 5138.150 38AH 15.3 6.49 24.3 617 D E43118 — 1534.0 54/7 1.427 7738.150 E9600 5138.150 38AH 15.3 6.49 24.3 617 D E43119 — 1700.0 42/19 1.502 7740.162 E9600 5140.162 40AH 18.3 8.30 24.3 617 D E43119 — 1700.0 54/7 1.502 7741.162 E9600 5140.162 40AH 18.3 8.30 24.3 617 E E43120 — 2303.5 54/37 1.750 7748.184 E9800 5148.184 48AH 27.1 12.29 27.3 694 E E43120 — 2303.5 63/28 1.750 7748.184 E9800 5148.184 48AH 27.1 12.29 27.3 694 E E43120 — 2338.0 42/19 1.762 7748.184 E9800 5148.184 48AH 27.1 12.29 27.3 694 E E43120 — 2303.5 — 1.750 7748.184 E9800 5148.184 48AH 27.1 12.29 27.3 694 E E43120 — 2303.5 — 1.750 7748.184 E9800 5148.184 48AH 27.1 12.29 27.3 694 E E43120 — 2338.0 — 1.762 7748.184 E9800 5148.184 48AH 27.1 12.29 27.3 694 E E43122 — 1691.0 — 1.498 7744.159 E9700 5144.159 44AH 23.6 10.71 25.6 649 E E43122 — 1691.0 — 1.498 7744.159 E9700 5144.159 44AH 23.6 10.71 25.6 649 E E43123 — 1127.0 42/19 1.222 7738.138 E9500 5138.138 38AH 15.5 7.03 23.9 607 D www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 94 Standard Compression AAAC & ACAR ACCESSORIES Notes: 1. Adjustable Clevis Dimensions are on page 120. 2. Pad Dimensions are on page 117. 3. AFL Filler Compound (AFC) Requirements are on page 115. 4. Installation Instructions for Dead Ends are on page 133. 5. Installation Instructions for Terminals are on page 131. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. For Standard Finish, leave blank. Step 4: Assemble Catalog Number. Example: For 394.5 Canton conductor with no terminal, the complete catalog number is: C43408NT Compression Dead Ends—43400 Series for AAAC and ACAR Conductors, Adjustable Clevis Type, Single Tongue The 43400 Series Adjustable Clevis Dead End Assembly is specifically designed for AAAC and ACAR conductors. The aluminum body of the dead end is fabricated from AFL seamless drawn aluminum. The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight of 30º position. All dead ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used. Each dead end assembly comes with a dead end body, adjustable steel clevis, 15º terminal and aluminum hardware. For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Corona bolts are furnished as standard on 15º terminals for these section sizes. The square edges of bolted pads on compression accessories could cause Corona in environments greater than or equal to 345 kV. Pads with edges and corners rounded can be supplied by adding the catalog suffix "EHV". Assy Catalog Number Terminal Connector EHV Finish + + www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 95 AAAC & ACAR ACCESSORIES Standard Compression Compression Dead Ends—43400 Series for AAAC and ACAR Conductors, Adjustable Clevis Type, Single Tongue (cont.) DEAD END ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM BODY SINGLE TONGUE ADJUSTABLE STEEL CLEVIS 15° TERMINAL CONNECTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIA. ALUMINUM HEX DIES KCMIL AL IN LBS KG IN MM C43408 Canton 394.5 19 0.721 7624.781C C6100 5124.781 24AH 8.2 3.58 27.1 687 B C43409 Cairo 465.4 19 0.783 7624.875 C6100 5124.875 24AH 8.0 3.49 28.4 721 B C43409 — 503.6 15/4 0.814 7624.875 C6100 5124.875 24AH 8.0 3.49 28.4 721 B C43410 Darien 559.5 19 0.858 7627.906C C6200 5127.906 27AH 10.6 4.54 30.0 762 D C43412 — 634.9 12/7 0.914 7627.100 C6200 5127.100 27AH 9.9 4.45 30.2 768 D C43416 — 649.5 18/19 0.928 7627.100C C6200 5127.100 27AH 10.5 4.45 30.2 768 D C43416 — 649.5 24/13 0.928 7627.100C C6200 5127.100 27AH 10.5 4.45 30.2 768 D C43416 — 649.5 30/7 0.928 7627.100C C6200 5127.100 27AH 10.5 4.45 30.2 768 D C43413 Elgin 652.4 19 0.927 7630.109C C6300 5130.109 30AH 16.2 6.89 33.2 846 D C43412 — 657.3 15/4 0.930 7627.100 C6200 5127.100 27AH 11.6 4.45 30.2 768 D C43417 — 853.7 18/19 1.063 7630.116 C6300 5130.116 30AH 15.4 6.53 30.6 776 D C43417 — 853.7 24/13 1.063 7630.116 C6300 5130.116 30AH 15.4 6.53 30.6 776 D C43417 — 853.7 30/7 1.063 7630.116 C6300 5130.116 30AH 15.4 6.53 30.6 776 D C43414 — 927.2 18/19 1.106 7634.122C C6400 5134.122 34AH 19.1 8.26 34.6 878 D C43414 — 927.2 24/13 1.106 7634.122C C6400 5134.122 34AH 19.1 8.26 34.6 878 D C43414 — 927.2 30/7 1.106 7634.122C C6400 5134.122 34AH 19.1 8.26 34.6 878 D C43414 — 1024.5 18/19 1.165 7634.122C C6400 5134.122 34AH 18.1 8.26 34.6 878 D C43414 — 1024.5 24/13 1.165 7634.122C C6400 5134.122 34AH 18.1 8.26 34.6 878 D C43414 — 1024.5 30/7 1.165 7634.122C C6400 5134.122 34AH 18.1 8.26 34.6 878 D C43415 — 1080.6 18/19 1.196 7634.128 C6400 5134.128 34AH 19.3 8.35 36.2 919 D C43415 — 1080.6 24/13 1.196 7634.128 C6400 5134.128 34AH 19.3 8.35 36.2 919 D C43415 — 1080.6 30/7 1.196 7634.128 C6400 5134.128 34AH 19.3 8.35 36.2 919 D C43415 — 1108.6 24/13 1.212 7634.128 C6400 5134.128 34AH 20.1 8.35 36.2 919 D C43415 — 1172.3 18/19 1.246 7634.128 C6400 5134.128 34AH 16.9 8.35 36.2 919 D C43415 — 1172.3 24/13 1.246 7634.128 C6400 5134.128 34AH 16.9 8.35 36.2 919 D C43418 — 1534.0 42/19 1.427 7638.150 C6500 5138.150 38AH 17.3 9.03 33.4 848 D C43418 — 1534.0 54/7 1.427 7638.150 C6500 5138.150 38AH 17.3 9.03 33.4 848 D C43419 — 1700.0 42/19 1.502 7640.162 C6600 5140.162 40AH 22.7 11.84 35.9 913 E C43419 — 1700.0 54/7 1.502 7640.162 C6600 5140.162 40AH 22.7 11.84 35.9 913 E www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 96 Standard Compression AAAC & ACAR ACCESSORIES Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT'. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. For Standard Finish, leave blank. Step 4: Assemble Catalog Number. Example: For 652.4 Elgin conductor with no terminal and EHV finish, the complete catalog number is: C43513NTEHV Compression Dead Ends—43500 Series for AAAC and ACAR Conductors, Adjustable Clevis Type, Double Tongue The 43500 Series Adjustable Clevis Dead End assembly is specifically designed for AAAC and ACAR conductors. The aluminum body of the dead end is fabricated from AFL seamless drawn aluminum. The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight of 30º position. All dead ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used. Each dead end assembly comes with a dead end body, adjustable steel clevis, two 15º terminals and aluminum hardware. For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Corona bolts are furnished as standard on 15º terminals for these section sizes. The square edges of bolted pads on compression accessories could cause Corona in environments greater than or equal to 345 kV. Pads with edges and corners rounded can be supplied by adding the catalog suffix "EHV". Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1. Adjustable Clevis Dimensions are on page 120. 2. Pad Dimensions are on page 117. 3. AFL Filler Compound (AFC) Requirements are on page 115. 4. Installation Instructions for Dead Ends are on page 133. 5. Installation Instructions for Terminals are on page 131. www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 97 AAAC & ACAR ACCESSORIES Standard Compression Compression Dead Ends—43500 Series for AAAC and ACAR Conductors, Adjustable Clevis Type, Double Tongue (cont.) DEAD END ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM BODY DOUBLE TONGUE ADJUSTABLE STEEL CLEVIS 15° TERMINAL CONNECTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE STRANDING DIA. ALUMINUM HEX DIES KCMIL AL IN LBS KG IN MM C43508 Canton 394.5 19 0.721 7724.781C C6100 5124.781 24AH 8.7 3.81 27.1 687 B C43509 Cairo 465.4 19 0.783 7724.875 C6100 5124.875 24AH 8.5 3.72 28.4 721 B C43509 — 503.6 15/4 0.814 7724.875 C6100 5124.875 24AH 8.5 3.72 28.4 721 B C43510 Darien 559.5 19 0.858 7727.906C C6200 5127.906 27AH 11.1 4.76 30.0 762 D C43512 — 634.9 12/7 0.914 7727.100 C6200 5127.100 27AH 10.3 4.67 30.2 768 D C43516 — 649.5 18/19 0.928 7727.100C C6200 5127.100 27AH 11.0 4.67 30.3 768 D C43516 — 649.5 24/13 0.928 7727.100C C6200 5127.100 27AH 11.0 4.67 30.3 768 D C43516 — 649.5 30/7 0.928 7727.100C C6200 5127.100 27AH 11.0 4.67 30.3 768 D C43513 Elgin 652.4 19 0.927 7730.109C C6300 5130.109 30AH 16.4 6.98 33.3 846 D C43512 — 657.3 15/4 0.930 7727.100 C6200 5127.100 27AH 12.1 4.67 30.3 768 D C43517 — 853.7 18/19 1.063 7730.116 C6300 5130.116 30AH 15.6 6.62 30.6 776 D C43517 — 853.7 24/13 1.063 7730.116 C6300 5130.116 30AH 15.6 6.62 30.6 776 D C43517 — 853.7 30/7 1.063 7730.116 C6300 5130.116 30AH 15.6 6.62 30.6 776 D C43514 — 927.2 18/19 1.106 7734.122C C6400 5134.122 34AH 18.2 8.31 34.6 878 D C43514 — 927.2 24/13 1.106 7734.122C C6400 5134.122 34AH 18.2 8.31 34.6 878 D C43514 — 927.2 30/7 1.106 7734.122C C6400 5134.122 34AH 18.2 8.31 34.6 878 D C43514 — 1024.5 18/19 1.165 7734.122C C6400 5134.122 34AH 18.2 8.31 34.6 878 D C43514 — 1024.5 24/13 1.165 7734.122C C6400 5134.122 34AH 18.2 8.31 34.6 878 D C43514 — 1024.5 30/7 1.165 7734.122C C6400 5134.122 34AH 18.2 8.31 34.6 878 D C43515 — 1080.6 18/19 1.196 7734.128 C6400 5134.128 34AH 19.4 8.39 36.2 919 D C43515 — 1080.6 24/13 1.196 7734.128 C6400 5134.128 34AH 19.4 8.39 36.2 919 D C43515 — 1080.6 30/7 1.196 7734.128 C6400 5134.128 34AH 19.4 8.39 36.2 919 D C43515 — 1108.6 24/13 1.212 7734.128 C6400 5134.128 34AH 20.2 8.39 36.2 919 D C43515 — 1172.3 18/19 1.246 7734.128 C6400 5134.128 34AH 20.2 8.39 36.2 919 D C43515 — 1172.3 24/13 1.246 7734.128 C6400 5134.128 34AH 20.2 8.39 36.2 919 D C43515 — 1534.0 42/19 1.427 7734.128 C6400 5134.128 34AH 17.0 8.39 36.2 919 D C43518 — 1534.0 54/7 1.427 7738.150 C6500 5138.150 38AH 17.4 9.08 33.4 848 D C43518 — 1700.0 42/19 1.502 7738.150 C6500 5138.150 38AH 17.4 9.08 33.4 848 D C43519 — 1700.0 54/7 1.502 7740.162 C6600 5140.162 40AH 24.5 12.66 35.9 913 E www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 98 Standard Compression AAAC & ACAR ACCESSORIES Compression Joints – Jiffy Joints—7500 Series for AAAC and ACAR Conductors Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Example: For 312.8 Butte conductor, the complete catalog number is: 7514.719 Notes: 1. Joint are prefilled at factory. 2. Installation Instructions for Joints are on page 139. JOINT CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT COLOR CODE DIMENSION L CODE NAME SIZE DIA. ALUMINUM HEX DIES KCMIL IN LBS KG IN MM 7506.250 Akron 30.58 0.198 06AH 0.2 0.08 Blue 10.5 267 7506.298 Alton 48.69 0.250 06AH 0.2 0.08 Orange 12.0 305 7509.375 Ames 77.47 0.316 09AH 0.3 0.15 Red 12.0 305 7511.453 Azuza 123.3 0.398 11AH 0.6 0.28 Yellow 14.0 356 7512.484 Anaheim 155.4 0.447 12AH 0.8 0.37 Gray 14.0 356 7513.542 Amherst 195.7 0.502 13AH 1.1 0.50 Black 14.0 356 7513.625 Alliance 246.9 0.563 13AH 1.1 0.50 Pink 16.0 406 7513.688 — 281.4 0.609 13AH 1.0 0.45 Clear 16.0 406 7514.719 Butte 312.8 0.642 14AH 1.6 0.73 Clear 15.6 395 7514.719 — 355.1 0.684 14AH 1.6 0.73 Clear 15.6 395 7524.781 Canton 394.5 0.721 24AH 2.8 1.27 Clear 19.6 497 7524.781 — 419.6 0.743 24AH 2.8 1.27 Clear 19.6 497 7524.875 Cairo 465.4 0.783 24AH 2.8 1.27 Clear 22.1 560 7524.875 — 503.6 0.814 24AH 2.8 1.27 Clear 22.1 560 7527.906 Darien 559.5 0.858 27AH 3.6 1.63 Clear 24.5 622 7527.906 — 561.1 0.862 27AH 3.6 1.63 Clear 24.5 622 7527.938 — 587.2 0.879 27AH 3.6 1.63 Clear 25.0 635 7530.109 Elgin 652.4 0.927 30AH 4.6 2.09 Clear 27.5 699 7530.109 Flint 740.8 0.991 30AH 4.6 2.09 Clear 27.5 699 7534.122 Greeley 927.2 1.108 34AH 6.2 2.81 Clear 28.5 724 The 7500 Series Compression Joint (Jiffy Joint) is designed for AAAC and ACAR conductors. The aluminum body is fabricated from AFL seamless drawn aluminum. The compression joint is a single piece unit without a steel sleeve and comes prefilled with AFL Filler Compound (AFC). All compression joints are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used. For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 99 AAAC & ACAR ACCESSORIES Standard Compression Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Example: For 652.4 Elgin conductor, the complete catalog number is: 5224.3 Repair Sleeves—5200 Series for AAAC and ACAR Conductors The 5200 Series Repair Sleeve is designed for AAAC and ACAR conductors. The repair sleeve incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed. The repair sleeve will restore 95% of the rated strength of the conductor with up to one-third of the aluminum strands damaged. REPAIR SLEEVE AFL NO. CONDUCTOR DIE SIZE WEIGHT DIMENSION L CODE NAME SIZE STRANDING DIA. ALUMINUM HEX DIE KCMIL AL IN LBS KG IN MM 5274 — 155.4 4/3 0.447 74AH 0.2 0.10 7.6 175 5274 Anaheim 155.4 7 0.447 74AH 0.2 0.10 7.6 175 5275 — 195.7 4/3 0.502 75AH 0.4 0.18 8.6 217 5275 Amherst 195.7 7 0.502 75AH 0.4 0.18 8.6 217 5275 — 246.9 4/3 0.563 75AH 0.4 0.18 8.6 217 5275 Alliance 246.9 7 0.563 75AH 0.4 0.18 8.6 217 5276 Butte 312.8 19 0.642 76AH 0.7 0.30 10.0 254 5220.3 Canton 394.5 19 0.721 20AH 1.0 0.45 14.5 368 5220.3 Cairo 465.4 19 0.783 20AH 1.0 0.45 14.5 368 5220.3 — 503.6 15/4 0.814 20AH 1.0 0.45 14.5 368 5224.3 Darlen 559.5 19 0.858 24AH 1.7 0.77 15.5 394 5224.3 — 634.9 12/7 0.914 24AH 1.7 0.77 15.5 394 5224.3 — 649.5 18/19 0.928 24AH 1.7 0.77 15.5 394 5224.3 — 649.5 24/13 0.928 24AH 1.7 0.77 15.5 394 5224.3 — 649.5 30/7 0.928 24AH 1.7 0.77 15.5 394 5224.3 Elgin 652.4 19 0.927 24AH 1.7 0.77 15.5 394 Notes: 1. AFL Filler Compound (AFC) Requirements are on page 115. 2. Installation Instructions for Repair Sleeves are on page 142. www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 100 Standard Compression AAAC & ACAR ACCESSORIES REPAIR SLEEVE AFL NO. CONDUCTOR DIE SIZE WEIGHT DIMENSION L CODE NAME SIZE STRANDING DIA. ALUMINUM HEX DIE KCMIL AL IN LBS KG IN MM 5224.3 — 657.3 15/4 0.930 24AH 1.7 0.77 15.5 394 5227.3 Flint 740.8 37 0.991 27AH 2.6 1.18 18.3 464 5230.3 — 853.7 18/19 1.063 30AH 3.0 1.36 19.1 486 5230.3 — 853.7 24/13 1.063 30AH 3.0 1.36 19.1 486 5230.3 — 853.7 30/7 1.063 30AH 3.0 1.36 19.1 486 5230.3 Greeley 927.2 37 1.108 30AH 3.0 1.36 19.1 486 5230.3 — 927.2 18/19 1.108 30AH 3.0 1.36 19.1 486 5230.3 — 927.2 24/13 1.108 30AH 3.0 1.36 19.1 486 5230.3 — 927.2 30/7 1.108 30AH 3.0 1.36 19.1 486 5230.3 — 1024.5 18/19 1.165 30AH 3.0 1.36 19.1 486 5230.3 — 1024.5 24/13 1.165 30AH 3.0 1.36 19.1 486 5230.3 — 1024.5 30/7 1.165 30AH 3.0 1.36 19.1 486 5230.3 — 1080.6 18/19 1.196 30AH 3.0 1.36 19.1 486 5230.3 — 1080.6 24/13 1.196 30AH 3.0 1.36 19.1 486 5230.3 — 1080.6 30/7 1.196 30AH 3.0 1.36 19.1 486 5234.3 — 1108.6 24/13 1.212 34AH 4.2 1.91 20.1 511 5234.3 — 1172.3 18/19 1.246 34AH 4.2 1.91 20.1 511 5234.3 — 1172.3 24/13 1.246 34AH 4.2 1.91 20.1 511 5234.3 — 1127.0 42/19 1.222 34AH 4.2 1.91 20.1 511 5238.3 — 1534.0 42/19 1.427 38AH 5.2 2.36 21.9 556 5238.3 — 1534.0 54/7 1.427 38AH 5.2 2.36 21.9 556 5240.3 — 1700.0 42/19 1.502 40AH 6.1 2.77 22.8 578 5240.3 — 1700.0 54/7 1.502 40AH 6.1 2.77 22.8 578 5240.3 — 1691.0 1.498 40AH 6.1 2.77 22.8 578 5244.3 — 2303.5 54/37 1.750 44AH 8.7 3.95 24.5 622 5244.3 — 2303.5 63/28 1.750 44AH 8.7 3.95 24.5 622 5244.3 — 2338.0 42/19 1.762 44AH 8.7 3.95 24.5 622 Repair Sleeves—5200 Series for AAAC and ACAR Conductors (cont.) www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 101 AAAC & ACAR ACCESSORIES Standard Compression Terminal Connectors—5100 Series for AAAC and ACAR Conductors, 15º The 5100 Series 15º Terminal Connector is designed for AAAC and ACAR conductors. The terminal connector is fabricated from AFL seamless drawn aluminum. When used with the dead end, the 15º terminal connector can be bolted in either the straight or 30º position. All terminal connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor on which it is being used. Aluminum hardware is supplied with the 15º terminal connector. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. For Standard Finish, leave blank. Step 3: Assemble Catalog Number. Example: For 927.2 Greeley conductor with an EHV finish, the complete catalog number is: 5134.122EHV Assy Catalog Number EHV Finish + Notes: 1. Pad Dimensions are on page 117. 2. AFL Filler Compound (AFC) Requirements are on page 115. 3. Installation Instructions for Terminals are on page 131. 4. Supplied with aluminum hardware. TERMINAL CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIA. L A AB KCMIL IN LBS KG IN MM IN MM IN MM 5112.484 — 155.4 4/3 0.447 12AH 0.7 0.32 9.6 244 0.5 13 1.0 25 B 5112.484 Anaheim 155.4 7 0.447 12AH 0.7 0.32 9.6 244 0.5 13 1.0 25 B 5113.542 — 195.7 4/3 0.502 13AH 0.9 0.40 10.8 273 0.5 13 1.3 32 B 5113.542 Amherst 195.7 7 0.502 13AH 0.9 0.40 10.8 273 0.5 13 1.3 32 B 5113.625 — 246.9 4/3 0.563 13AH 0.9 0.39 11.2 284 0.4 11 1.3 32 B 5113.625 Alliance 246.9 7 0.563 13AH 0.9 0.39 11.2 284 0.4 11 1.3 32 B 5114.719 Butte 312.8 19 0.642 14AH 1.0 0.45 10.8 275 0.5 12 1.3 32 B 5124.781 Canton 394.5 19 0.721 24AH 1.8 0.82 12.4 314 0.7 18 1.5 38 B 5124.875 Cairo 465.4 19 0.783 24AH 1.6 0.73 12.6 319 0.6 16 1.5 38 B 5124.875 — 503.6 15/4 0.814 24AH 1.6 0.73 12.6 319 0.6 16 1.5 38 B www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00764, Revision 4, 1.22.19 Specifications are subject to change without notice. 102 Standard Compression AAAC & ACAR ACCESSORIES TERMINAL CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIA. L A AB KCMIL IN LBS KG IN MM IN MM IN MM 5127.906 Darien 559.5 19 0.858 27AH 2.1 0.95 12.3 313 0.4 10 3.0 76 D 5127.100 — 634.9 12/7 0.914 27AH 1.9 0.86 12.3 313 0.4 10 3.0 76 D 5127.100 — 649.5 18/19 0.928 27AH 1.9 0.86 12.3 313 0.4 10 3.0 76 D 5127.100 — 649.5 24/13 0.928 27AH 1.9 0.86 12.3 313 0.4 10 3.0 76 D 5127.100 — 649.5 30/7 0.928 27AH 1.9 0.86 12.3 313 0.4 10 3.0 76 D 5130.109 Elgin 652.4 19 0.927 30AH 2.7 1.23 13.6 346 0.5 13 3.0 76 D 5127.100 — 657.3 15/4 0.930 27AH 1.9 0.86 12.3 313 0.4 10 3.0 76 D 5130.109 Flint 740.8 37 0.991 30AH 2.7 1.23 13.6 346 0.5 13 3.0 76 D 5130.116 — 853.7 18/19 1.063 30AH 2.6 1.18 13.9 354 0.5 12 3.0 76 D 5130.116 — 853.7 24/13 1.063 30AH 2.6 1.18 13.9 354 0.5 12 3.0 76 D 5130.116 — 853.7 30/7 1.063 30AH 2.6 1.18 13.9 354 0.5 12 3.0 76 D 5134.122 Greeley 927.2 37 1.108 34AH 3.7 1.68 14.1 359 0.7 18 3.0 76 D 5134.122 — 927.2 18/19 1.108 34AH 3.7 1.68 14.1 359 0.7 18 3.0 76 D 5134.122 — 927.2 24/13 1.108 34AH 3.7 1.68 14.1 359 0.7 18 3.0 76 D 5134.122 — 927.2 30/7 1.108 34AH 3.7 1.68 14.1 359 0.7 18 3.0 76 D 5134.122 — 1024.5 18/19 1.165 34AH 3.7 1.68 14.1 359 0.7 18 3.0 76 D 5134.122 — 1024.5 24/13 1.165 34AH 3.7 1.68 14.1 359 0.7 18 3.0 76 D 5134.122 — 1024.5 30/7 1.165 34AH 3.7 1.68 14.1 359 0.7 18 3.0 76 D 5134.128 — 1080.6 18/19 1.196 34AH 3.6 1.64 14.3 363 0.6 16 3.0 76 D 5134.128 — 1080.6 24/13 1.196 34AH 3.6 1.64 14.3 363 0.6 16 3.0 76 D 5134.128 — 1080.6 30/7 1.196 34AH 3.6 1.64 14.3 363 0.6 16 3.0 76 D 5138.138 — 1127.0 42/19 1.222 34AH 3.4 1.55 14.6 370 0.6 15 3.0 76 D 5134.128 — 1172.3 18/19 1.246 34AH 3.6 1.64 14.3 363 0.6 16 3.0 76 D 5134.128 — 1172.3 24/13 1.246 34AH 3.6 1.64 14.3 363 0.6 16 3.0 76 D 5134.128 — 1180.6 24/13 1.212 34AH 3.6 1.64 14.3 363 0.6 16 3.0 76 D 5138.150 — 1534.0 42/19 1.427 38AH 4.5 2.05 15.8 400 0.8 20 3.0 76 D 5138.150 — 1534.0 54/7 1.427 38AH 4.5 2.05 15.8 400 0.8 20 3.0 76 D 5144.159 — 1691.0 -- 1.498 44AH 7.4 3.36 18.0 457 0.8 20 4.0 102 E 5140.162 — 1700.0 42/19 1.502 40AH 5.3 2.41 17.4 443 0.7 18 4.0 102 E 5140.162 — 1700.0 54/7 1.502 40AH 5.3 2.41 17.4 443 0.7 18 4.0 102 E 5148.184 — 2303.5 54/37 1.750 48AH 9.0 4.09 20.0 508 0.9 22 4.0 102 E 5148.184 — 2303.5 63/28 1.750 48AH 9.0 4.09 20.0 508 0.9 22 4.0 102 E 5148.184 — 2338.0 42/19 1.762 48AH 9.0 4.09 20.0 508 0.9 22 4.0 102 E Terminal Connectors—5100 Series for AAAC and ACAR Conductors, 15º (cont.)
