AFL's Standard Compression Joints are designed for AAC conductors. The aluminum body of the dead end is fabricated from AFL seamless drawn aluminum.
dc6391443a6048128573f9da2acf7eaf
www.AFLglobal.com or 800-866-7385 Standard Compression © 2004, AFL, all rights reserved. PP-3-00765, Revision 1, 7.18.12 Specifications are subject to change without notice. 69 AAC ACCESSORIES Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 795 Arbutus Conductor, the complete catalog number is: 7030.109 Compression Joints—7000 Series for AAC Conductors The 7000 Series Compression Joint is specifically designed for AAC conductors The aluminum joint is fabricated from AFL seamless drawn aluminum All compression joints are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Notes: 1 AFL Filler Compound (AFC) Requirements are on page 115 2 Installation Instructions for Joints are on page 137 ALUMINUM JOINT CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT DIMENSION L CODE WORD AWG OR KCMIL STRANDING DIA. ALUMINUM HEX DIE AL IN LBS KG IN MM 7071 219 Peachbell 6 7 0 184 71AH 0 1 0 02 4 5 114 7071 250 Rose 4 7 0 232 71AH 0 1 0 02 5 0 127 7072 312 Iris 2 7 0 292 72AH 0 1 0 06 6 6 168 7073 391 Poppy 1/0 7 0 368 73AH 0 2 0 07 8 4 213 7074 438 Aster 2/0 7 0 414 74AH 0 4 0 17 10 1 257 7074 484 Phlox 3/0 7 0 464 74AH 0 4 0 16 10 1 257 7075 547 Oxlip 4/0 7 0 522 75AH 0 6 0 29 11 9 302 7075 609 Valerian 250 0 19 0 575 75AH 0 6 0 26 11 9 302 7075 609 Laurel 266 8 19 0 593 75AH 0 6 0 26 11 9 302 7076 656 Peony 300 0 19 0 629 76AH 1 0 0 45 15 1 384 7076 688 Tulip 336 4 19 0 666 76AH 1 0 0 44 15 1 384 7020 719 Daffodil 350 0 19 0 681 20AH 1 2 0 54 15 0 381 7076 750 Canna 397 5 19 0 724 76AH 0 9 0 40 15 1 384 7020 812 Goldentuft 450 0 19 0 772 20AH 1 0 0 45 15 0 381 7020 812 Yarrow 450 0 37 0 772 20AH 1 0 0 45 15 0 381 7020 812 Cosmos 477 0 19 0 793 20AH 1 0 0 45 15 0 381 7024 875 Syringa 477 0 37 0 795 24AH 1 8 0 82 16 0 406 7024 875 Zinna 500 0 19 0 811 24AH 1 8 0 82 16 0 406
www.AFLglobal.com or 800-866-7385 Standard Compression © 2004, AFL, all rights reserved. PP-3-00765, Revision 1, 7.18.12 Specifications are subject to change without notice. 70 AAC ACCESSORIES ALUMINUM JOINT CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT DIMENSION L CODE WORD AWG OR KCMIL STRANDING DIA. ALUMINUM HEX DIE AL IN LBS KG IN MM 7024 875 Hyacinth 500 0 37 0 813 24AH 1 8 0 82 16 0 406 7024 938 Dahlia 556 5 19 0 856 24AH 1 6 0 73 16 0 406 7024 938 Mistletoe 556 5 37 0 858 24AH 1 6 0 73 16 0 406 7024 938 Meadowsweet 600 0 37 0 891 24AH 1 6 0 73 16 0 406 7024 969 Orchid 636 0 37 0 918 24AH 1 5 0 68 16 0 406 7024 969 Heuchera 650 0 37 0 928 24AH 1 5 0 68 16 0 406 7027 100 Flag 700 0 61 0 964 27AH 2 7 1 22 20 0 508 7027 106 Violet 715 5 37 0 974 27AH 2 5 1 13 20 0 508 7027 106 Nasurtium 715 5 61 0 975 27AH 2 5 1 13 20 0 508 7027 106 Petunia 750 0 37 0 997 27AH 2 5 1 13 20 0 508 7027 106 Cattail 750 0 61 0 998 27AH 2 5 1 13 20 0 508 7030 109 Arbutus 795 0 37 1 026 30AH 3 5 1 59 20 0 508 7030 109 Lilac 795 0 61 1 028 30AH 3 5 1 59 20 0 508 7030 109 — 800 0 37 1 031 30AH 3 5 1 59 20 0 508 7030 109 Heliotrope 800 0 61 1 031 30AH 3 5 1 59 20 0 508 7030 116 Snapdragon 900 0 61 1 094 30AH 3 4 1 54 22 0 559 7030 122 Magnolia 954 0 37 1 124 30AH 3 5 1 59 24 5 622 7030 122 Goldenrod 954 0 61 1 126 30AH 3 5 1 59 24 5 622 7030 122 Camellia 1000 0 61 1 152 30AH 3 5 1 59 24 5 622 7030 122 Bluebell 1033 5 37 1 170 30AH 3 5 1 59 24 5 622 7030 122 Larkspur 1033 5 61 1 172 30AH 3 5 1 59 24 5 622 7034 128 Marigold 1113 0 61 1 216 34AH 5 4 2 45 24 0 610 7034 134 Hawthorn 1192 5 61 1 258 34AH 5 3 2 40 25 0 635 7034 134 Narcissus 1272 0 61 1 300 34AH 5 3 2 40 25 0 635 7036 144 Columbine 1351 5 61 1 340 36AH 6 0 2 72 27 0 686 7036 144 Carnation 1431 0 61 1 379 36AH 6 0 2 72 27 0 686 7036 147 — 1500 0 91 1 412 36AH 5 8 2 63 27 0 686 7036 147 Gladiolus 1510 5 61 1 417 36AH 5 8 2 63 27 0 686 7038 156 Coreopsis 1590 0 61 1 454 38AH 6 3 2 86 27 0 686 7038 156 Dogwood 1590 0 91 1 454 38AH 6 3 2 86 27 0 686 7040 162 Jessamine 1750 0 61 1 525 40AH 7 3 3 31 27 0 686 7042 178 Cowslip 2000 0 91 1 630 42AH 8 9 4 04 29 0 737 7044 181 Sagebrush 2250 0 91 1 729 44AH 8 9 4 04 28 4 721 7044 181 — 2300 0 61 1 750 44AH 8 9 4 04 28 4 721 7044 181 — 2300 0 91 1 750 44AH 8 9 4 04 28 4 721 7044 188 Lupine 2500 0 91 1 823 44AH 8 4 3 81 28 4 721 7048 197 Bitterroot 2750 0 91 1 912 48AH 12 7 5 76 33 5 851 Compression Joints—7000 Series for AAC Conductors (cont.)
Features:
- ANSI C119.4 Class A qualified
- Designed for full-tension use; maintaining a minimum of 95% of the ASTM rated strength of the conductor
- Permanent markings for ease of installation and identification
Applications:
- Compression joints for AAC conductors
The 33000 Series Compression Joint Assembly is specifically designed for AAC conductors. The aluminum body is fabricated from AFL seamless drawn aluminum.
All compression joints are designed for full tension use, achieving a minimum of 95% of the ASTM-rated strength of the conductor on which they are used. Each compression joint assembly comes with an aluminum joint and a steel sleeve.
For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
Comealongs and HiTemp Comealongs for ACSR AAC AAAC ACAR ACSS and ACSSTW Conductors,AFL Filler Compound,Alnox Electrical Joint Compound,Alnox UG Electrical Joint Compound,HiTemp® AFL Filler Compound (AFCHT™),HiTemp® AFL Universal Compound (HiTUC),No. 2 Electrical Joint Compound,HiTemp® Compression Dead Ends for ACSS Conductors,HiTemp® Compression Dead Ends for ACSS/TW Conductors,HiTemp® Compression Joints for ACSS Conductors,HiTemp® Compression Joints for ACSS/TW Conductors,HiTemp® Compression Jumper for ACSS Conductors,HiTemp® Compression Jumper for ACSS/TW Conductors,HiTemp® Compression Repair Sleeve for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS/TW Conductors
653
Standard Compression Joints for AAC Conductors
Close
Standard Compression Joints for AAC Conductors
Features:
- ANSI C119.4 Class A qualified
- Designed for full-tension use; maintaining a minimum of 95% of the ASTM rated strength of the conductor
- Permanent markings for ease of installation and identification
Applications:
- Compression joints for AAC conductors

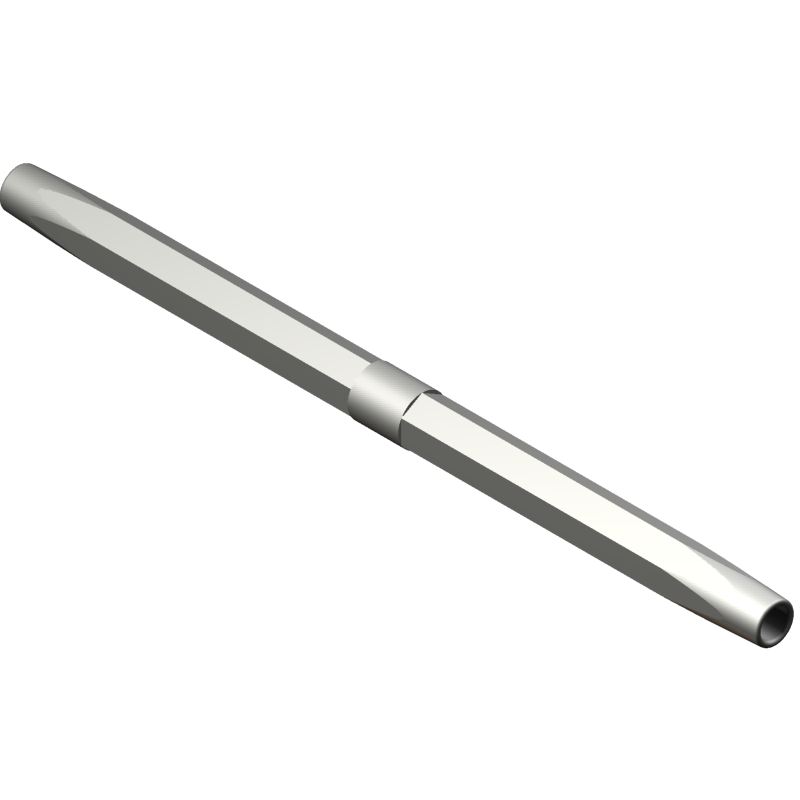

PRODUCT DESCRIPTION
The 33000 Series Compression Joint Assembly is specifically designed for AAC conductors. The aluminum body is fabricated from AFL seamless drawn aluminum.
All compression joints are designed for full tension use, achieving a minimum of 95% of the ASTM-rated strength of the conductor on which they are used. Each compression joint assembly comes with an aluminum joint and a steel sleeve.
For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
