The 5500 Series Tee Connector is a permanent drop designed for ACSR conductors. The tee connector is fabricated from AFL seamless drawn aluminum.
dc6391443a6048128573f9da2acf7eaf

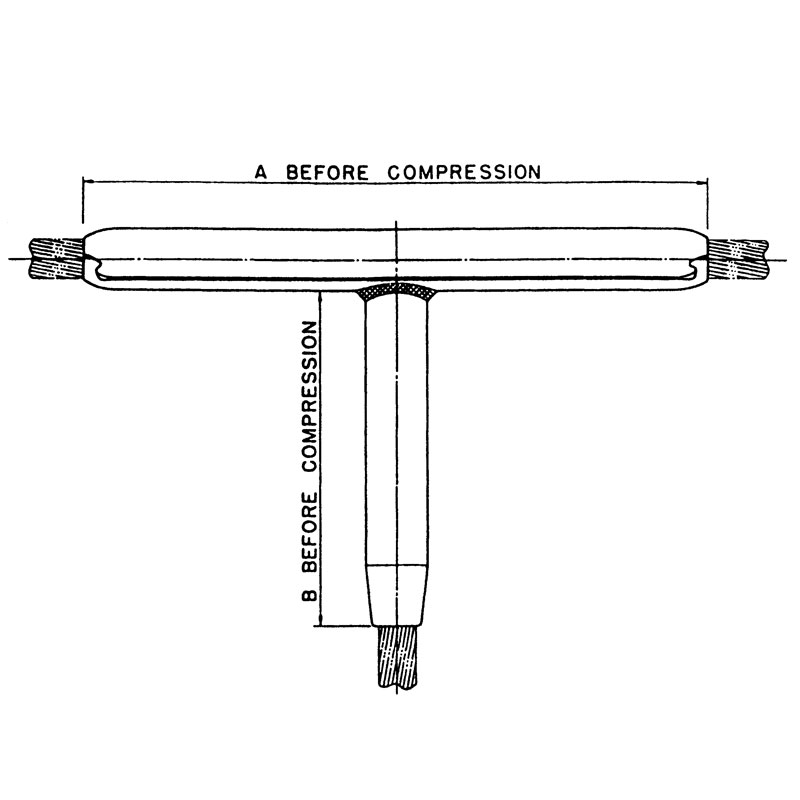

www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. 46 Standard Compression ACSR ACCESSORIES Tee Connector—5500 Series for ACSR Conductors, Open Run The 5500 Series Tee Connector is a permanent drop designed for ACSR conductors The tee connector is fabricated from AFL seamless drawn aluminum The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed The branch portion of the tee connector is designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor on which it is being used For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Ordering Instructions Step 1: Determine Run Catalog Number Determine the run catalog number based on the conductor being used Step 2: Determine Branch Catalog Number Determine the branch catalog number based on the conductor being used Step 3: Assemble Catalog Number Example: For 795 Drake Conductor in both Run and Branch, the complete catalog number is: 5530.3 – 30.116 Run Catalog Number + Notes: 1 AFL Filler Compound (AFC) requirements are on page 115 2 Installation Instructions for Open Run Tee Connectors are on page 144 Branch Catalog Number
www.AFLglobal.com or 800-866-7385 47 Standard Compression © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. ACSR ACCESSORIES Tee Connector—5500 Series for ACSR Conductors, Open Run (cont.) CONDUCTOR CATALOG NUMBER DIE SIZE WEIGHT DIMENSIONS CODE WORD SIZE STRANDING DIA. RUN CONDUCTOR BRANCH CONDUC - TOR ALUMINUM HEX DIE RUN BRANCH A B KCMIL AL/ST IN LBS KG LBS KG IN MM IN MM Raven 1/0 6/1 0 398 5574 74 438 74AH 0 2 0 10 0 2 0 09 7 6 192 5 5 140 Quail 2/0 6/1 0 447 5574 74 438 74AH 0 2 0 10 0 2 0 09 7 6 192 5 5 140 Pigeon 3/0 6/1 0 502 5575 75 547 75AH 0 4 0 18 0 3 0 14 8 6 217 6 0 152 Penguin 4/0 6/1 0 563 5575 75 609 75AH 0 4 0 18 0 3 0 14 8 6 217 6 0 152 Waxwing 266 8 18/1 0 609 5576 76 656 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Owl 266 8 6/7 0 633 5576 76 688 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Partridge 266 8 26/7 0 642 5576 76 688 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Ostrich 300 0 26/7 0 680 5576 76 719 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Merlin 336 4 18/1 0 684 5576 76 719 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Linnet 336 4 26/7 0 720 5576 76 781 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Chickadee 397 5 18/1 0 743 5576 76 781 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Linnet 336 4 26/7 0 720 5520 3 20 781 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 194 Oriole 336 4 30/7 0 741 5520 3 20 781 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 194 Chickadee 397 5 18/1 0 743 5520 3 20 781 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 194 Brant 397 5 24/7 0 772 5520 3 20 812 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 194 Ibis 397 5 26/7 0 783 5520 3 20 844 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 194 Lark 397 5 30/7 0 806 5520 3 20 844 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 194 Pelican 477 0 18/1 0 814 5524 3 24 875 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Flicker 477 0 24/7 0 846 5524 3 24 938 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Hawk 477 0 26/7 0 858 5524 3 24 938 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Hen 477 0 30/7 0 883 5524 3 24 938 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Osprey 556 5 18/1 0 879 5524 3 24 938 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Parakeet 556 5 24/7 0 914 5524 3 24 969 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Dove 556 5 26/7 0 927 5524 3 24 969 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Eagle 556 5 30/7 0 953 5527 3 27 100 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Peacock 605 0 24/7 0 953 5527 3 27 100 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Squab 605 0 26/7 0 966 5527 3 27 100 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Teal 605 0 30/19 0 994 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Swift 636 0 36/1 0 930 5527 3 27 100 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Kingbird 636 0 18/1 0 940 5527 3 27 100 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Rook 636 0 24/7 0 977 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Grosbeak 636 0 26/7 0 990 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Egret 636 0 30/19 1 019 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Flamingo 666 6 24/7 1 000 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Stilt 715 5 24/7 1 036 5530 3 30 109 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Starling 715 5 26/7 1 051 5530 3 30 109 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Redwing 715 5 30/19 1 081 5530 3 30 116 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Coot 795 0 36/1 1 040 5530 3 30 109 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240
www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. 48 Standard Compression ACSR ACCESSORIES Tee Connector—5500 Series for ACSR Conductors, Open Run (cont.) CONDUCTOR CATALOG NUMBER DIE SIZE WEIGHT DIMENSIONS CODE WORD SIZE STRANDING DIA. RUN CONDUCTOR BRANCH CONDUC - TOR ALUMINUM HEX DIE RUN BRANCH A B KCMIL AL/ST IN LBS KG LBS KG IN MM IN MM Tern 795 0 45/7 1 063 5530 3 30 116 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Condor 795 0 54/7 1 093 5530 3 30 116 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Drake 795 0 26/7 1 108 5530 3 30 116 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Mallard 795 0 30/19 1 140 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Cuckoo 795 0 24/7 1 092 5530 3 30 116 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Ruddy 900 0 45/7 1 131 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Canary 900 0 54/7 1 162 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Catbird 954 0 36/1 1 140 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Rail 954 0 45/7 1 165 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Cardinal 954 0 54/7 1 196 5530 3 30 125 30AH 3 3 1 50 1 7 0 77 19 1 486 10 1 256 Tanager 1033 5 36/1 1 186 5530 3 30 125 30AH 3 3 1 50 1 7 0 77 19 1 486 10 1 256 0rtolan 1033 5 45/7 1 212 5534 3 34 128 34AH 4 5 2 04 2 2 1 00 20 1 511 10 1 256 Curlew 1033 5 54/7 1 244 5534 3 34 134 34AH 4 5 2 04 2 2 1 00 20 1 511 10 1 256 Bluejay 1113 0 45/7 1 259 5534 3 34 134 34AH 4 5 2 04 2 2 1 00 20 1 511 10 1 256 Bunting 1192 5 45/7 1 302 5534 3 34 138 34AH 4 5 2 04 2 2 1 00 20 1 511 10 1 256 Bittern 1272 0 45/7 1 345 5536 3 36 144 36AH 5 0 2 27 2 5 1 13 21 0 533 10 6 270 Pheasant 1272 0 54/19 1 382 5536 3 36 147 36AH 5 0 2 27 2 5 1 13 21 0 533 10 6 270 Dipper 1351 5 45/7 1 386 5536 3 36 147 36AH 5 0 2 27 2 5 1 13 21 0 533 10 6 270 Martin 1351 5 54/19 1 424 5538 3 38 150 38AH 5 9 2 68 3 0 1 36 21 9 556 11 2 284 Bobolink 1431 0 45/7 1 427 5538 3 38 150 38AH 5 9 2 68 3 0 1 36 21 9 556 11 2 284 Plover 1431 0 54/19 1 465 5538 3 38 156 38AH 5 9 2 68 3 0 1 36 21 9 556 11 2 284 Nuthatch 1510 5 45/7 1 466 5538 3 38 156 38AH 5 9 2 68 3 0 1 36 21 9 556 11 2 284 Parrot 1510 5 54/19 1 506 5540 3 40 162 40AH 6 6 2 99 3 4 1 54 22 8 578 11 8 298 Lapwing 1590 0 45/7 1 504 5540 3 40 162 40AH 6 6 2 99 3 4 1 54 22 8 578 11 8 298 Falcon 1590 0 54/19 1 545 5540 3 40 162 40AH 6 6 2 99 3 4 1 54 22 8 578 11 8 298 Chukar 1780 0 84/19 1 602 5542 3 42 178 42AH 7 7 3 49 3 9 1 77 23 6 600 12 4 314 — 2034 0 72/7 1 681 5544 3 44 175 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 Bluebird 2156 0 84/19 1 762 5544 3 44 184 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 Kiwi 2167 0 72/7 1 737 5544 3 44 181 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 Thrasher 2312 0 76/19 1 802 5544 3 44 188 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 Joree 2515 0 76/19 1 880 5548 3 48 197 48AH 9 1 4 13 5 2 2 36 24 5 622 14 0 356
Features:
- ANSI C119.4 Class A qualified
- Permanent markings for ease of installation and identification
Applications:
- Compression tee connector for ACSR conductors
The 5500 Series Tee Connector is a permanent drop designed for ACSR conductors. The tee connector is fabricated from AFL seamless drawn aluminum.
The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
The branch portion of the tee connector is designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor on which it is being used.
For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
