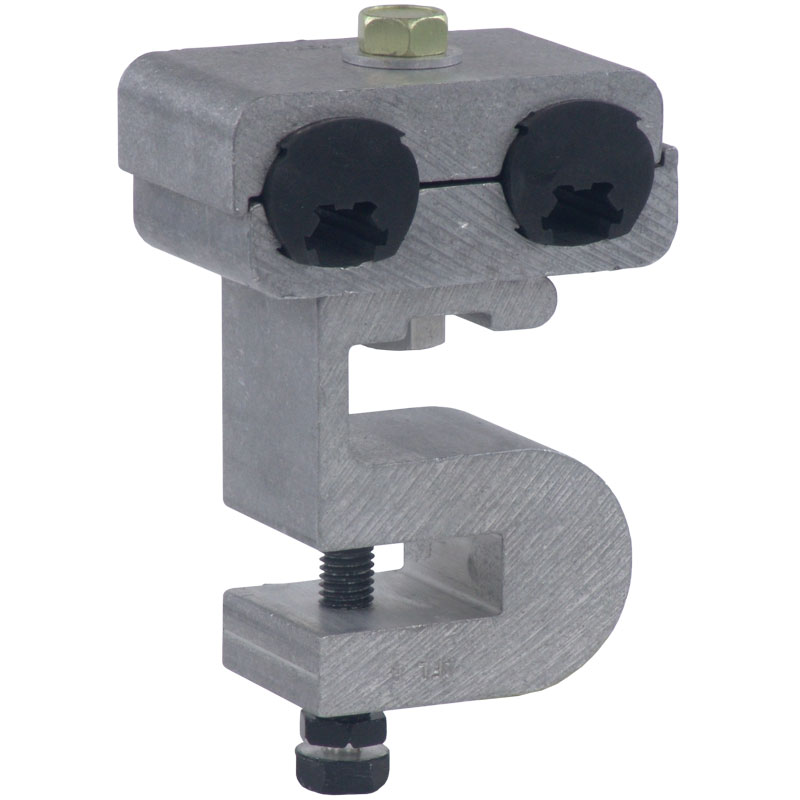

AFL downlead clamps are used to guide ADSS wire from the top of the structure to the splice box.
de002252e39640519d4a8c663f67be99
1 AFLglobal.com 1 ( 800) 235-3423 © 2017, AFL, all rights reserved. PP-3-00822, R evision 5, 6.25.2025 Specifications are subject to change without notice. 1 Fiber O ptic Cable Accessories AGC Series ADSS Downlead Clamp AF L's AGC Series Downlead Clamps are used to guide ADSS Fiber Optic Cable from the top of the structure to the splice location. Our clamps install easily and provide proper spacing and hold strength without damage to the cable. From poles to towers, we offer a full line of ADSS Downlead Clamps to meet the needs of any application. Features • Compressive elastomer material protects cable jacket • Galvanized lag screw, square curved washer and standard round washers included • BABA compliant * For BABA-compliant part number, add "-BABA" to end of part number. Note: Alternative configurations are available. Please contact AFL for additional information. Ordering Information AFL No. Groove Code Cable Diameter (inches) Dimensions (inches) Min. Max. A AGC468468D 468 0.375 0.468 2.75 AGC562562D 562 0.469 0.562 2.75 AGC656656D 656 0.563 0.656 2.75 AGC750750D 750 0.657 0.750 2.75 AGC849849D 849 0.751 0.849 3.00 AGC948948D 948 0.850 0.948 3.00 AGC105105D 105 0.949 1.050 3.00 1.70 A 3.00 AGC Series ADSS Downlead Clamp with galvanized steel hardware BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
Features:
- Slip strength: >100 lbs.
- Lattice adapters provided with break-away bolts for precise torque during installation
- Steel tower guide clamps available with adapters to eliminate the need for drilling
- Banding adapters available
