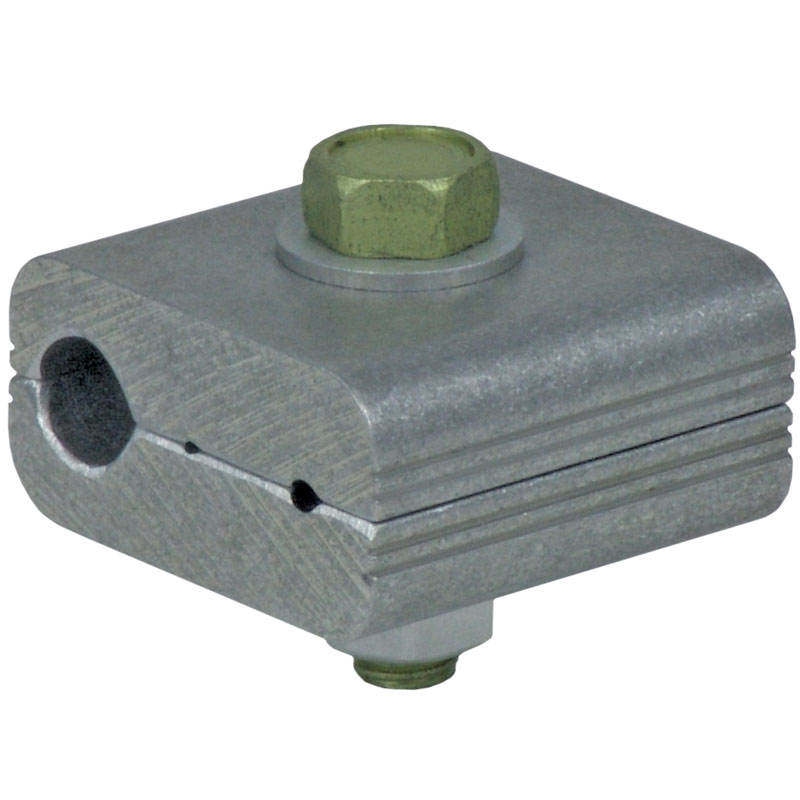

1 FIBER OPTIC CABLE HARDWARE Fiber Optic Cable Hardware © 2008, AFL, all rights reserved. PP-3-00008, Revision 5, 1.6.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Bonding Clamps for OPGW The Bonding Clamp is used to ground OPGW to the tower by attaching to the tower grounding wire. Specific requirements vary from one utility to another. The product is an aluminum extruded parallel groove clamp. The clamp is available with one or two bolts, depending on the application requirements. Features • Hardware is high strength aluminum • Clamp grooves are coated with NO-OX-ID and prefilled with Alnox. • Recommended bolt torque: 25 ft.-lbs. NOTE : F or installation instructions, see page 148. Ordering Information OPGW Run Groove Code Tap Groove Code O BC XX YY # Bonding Clamp Number of Bolts 1 = One Bolt Design 2 = Two Bolt Design 2.31" (58.7 MM) 2.50" (63.5 MM) 1.33" (33.7 MM) .50" DIA. (14 MM) RUN TAP 4.62" (117.3 MM) 2.31" (117.3 MM) Two Bolt Design One Bolt Design GROOVE CODE GROOVE RANGE ( inches ) A1 .112" - .126" B1 .127" - .141" C1 .142" - .156" D1 .157" - .171" E1 .172" - .186" F1 .187" - .201" G1 .202" - .216" H1 .217" - .231" J1 .232" - .246" K1 .247" - .261" L1 .262" - .276" M1 .277" - .291" N1 .292" - .306" P1 .307" - .321" Q1 .322" - .336" R1 .337" - .351" S1 .352" - .366" GROOVE CODE GROOVE RANGE ( inches ) T1 .367" - .381" U1 .382" - .396" V1 .397" - .411" W1 .412" - .424" X1 .425" - .440" Y1 .441" - .454" Z1 .455" - .464" A2 .465" - .480" B2 .481" - .495" C2 .496" - .510" D2 .511" - .525" E2 .526" - .540" F2 .541" - .555" G2 .556" - .570" H2 .571" - .585" J2 .586" - .600" K2 .601" - .615" GROOVE CODE GROOVE RANGE ( inches ) L2 .616" - .630" M2 .631" - .645" N2 .646" - .660" P2 .661" - .675" Q2 .676" - .690" R2 .691" - .705" S2 .706" - .720" T2 .721" - .735" U2 .736" - .750" V2 .751" - .765" W2 .766" - .780" X2 .781" - .795" Y2 .796" - .810" Z2 .811" - .825" A3 .826" - .840" B3 .841" - .855" Specifications
