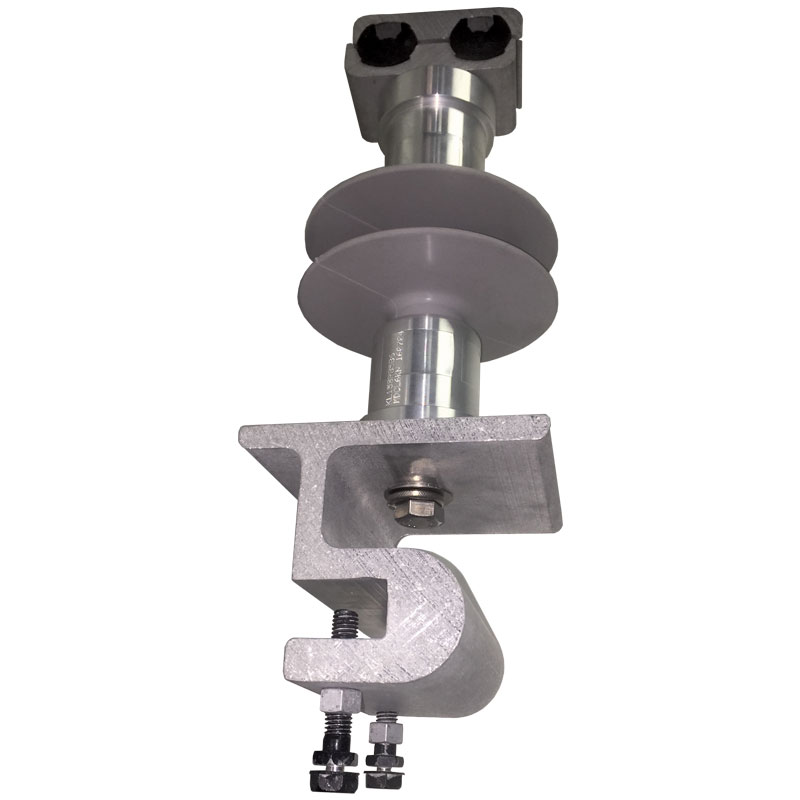

1 © 2016, AFL, all rights reserved. PP-3-00816, Revision 1, 11.7.16 Specications are subject to change without notice. Insulated Downlead Clamp Assembly for OPGW and ADSS Fiber Optic Cable AF L Insulated Downlead Clamp Assemblies are used to guide optical ground wire (OPGW) and all-dielectric self support (ADSS) cable from the top of the structure to the splice box. Featuring a 15 kV insulator to protect the cable, these Downlead Clamps install easily and provide proper spacing and holding strength without damage to the cable. Features • Lattice adapter provided with aluminum break-away bolts for precise torque during installation • Applicable towere angle thickness—0.25" to 0.75" • Tower Bracket—aluminum material • Downlead Clamp—aluminum, stainless steel and EPDM materials • 15 kV Insulator—aluminum and silicone materials • Stainless steel hardware (break-away bolts are aluminum) Ordering Example : For 0.628" dia. OPGW and 0.484 ADSS with insulator, the part number is FDOA-B6B4-INS. Ordering Information BUSHING DESIGNATION BUSHING DIAMETER RANGE (INCHES) COLOR CODE B4 0.400 - 0.500 Red B5 0.501 - 0.600 Green B6 0.601 - 0.700 Yellow B7 0.701 - 0.800 Blue B8 0.801 - 0.900 White B9 0.901 - 1.000 Black Fiber Downlead FD OA XXYY Bushing Selection for each side, smallest first (see table above; for same size, repeat bushing number) OPGW and/or ADSS INS 15 kV Insulator Assembly continued 2 © 2016, AFL, all rights reserved. PP-3-00816, Revision 1, 11.7.16 Specications are subject to change without notice. Insulated Downlead Clamp Assembly for OPGW and ADSS Fiber Optic Cable Dimensions 10.0" DOWNLEAD CLAMP TOWER BRACKET ASSEMBLY INSULATOR LOCK WASHER HEX HEAD BOLT FLAT WASHER 4.9" TOWER 1.9"
