Single suspension assemblies for wood pole are supplied with Y-Clevis, socket eye, shield wire support bracket and suspension clamp assembly.
e990f6cb2c5c415792cae837c8a72223

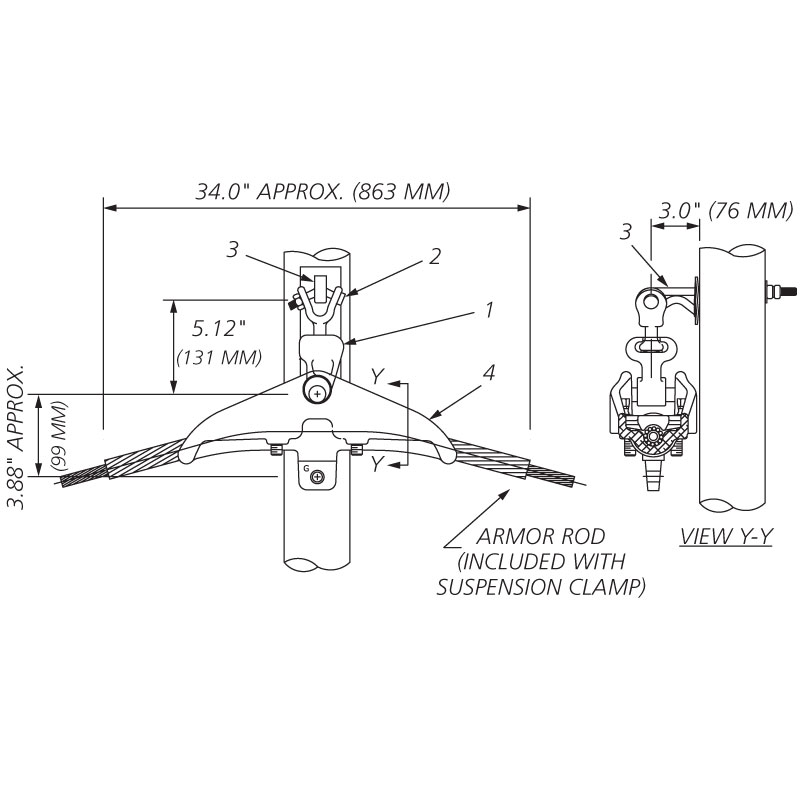

174 AFLglobal.com 1 (800) 890-8878 © 2008, AFL, all rights reserved. PP-3-00049, Revision 4, 3.6.2025 Speci cations are subject to change w ithout notice. 174 Fiber Optic Cable Accessories Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Y-Clevis Eye 90º Galvanized Steel YC90E-750-1750 1 Pin Dia. = 0.75" (19 mm) 2 Shield Wire Support Bracket Galvanized Steel SFOSB-WP-14 1 14" Bolt, 0.63" (16 mm) Dia. 3 Susp. Damp Assembley (included) Aluminum SUME XXX/XXX 1 OPGW Single Suspension Wood Pole/H-Frame Configuration Assemblies Bill of Material Item Description Material AFL or Dwg. No. Req’d Remarks 1 Socket Eye Galvanized Steel SE-SC 1 2 Y-Clevis Ball Galvanized Steel YCBS 1 Pin Dia. = 0.75" (19 mm) 3 Shield Wire Support Bracket Galvanized Steel SFOSB-WP-14 1 14" Bolt, 0.63" (16 mm) Dia. 4 Suspension Clamp Assembly (included) Aluminum SUME XXX/XXX 1 2 1 3 4 3 Assembly Code OWPSP1 - AFL NO. XXX/XXX SUME Range Code Assembly Code OWPSP2 - AFL NO. XXX/XXX SUME Range Code 34.0" APPROX. (863 MM) 3.0" (76 MM) 5.12" (131 MM) ARMOR ROD (INCLUDED WITH SUSPENSION CLAMP) VIEW Y-Y Y Y 1 3 2 2 34.0" APPROX. (863 MM) 3.0" (76 MM) ARMOR ROD (INCLUDED WITH SUSPENSION CLAMP) VIEW Y-Y Y Y 2.81" (71 MM) 3.88" APPROX. (99 MM) 3.88" APPROX. (99 MM) 0.63" (16 MM) 0.63" (16 MM)
