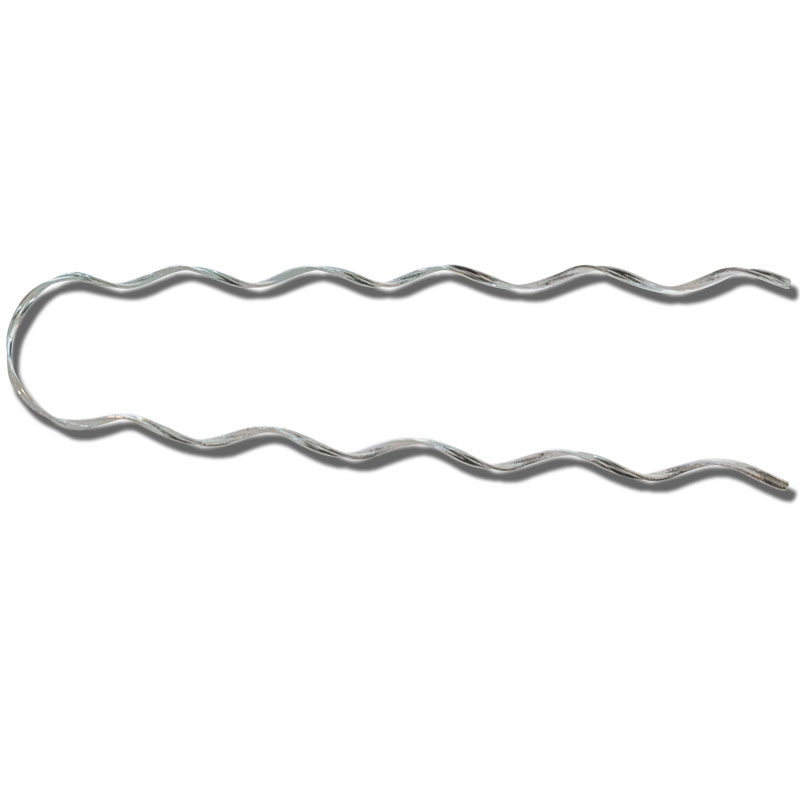

1 Formed Wire Formed Wire © 2014, AFL, all rights reserved. PP-3-00846, Revision 4, 9.1.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Distribution Dead End General Recommendations Distribution Grip Dead Ends are recommended as a replacement for Bare Looped Dead Ends because of their stronger loops and higher holding strengths on ACSR cable. Aluminum covered steel Grips are used on bare aluminum based conductors and galvanized steel Grips are used for plastic jacketed conductors. Coated Dead Ends are also recommended for jacketed conductors. Distribution Grip Dead Ends are specifically designed for single pole distribution construction. Rated Holding Strength The mechanical strengths of Distribution Grip Dead Ends meet the requirements of primaries, secondaries, and substation feeders. Tapping Tapping onto the applied legs of the Distribution Grip Dead Ends is not recommended. Taps should be located either six inches from the gritted legs on the conductor or on the other end of the conductor passing through the Dead End. MATERIALS Dead End - Aluminum covered steel and galvanized steel. Color code and crossover marks - Identifies proper conductor size and indicates application starting point. Identification tag - Shows catalog number, conductor diameter range (when applicable) and nominal conductor size. Loop type - Open helix for smaller sizes and cabled for larger sizes. Open Helix Loop Cabled Loop Aluminum Covered Steel Materials continued © 2014, AFL, all rights reserved. PP-3-00846, Revision 4, 9.1.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Formed Wire Formed Wire Distribution Dead End Aluminum Covered Steel Materials ACSR, All-Aluminum, Aluminum Alloy, AWAC, Compacted ACSR Open Helix Loop Standard/Right Hand Lay Standard Ordering Information AFL NO. ACSR ALL ALUMINUM ALUMINUM ALLOY COMPACTED ACSR AWAC 6/1 UNITS PER CARTON WT. PER CARTON POUNDS LENGTH INCHES COLOR CODE AWDG 050 #6, 6/1 #6, 7W #6, 7W #6, 6/1 100 14 16 Blue AWDG 063 #4, 6/1 #4, 7/1 #4, 7W #4, 7W #4, 6/1 #4 100 20 17 Orange AWDG 080 #2, 6/1 #2, 7/1 #2, 7W #2, 7W #2, 6/1 #2 100 33 24 Red AWDG 090 #1,6/1 #1, 7W #1, 7W #1, 6/1 #1 100 44 26 Green AWDG 099 1/0, 6/1 1/0, 7W 1/0, 7W 1/0, 6/1 1/0 50 31 26 Yellow AWDG 113 2/0, 6/1 2/0, 7W 2/0, 7W 2/0, 6/1 2/0 50 31 28 Blue AWDG 127 3/0, 6/1 3/0, 7W 3/0, 7W 3/0, 6/1 3/0 50 43 32 Orange AWDG 143 4/0, 6/1 4/0, 7W 4/0, 7W 4/0, 6/1 4/0 25 30 34 Red Note: The following Dead Ends are designed only for the specific conductors listed. Cabled Loop Standard/Right Hand Lay Standard Ordering Information AFL NO. ACSR ALL ALUMINUM ALUMINUM ALLOY COMPACTED ACSR UNITS PER CARTON WT. PER CARTON POUNDS LENGTH INCHES COLOR CODE AWDG 147 266.8, 18/1 266.8, 19W 266.8, 19W 336.4, 18/1 25 3935 Black AWDG 166 336.4, 18/1 336.4, 19W 336.4, 19W 397.5, 18/1 25 5339 Green AWDG 188 397.5, 18/1 477, 36/1 477, 18/1 450, 19W 477, 19W 500, 37W 397.5, 19W 477, 18/1 556, 19W 10 35 50 Orange AWDG 213 556.5,36/1 605, 36/1 636, 18/1 556.5, 7W 636, 37W 650, 61W 477, 19W 556.5, 19W 636, 18/1 795, 19W 10 45 55 Blue AWDG 241 666.6, 36/1 715.5, 36/1 795, 36/1 715.5, 37W 750, 61W 795, 61W 636, 37W 874.5, 37W 954, 37W 5 64 62 Brown AWDG 273 874.5, 36/1 954, 36/1 1033.5, 36/1 874.5, 61W 954, 61W 1033.5, 61W 795, 37W 5 46 70 Orange Notes: 1. The rated holding strengths of the above Distribution End Grip Dead Ends are between 60% and 100% of the conductors RBS depending on the conductor used. 2. Consult AFL for sizes and stranding or holding strengths not listed.
