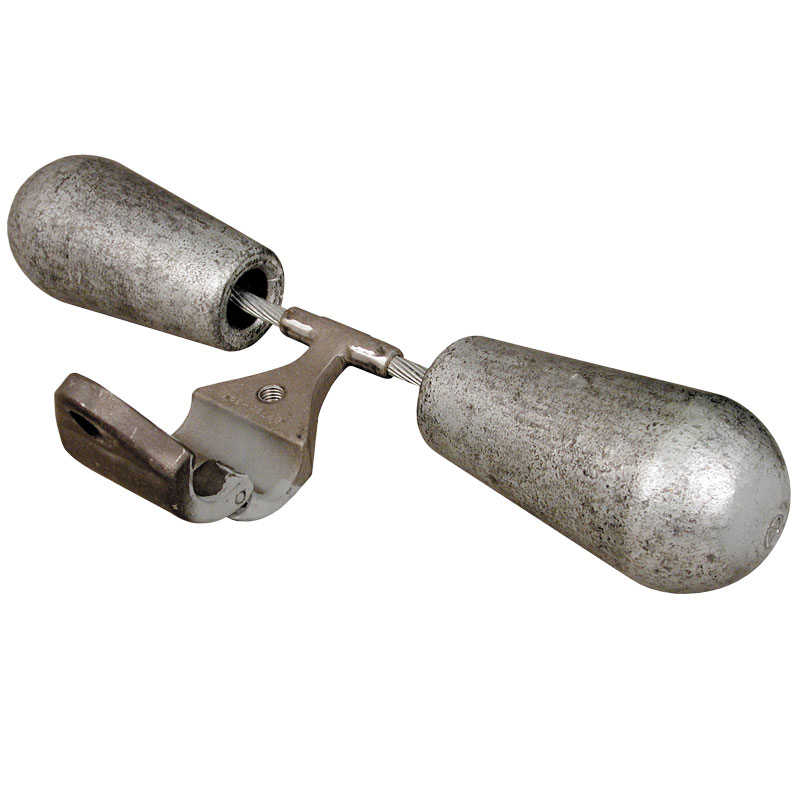

www.AFLglobal.com or 800-866-7385 Motion Control © 2003, AFL, all rights reserved. PP-3-00754, Revision 11, 7.9.19 Specifications are subject to change without notice. 375 DAMPERS SPACERS Engineered Performance The guy wire damper features a specially designed hinged clamp with Belleville washers which provides maximum clamping area over the guy wire while maintaining a sufficient clamping force. The combination of these two features keeps the damper from "walking down" the wire. No Special Tools Needed with Breakaway Bolt Option With the breakaway bolt, no special tools or torque wrench is needed. Simply tighten the bolt until the head shears off. This means proper torque has been achieved. Damper Recommendations For specific application requirements, contact the AFL Technical Support Team at 1.800.866.7385. Features The 2200 series guy wire dampers have been designed to dampen the wind-induced motion of guy wires. They were originally developed for the guy wires on United States Military navigation towers. Aeolian vibration is a high frequency motion that can occur when a smooth, steady crosswind blows on aerial cables. Aeolian vibration can cause loosening of bolted connections and wear at the guy wire joints. With the proper placement of AFL guy wire dampers, aeolian vibration damage can be eliminated. Guy Wire Vibration Dampers Stockbridge Type—2200 Series www.AFLglobal.com or 800-866-7385 Motion Control © 2003, AFL, all rights reserved. PP-3-00754, Revision 11, 7.9.19 Specifications are subject to change without notice. 376 DAMPERS SPACERS Guy Wire Vibration Dampers Stockbridge Type—2200 Series (cont.) Ordering Instructions Note: All guy wire dampers come standard with breakaway bolts. Determine Conductor Diameter Select guy wire damper catalog number based on the diameter of the conductor being used. AFL NO. CONDUCTOR DIAMETER RANGE DAMPER WEIGHT NUMBER DIMENSIONS WEIGHT MIN MAX A B C IN MM IN MM IN MM IN MM IN MM LBS KG 2202 0.438 11.1 0.500 12.7 1702 12.50 318 3.00 76 2.25 57 7.1 3.22 2203 0.562 14.3 0.625 15.9 1702 12.50 318 3.00 76 2.25 57 7.1 3.22 2204 0.688 17.5 0.750 19.1 1704 13.50 343 3.00 76 2.5 64 8.1 3.67 2205 0.812 20.6 0.875 22.2 1705 16.00 406 4.00 102 2.78 71 12.3 5.58 2206 0.938 23.8 0.970 24.6 1705 16.00 406 4.00 102 2.78 71 12.2 5.53 2207 0.971 24.7 1.000 25.4 1706 15.00 381 4.00 102 3.25 83 15.7 7.12 2208 1.062 27.0 1.125 28.6 1706 15.00 381 4.00 102 3.25 83 15.6 7.08 2209 1.188 30.2 1.210 30.7 1706 15.75 400 4.12 105 3.25 83 15.9 7.21 2210 1.211 30.8 1.250 31.8 1707 20.25 514 4.12 105 3.5 89 22.2 10.07 2211 1.312 33.3 1.375 34.9 1707 20.25 514 4.12 105 3.5 89 22.1 10.02 2212 1.438 36.5 1.500 38.1 1708 22.50 572 4.12 105 4.12 105 31.2 14.15 2213 1.562 39.7 1.625 41.3 1708 22.50 572 4.50 114 4.12 105 31.9 14.47 2214 1.688 42.9 1.750 44.5 1708 22.50 572 4.50 114 4.75 105 31.9 14.47 2215 1.812 46.0 1.875 47.6 1709 24.50 622 4.50 114 4.75 121 35.0 15.88 2216 1.938 49.2 2.000 50.8 1709 24.50 622 4.50 114 4.75 121 35.0 15.88 2217 2.062 52.4 2.125 54.0 1709 24.50 622 4.50 114 4.75 121 35.5 161.00 2218 2.188 55.6 2.250 57.2 1709 24.50 622 4.50 114 4.75 121 35.5 16.10 2219 2.312 58.7 2.375 60.3 1709 24.50 622 4.50 114 4.75 121 35.4 16.06 2220 2.438 61.9 2.500 63.5 1709 24.50 622 4.75 121 4.75 121 36.1 16.37 2221 2.562 65.1 2.625 66.7 1709 24.50 622 4.75 121 4.75 121 36.0 16.33 2222 2.688 68.3 2.750 69.9 1709 24.50 622 4.75 121 4.75 121 35.8 16.24 2223 2.812 71.4 2.875 73.0 1709 24.50 622 5.00 127 4.75 121 36.7 16.65 2224 2.938 74.6 3.000 76.2 1709 24.50 622 5.00 127 4.75 121 36.6 16.60 2225 3.062 77.8 3.125 79.4 1709 24.50 622 5.00 127 4.75 121 36.4 16.51 2226 3.188 81.0 3.250 82.6 1709 24.50 622 5.25 133 4.75 121 36.9 16.74 2227 3.312 84.1 3.375 85.7 1709 24.50 622 5.25 133 4.75 121 36.7 16.65 2228 3.438 87.3 3.500 88.9 1709 24.50 622 5.25 133 4.75 121 36.5 16.56 2229 3.562 90.5 3.625 92.1 1709 24.50 622 5.50 140 4.75 121 37.1 16.83 2230 3.688 93.7 3.750 95.3 1709 24.50 622 5.50 140 4.75 121 37.0 16.78 2231 3.812 96.8 3.875 98.4 1709 24.50 622 5.50 140 4.75 121 36.8 16.69
