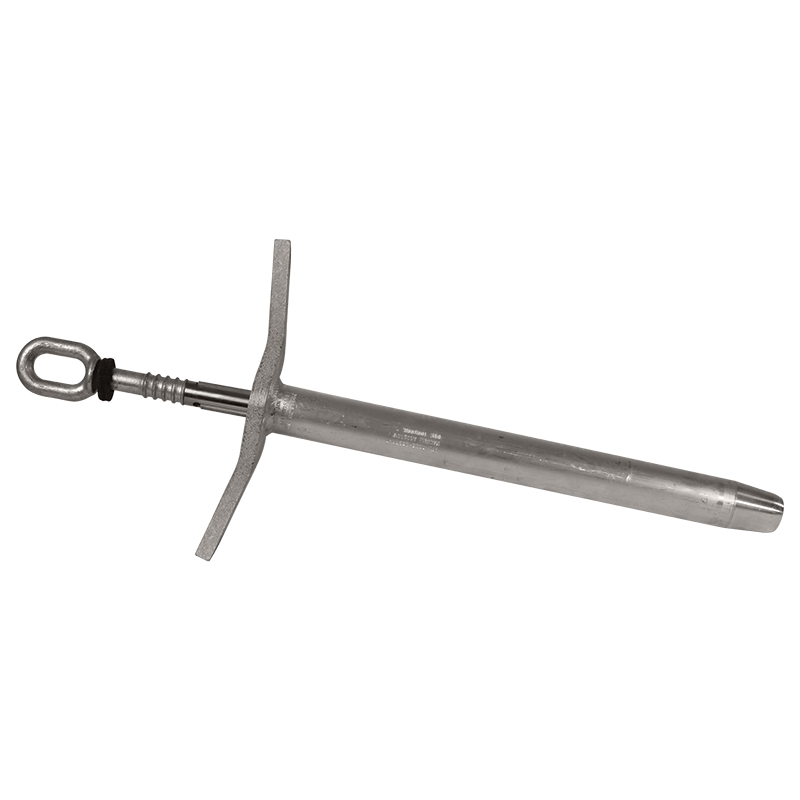

© 2020, AFL, all rights reserved. PP-3-00866, Revision 1, 4.9.2024 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 1 Solo HD ® Compression Solo HD ACSR & ACSS Solo HD ® Compression Dead End for ACSR and ACSS Conductor, Eye and Clevis Type, Double Tongue This Double Tongue Dead End Assembly is specifically designed for ACSR and ACSS conductor. The body of the Solo HD Dead Ends are fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently. The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight or 30º position. Its innovative design provides a solid, void-free compression through the complete unit with once set of dies, reducing the total quantity of compressions and installation time by almost ½ when compared to the of the ones required by the two die compression systems while keeping the same reliable and proven performance. All Solo HD Dead Ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor. Each dead end assembly comes with two 15º terminals and aluminum hardware. For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Corona bolts are furnished as standard on 15º terminals for these die sizes. The square edges of the bolted pads of the compression accessories could cause Corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix “EHV”. continued Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE ANSI C119.4 Benefits • Half the Installation Time Using an innovative core gripping system that allows a single die to compress the outer aluminum barrel to grip both the steel core as well as the aluminum strands, utilizing the same Aluminum Hex (AH) die set. • No Filler Compound Required By creating a practically void-free compression, eliminating ingress of water, and using steels that eliminate the exposure of raw steel after, thereby eliminating rust and corrosion, AFL has removed variability of the amount of compound being placed in each connector. • Joints Travel Over Sheaves Enhancing speed of installation, full tension joints can travel through sheaves without impact to the performance of the connector, allowing for more conductor to be strung from a single location. • Same Install Method With no new tools required, installation crews do not require training on new compression tools. • One Connector Assembly can be used for both ACSS and ACSR type conductors, eliminating the need for multiple part numbers. • Same Compression Die Set The Aluminum Hex (AH) die size remains the same as that of the standard AFL two-die system used today and eliminates the need for the Steel Hex (SH) dies altogether. • Same Compression Tools By using the same compression pumps and presses, AFL does not require the need for a large investment in both the tools and training. © 2020, AFL, all rights reserved. PP-3-00866, Revision 1, 4.9.2024 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 2 Solo HD ® Compression Solo HD ACSR & ACSS Solo HD ® Compression Dead End for ACSR and ACSS Conductor, Eye and Clevis Type, Double Tongue Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. For a clevis application substitute the E for a C: SDED-AS : EYE TERMINATION SDCD-AS : CLEVIS TERMINATION Step 2: Terminal Connector For an assembly without a terminal connector, use “NT”. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use “EHV”. (> 345 kV) For Standard Finish, leave blank. (< 345 kV) Assembly Catalog No. Terminal Connector EHV Finish Ordering Information Step 4: Assemble Catalog Number EXAMPLE: For 795 Drake ACSS Conductor with no terminal and EHV finish, the complete catalog number is: SDED-AS142HTNTEHV Notes – For instructions, see Solo HD ACSR/ACSS/ACSS-TW Dead End installation instructions INS-ACA116 ASSEMBLY CATALOG NO. CONDUCTORS ALUMINUM HEX DIES ACSR AND ACSS SIZE STRAND DIAMETER KCMIL AL ST SDED-AS109HT WOODCOCK 336.4 22 7 0.701 20AH SDED-AS113HT LINNET 336.4 26 7 0.720 20AH SDED-AS114HT ORIOLE 336.4 30 7 0.741 20AH SDED-AS185HT CHICKADEE 397.5 18 1 0.743 20AH SDED-AS115HT PTARMIGAN 397.5 20 7 0.752 20AH SDED-AS116HT BRANT 397.5 24 7 0.772 20AH SDED-AS117HT IBIS 397.5 26 7 0.783 20AH SDED-AS118HT LARK 397.5 30 7 0.806 20AH SDED-AS186HT PELICAN 477.0 18 1 0.814 24AH SDED-AS119HT TAILORBIRD 477.0 20 7 0.823 20AH SDED-AS120HT FLICKER 477.0 24 7 0.846 24AH SDED-AS121HT HAWK 477.0 26 7 0.858 24AH SDED-AS122HT HEN 477.0 30 7 0.883 24AH SDED-AS187HT OSPREY 556.5 18 1 0.879 24AH SDED-AS123HT SAPSUCKER 556.5 22 7 0.901 24AH SDED-AS124HT PARAKEET 556.5 24 7 0.914 24AH SDED-AS125HT DOVE 556.5 26 7 0.927 27AH SDED-AS126HT EAGLE 556.5 30 7 0.953 27AH SDED-AS127HT PEACOCK 605.0 24 7 0.953 27AH SDED-AS128HT SQUAB 605.0 26 7 0.966 27AH SDED-AS130HT WOOD/DUCK 605.0 30 7 0.994 27AH SDED-AS129HT TEAL 605.0 30 19 0.994 27AH SDED-AS188HT SWIFT 636.0 36 1 0.930 27AH SDED-AS189HT KINGBIRD 636.0 18 1 0.940 27AH SDED-AS131HT GOLDFINCH 636.0 22 7 0.963 27AH SDED-AS132HT ROOK 636.0 24 7 0.977 27AH SDED-AS133HT GROSBEAK 636.0 26 7 0.990 27AH SDED-AS182HT SCOTER 636.0 30 7 1.019 27AH SDED-AS134HT EGRET 636.0 30 19 1.019 27AH continued © 2020, AFL, all rights reserved. PP-3-00866, Revision 1, 4.9.2024 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 3 Solo HD ® Compression Solo HD ACSR & ACSS Solo HD ® Compression Dead End for ACSR and ACSS Conductor, Eye and Clevis Type, Double Tongue AFL NO. CONDUCTORS ALUMINUM HEX DIES ACSR AND ACSS SIZE STRAND DIAMETER KCMIL AL ST SDED-AS135HT FLAMINGO 666.6 24 7 1.000 27AH SDED-AS183HT GANNET 666.6 26 7 1.014 27AH SDED-AS136HT STILT 715.5 24 7 1.036 30AH SDED-AS137HT STARLING 715.5 26 7 1.051 30AH SDED-AS138HT REDWING 715.5 30 19 1.081 30AH SDED-AS190HT COOT 795.0 36 1 1.040 30AH SDED-AS141HT CUCKOO 795.0 24 7 1.092 30AH SDED-AS142HT DRAKE 795.0 26 7 1.108 30AH SDED-AS144HT MACAW 795.0 42 7 1.055 30AH SDED-AS140HT TERN 795.0 45 7 1.063 30AH SDED-AS141HT CONDOR 795.0.0 54 7 1.092 30AH SDED-AS143HT MALLARD 795 30 19 1.140 30AH SDED-AS145HT RUDDY 900.0 45 7 1.131 30AH SDED-AS146HT CANARY 900.0 54 7 1.162 30AH SDED-AS191HT CATBIRD 954.0 36 1 1.140 30AH SDED-AS147HT CORNCRAKE 954.0 20 7 1.165 30AH SDED-AS184HT REDBIRD 954.0 24 7 1.196 30AH SDED-AS148HT RAIL 954.0 45 7 1.165 30AH SDED-AS149HT TOWHEE 954.0 48 7 1.175 30AH SDED-AS150HT CARDINAL 954.0 54 7 1.196 30AH SDED-AS151HT CANVASBACK 954.0 30 19 1.248 34AH SDED-AS192HT TANAGER 1033.5 36 1 1.186 30AH SDED-AS153HT SNOWBIRD 1033.5 42 7 1.203 34AH SDED-AS152HT ORTOLAN 1033.5 45 7 1.212 34AH SDED-AS154HT CURLEW 1033.5 54 7 1.245 34AH SDED-AS155HT BLUEJAY 1113.0 45 7 1.259 34AH SDED-AS157HT FINCH 1113.0 54 19 1.293 34AH SDED-AS158HT BUNTING 1192.5 45 7 1.302 34AH SDED-AS159HT GRACKLE 1192.5 54 19 1.338 36AH SDED-AS161HT BITTERN 1272.0 45 7 1.345 36AH SDED-AS162HT DIVER 1272.0 48 7 1.357 36AH SDED-AS163HT PHEASANT 1272.0 54 19 1.382 36AH SDED-AS164HT DIPPER 1351.5 45 7 1.386 36AH SDED-AS166HT MARTIN 1351.5 54 19 1.424 38AH SDED-AS167HT BOBOLINK 1431.0 45 7 1.427 38AH SDED-AS169HT PLOVER 1431.0 54 19 1.465 38AH SDED-AS170HT NUTHATCH 1510.0 45 7 1.466 38AH SDED-AS172HT PARROT 1510.0 54 19 1.505 40AH SDED-AS171HT RATITE 1590.0 42 7 1.492 40AH SDED-AS173HT LAPWING 1590.0 45 7 1.504 40AH SDED-AS174HT FALCON 1590.0 54 19 1.544 40AH SDED-AS175HT CHUKAR 1780.0 84 19 1.602 42AH SDED-AS176HT MOCKINGBIRD 2034.5 72 7 1.681 42AH SDED-AS177HT ROADRUNNER 2057.0 76 19 1.700 42AH SDED-AS178HT BLUEBIRD 2156.0 84 19 1.762 44AH SDED-AS179HT KIWI 2167.0 72 7 1.735 44AH SDED-AS180HT THRASHER 2312.0 76 19 1.802 44AH SDED-AS181HT JOREE 2515.0 76 19 1.880 48AH .0
