Substation tee connector is designed for limited space application as found in substations. Run length is shorter than conventional tee taps which saves space and allows faster installation. Tee tap is installed with standard ACA hex dies.
196f91a90f4a47fa8d250f5f20d30ec4
455 AFLglobal.com 1 (800) 890-8878 © 2010, AFL, all rights reserved. PP-3-00171, Revision 2, 11.21.2024 Speci cations are subject to change without notice. 455 230 kV Aluminum Compression Type 2900 Series Substation tee connector is designed for limited space application as found in substations. Run and tap lengths are shorter than conventional tee connectors which saves space and minimizes birdcaging problems. Tee connector is installed with standard AFL hex dies. Ordering Information Catalog Number Conductor Diameter Range Dimensins (inches) Run Tap A B Diameter AAC ACSR Die Size Diameter AAC ACSR Die Size 2976.1-76.1 0.609-0.743 300 - 397.5 266.8 (18/1) - 397.5 (18/1) 76AH 0.609-0.743 300 - 397.5 266.8 (18/1) - 397.5 (18/1) 76AH 8.40 3.58 2920.1-20.1 0.718-0.840 397.5 - 500 336.4 (26/7) - 477 (18/1) 20AH 0.629-0.724 300 - 397.5 266.8 (6/7) - 336.4 (26/7) 20AH 8.50 3.88 2920.1-20.2 0.718-0.840 397.5 - 500 336.4 (26/7) - 477 (18/1) 20AH 0.721-0.814 397.5 - 500 336.4 (30/7) - 477 (18/1) 20AH 8.50 3.88 2924.1-24.1 0.780-0.933 477 - 650 397.5 (26/7) - 556.5 (26/7) 24AH 0.793-0.928 477 - 650 397.5 (30/7) - 556.5 (26/7) 24AH 8.50 4.22 2927.1-27.1 0.932-1.020 700 - 750 556.5 (30/7) - 666.6 (24/7) 27AH 0.929-1.025 700 - 750 556.5 (30/7) - 666.6 (24/7) 27AH 10.00 4.50 2930.1-30.1 1.021-1.196 795 - 1033.5 715.5 (24/7) - 954 (54/7) 30AH 1.026-1.196 795 - 1033.5 715.5 (24/7) - 954 (54/7) 30AH 10.00 5.67 2934.1-34.1 1.197-1.319 1113 - 1300 1033.5 (45/7) - 1192.5 (45/7) 34AH 1.186-1.313 1113 - 1272 1033.5 (36/1) - 1192.5 (45/7) 34AH 11.30 6.03 2936.1-36.1 1.320-1.417 1351.5 - 1510.5 1192.5 (54/19) - 1351.5 (45/7) 36AH 1.314-1.399 1300 - 1431 1192.5 (54/19) - 1351.5 (45/7) 36AH 11.50 6.29 2938.1-30.1 1.412-1.500 1500 - 1590 1351.5 (54/19) - 1510.5 (45/7) 38AH 1.026-1.196 795 - 1033.5 715.5 (24/7) - 954 (54/7) 30AH 12.00 5.67 2938.1-38.1 1.412-1.500 1500 - 1590 1351.5 (54/19) - 1510.5 (45/7) 38AH 1.399-1.500 1500 - 1590 1351.5 (54/19) - 1510.5 (45/7) 38AH 12.00 6.55 2940.1-40.1 1.496-1.557 1750 1510.5 (54/19) - 1590 (54/19) 40AH 1.501-1.630 1750 - 2000 1510.5 (54/19) - 1780 (84/19) 40AH 12.50 7.02 2942.1-42.1 1.550-1.625 2000 1780 (84/19) 42AH 1.630-1.681 2000 2034 (72/7) 42AH 14.00 7.29 2944.1-44.1 1.626-1.843 2000 - 2500 2034 (72/7) - 2312 (76/19) 44AH 1.630-1.681 2000 2034 (72/7) 44AH 15.00 7.74 2944.1-44.2 1.626-1.842 2000 - 2500 2034 (72/7) - 2312 (76/19) 44AH 1.669-1.823 2250 - 2500 2034 (72/7) - 2312 (76/19) 44AH 15.00 7.74 2948.1-48.1 1.843-1.996 2750 2515 (76/19) 48AH 1.823-1.996 2500 - 2750 2515 (76/19) 48AH 16.00 8.77 A B
460 AFLglobal.com 1 (800) 890-8878 © 2010, AFL, all rights reserved. PP-3-00203, Revision 2, 11.21.2024 Speci cations are subject to change without notice. 460 230 kV Aluminum Compression Ordering Information Catalog Number Conductor Die Size Aluminum Hex Die Dimension in Inches ACSR or AAC Code Word Size KCMIL Stranding Al/St Dimension in Inches A B 5430.109-30.109 ACSR Stilt 715.5 24/7 1.036 30AH 19.12 9.44 5430.109-30.109 ACSR Starling 715.5 26/7 1.051 30AH 19.12 9.44 5430.109-30.109 ACSR Coot 795 36/1 1.040 30AH 19.12 9.44 5430.109-30.109 AAC Arbutus 795 37 1.026 30AH 19.12 9.44 5430.109-30.109 AAC Lilac 795 61 1.028 30AH 19.12 9.44 5430.109-30.109 AAC — 800 37 1.031 30AH 19.12 9.44 5430.109-30.109 AAC Heliotrope 800 61 1.031 30AH 19.12 9.44 5430.116-30.116 ACSR Redwing 715.5 30/19 1.081 30AH 19.12 9.44 5430.116-30.116 ACSR Tern 795 45/7 1.063 30AH 19.12 9.44 5430.116-30.116 ACSR Condor 795 54/7 1.093 30AH 19.12 9.44 5430.116-30.116 ACSR Drake 795 26/7 1.108 30AH 19.12 9.44 5430.116-30.116 ACSR Cuckoo 795 24/7 1.092 30AH 19.12 9.44 5430.116-30.116 AAC Snapdragon 900 61 1.094 30AH 19.12 9.44 5430.122-30.122 ACSR Mallard 795 30/19 1.140 30AH 19.12 9.44 5430.122-30.122 ACSR Ruddy 900 45/7 1.131 30AH 19.12 9.44 5430.122-30.122 ACSR Canary 900 54/7 1.162 30AH 19.12 9.44 5430.122-30.122 ACSR Catbird 954 36/1 1.140 30AH 19.12 9.44 5430.122-30.122 ACSR Rail 954 45/7 1.165 30AH 19.12 9.44 5430.122-30.122 AAC Magnolia 954 37 1.124 30AH 19.12 9.44 5430.122-30.122 AAC Goldenrod 954 61 1.126 30AH 19.12 9.44 5430.122-30.122 AAC Camellia 1000 61 1.152 30AH 19.12 9.44 5430.122-30.122 AAC Bluebell 1033.5 37 1.170 30AH 19.12 9.44 5430.122-30.122 AAC Larkspur 1033.5 61 1.172 30AH 19.12 9.44 TYPE 5400 Series Tee Connector-Closed Run Compression For Stranded EC and ACSR Conductions A BEFORE COMPRESSION B BEFORE COMPRESSION
461 AFLglobal.com 1 (800) 890-8878 © 2010, AFL, all rights reserved. PP-3-00203, Revision 2, 11.21.2024 Speci cations are subject to change without notice. 461 230 kV Aluminum Compression Ordering Information Catalog Number Conductor Die Size Aluminum Hex Die Dimension in Inches ACSR or AAC Code Word Size KCMIL Stranding Al/St Dimension in Inches A B 5430.125-30.125 ACSR Cardinal 954 54/7 1.196 30AH 19.12 9.44 5430.125-30.125 ACSR Tanager 1033.5 36/1 1.186 30AH 19.12 9.44 5434.128-34.128 ACSR 0rtolan 1033.5 45/7 1.212 34AH 20.12 10.06 5434.128-34.128 AAC Marigold 1113 61 1.216 34AH 20.12 10.06 5434.138-34.138 ACSR Bunting 1192.5 45/7 1.302 34AH 20.12 10.06 5434.138-34.138 ACSR Finch 1113 54/19 1.293 34AH 20.12 10.06 5436.144-36.144 ACSR Bittern 1272 45/7 1.345 36AH 21.00 10.62 5436.144-36.144 ACSR Grackle 1192.5 54/19 1.333 36AH 21.00 10.62 5436.144-36.144 AAC Columbine 1351 61 1.340 36AH 21.00 10.62 5436.144-36.144 AAC Carnation 1431 61 1.379 36AH 21.00 10.62 5436.147-36.147 ACSR Pheasant 1272 54/19 1.382 36AH 21.00 10.62 5436.147-36.147 ACSR Dipper 1351.5 45/7 1.386 36AH 21.00 10.62 5436.147-36.147 ACSR — 1500 91 1.412 36AH 21.00 10.62 5436.147-36.147 AAC Gladiolus 1510.5 61 1.187 36AH 21.00 10.62 5438.156-38.156 ACSR Plover 1431 54/19 1.465 38AH 21.88 10.62 5438.156-38.156 ACSR Nuthatch 1510.5 45/7 1.466 38AH 21.88 10.62 5438.156-38.156 AAC Coreopsis 1590 61 1.250 38AH 21.88 10.62 5438.156-38.156 AAC Dogwood 1590 91 1.454 38AH 21.88 10.62 5440.162-40.162 ACSR Parrot 1510.5 54/19 1.506 40AH 22.75 11.75 5440.162-40.162 ACSR Lapwing 1590 45/7 1.504 40AH 22.75 11.75 5440.162-40.162 ACSR Falcon 1590 54/19 1.545 40AH 22.75 11.75 5440.162-40.162 AAC Jessamine 1750 61 1.525 40AH 22.75 11.75 5442.178-42.175 ACSR Chukar 1780 84/19 1.602 42AH 23.62 12.38 5442.178-42.175 ACSR — 2034 72/7 1.681 42AH 23.62 12.38 5442.178-42.175 AAC Cowslip 2000 91 1.630 42AH 23.62 12.38 5444.184-44.184 ACSR Bluebird 2156 84/19 1.762 44AH 26.75 12.00 5444.188-44.188 ACSR Thrasher 2312 76/19 1.802 44AH 26.75 12.00 5444.188-44.188 AAC Lupine 2500 91 1.823 44AH 26.75 12.00 TYPE 5400 Series Tee Connector-Closed Run Compression
Features:
- Aluminum alloy
- Pads conform to NEMA standards
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Aluminum cable
Substation tee connector is designed for limited space application as found in substations. Run length is shorter than conventional tee taps which saves space and allows faster installation. Tee tap is installed with standard ACA hex dies.
230 kV Aluminum Compression Couplers,230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps,230 kV Aluminum Welded Stud to Bus Pipe Couplers
249

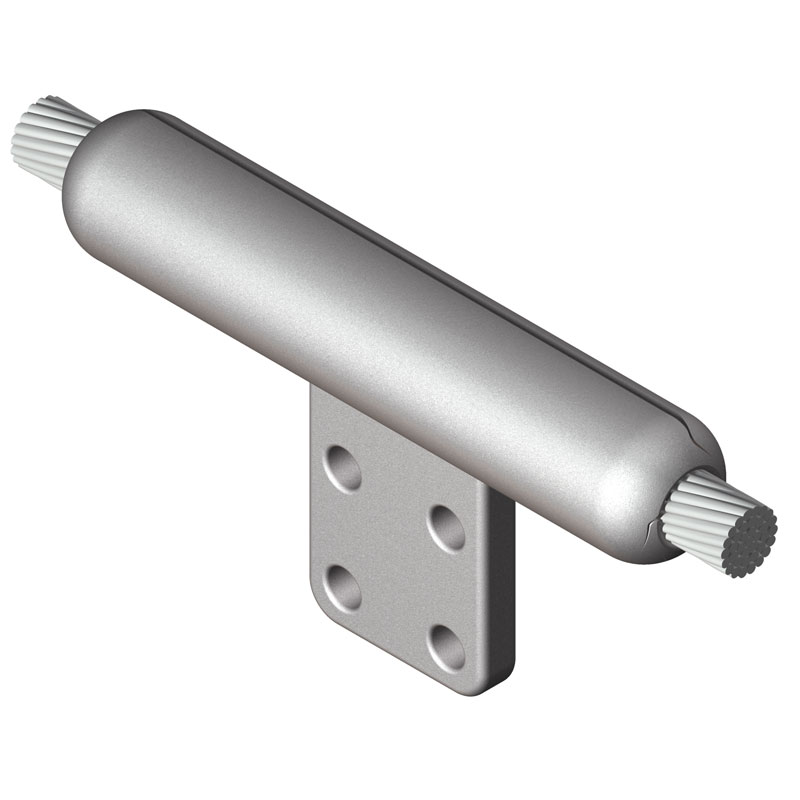

230 kV Aluminum Compression Tee Terminal Connectors
Close
230 kV Aluminum Compression Tee Terminal Connectors
Features:
- Aluminum alloy
- Pads conform to NEMA standards
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Aluminum cable
PRODUCT DESCRIPTION
Substation tee connector is designed for limited space application as found in substations. Run length is shorter than conventional tee taps which saves space and allows faster installation. Tee tap is installed with standard ACA hex dies.
