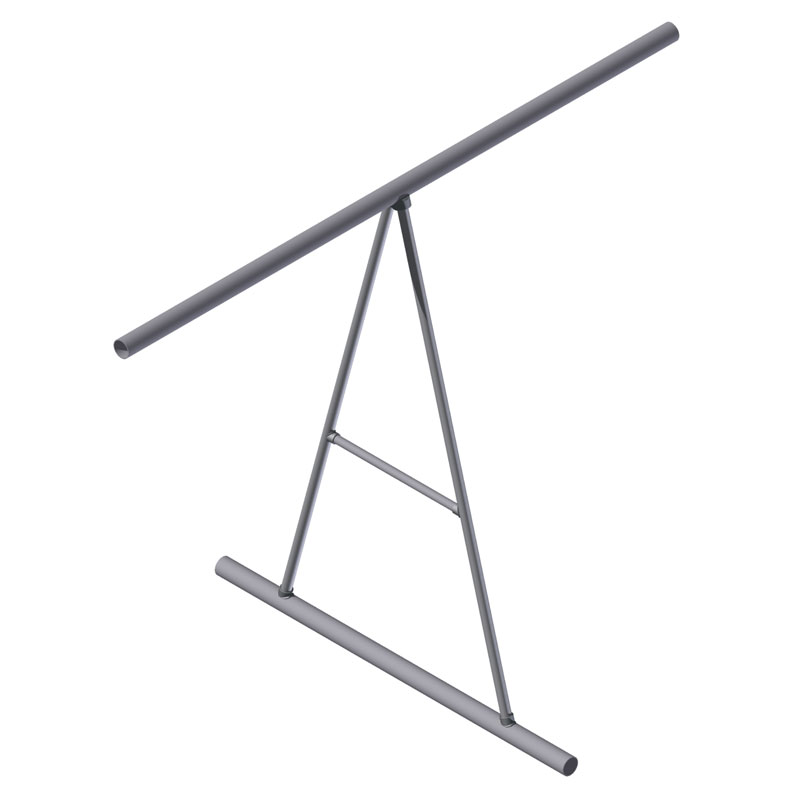

400 230 kV Aluminum Tee and Vee Connectors 230 kV Aluminum Welded Tee and Vee Connectors © 2010, AFL, all rights reserved. PP-3-00148, Revision 0, 12.21.10 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE 1000 SERIES Tube to Cable Tee Adapter Ordering Instructions Step 1: Determine Catalog Number Determine the catalog number from Table 2 based on the bus conductor and the diameter of the stranded conductor being used. Example: A tee adapter for a run conductor of 3” schedule 40 and a stranded conductor diameter of 0.926”, the complete catalog number is: 1006.100 Tee adapter is designed with saddle to allow connector to be clamped to bus tube during field welding. Stranded conductor is puddle welded to connector, then connector is welded to bus tube. Not recommended for use on ACSR conductors due to difficulty welding steel core. B C A Material Aluminum Alloy 401 230 kV Aluminum Tee and Vee Connectors 230 kV Aluminum Welded Tee and Vee Connectors © 2010, AFL, all rights reserved. PP-3-00148, Revision 0, 12.21.10 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Table 2 (Catalog Numbers) STRANDED CONDUCTOR DIAMETER RANGE CATALOG NUMBER SPS INCHES 1 1 1/4 1 1/2 2 2 1/2 3 3 1/2 4 5 6 0.366 - 0.394 1000.40 1000.40 1000.40 1000.40 1000.40 1000.40 1000.40 1000.40 1000.40 1000.40 0.395 - 0.428 1000.44 1000.44 1000.44 1000.44 1000.44 1000.44 1000.44 1000.44 1000.44 1000.44 0.429 - 0.459 1000.47 1000.47 1000.47 1000.47 1000.47 1000.47 1000.47 1000.47 1000.47 1000.47 0.460 - 0.490 1001.50 1002.50 1002.50 1002.50 1002.50 1002.50 1002.50 1002.50 1002.50 1002.50 0.491 - 0.521 1001.53 1002.53 1002.53 1002.53 1002.53 1002.53 1002.53 1002.53 1002.53 1002.53 0.522 - 0.552 1001.56 1002.56 1002.56 1002.56 1002.56 1002.56 1002.56 1002.56 1002.56 1002.56 0.553 - 0.599 1001.61 1002.61 1002.61 1002.61 1002.61 1002.61 1002.61 1002.61 1002.61 1002.61 0.600 - 0.644 1001.66 1002.66 1002.66 1002.66 1002.66 1002.66 1002.66 1002.66 1002.66 1002.66 0.645 - 0.691 1003.70 1003.70 1003.70 1003.70 1004.70 1004.70 1004.70 1004.70 1004.70 1004.70 0.692 - 0.738 1003.75 1003.75 1003.75 1003.75 1004.75 1004.75 1004.75 1004.75 1004.75 1004.75 0.739 - 0.800 1003.81 1003.81 1003.81 1003.81 1004.81 1004.81 1004.81 1004.81 1004.81 1004.81 0.801 - 0.863 1003.88 1003.88 1003.88 1003.88 1004.88 1004.88 1004.88 1004.88 1004.88 1004.88 0.864 - 0.925 - - 1005.94 1005.94 1005.94 1006.94 1006.94 1006.94 1006.94 1006.94 0.926 - 0.985 - - 1005.100 1005.100 1005.100 1006.100 1006.100 1006.100 1006.100 1006.100 0.986 - 1.047 - - 1005.106 1005.106 1005.106 1006.106 1006.106 1006.106 1006.106 1006.106 1.048 - 1.110 - - 1005.112 1005.112 1005.112 1006.112 1006.112 1006.112 1006.112 1006.112 1.111 - 1.173 - - - 1007.119 1007.119 1008.119 1008.119 1008.119 1008.119 1008.119 1.174 - 1.235 - - - 1007.125 1007.125 1008.125 1008.125 1008.125 1008.125 1008.125 1.236 - 1.297 - - - 1007.131 1007.131 1008.131 1008.131 1008.131 1008.131 1008.131 1.298 - 1.360 - - - 1009.138 1009.138 1009.138 1010.138 1010.138 1010.138 1010.138 1.361 - 1.423 - - - 1009.144 1009.144 1009.144 1010.144 1010.144 1010.144 1010.144 1.424 - 1.485 - - - 1009.150 1009.150 1009.150 1010.150 1010.150 1010.150 1010.150 1.486 - 1.542 - - - 1009.156 1009.156 1009.156 1010.156 1010.156 1010.156 1010.156 1.543 - 1.605 - - - 1011.162 1011.162 1012.162 1012.162 1012.162 1012.162 1012.162 1.606 - 1.668 - - - 1011.169 1011.169 1012.169 1012.160 1012.169 1012.169 1012.169 1.669 - 1.730 - - - 1011.175 1011.175 1012.175 1012.175 1012.175 1012.175 1012.175 1.731 - 1.792 - - - 1011.181 1011.181 1012.181 1012.181 1012.181 1012.181 1012.181 1.793 - 1.855 - - - 1011.188 1011.188 1012.188 1012.188 1012.188 1012.188 1012.188 Table 1 (Physical Characteristics of Series) CATALOG NUMBER DIMENSIONS IN INCHES NOMINAL WEIGHT LBS A B C 1000 0.75 0.81 1.75 0.06 1001 1.00 1.00 2.12 0.11 1002 1.00 1.00 2.12 0.11 1003 1.25 1.31 2.44 0.19 1004 1.25 1.31 2.44 0.19 1005 1.50 1.62 2.81 0.28 1006 1.50 1.62 2.81 0.28 1007 1.75 1.88 3.12 0.38 1008 1.75 1.88 3.12 0.38 1009 2.00 2.25 3.50 0.62 1010 2.00 2.25 3.50 0.62 1011 2.25 2.50 3.88 0.75 1012 2.25 2.50 3.88 0.75 TYPE 1000 SERIES Tube to Cable Tee Adapter 402 230 kV Aluminum Tee and Vee Connectors 230 kV Aluminum Welded Tee and Vee Connectors © 2010, AFL, all rights reserved. PP-3-00212, Revision 1, 9.16.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 A-Frame Connectors 14500 and 14600 Series Branch Connector (14500 Series) - Vee Connector (14600 Series) - 30° A-Frame Ordering Instructions Step 1: Determine Catalog Number Determine the catalog number based on the bus conductor being used for the run and the branch. Example: A 15° branch connector for a run conductor of 3" schedule 40 and a branch conductor of 2 1/2" schedule 40, the catalog number is: 14508-7 A 30° vee connector for a run conductor of 4" schedule 40 and a branch conductor of 2 1/2" schedule 40, the catalog number is: 14610-7 Notes 1. For bus conductor information, see AFL Bus Conductor section. AFL can supply prefabricated A-frame assemblies ready for field mounting and welding. Assemblies are factory fabricated from standard A-frame fittings and pipe carefully welded and inspected to insure accuracy and best performance. A-frame fittings are designed to make fast, reliable A-frame assemblies. Fittings are designed to be welded on the outside of the pipe allowing use of both Schedule 40 and Schedule 80 pipe. Socket design allows for slight inaccuracies in field cut length of pipe. To order include angle, top and bottom run sizes, leg size, centerline height and crossbrace size and spacing if required. Run Branch 75º E D F G 15º WTA-75-AA WTA-80-AA WVBP-20-AA WVBP-30-AA 403 230 kV Aluminum Tee and Vee Connectors 230 kV Aluminum Welded Tee and Vee Connectors © 2010, AFL, all rights reserved. PP-3-00212, Revision 1, 9.16.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Ordering Information CONDUCTOR SIZE CATALOG NUMBER DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SCH 40 & SCH80 BRANCH CONNECTOR VEE CONNECTOR D E F G BRANCH CONNECTOR VEE CONNECTOR RUN BRANCH 1 1/2 1 14504-3 14605-3 2.94 1.75 3.19 1.75 0.4 1 1 1/2 1 1/4 14500-4 14605-4 3.25 2.00 3.06 2 0.4 1.2 1 1/2 1 1/2 14500-5 14605-5 3.25 2.00 4.56 2 0.6 2.1 2 1 14504-3 14606-3 3.25 1.75 3.25 1.75 0.4 1.2 2 1 1/4 14506-4 14606-4 3.50 2.00 4.31 2 0.6 1.2 2 1 1/2 14500-5 14606-5 3.50 2.00 3.25 2 0.6 2.8 2 2 14506-6 14606-6 3.56 2.00 3.25 2 1.6 2.6 2 1/2 1 14507-3 14607-3 3.44 1.75 3.81 1.75 0.4 0.9 2 1/2 1 1/4 14506-4 14607-4 3.69 2.00 4.56 2 0.6 1.2 2 1/2 1 1/2 14507-5 14607-5 3.75 2.00 4.25 2 1.3 1.5 2 1/2 2 14507-6 14607-6 3.88 2.00 3.44 2 1.4 2.6 2 1/2 2 1/2 14500-7 14607-7 3.88 2.00 3.5 2.5 1 3.3 3 1 14507-3 14608-3 3.75 1.75 4.19 1.75 0.4 1.1 3 1 1/4 14506-4 14608-4 4.12 2.00 4.19 1 0.6 1.3 3 1 1/2 14507-5 14608-5 4.12 2.00 4.88 2 1.3 1.6 3 2 14508-6 14608-6 4.19 2.00 3.88 2.12 1.3 2.7 3 2 1/2 14508-7 14608-7 4.69 2.50 4.31 2.5 1.7 3.1 3 3 14508-8 14608-8 4.81 2.50 4.25 2.5 2.3 5 3 1/2 1 1/4 14509-4 14609-4 4.31 2.00 5 2 0.6 1.3 3 1/2 1 1/2 14507-5 14609-5 4.44 2.00 5.06 2 1.3 1.6 3 1/2 2 14509-6 14609-6 4.44 2.00 4.56 2 1.3 2.6 3 1/2 2 1/2 14508-7 14609-7 5.00 2.50 3.94 2 1.7 3.5 3 1/2 3 14508-8 14609-8 5.19 2.50 4.88 1.75 2.3 5.3 3 1/2 3 1/2 14509-9 14609-9 5.62 3.00 4.88 3 4.6 5.8 4 1 1/2 14510-5 14610-5 4.62 2.00 6.12 2 1.4 1.6 4 2 14509-6 14610-6 4.69 2.00 4.44 2 1.3 2.8 4 2 1/2 14510-7 14610-7 5.31 2.50 4.44 2 1.6 2.9 4 3 14510-8 14610-8 5.31 2.50 5.69 2.5 2.8 5.3 4 3 1/2 14500-9 14610-9 5.94 3.00 5.25 3 2.4 5.5 4 4 14500-10 14610-10 6.44 3.50 7.38 2.25 3.4 6.5 5 2 1/2 14510-7 14612-7 5.94 2.50 6.94 2.5 1.6 2.9 5 3 14511-8 14612-8 5.88 2.50 6.62 2.5 2.2 5.6 5 3 1/2 14500-9 14612-9 6.56 3.00 6.62 3 2.4 8.8 5 4 14500-10 14612-10 7.06 3.50 8 2.3 3.4 6.5 5 5 14500-12 14612-12 7.69 4.00 7.75 2.75 6 12 6 2 1/2 14500-7 14613-7 6.00 2.00 7.62 2.5 1 2.9 6 3 14511-8 14613-8 6.56 2.50 7.31 2.5 2.2 5.6 6 3 1/2 14500-9 14613-9 7.19 3.00 7.38 3 2.4 5.5 6 4 14500-10 14613-10 7.69 3.50 8.62 2.25 3.4 6.5 6 5 14500-12 14613-12 8.25 4.00 8.38 2.75 6 12 6 6 14500-13 14613-13 8.31 4.00 8.69 3.25 6.5 14.3 A-Frame Connectors 14500 and 14600 Series Branch Connector (14500 Series) - Vee Connector (14600 Series) - 30° 404 230 kV Aluminum Tee and Vee Connectors 230 kV Aluminum Welded Tee and Vee Connectors © 2011, AFL, all rights reserved. PP-3-00548, Revision 2, 9.16.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE WT-AA, WTA-75-AA, WTA-80-AA Welded Tee Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES 75 DEGREE 80 DEGREE 90 DEGREE RUN TAP B L WTA75-75-75-AA WTA75-75-80-AA WT75-75-AA 3/4 3/4 3/4 2 1/8 WTA100-75-75-AA WTA100-75-80-AA WT100-75-AA 1 3/4 3/4 2 1/8 WTA100-100-75-AA WTA100-100-80-AA WT100-100-AA 1 1 3/4 2 1/4 WTA125-75-75-AA WTA125-75-80-AA WT125-75-AA 1 1/4 3/4 3/4 2 1/8 WTA125-100-75-AA WTA125-100-80-AA WT125-100-AA 1 1/4 1 3/4 2 1/4 WTA125-125-75-AA WTA125-125-80-AA WT125-125-AA 1 1/4 1 1/4 1 2 1/2 WTA125-250-75-AA WTA125-250-80-AA WT125-250-AA 1 1/4 2 1/2 1 1/2 3 1/2 WTA150-75-75-AA WTA150-75-80-AA WT150-75-AA 1 1/2 3/4 3/4 2 1/8 WTA150-100-75-AA WTA150-100-80-AA WT150-100-AA 1 1/2 1 3/4 2 1/4 WTA150-125-75-AA WTA150-125-80-AA WT150-125-AA 1 1/2 1 1/4 1 2 1/2 WTA150-150-75-AA WTA150-150-80-AA WT150-150-AA 1 1/2 1 1/2 1 2 3/4 WTA150-200-75-AA WTA150-200-80-AA WT150-200-AA 1 1/2 1 1/2 1 1/4 3 11/16 WTA200-75-75AA WTA200-75-80-AA WT200-75-AA 2 3/4 3/4 2 1/8 WTA200-100-75-AA WTA200-100-80-AA WT200-100-AA 2 1 3/4 2 1/4 WTA200-125-75-AA WTA200-125-80-AA WT200-125-AA 2 1 1/4 1 2 1/2 WTA200-150-75-AA WTA200-150-80-AA WT200-150-AA 2 1 1/2 1 2 3/4 WTA200-200-75-AA WTA200-200-80-AA WT200-200-AA 2 2 1 1/4 3 1/4 WTA200-300-75-AA WTA200-300-80-AA WT200-300-AA 2 3 1 3/4 4 3/8 WTA200-400-75-AA WTA200-400-80-AA WT200-400-AA 2 4 2 1/4 4 7/8 WTA250-75-75-AA WTA250-75-80-AA WT250-75-AA 2 1/2 3/4 3/4 2 1/8 WTA250-100-75-AA WTA250-100-80-AA WT250-100-AA 2 1/2 1 3/4 2 1/4 WTA250-125-75-AA WTA250-125-80-AA WT250-125-AA 2 1/2 1 1/4 1 2 1/2 Material Aluminum Alloy Notes 1. For a welded tee at 75° for 1" to 1" pipe order: WTA100-100-75-AA. 2. For a welded tee at 80° for 1" to 1" pipe order: WTA100-100-80-AA. WT-AA WTA-AA B FIELD WELD L WT-AA 75° OR 80° WTA-AA B L 405 230 kV Aluminum Tee and Vee Connectors 230 kV Aluminum Welded Tee and Vee Connectors © 2011, AFL, all rights reserved. PP-3-00548, Revision 2, 9.16.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE WT-AA, WTA-75-AA, WTA-80-AA Welded Tee Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES 75 DEGREE 80 DEGREE 90 DEGREE RUN TAP B L WTA250-150-75-AA WTA250-150-80-AA WT250-150-AA 2 1/2 1 1/2 1 2 3/4 WTA250-200-75-AA WTA250-200-80-AA WT250-200-AA 2 1/2 2 1 1/4 3 1/4 WTA250-250-75-AA WTA250-250-80-AA WT250-250-AA 2 1/2 2 1/2 1 1/2 3 3/4 WTA300-75-75-AA WTA300-75-80-AA WT300-75-AA 3 3/4 3/4 2 1/8 WTA300-100-75-AA WTA300-100-80-AA WT300-100-AA 3 1 3/4 2 1/4 WTA300-125-75-AA WTA300-125-80-AA WT300-125-AA 3 1 1/4 1 2 1/2 WTA300-150-75-AA WTA300-150-80-AA WT300-150-AA 3 1 1/2 1 2 3/4 WTA300-200-75-AA WTA300-200-80-AA WT300-200-AA 3 2 1 1/4 3 1/4 WTA300-250-75-AA WTA300-250-80-AA WT300-250 -AA 3 2 1/2 1 1/2 3 3/4 WTA300-300-75-AA WTA300-300-80-AA WT300-300 -AA 3 3 1 3/4 4 3/8 WTA300-350-75-AA WTA300-350-80-AA WT300-350-AA 3 3 1/2 2 4 7/8 WTA300-400-75-AA WTA300-400-80-AA WT300-400-AA 3 4 2 1/4 5 3/8 WTA300-500-75-AA WTA300-500-80-AA WT300-500-AA 3 5 2 3/4 6 7/16 WTA350-75-75-AA WTA350-75-80-AA WT350-75-AA 3 1/2 3/4 3/4 2 1/8 WTA350-100-75-AA WTA350-100-80-AA WT350-100-AA 3 1/2 1 3/4 2 1/4 WTA350-125-75-AA WTA350-125-80-AA WT350-125-AA 3 1/2 1 1/4 1 2 1/2 WTA350-150-75-AA WTA350-150-80-AA WT350-150-AA 3 1/2 1 1/2 1 2 3/4 WTA350-200-75-AA WTA350-200-80-AA WT350-200-AA 3 1/2 2 1 1/4 3 1/4 WTA350-250-75-AA WTA350-250-80-AA WT350-250-AA 3 1/2 2 1/2 1 1/2 3 3/4 WTA350-300-75-AA WTA350-300-80-AA WT350-300-AA 3 1/2 3 1 3/4 4 3/8 WTA350-350-75-AA WTA350-350-80-AA WT350-350-AA 3 1/2 3 1/2 2 4 7/8 WTA400-75-75-AA WTA400-75-80-AA WT400-75-AA 4 3/4 3/4 2 1/8 WTA400-100-75-AA WTA400-100-80-AA WT400-100-AA 4 1 3/4 2 1/4 WTA400-125-75-AA WTA400-125-80-AA WT400-125-AA 4 1 1/4 1 2 1/2 WTA400-150-75-AA WTA400-150-80-AA WT400-150-AA 4 1 1/2 1 2 3/4 WTA400-200-75-AA WTA400-200-80-AA WT400-200-AA 4 2 1 1/4 3 1/4 WTA400-250-75-AA WTA400-250-80-AA WT400-250-AA 4 2 1/2 1 1/2 3 3/4 WTA400-300-75-AA WTA400-300-80-AA WT400-300-AA 4 3 1 3/4 4 3/8 WTA400-350-75-AA WTA400-350-80-AA WT400-350-AA 4 3 1/2 2 4 7/8 WTA400-400-75-AA WTA400-400-80-AA WT400-400-AA 4 4 2 1/4 5 3/8 WTA500-100-75-AA WTA500-100-80-AA WT500-100-AA 5 1 3/4 2 1/4 WTA500-125-75-AA WTA500-125-80-AA WT500-125-AA 5 1 1/4 1 2 1/2 WTA500-150-75-AA WTA500-150-80-AA WT500-150-AA 5 1 1/2 1 2 3/4 WTA500-200-75-AA WTA500-200-80-AA WT500-200-AA 5 2 1 1/4 3 1/4 WTA500-250-75-AA WTA500-250-80-AA WT500-250-AA 5 2 1/2 1 1/2 3 3/4 WTA500-300-75-AA WTA500-300-80-AA WT500-300-AA 5 3 1 3/4 4 3/8 WTA500-350-75-AA WTA500-350-80-AA WT500-350-AA 5 3 1/2 2 4 7/8 WTA500-400-75-AA WTA500-400-80-AA WT500-400-AA 5 4 2 1/4 5 3/8 WTA500-500-75-AA WTA500-500-80-AA WT500-500-AA 5 5 2 3/4 6 7/16 WTA600-100-75-AA WTA600-100-80-AA WT600-100-AA 6 1 3/4 2 1/4 WTA600-125-75-AA WTA600-125-80-AA WT600-125-AA 6 1 1/4 1 2 1/2 WTA600-150-75-AA WTA600-150-80-AA WT600-150-AA 6 1 1/2 1 2 3/4 WTA600-200-75-AA WTA600-200-80-AA WT600-200-AA 6 2 1 1/4 3 1/4 WTA600-250-75-AA WTA600-250-80-AA WT600-250-AA 6 2 1/2 1 1/2 3 3/4 WTA600-300-75-AA WTA600-300-80-AA WT600-300-AA 6 3 1 3/4 4 3/8 WTA600-350-75-AA WTA600-350-80-AA WT600-350-AA 6 3 1/2 2 4 7/8 WTA600-400-75-AA WTA600-400-80-AA WT600-400-AA 6 4 2 1/4 5 3/8 WTA600-500-75-AA WTA600-500-80-AA WT600-500-AA 6 5 2 3/4 6 7/16 WTA600-600-75-AA WTA600-600-80-AA WT600-600-AA 6 6 3 1/4 8 1/4 WTA800R-400-75-AA WTA800R-400-80-AA WT800R-400-AA 8" O.D. 4 2 3/4 5 3/8 WTA800R-500-75-AA WTA800R-500-80-AA WT800R-500-AA 8" O.D. 5 2 3/4 6 7/16 WTA800R-800R-75-AA WTA800R-800R-80-AA WT800R-800R-AA 8" O.D. 8" O.D. 2 3/4 10 WTA800-500-75-AA WTA800-500-80-AA WT800-500-AA 8" 5 2 3/4 7 5/16 406 230 kV Aluminum Tee and Vee Connectors 230 kV Aluminum Welded Tee and Vee Connectors © 2010, AFL, all rights reserved. PP-3-00573, Revision 0, 12.20.10 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES 20 DEGREE 30 DEGREE RUN TAP B H L WVBP100-50-20-AA WVBP100-50-30-AA 1 1/2 1/2 1-1/8 1-7/8 WVBP100-75-20-AA WVBP100-75-30-AA 1 3/4 3/4 1-5/8 2-1/8 WVBP125-75-20-AA WVBP125-75-30-AA 1-1/4 3/4 3/4 1-3/4 2-1/8 WVBP125-100-20-AA WVBP125-100-30-AA 1-1/4 1 3/4 1-3/4 2-1/4 WVBP125-125-20-AA WVBP125-125-30-AA 1-1/4 1-1/4 1 2 2-5/8 WVBP150-75-20-AA WVBP150-75-30-AA 1-1/2 3/4 3/4 1-7/8 2-1/8 WVBP150-100-20-AA WVBP150-100-30-AA 1-1/2 1 3/4 1-7/8 2-1/4 WVBP150-125-20-AA WVBP150-125-30-AA 1-1/2 1-1/4 1 2-1/8 2-5/8 WVBP150-150-20-AA WVBP150-150-30-AA 1-1/2 1-1/2 1 2-3/8 2-7/8 WVBP200-100-20-AA WVBP200-100-30-AA 2 1 3/4 2-1/8 2-1/4 WVBP200-125-20-AA WVBP200-125-30-AA 2 1-1/4 1 2-3/8 2-5/8 WVBP200-150-20-AA WVBP200-150-30-AA 2 1-1/2 1 2-3/8 2-7/8 WVBP200-200-20-AA WVBP200-200-30-AA 2 2 1-1/4 2-5/8 3-1/2 WVBP250-100-20-AA WVBP250-100-30-AA 2-1/2 1 3/4 2-3/8 2-1/4 WVBP250-125-20-AA WVBP250-125-30-AA 2-1/2 1-1/4 1 2-5/8 2-5/8 WVBP250-150-20-AA WVBP250-150-30-AA 2-1/2 1-1/2 1 2-5/8 2-7/8 Material Aluminum Alloy H B 20º H B 30º L TYPE WVBP-20-AA, WVBP-30-AA Welded Vee Connector for Aluminum Tubing 407 230 kV Aluminum Welded Tee and Vee Connectors 230 kV Aluminum Tee and Vee Connectors © 2010, AFL, all rights reserved. PP-3-00573, Revision 0, 12.20.10 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE WVBP-20-AA, WVBP-30-AA Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES 20 DEGREE 30 DEGREE RUN TAP B H L WVBP250-200-20-AA WVBP250-200-30-AA 2-1/2 2 1-1/4 2-7/8 3-1/2 WVBP250-250-20-AA WVBP250-250-30-AA 2-1/2 2-1/2 1-1/2 3-1/8 4 WVBP300-125-20-AA WVBP300-125-30-AA 3 1-1/4 1 2-15/16 2-5/8 WVBP300-150-20-AA WVBP300-150-30-AA 3 1-1/2 1 2-15/16 2-7/8 WVBP300-200-20-AA WVBP300-200-30-AA 3 2 1-1/4 3-3/16 3-1/2 WVBP300-250-20-AA WVBP300-250-30-AA 3 2-1/2 1-1/2 3-7/16 4 WVBP300-300-20-AA WVBP300-300-30-AA 3 3 1-3/4 3-11/16 4-5/8 WVBP350-100-20-AA WVBP350-100-30-AA 3-1/2 1 3/4 2-5/8 2-1/4 WVBP350-150-20-AA WVBP350-150-30-AA 3-1/2 1-1/2 1 3-1/4 2-7/8 WVBP350-200-20-AA WVBP350-200-30-AA 3-1/2 2 1-1/4 3-1/2 3-1/2 WVBP350-250-20-AA WVBP350-250-30-AA 3-1/2 2-1/2 1-1/2 3-3/4 4 WVBP350-300-20-AA WVBP350-300-30-AA 3-1/2 3 1-3/4 4 4-5/8 WVBP350-350-20-AA WVBP350-350-30-AA 3-1/2 3-1/2 2 4-1/4 5-1/8 WVBP400-150-20-AA WVBP400-150-30-AA 4 1-1/2 1 3-1/2 2-7/8 WVBP400-200-20-AA WVBP400-200-30-AA 4 2 1-1/4 3-3/4 3-1/2 WVBP400-250-20-AA WVBP400-250-30-AA 4 2-1/2 1-1/2 4 4 WVBP400-300-20-AA WVBP400-300-30-AA 4 3 1-3/4 4-1/4 4-5/8 WVBP400-350-20-AA WVBP400-350-30-AA 4 3-1/2 2 4-1/2 5-1/8 WVBP400-400-20-AA WVBP400-400-30-AA 4 4 2-1/4 4-3/4 5-7/8 WVBP500-150-20-AA WVBP500-150-30-AA 5 1-1/2 1 4 2-7/8 WVBP500-200-20-AA WVBP500-200-30-AA 5 2 1-1/4 4-1/4 3-1/2 WVBP500-250-20-AA WVBP500-250-30-AA 5 2-1/2 1-1/2 4-1/2 4 WVBP500-300-20-AA WVBP500-300-30-AA 5 3 1-3/4 4-3/4 4-5/8 WVBP500-350-20-AA WVBP500-350-30-AA 5 3-1/2 2 5 5-1/8 WVBP500-400-20-AA WVBP500-400-30-AA 5 4 2-1/4 5-1/4 5-7/8 WVBP500-500-20-AA WVBP500-500-30-AA 5 5 2-3/4 5-3/4 6-15/16 WVBP600-200-20-AA WVBP600-200-30-AA 6 2 1-1/4 4-13/16 3-1/2 WVBP600-250-20-AA WVBP600-250-30-AA 6 2-1/2 1-1/2 5-1/16 4 WVBP600-300-20-AA WVBP600-300-30-AA 6 3 1-3/4 5-5/16 4-5/8 WVBP600-350-20-AA WVBP600-350-30-AA 6 3-1/2 2 5-9/16 5-1/8 WVBP600-400-20-AA WVBP600-400-30-AA 6 4 2-1/4 5-13/16 5-7/8 WVBP600-500-20-AA WVBP600-500-30-AA 6 5 2-3/4 6-5/16 6-15/16 WVBP600-600-20-AA WVBP600-600-30-AA 6 6 3-1/4 6-13/16 8
