Expansion terminal is designed to compensate for expansion and contraction in bus runs. Pad conforms to NEMA standards.
ab1cb471c90847f3b11358cd68bb682e
www.AFLglobal.com or 800-890-8878 372 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00595, Revision 4, 12.18.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Terminal Connectors Material Aluminum Alloy Hardware Aluminum bolts, lockwashers and nuts Notes • For an expansion terminal at 90°, add suffix "-90" to catalog number. EX: XLWP125-4N-AA • To order without alignment guide, add "P" to catalog number. EX: XLWP125-4N-AA • For schedule 80 pipe, add "E" to catalog number. EX: XLW125E-4N-AA • For Stainless Steel bolts, lockwashers and Everdur nuts, add "-SSHBN" to catalog number. EX: XLW350-4N4-AA-SSHBN • For Galvanized Steel Hardware, add "-GS" to catalog number. EX: XLW350-4N4-AA-GS TYPE XLW-AA, XLW-90-AA Expansion Terminal Connector Expansion terminal is designed to compensate for expansion and contraction in bus runs. Pad conforms to NEMA standards. ∅ 0.56 ∅ 0.56 FIG. 1 D B "EC" ALUMINUM LAMINATES FACTORY WELD C T F X A 1.75 C SYM. L XLW-90-AA C ∅ 0.56 X L A 1.75 1.75 C X A 1.75 FIG. 3 FIG. 2 1.75 1.75 1.25
www.AFLglobal.com or 800-890-8878 373 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00595, Revision 4, 12.18.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Terminal Connectors TYPE XLW-AA, XLW-90-AA Expansion Terminal Connector Ordering Information CATALOG NUMBER FIG. NO. SPS DIMENSIONS IN INCHES BOLT SIZE A B C D F L T X XLW100-2N-AA 1 1 2.00 1.50 3.00 7.13 3.50 12.63 0.50 0.63 1/2 XLW100-4N-AA 2 1 3.00 1.50 3.00 7.13 3.50 12.63 0.50 0.63 1/2 XLW125-2N-AA 1 1 1/4 2.00 1.50 3.00 8.25 3.50 13.75 0.50 0.63 1/2 XLW125-4N-AA 2 1 1/4 3.00 1.50 3.00 8.25 3.50 13.75 0.50 0.63 1/2 XLW150-2N-AA 1 1 1/2 2.00 1.50 3.00 8.38 3.50 14.00 0.63 0.63 1/2 XLW150-4N-AA 2 1 1/2 3.00 1.50 3.00 8.38 3.50 14.00 0.63 0.63 1/2 XLW150-4N4-AA 2 1 1/2 4.00 1.50 4.00 8.38 3.50 15.00 0.63 1.13 1/2 XLW200-2N-AA 1 2 2.00 2.50 3.00 9.56 4.50 16.75 0.75 0.63 1/2 XLW200-4N-AA 2 2 3.00 2.50 3.00 9.56 4.50 16.75 0.75 0.63 1/2 XLW200-4N4-AA 2 2 4.00 2.50 4.00 9.56 4.50 17.75 0.75 1.13 1/2 XLW250-2N-AA 1 2 1/2 2.00 2.50 3.00 10.31 4.50 17.50 0.75 0.63 1/2 XLW250-4N-AA 2 2 1/2 3.00 2.50 3.00 10.31 4.50 17.50 0.75 0.63 1/2 XLW250-4N4-AA 2 2 1/2 4.00 2.50 4.00 10.31 4.50 18.50 0.75 1.13 1/2 XLW300-2N-AA 1 3 3.00 2.50 3.00 11.56 4.50 18.75 0.88 0.63 5/8 XLW300-4N-AA 2 3 3.00 2.50 3.00 11.56 4.50 18.75 0.88 0.63 5/8 XLW300-4N4-AA 2 3 4.00 2.50 4.00 11.56 4.50 19.75 0.88 1.13 5/8 XLW350-4N-AA 2 3 1/2 3.00 2.50 3.00 12.56 4.50 20.13 0.88 0.63 5/8 XLW350-4N4-AA 2 3 1/2 4.00 2.50 4.00 12.56 4.50 21.13 0.81 1.13 5/8 XLW350-6N4-AA 3 3 1/2 6.00 2.50 4.00 12.56 4.50 21.13 0.88 1.25 5/8 XLW400-4N-AA 2 4 4.00 2.50 3.00 12.75 4.50 21.75 1.00 0.63 5/8 XLW400-4N4-AA 2 4 4.00 2.50 4.00 12.75 4.50 21.75 1.00 1.13 5/8 XLW400-6N4-AA 3 4 6.00 2.50 4.00 12.75 4.50 21.75 1.00 1.13 5/8 XLW500-4N4-AA 2 5 4.00 2.50 4.00 15.00 4.50 24.00 1.25 1.13 5/8 XLW500-6N4-AA 3 5 6.00 2.50 4.00 15.00 4.50 24.00 1.25 1.25 5/8 XLW600-4N4-AA 2 6 4.00 2.50 4.00 17.00 4.50 26.38 1.38 1.13 5/8 XLW600-6N4-AA 3 6 6.00 2.50 4.00 17.00 4.50 26.38 1.38 1.25 5/8
374 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00594, Revision 1, 7.23.13 Specifications are subject to change without notice. 230 kV Aluminum Bolted Terminal Connectors www.AFLglobal.com or 800-890-8878 XLW-90V-AA Material Aluminum Alloy Hardware Yellow anodized aluminum nuts, bolts and lockwashers. Notes 1. Add "P" to catalog number to remove alignment guide. EX: XLWP200-4N4-90V-AA or XLWOP200-4N4-AA. 2. Add "E" to the catalog number for extra heavy pipe. EX: XLW200E-4N4-90V-AA or XLWO200E-4N4-AA. TYPE XLW-90V-AA, XLWO-AA Expansion Terminal Connector Expansion terminal is designed to compensate for expansion and contraction in bus runs. Pad conforms to NEMA standards. Dimension "D" shown is for an installation temperature of 68°F(20°C). XLW-90V is the product number for a center-formed pad, XLWO is for an offset pad. Products from factory are for use with Sch. 40 pipe, to order for use with Sch. 80 pipe see notes below. XLWO-AA X 1 3/4 ∅ 9/16 A FIG. 1 FIG. 2 ∅ 9/16 1 3/4 E NOM. D F "EC" ALUMINUM LAMINATES C A X T L XLW-90V-AA XLWO-AA T
375 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00594, Revision 1, 7.23.13 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Terminal Connectors TYPE XLW-90V-AA, XLWO-AA Expansion Terminal Connector Ordering Information CATALOG NUMBER* CATALOG NUMBER* SPS FIG. NO. DIMENSIONS IN INCHES A C D E F L T X BOLT SIZE XLW100-2N-90V-AA XLWO100-2N-AA 1 1 2 3 7-1/8 1-1/2 3-1/2 12-5/8 1/2 5/8 1/2 XLW100-4N-90V-AA XLWO100-4N-AA 1 2 3 3 7-1/8 1-1/2 3-1/2 12-5/8 1/2 5/8 1/2 XLW125-2N-90V-AA XLWO125-2N-AA 1-1/4 1 2 3 8-1/4 1-1/2 3-1/2 13-3/4 1/2 5/8 1/2 XLW125-4N-90V-AA XLWO125-4N-AA 1-1/4 2 3 3 8-1/4 1-1/2 3-1/2 13-3/4 1/2 5/8 1/2 XLW150-2N-90V-AA XLWO150-2N-AA 1-1/2 1 2-1/2 3 8-3/8 1-1/2 3-1/2 14 5/8 5/8 1/2 XLW150-4N-90V-AA XLWO150-4N-AA 1-1/2 2 3 3 8-3/8 1-1/2 3-1/2 14 5/8 5/8 1/2 XLW150-4N4-90V-AA XLWO150-4N4-AA 1-1/2 2 4 4 8-3/8 1-1/2 3-1/2 15 5/8 1-1/8 1/2 XLW200-2N-90V-AA XLWO200-2N-AA 2 1 2-3/4 3 9-9/16 2-1/2 4-1/2 16-3/4 3/4 5/8 1/2 XLW200-4N-90V-AA XLWO200-4N-AA 2 2 3 3 9-9/16 2-1/2 4-1/2 16-3/4 3/4 5/8 1/2 XLW200-4N4-90V-AA XLWO200-4N4-AA 2 2 4 4 9-9/16 2-1/2 4-1/2 17-3/4 3/4 1-1/8 1/2 XLW250-2N-90V-AA XLWO250-2N-AA 2-1/2 1 2-3/4 3 10-5/16 2-1/2 4-1/2 171/2 3/4 5/8 1/2 XLW250-4N-90V-AA XLWO250-4N-AA 2-1/2 2 3 3 10-5/16 2-1/2 4-1/2 17-1/2 3/4 5/8 1/2 XLW250-4N4-90V-AA XLWO250-4N4-AA 2-1/2 2 4 4 10-5/16 2-1/2 4-1/2 18-1/2 3/4 1-1/8 1/2 XLW300-4N-90V-AA XLWO300-4N-AA 3 2 3 3 11-9/16 2-1/2 4-1/2 18-3/4 7/8 5/8 5/8 XLW300-4N4-90V-AA XLWO300-4N4-AA 3 2 4 4 11-9/16 2-1/2 4-1/2 19-3/4 7/8 1-1/8 5/8 XLW350-4N-90V-AA XLWO350-4N-AA 3-1/2 2 3 3 12-9/16 2-1/2 4-1/2 20-1/8 7/8 5/8 5/8 XLW350-4N4-90V-AA XLWO350-4N4-AA 3-1/2 2 4 4 12-9/16 2-1/2 4-1/2 21-1/8 7/8 1-1/8 5/8 XLW400-4N4-90V-AA XLWO400-4N4-AA 4 2 4 4 12-3/4 2-1/2 4-1/2 21-3/4 1 1-1/8 5/8 XLW500-4N4-90V-AA XLWO500-4N4-AA 5 2 4 4 15 2-1/2 4-1/2 24 1-1/4 1-1/8 5/8 XLW600-4N4-90V-AA XLWO600-4N4-AA 6 2 4 4 17 2-1/2 4-1/2 26-3/8 1-3/8 1-1/8 5/8 * See Notes for SCH80 Ordering Information.
Features:
- Aluminum alloy
- Anodized aluminum hardware
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Aluminum bus pipe
Expansion terminal is designed to compensate for expansion and contraction in bus runs. Pad conforms to NEMA standards.
230 kV Aluminum Compression Couplers,230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Tee Terminal Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps
245
Close

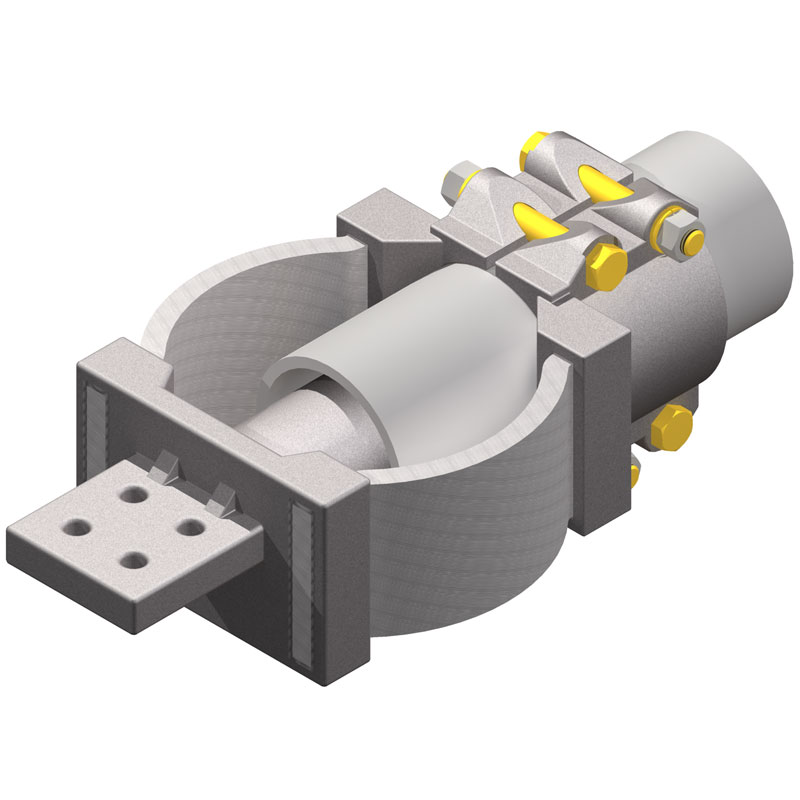

230 kV Aluminum Bolted Bus Pipe Expansion Terminal Connector
Features:
- Aluminum alloy
- Anodized aluminum hardware
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Aluminum bus pipe
PRODUCT DESCRIPTION
Expansion terminal is designed to compensate for expansion and contraction in bus runs. Pad conforms to NEMA standards.
Documents & Downloads
Close
Specification Sheet
- Download Specification Sheet
