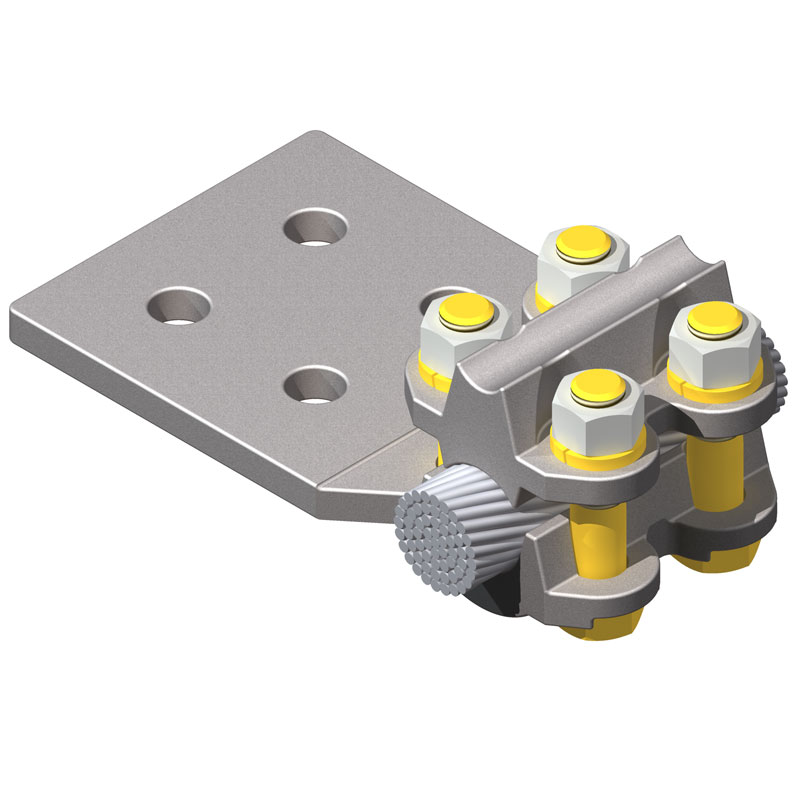

A variable clamp type terminal for connecting a cable to a flat bar bus. Each size terminal accommodates a wide range of cable sizes. Designed to carry the full rated load of the maximum conductor without overheating. Pad conforms to NEMA standards.
ab1cb471c90847f3b11358cd68bb682e
351 230 kV Aluminum Bolted Terminal Connectors 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00284, Revision 4, 11.30.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 Material Aluminum Alloy Hardware Yellow anodized aluminum nuts, bolts and lockwashers. TYPE CFTV-N-AA Terminal Lug Tee connector designed to connect aluminum cables to aluminum pad for flat bolt on connection. Pads conform to NEMA standards. Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES BOLT SIZE ALUMINUM ACSR A B C L T X MIN MAX MIN MAX CFTV25-2N-AA 1/0 STR. 250 MCM 1/0 4/0 2 2.00 3.00 3.00 5.63 0.31 0.63 1/2 CFTV25-3N-AA 1/0 STR. 250 MCM 1/0 4/0 1 3.00 3.00 3.00 5.56 0.31 0.63 1/2 CFTV25-4N-AA 1/0 STR. 250 MCM 1/0 4/0 1 4.00 3.00 3.00 5.56 0.31 0.63 1/2 CFTV25-4N4-AA 1/0 STR. 250 MCM 1/0 4/0 1 4.00 3.00 4.00 6.56 0.31 1.13 1/2 CFTV40-2N-AA 250 MCM 400 MCM 4/0 397.5 2 2.00 3.00 3.00 5.63 0.38 0.63 1/2 CFTV40-3N-AA 250 MCM 400 MCM 4/0 397.5 1 3.00 3.00 3.00 5.75 0.38 0.63 1/2 CFTV40-4N-AA 250 MCM 400 MCM 4/0 397.5 1 3.00 3.00 3.00 5.75 0.38 0.63 1/2 CFTV40-4N4-AA 250 MCM 400 MCM 4/0 397.5 1 4.00 3.00 4.00 6.75 0.38 1.13 1/2 CFTV60-2N-AA 350 MCM 600 MCM 336.4 477 2 2.00 3.00 3.00 5.94 0.38 0.63 1/2 CFTV60-3N-AA 350 MCM 600 MCM 336.4 477 1 3.00 3.00 3.00 5.94 0.38 0.63 1/2 CFTV60-4N-AA 350 MCM 600 MCM 336.4 477 1 4.00 3.00 3.00 5.94 0.38 0.63 1/2 CFTV60-4N4-AA 350 MCM 600 MCM 336.4 477 1 4.00 3.00 4.00 6.94 0.38 1.13 1/2 CFTV60-6N4-AA 350 MCM 600 MCM 336.4 477 3 6.00 3.00 4.00 6.94 0.38 1.13 1/2 CFTV90-2N-AA 500 MCM 900 MCM 477 795 2 2.00 3.00 3.00 6.13 0.50 0.63 1/2 CFTV90-3N-AA 500 MCM 900 MCM 477 795 1 3.00 3.00 3.00 6.13 0.50 0.63 1/2 CFTV90-4N-AA 500 MCM 900 MCM 477 795 1 4.00 3.00 3.00 6.63 0.50 0.63 1/2 CFTV90-4N4-AA 500 MCM 900 MCM 477 795 1 4.00 3.00 4.00 7.13 0.50 1.13 1/2 CFTV125-2N-AA 900 MCM 1250 MCM 715 1113 2 2.00 3.25 3.00 6.31 0.50 0.63 1/2 CFTV125-3N-AA 900 MCM 1250 MCM 715 1113 1 3.00 3.25 3.00 6.31 0.50 0.63 1/2 A A C B X X 1.75 1.75 1.75 ∅ 0.56 T L C ∅ 0.56 A 1.75 C ∅ 0.56 1.75 1.75 FIG. 2 FIG. 1 FIG. 3 Notes 1. For Stainless Steel bolts, lockwashers and Everdur nuts, add "-SSHBN" to catalog number. EX: CTFV160-4N-NN-SSHBN 2. For Grade Five Galvanized Steel Hardware, add "-GS5" to catalog number. EX: CFTV160-4N-AA-GS5 X
352 230 kV Aluminum Bolted Terminal Connectors 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00284, Revision 4, 11.30.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE CFTV-N-AA Terminal Lug Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES BOLT SIZE ALUMINUM ACSR A B C L T X MIN MAX MIN MAX CFTV125-4N-AA 900 MCM 1250 MCM 715 1113 1 3.00 3.25 3.00 6.31 0.50 0.63 1/2 CFTV125-4N4-AA 900 MCM 1250 MCM 715 1113 1 4.00 3.25 4.00 7.31 0.50 1.13 1/2 CFTV125-6N4-AA 900 MCM 1250 MCM 715 1113 3 6.00 3.25 4.00 7.31 0.50 1.13 1/2 CFTV160-3N-AA 1250 MCM 1600 MCM 1113 1431 1 3.00 4.38 3.00 6.88 0.56 0.63 5/8 CFTV160-4N-AA 1250 MCM 1600 MCM 1113 1431 1 4.00 4.38 3.00 6.88 0.56 0.63 5/8 CFTV160-4N4-AA 1250 MCM 1600 MCM 1113 1431 1 4.00 4.38 4.00 7.88 0.56 1.13 5/8 CFTV160-6N4-AA 1250 MCM 1600 MCM 1113 1431 3 6.00 4.38 4.00 7.88 0.56 1.13 5/8 CFTV200-2N-AA 1500 MCM 2000 MCM 1272 1780 2 2.00 4.50 3.00 7.00 0.69 0.63 5/8 CFTV200-3N-AA 1500 MCM 2000 MCM 1272 1780 1 3.00 4.50 3.00 7.00 0.69 0.63 5/8 CFTV200-4N-AA 1500 MCM 2000 MCM 1272 1780 1 4.00 4.50 3.00 7.00 0.69 0.63 5/8 CFTV200-4N4-AA 1500 MCM 2000 MCM 1272 1780 1 4.00 4.50 4.00 8.00 0.69 1.13 5/8 CFTV200-6N4-AA 1500 MCM 2000 MCM 1272 1780 3 6.00 4.50 4.00 8.00 0.69 1.13 5/8 CFTV250-2N-AA 2000 MCM 2500 MCM 1780 2300 2 2.00 4.50 3.00 7.19 0.75 0.63 5/8 CFTV250-3N-AA 2000 MCM 2500 MCM 1780 2300 1 3.00 4.50 3.00 7.00 0.69 0.63 5/8 CFTV250-4N-AA 2000 MCM 2500 MCM 1780 2300 1 4.00 4.50 3.00 7.38 0.75 0.63 5/8 CFTV250-4N4-AA 2000 MCM 2500 MCM 1780 2300 1 4.00 4.50 4.00 8.38 0.75 1.13 5/8 CFTV250-6N4-AA 2000 MCM 2500 MCM 1780 2300 3 6.00 4.50 4.00 8.38 0.75 1.13 5/8 CFTV300-4N-AA 2500 MCM 3000 MCM 2300 2870 1 4.00 4.50 3.00 7.56 0.75 0.63 5/8 CFTV300-4N4-AA 2500 MCM 3000 MCM 2300 2870 1 4.00 4.50 4.00 8.56 0.75 1.13 5/8
353 230 kV Aluminum Bolted © 2013, AFL, all rights reserved. PP-3-00468, Revision 2, 3.29.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 230 kV Aluminum Bolted Terminal Connectors Material Aluminum Alloy Material Aluminum nuts, bolts and lockwashers. Notes • For Stainless Steel Hardware, add "-SS" to catalog number. EX: T3CV125-4N4-AA-SS • For Stainless Steel bolts, lockwashers and Everdur nuts, add "-SSHBN" to catalog number. EX: T3CV125-4N4-AA-SSHBN • For Galvanized Steel Hardware, add "-GS" to catalog number. EX: T3CV125-4N4-AA-GS • For Angled Pad, add "A" to prefix and angle to catalog number. EX: T3CVA125-4N4-45-AA TYPE T3CV-AA Aluminum Terminal X 1.75 A FIG. 1 FIG. 2 A C B ∅ 0.56 1.75 1.75 W ∅ 0.56 1.75 T L C X 1.75
© 2013, AFL, all rights reserved. PP-3-00468, Revision 2, 3.29.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 354 230 kV Aluminum Bolted Terminal Connectors 230 kV Aluminum Bolted Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES BOLT SIZE ALUMINUM ACSR MIN MAX MIN MAX A B C L T W X T3CV25-4N-AA # 1/0 250 # 1/0 #4/0 1 3.00 3.00 3.00 6.25 0.31 7.19 0.63 1/2 T3CV25-4N4-AA # 1/0 250 # 1/0 #4/0 1 4.00 3.00 4.00 7.25 0.31 7.19 1.13 1/2 T3CV40-4N-AA 250 400 #4/0 397.5 1 3.00 3.00 3.00 6.25 0.38 7.75 0.63 1/2 T3CV40-4N4-AA 250 400 #4/0 397.5 1 4.00 3.00 4.00 7.25 0.38 7.75 1.13 1/2 T3CV60-4N-AA 350 600 336.4 477 1 3.00 3.00 3.00 6.25 0.38 8.63 0.63 1/2 T3CV60-4N4-AA 350 600 336.4 477 1 4.00 3.00 4.00 7.25 0.38 8.63 1.13 1/2 T3CV90-4N-AA 500 900 477 795 1 3.00 3.00 3.00 6.25 0.50 8.88 0.63 1/2 T3CV90-4N4-AA 500 900 477 795 1 4.00 3.00 4.00 7.25 0.75 8.88 1.13 1/2 T3CV90-5N4-AA 500 900 477 795 2 5.00 3.00 4.00 7.25 0.63 8.88 1.13 1/2 T3CV90-6N4-AA 500 900 477 795 2 6.00 3.00 4.00 7.25 0.50 8.88 1.13 1/2 T3CV125-4N-AA 900 1250 715 1113 1 3.00 3.25 3.00 6.50 0.63 9.44 0.63 1/2 T3CV125-4N4-AA 900 1250 715 1113 1 4.00 3.25 4.00 7.50 0.63 9.88 1.13 1/2 T3CV160-4N-AA 1250 1600 1113 1431 1 3.00 4.38 3.00 7.63 0.75 11.13 0.63 5/8 T3CV160-4N4-AA 1250 1600 1113 1431 1 4.00 4.38 4.00 8.75 0.75 11.13 1.13 5/8 T3CV160-6N4-AA 1250 1600 1113 1431 2 6.00 4.38 4.00 8.75 0.75 11.13 1.13 5/8 T3CV200-4N-AA 1500 2000 1272 1780 1 3.00 4.50 3.00 7.75 0.88 11.88 0.63 5/8 T3CV200-4N4-AA 1500 2000 1272 1780 1 4.00 4.50 4.00 8.75 0.88 12.25 1.13 5/8 T3CV200-6N4-AA 1500 2000 1272 1780 2 6.00 4.50 4.00 8.75 0.88 11.88 1.13 5/8 T3CV250-4N-AA 2000 2500 1780 2300 1 3.00 4.50 3.00 7.75 0.88 11.94 0.63 5/8 T3CV250-4N4-AA 2000 2500 1780 2300 1 4.00 4.50 4.00 8.75 0.88 12.06 1.13 5/8 T3CV250-6-4N4-AA 2000 2500 1780 2300 1 4.00 4.50 4.00 8.75 0.88 15.94 1.13 5/8 T3CV250-6N4-AA 2000 2500 1780 2300 2 6.00 4.50 4.00 8.75 0.88 12.06 1.13 5/8 TYPE T3CV-AA Aluminum Terminal
355 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00470, Revision 3, 6.11.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Terminal Connectors Material Aluminum Alloy Material Yellow anodized aluminum nuts, bolts and lockwashers. Notes • For a 30°, add suffix '-30'; 45°, add suffix '-45'; and 90°, add suffix '-90' to catalog number. Also add 'A' after T2CV. EX: T2CVA25-4N4-90-AA • For Stainless Steel bolts, lockwashers and Everdur nuts, add "-SSHBN" to catalog number. EX: T2CV200-4N4-AA-SSHBN • For Galvanized Steel Hardware, add "-GS" to catalog number. EX: T2CV200-4N4-AA-GS • For Angled Pad, add "A" to prefix and angle to catalog number. EX: T2CVA200-4N4-45-AA TYPE T2CV-N-AA, T2CVA-N-30-AA, T2CVA-N-45-AA, T2CVA-N-90-AA Aluminum Terminal for 2 Cables Terminal is designed to connect stranded aluminum or ACSR conductors to aluminum pads. Pad conforms to NEMA standards. Terminals are designed with a universal groove to accept a wide range of conductor sizes. Captive bolts permit one wrench tightening of nuts. X 1.75 A FIG. 1 C B ∅ 0.56 T L T2CV-N-AA T2CVA-N-30-AA T2CVA-N-45-AA T2CVA-N-90-AA 30° 45° 90° X 1.75 A FIG. 2 ∅ 0.56 1.75 X A FIG. 3 ∅ 0.56 1.75 1.75 1.75 W DETAIL A W DETAIL B
356 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00470, Revision 3, 6.11.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Terminal Connectors www.AFLglobal.com or 800-890-8878 TYPE T2CV-N-AA, T2CVA-N-30-AA, T2CVA-N-45-AA, T2CVA-N-90-AA Aluminum Terminal for 2 Cables Ordering Information CATALOG NO. CABLE RANGE FIG. NO. DETAIL DIMENSIONS IN INCHES BOLT SIZE AAC ACSR MIN MAX MIN MAX A B C L T W X T2CV25-4N-AA # 1/0 250 # 1/0 # 4/0 2 A 3 3 3 6 1/4 5/16 4 3/4 5/8 1/2 T2CVA25-4N-30-AA # 1/0 250 # 1/0 # 4/0 2 A 3 3 3 6 1/4 5/16 4 3/4 5/8 1/2 T2CVA25-4N-45-AA # 1/0 250 # 1/0 # 4/0 2 A 3 3 3 6 1/4 5/16 4 3/4 5/8 1/2 T2CVA25-4N-90-AA # 1/0 250 # 1/0 # 4/0 2 A 3 3 3 6 1/4 5/16 4 3/4 5/8 1/2 T2CV25-4N4-AA # 1/0 250 # 1/0 # 4/0 2 A 4 3 4 7 1/4 5/16 4 3/4 1 1/8 1/2 T2CVA25-4N4-30-AA # 1/0 250 # 1/0 # 4/0 2 A 4 3 4 7 1/4 5/16 4 3/4 1 1/8 1/2 T2CVA25-4N4-45-AA # 1/0 250 # 1/0 # 4/0 2 A 4 3 4 7 1/4 5/16 4 3/4 1 1/8 1/2 T2CVA25-4N4-90-AA # 1/0 250 # 1/0 # 4/0 2 A 4 3 4 7 1/4 5/16 4 3/4 1 1/8 1/2 T2CV40-4N-AA 250 400 # 4/0 397.5 2 A 3 3 3 6 1/4 7/16 5 1/16 5/8 1/2 T2CVA40-4N-30-AA 250 400 # 4/0 397.5 2 A 3 3 3 6 1/4 7/16 5 1/16 5/8 1/2 T2CVA40-4N-45-AA 250 400 # 4/0 397.5 2 A 3 3 3 6 1/4 7/16 5 1/16 5/8 1/2 T2CVA40-4N-90-AA 250 400 # 4/0 397.5 2 A 3 3 3 6 1/4 7/16 5 1/16 5/8 1/2 T2CV40-4N4-AA 250 400 # 4/0 397.5 2 A 4 3 4 7 1/4 3/8 5 1/16 1 1/8 1/2 T2CVA40-4N4-30-AA 250 400 # 4/0 397.5 2 A 4 3 4 7 1/4 3/8 5 1/16 1 1/8 1/2 T2CVA40-4N4-45-AA 250 400 # 4/0 397.5 2 A 4 3 4 7 1/4 3/8 5 1/16 1 1/8 1/2 T2CVA40-4N4-90-AA 250 400 # 4/0 397.5 2 A 4 3 4 7 1/4 3/8 5 1/16 1 1/8 1/2 T2CV60-4N-AA 350 600 336.4 477 2 A 3 3 3 6 1/4 3/8 5 3/8 5/8 1/2 T2CVA60-4N-30-AA 350 600 336.4 477 2 A 3 3 3 6 1/4 3/8 5 3/8 5/8 1/2 T2CVA60-4N-45-AA 350 600 336.4 477 2 A 3 3 3 6 1/4 3/8 5 3/8 5/8 1/2 T2CVA60-4N-90-AA 350 600 336.4 477 2 A 3 3 3 6 1/4 3/8 5 3/8 5/8 1/2 T2CV60-4N4-AA 350 600 336.4 477 2 A 4 3 4 7 1/4 3/8 5 3/8 1 1/8 1/2 T2CVA60-4N4-30-AA 350 600 336.4 477 2 A 4 3 4 7 1/4 3/8 5 3/8 1 1/8 1/2 T2CVA60-4N4-45-AA 350 600 336.4 477 2 A 4 3 4 7 1/4 3/8 5 3/8 1 1/8 1/2 T2CVA60-4N4-90-AA 350 600 336.4 477 2 A 4 3 4 7 1/4 3/8 5 3/8 1 1/8 1/2 T2CV90-2N-AA 500 900 477 795 1 A 2 3 3 6 1/4 11/16 5 7/8 5/8 1/2 T2CVA90-2N-30-AA 500 900 477 795 1 A 2 3 3 6 1/4 11/16 5 7/8 5/8 1/2 T2CVA90-2N-45-AA 500 900 477 795 1 A 2 3 3 6 1/4 11/16 5 7/8 5/8 1/2 T2CVA90-2N-90-AA 500 900 477 795 1 A 2 3 3 6 1/4 11/16 5 7/8 5/8 1/2 T2CV90-4N-AA 500 900 477 795 2 A 3 3 3 6 1/4 1/2 5 7/8 5/8 1/2 T2CVA90-4N-30-AA 500 900 477 795 2 A 3 3 3 6 1/4 1/2 5 7/8 5/8 1/2 T2CVA90-4N-45-AA 500 900 477 795 2 A 3 3 3 6 1/4 1/2 5 7/8 5/8 1/2 T2CVA90-4N-90-AA 500 900 477 795 2 A 3 3 3 6 1/4 1/2 5 7/8 5/8 1/2 T2CV90-4N4-AA 500 900 477 795 2 A 4 3 4 7 1/4 1/2 5 7/8 1 1/8 1/2 T2CVA90-4N4-30-AA 500 900 477 795 2 A 4 3 4 7 1/4 1/2 5 7/8 1 1/8 1/2 T2CVA90-4N4-45-AA 500 900 477 795 2 A 4 3 4 7 1/4 1/2 5 7/8 1 1/8 1/2 T2CVA90-4N4-90-AA 500 900 477 795 2 A 4 3 4 7 1/4 1/2 5 7/8 1 1/8 1/2 T2CV125-2N-AA 900 1250 715 1192.5 1 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CVA125-2N-30-AA 900 1250 715 1192.5 1 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CVA125-2N-45-AA 900 1250 715 1192.5 1 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CVA125-2N-90-AA 900 1250 715 1192.5 1 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CV125-4N-AA 900 1250 715 1192.5 2 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CVA125-4N-30-AA 900 1250 715 1192.5 2 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CVA125-4N-45-AA 900 1250 715 1192.5 2 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CVA125-4N-90-AA 900 1250 715 1192.5 2 A 3 3 1/4 3 6 1/2 5/8 6 1/4 5/8 1/2 T2CV125-6-4N-AA 900 1250 715 1192.5 2 B 3 3 1/4 3 6 1/2 11/16 9 1/16 5/8 1/2 T2CVA125-6-4N-30-AA 900 1250 715 1192.5 2 B 3 3 1/4 3 6 1/2 11/16 9 1/16 5/8 1/2 T2CVA125-6-4N-45-AA 900 1250 715 1192.5 2 B 3 3 1/4 3 6 1/2 11/16 9 1/16 5/8 1/2 T2CVA125-6-4N-90-AA 900 1250 715 1192.5 2 B 3 3 1/4 3 6 1/2 11/16 9 1/16 5/8 1/2 T2CV125-4N4-AA 900 1250 715 1192.5 2 A 4 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2 T2CVA125-4N4-30-AA 900 1250 715 1192.5 2 A 4 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2 T2CVA125-4N4-45-AA 900 1250 715 1192.5 2 A 4 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2 T2CVA125-4N4-90-AA 900 1250 715 1192.5 2 A 4 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2
357 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00470, Revision 3, 6.11.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 230 kV Aluminum Bolted Terminal Connectors TYPE T2CV-N-AA, T2CVA-N-30-AA, T2CVA-N-45-AA, T2CVA-N-90-AA Aluminum Terminal for 2 Cables Ordering Information CATALOG NO. CABLE RANGE FIG. NO. DETAIL DIMENSIONS IN INCHES BOLT SIZE AAC ACSR MIN MAX MIN MAX A B C L T W X T2CV125-6-4N4-AA 900 1250 715 1192.5 2 B 4 3 1/4 4 7 1/2 11/16 9 1/16 1 1/8 1/2 T2CVA125-6-4N4-30-AA 900 1250 715 1192.5 2 B 4 3 1/4 4 7 1/2 11/16 9 1/16 1 1/8 1/2 T2CVA125-6-4N4-45-AA 900 1250 715 1192.5 2 B 4 3 1/4 4 7 1/2 11/16 9 1/16 1 1/8 1/2 T2CVA125-6-4N4-90-AA 900 1250 715 1192.5 2 B 4 3 1/4 4 7 1/2 11/16 9 1/16 1 1/8 1/2 T2CV125-6N4-AA 900 1250 715 1192.5 3 A 6 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2 T2CV125-6N4-30-AA 900 1250 715 1192.5 3 A 6 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2 T2CV125-6N4-45-AA 900 1250 715 1192.5 3 A 6 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2 T2CV125-6N4-90-AA 900 1250 715 1192.5 3 A 6 3 1/4 4 7 1/2 5/8 6 1/4 1 1/8 1/2 T2CV160-4N-AA 1250 1600 1113 1431 2 A 3 4 3/8 3 7 5/8 3/4 7 3/8 5/8 5/8 T2CVA160-4N-30-AA 1250 1600 1113 1431 2 A 3 4 3/8 3 7 5/8 3/4 7 3/8 5/8 5/8 T2CVA160-4N-45-AA 1250 1600 1113 1431 2 A 3 4 3/8 3 7 5/8 3/4 7 3/8 5/8 5/8 T2CVA160-4N-90-AA 1250 1600 1113 1431 2 A 3 4 3/8 3 7 5/8 3/4 7 3/8 5/8 5/8 T2CV160-4N4-AA 1250 1600 1113 1431 2 A 4 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CVA160-4N4-30-AA 1250 1600 1113 1431 2 A 4 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CVA160-4N4-45-AA 1250 1600 1113 1431 2 A 4 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CVA160-4N4-90-AA 1250 1600 1113 1431 2 A 4 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CV160-6N4-AA 1250 1600 1113 1431 2 A 6 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CVA160-6N4-30-AA 1250 1600 1113 1431 2 A 6 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CVA160-6N4-45-AA 1250 1600 1113 1431 2 A 6 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CVA160-6N4-90-AA 1250 1600 1113 1431 2 A 6 4 3/8 4 8 5/8 3/4 7 3/8 1 1/8 5/8 T2CV200-4N-AA 1500 2000 1272 1780 2 A 3 4 1/2 3 7 3/4 7/8 7 5/8 5/8 5/8 T2CVA200-4N-30-AA 1500 2000 1272 1780 2 A 3 4 1/2 3 7 3/4 7/8 7 5/8 5/8 5/8 T2CVA200-4N-45-AA 1500 2000 1272 1780 2 A 3 4 1/2 3 7 3/4 7/8 7 5/8 5/8 5/8 T2CVA200-4N-90-AA 1500 2000 1272 1780 2 A 3 4 1/2 3 7 3/4 7/8 7 5/8 5/8 5/8 T2CV200-4N4-AA 1500 2000 1272 1780 2 A 4 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CVA200-4N4-30-AA 1500 2000 1272 1780 2 A 4 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CVA200-4N4-45-AA 1500 2000 1272 1780 2 A 4 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CVA200-4N4-90-AA 1500 2000 1272 1780 2 A 4 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CV200-6N4-AA 1500 2000 1272 1780 3 A 6 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CVA200-6N4-30-AA 1500 2000 1272 1780 3 A 6 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CVA200-6N4-45-AA 1500 2000 1272 1780 3 A 6 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CVA200-6N4-90-AA 1500 2000 1272 1780 3 A 6 4 1/2 4 8 3/4 7/8 7 5/8 1 1/8 5/8 T2CV250-4N-AA 2000 2500 1780 2300 2 A 3 4 1/2 3 7 3/4 7/8 8 5/8 5/8 T2CVA250-4N-30-AA 2000 2500 1780 2300 2 A 3 4 1/2 3 7 3/4 7/8 8 5/8 5/8 T2CVA250-4N-45-AA 2000 2500 1780 2300 2 A 3 4 1/2 3 7 3/4 7/8 8 5/8 5/8 T2CVA250-4N-90-AA 2000 2500 1780 2300 2 A 3 4 1/2 3 7 3/4 7/8 8 5/8 5/8 T2CV250-4N4-AA 2000 2500 1780 2300 2 A 4 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CVA250-4N4-30-AA 2000 2500 1780 2300 2 A 4 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CVA250-4N4-45-AA 2000 2500 1780 2300 2 A 4 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CVA250-4N4-90-AA 2000 2500 1780 2300 2 A 4 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CV250-6N4-AA 2000 2500 1780 2300 3 A 6 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CVA250-6N4-30-AA 2000 2500 1780 2300 3 A 6 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CVA250-6N4-45-AA 2000 2500 1780 2300 3 A 6 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CVA250-6N4-90-AA 2000 2500 1780 2300 3 A 6 4 1/2 4 8 3/4 7/8 8 1 1/8 5/8 T2CV250-6-4N-AA 2000 2500 1780 2300 2 B 3 4 1/2 3 7 3/4 7/8 9 15/16 5/8 5/8 T2CVA250-6-4N-30-AA 2000 2500 1780 2300 2 B 3 4 1/2 3 7 3/4 7/8 9 15/16 5/8 5/8 T2CVA250-6-4N-45-AA 2000 2500 1780 2300 2 B 3 4 1/2 3 7 3/4 7/8 9 15/16 5/8 5/8 T2CVA250-6-4N-90-AA 2000 2500 1780 2300 2 B 3 4 1/2 3 7 3/4 7/8 9 15/16 5/8 5/8 T2CV250-6-4N4-AA 2000 2500 1780 2300 2 B 4 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8 T2CVA250-6-4N4-30-AA 2000 2500 1780 2300 2 B 4 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8 T2CVA250-6-4N4-45-AA 2000 2500 1780 2300 2 B 4 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8 T2CVA250-6-4N4-90-AA 2000 2500 1780 2300 2 B 4 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8
358 230 kV Aluminum Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00470, Revision 3, 6.11.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Terminal Connectors www.AFLglobal.com or 800-890-8878 TYPE T2CV-N-AA, T2CVA-N-30-AA, T2CVA-N-45-AA, T2CVA-N-90-AA Aluminum Terminal for 2 Cables Ordering Information CATALOG NO. CABLE RANGE FIG. NO. DETAIL DIMENSIONS IN INCHES BOLT SIZE AAC ACSR MIN MAX MIN MAX A B C L T W X T2CV250-6-6N4-AA 2000 2500 1780 2300 3 B 6 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8 T2CVA250-6-6N4-30-AA 2000 2500 1780 2300 3 B 6 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8 T2CVA250-6-6N4-45-AA 2000 2500 1780 2300 3 B 6 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8 T2CVA250-6-6N4-90-AA 2000 2500 1780 2300 3 B 6 4 1/2 4 8 3/4 7/8 9 15/16 1 1/8 5/8 T2CV364-5N4-AA 3000 3640 NA NA 3 A 5 4 1/2 3 8 3/4 7/8 8 3/4 1 1/8 5/8 T2CVA364-5N4-30-AA 3000 3640 NA NA 3 A 5 4 1/2 3 8 3/4 7/8 8 3/4 1 1/8 5/8 T2CVA364-5N4-45-AA 3000 3640 NA NA 3 A 5 4 1/2 3 8 3/4 7/8 8 3/4 1 1/8 5/8 T2CVA364-5N4-90-AA 3000 3640 NA NA 3 A 5 4 1/2 3 8 3/4 7/8 8 3/4 1 1/8 5/8
359 230 kV – Bolted Terminal Conn. © 2011, AFL, all rights reserved. PP-3-00473, Revison 6, 4.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 230 kV Aluminum Bolted Terminal Connectors Material Aluminum Alloy TYPE TCV-N-AA, TCVA-N-15-AA, TCVA-N-30-AA, TCVA-N-45-AA, TCVA-N-90-AA NEMA Terminal for Cable Terminal Lug Cable A variable clamp type terminal for connecting a cable to a flat bar bus. Each size terminal accommodates a wide range of cable sizes. Designed to carry the full rated load of the maximum conductor without overheating. Contact pads other than those listed below can be promptly furnished to any specified size or drilling. The variable type terminal exhibits its advantage in that one connector will accommodate a number of cable sizes. This minimizes greatly the problem of stocking various sizes of connectors and the errors which occur in specifying connectors for specific cable sizes. Hardware Yellow anodized aluminum nuts, bolts and lockwashers Notes • For Finished Surface on both sides of pad, add "-F" to catalog number. EX: TCV25-4NF-AA. • For Contact Surfaces prefilled with Dostex and packaged in Polyethylene Bag, add "-LP" to catalog number. EX: TCV60-2N-AA-LP. • For Stainless Steel bolts, lockwashers and Everdur nuts, add "-SSHBN" to catalog number. EX: TCV300-6N4-AA-SSHBN. ∅ 0.56 FIG. 2 X X A A 1.75 C T W W B B TCV-N-AA TCVA-N-15-AA TCVA-N-45-AA TCVA-N-90-AA TCVA-N-30-AA C FIG. 1 FIG. 3 C B X S 1.75 A W ∅ 0.56 ∅ 0.56 X A 1.75 C ∅ 0.56 1.75 FIG. 5 FIG. 4 X A 1.75 C ∅ 0.56 1.75 1.75
© 2011, AFL, all rights reserved. PP-3-00473, Revison 6, 4.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 360 230 kV Aluminum Bolted Terminal Connectors 230 kV – Bolted Terminal Conn. Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES ALUMINUM ACSR MIN MAX MIN MAX A B C W X T S TCV10-1-AA #4 STR 1/0 STR #4 1/0 1 1.50 1.88 1.44 2.31 0.63 0.31 1/2 TCV10-2N-AA #4 STR 1/0 STR #4 1/0 2 1.50 1.88 3.25 2.31 0.63 0.31 1/2 TCV25-2N-AA 1/0 250 1/0 4/0 3 1.63 3.00 3.25 2.31 0.63 0.31 1/2 TCV25-4N-AA 1/0 250 1/0 4/0 4 3.00 3.00 3.25 2.31 0.63 0.31 1/2 TCV25-4N4-AA 1/0 250 1/0 4/0 4 4.00 3.00 4.25 2.31 1.13 0.31 1/2 TCV40-2N-AA 250 400 4/0 397.5 3 2.00 3.00 3.25 2.50 0.63 0.38 1/2 TCV40-4N-AA 250 400 4/0 397.5 4 3.00 3.00 3.25 2.50 0.63 0.38 1/2 TCV40-4N4-AA 250 400 4/0 397.5 4 4.00 3.00 4.25 2.50 1.13 0.38 1/2 TCV60-2N3-AA 350 600 336.4 477 3 2.00 3.00 3.38 2.69 0.63 0.38 1/2 TCV60-2N-AA 350 600 336.4 477 3 1.81 3.00 3.25 2.69 0.63 0.38 1/2 TCV60-4N-AA 350 600 336.4 477 4 3.00 3.00 3.38 2.69 0.63 0.38 1/2 TCV60-4N4-AA 350 600 336.4 477 4 4.00 3.00 4.25 2.69 1.13 0.38 1/2 TCV60-6N4-AA 350 600 336.4 477 5 6.00 3.00 4.25 2.69 1.13 0.44 1/2 TCV90-2N-AA 500 900 477 795 3 2.00 3.00 3.25 2.88 0.63 0.50 1/2 TCV90-4N-AA 500 900 477 795 4 3.00 3.00 3.25 2.88 0.63 0.50 1/2 TCV90-4N4-AA 500 900 477 795 4 4.00 3.00 4.25 2.88 1.13 0.50 1/2 TCV125-2N-AA 900 1250 715 1113 3 2.63 3.25 3.25 3.06 0.63 0.50 1/2 TCV125-4N-AA 900 1250 715 1113 4 3.00 3.25 3.25 3.06 0.63 0.50 1/2 TCV125-4N4-AA 900 1250 715 1113 4 4.00 3.25 4.25 3.06 1.13 0.50 1/2 TCV160-2N-AA 1250 1600 1113 1431 3 2.00 4.38 3.25 3.63 0.63 0.56 5/8 TCV160-4N-AA 1250 1600 1113 1431 4 3.00 4.38 3.25 3.63 0.63 0.56 5/8 TCV160-4N4-AA 1250 1600 1113 1431 4 4.00 4.38 4.25 3.63 1.13 0.56 5/8 TCV160-6N4-AA 1250 1600 1113 1431 5 6.00 4.38 4.25 3.63 1.13 0.56 5/8 TCV200-2N-AA 1500 2000 1272 1780 3 2.00 4.50 3.25 3.88 0.63 0.69 5/8 TCV200-4N-AA 1500 2000 1272 1780 4 3.00 4.50 3.25 3.88 0.63 0.69 5/8 TCV200-4N4-AA 1500 2000 1272 1780 4 4.00 4.50 4.25 3.88 1.13 0.69 5/8 TCV200-6N4-AA 1500 2000 1272 1780 5 6.00 4.50 4.25 3.88 1.13 0.69 5/8 TCV250-4N-AA 2000 2500 1780 2300 4 3.00 4.50 3.25 3.94 0.63 0.75 5/8 TCV250-4N4-AA 2000 2500 1780 2300 4 4.00 4.50 4.25 3.94 1.13 0.75 5/8 TCV250-6N4-AA 2000 2500 1780 2300 5 6.00 4.50 4.25 3.94 1.13 0.75 5/8 TCV300-6N4-AA 2500 3000 1780 2870 5 6.00 6.00 4.25 4.13 1.13 1.00 5/8 TYPE TCV-N-AA, TCVA-N-15-AA, TCVA-N-30-AA, TCVA-45-AA, TCVA-90-AA NEMA Terminal for Cable Terminal Lug Cable
361 230 kV Al. Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00475, Revision 5, 8.8.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 230 kV Aluminum Bolted Terminal Connectors Material Aluminum Alloy Hardware Yellow anodized aluminum nuts, bolts and lockwashers. Notes • For angled pad, add "A" to prefix and angle to catalog number. EX: TCXA350-4N4-45-AA • For Grade Five Galvanized Steel Hardware, add "-GS5" to catalog number. EX: TCX350-4N4-AA-GS5 TYPE TCX-AA Wide Range Terminal TCX can be used as a cable tap terminal or a straight terminal. A variable clamp type terminal or tap for connecting a cable or pipe to a flat bar bus. Each size accommodates a wide range of cable sizes. New terminal series reduces stock with extended range taking capabilities. Excellent for use due to storm damage. Three terminals provide cable range from #2 solid to 3500 MCM. Available in pad sizes from two-hole to six-hole pads. A B TERMINAL USE TAP USE X L 1 3/4 1 3/4 ∅ 9/16 FIG. 1 FIG. 2 ∅ 9/16 1 3/4 C C A X T 90° 45° A X ∅ 9/16 FIG. 3 1 3/4 C Y Y 1 3/4 1 3/4 Y
© 2011, AFL, all rights reserved. PP-3-00475, Revision 5, 8.8.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 362 230 kV Aluminum Bolted Terminal Connectors 230 kV Al. Bolted Terminal Connectors TYPE TCX-AA Wide Range Terminal Ordering Information CATALOG NUMBER FIG. NO. CONDUCTOR RANGE (AAC) S.P.S. DIMENSIONS IN INCHES ACSR OR AAC RUN OR TAP MIN MAX RUN OR TAP A B C L T X Y TCX100-2N-AA 1 AAC #2 SOL. 1000 MCM 3/8 - 3/4 2 1/32 3 1/16 3 1/8 6 7/16 1/2 5/8 1 1/64 ACSR 4(7/1) 900(36/1) TCX100-4N-AA 2 AAC #2 SOL. 1000 MCM 3/8 - 3/4 3 2 7/8 3 6 1/8 1/2 5/8 5/8 ACSR 4(7/1) 900(36/1) TCX100-4N4-AA 2 AAC #2 SOL. 1000 MCM 3/8 - 3/4 4 2 7/8 4 7 1/8 1/2 1 1/8 1 1/8 ACSR 4 (7/1) 900 (36/1) TCX100-6NA-AA 3 AAC #2 SOL. 1000 MCM 3/8 - 3/4 6 2 7/8 4 7 1/8 1/2 1 1/8 1 1/4 ACSR 4(7/1) 900(36/1) TCX200-4N-AA 2 AAC 4/0 STR. 2000 MCM 3/8 - 1 1/4 3 3 3/8 3 6 5/8 11/16 5/8 5/8 ACSR 4/0(6/1) 1780(84/19) TCX200-4N4-AA 2 AAC 4/0 STR. 2000 MCM 3/8 - 1 1/4 4 3 3/8 4 7 5/8 11/16 1 1/8 1 1/8 ACSR 4/0(6/1) 1780(84/19) TCX350-4N4-AA 2 AAC 795 MCM 3500 MCM – 4 4 1/2 4 9 3/4 1 1/8 1 1/8 ACSR 795(54/7) 2515(76/19) TCX350-6N4-AA 3 AAC 795 MCM 3500 MCM – 6 4 1/2 4 1/2 9 11/16 1 1/8 1 1/4 ACSR 795(54/7) 2515(76/19)
367 230 kV – Bolted Terminal Conn. © 2011, AFL, all rights reserved. PP-3-00486, Revision 3, 8.7.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 230 kV Aluminum Bolted Terminal Connectors Material Aluminum Alloy TYPE U2L-N-AA, U2LA-N-45-AA, U2LA-N-90-AA Aluminum Two Cable U Bolt Terminal Terminals are designed to connect AAC or ACSR conductors to aluminum pads. Pads conform to NEMA standards. Terminals are designed with universal grooves to accept a wide range of conductor sizes. Captured U-bolts permit one wrench tightening of nuts. Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS IN INCHES STRAIGHT 45 DEGREE 90 DEGREE MIN MAX A B C H L T W X Y&Z U-BOLT U2L30-4N-AA U2LA30-4N-45-AA U2LA30-4N-90-AA 1/0 300 3.00 3.25 3.00 0.56 6.38 0.38 4.75 0.63 1.75 1/2 U2L50-4N-AA U2LA50-4N-45-AA U2LA50-4N-90-AA 300 500 3.00 3.25 3.00 0.56 6.50 0.38 5.00 0.63 1.75 1/2 U2L50-4N4-AA U2LA50-4N4-45-AA U2LA50-4N4-90-AA 300 500 4.00 3.25 4.00 0.56 7.50 0.38 5.00 1.13 1.75 1/2 U2L90-4N-AA U2LA90-4N-45-AA U2LA90-4N-90-AA 500 900 3.00 3.50 3.00 0.56 6.75 0.50 5.63 0.63 1.75 1/2 U2L90-4N4-AA U2LA90-4N4-45-AA U2LA90-4N4-90-AA 500 900 4.00 3.50 4.00 0.56 7.75 0.50 5.63 1.13 1.75 1/2 U2L100-4N-AA U2LA100-4N-45-AA U2LA100-4N-90-AA 750 1000 3.00 3.50 3.00 0.56 6.75 0.50 5.75 0.63 1.75 1/2 U2L100-4N4-AA U2LA100-4N4-45-AA U2LA100-4N4-90-AA 750 1000 4.00 3.50 4.00 0.56 7.75 0.50 5.75 1.13 1.75 1/2 U2L150-4N-AA U2LA150-4N-45-AA U2LA150-4N-90-AA 1000 1500 3.50 4.50 3.00 0.56 8.00 0.69 6.88 0.63 1.75 5/8 U2L150-4N4-AA U2LA150-4N4-45-AA U2LA150-4N4-90-AA 1000 1500 4.00 4.50 4.00 0.56 8.75 0.69 6.88 1.13 1.75 5/8 U2L200-4N4-AA U2LA200-4N4-45-AA U2LA200-4N4-90-AA 1500 2000 4.00 4.50 4.00 0.56 9.00 0.69 7.38 1.13 1.75 5/8 A W X Y Z ∅ H T C B L U2LA-N-45-AA U2L-N-AA U2LA-N-90-AA Hardware Aluminum U-bolts, lockwashers and nuts. Notes 1. Contact pads can be furnished to any specification size and hole pattern.
© 2011, AFL, all rights reserved. PP-3-00502, Revision 6, 1.3.22 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 368 230 kV Aluminum Bolted Terminal Connectors 230 kV Al. Bolted Terminal Connectors Material Aluminum Alloy Hardware Aluminum bolts, lockwashers and nuts. Notes • For a 900 MCM cable, with a two-hole pad, at a 45° angle, order ULA90-2N-45-AA. • For a 900 MCM cable, with a two-hole pad, at a 90° angle, order ULA90-2N-90-AA. • For finished pad on both sides, add "F" to catalog number. EX: ULA90-2NF-90-AA. TYPE UL-N-AA, ULA-N-45-AA, ULA-N-90-AA Aluminum U-Bolt Terminal A U-bolt type variable terminal lug for connecting cables to flat bar busses. Designed to operate at cooler than conductor temperatures under maximum load conditions with the largest size cable of the range of cable sizes. Contact pads other than those listed can be promptly furnished to any specified size or drilling. UL-N-AA A FIG. 1 FIG. 2 A C B ∅ D Y X ∅ D X Y Y ULA-N-45-AA ULA-N-90-AA C T L
369 230 kV Al. Bolted Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00502, Revision 6, 1.3.22 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 230 kV Aluminum Bolted Terminal Connectors Ordering Information CATALOG NUMBER CABLE RANGE FIG. NO. DIMENSIONS IN INCHES STRAIGHT 45 DEGREE 90 DEGREE MIN MAX A B C D L T X Y BOLT SIZE UL13-2N-AA ULA13-2N-45-AA ULA13-2N-90-AA 6 #2/0 1 1.50 3.00 3.00 0.56 6.50 0.31 0.63 1.75 1/2 UL13-4N-AA ULA13-4N-45-AA ULA13-4N-90-AA 6 #2/0 2 3.00 3.00 3.00 0.56 6.25 0.31 0.63 1.75 1/2 UL21-2-AA ULA21-2-45-AA ULA21-2-90-AA 1 #4/0 1 1.25 3.00 2.13 0.44 5.38 0.38 0.50 1.75 1/2 UL21-2N-AA ULA21-2N-45-AA ULA21-2N-90-AA 1 #4/0 1 1.50 3.00 3.00 0.56 6.25 0.38 0.63 1.75 1/2 UL21-4N-AA ULA21-4N-45-AA ULA21-4N-90-AA 1 #4/0 2 3.00 3.00 3.00 0.56 6.25 0.38 0.63 1.75 1/2 UL21-4N4-AA ULA21-4N4-45-AA ULA21-4N4-90-AA 1 #4/0 2 4.00 3.00 4.00 0.56 7.25 0.38 1.13 1.75 1/2 UL30-2N-AA ULA30-2N-45-AA ULA30-2N-90-AA 1/0 300 1 1.50 3.25 3.00 0.56 6.50 0.38 0.63 1.75 1/2 UL30-4N-AA ULA30-4N-45-AA ULA30-4N-90-AA 1/0 300 2 3.00 3.25 3.00 0.56 6.50 0.38 0.63 1.75 1/2 UL30-4N4-AA ULA30-4N4-45-AA ULA30-4N4-90-AA 1/0 300 2 4.00 3.25 4.00 0.56 7.50 0.38 1.13 1.75 1/2 UL50-2N-AA ULA50-2N-45-AA ULA50-2N-90-AA 300 500 1 1.75 3.25 3.00 0.56 6.63 0.38 0.63 1.75 1/2 UL50-4N-AA ULA50-4N-45-AA ULA50-4N-90-AA 300 500 2 3.00 3.25 3.00 0.56 6.63 0.38 0.63 1.75 1/2 UL50-4N4-AA ULA50-4N4-45-AA ULA50-4N4-90-AA 300 500 2 4.00 3.25 4.00 0.56 7.50 0.38 1.13 1.75 1/2 UL60-2N-AA ULA60-2N-45-AA ULA60-2N-90-AA 300 600 1 1.75 3.25 3.00 0.56 6.25 0.38 0.63 1.75 1/2 UL90-2N-AA ULA90-2N-45-AA ULA90-2N-90-AA 500 900 1 1.75 3.50 3.00 0.56 6.75 0.50 0.63 1.75 1/2 UL90-4N-AA ULA90-4N-45-AA ULA90-4N-90-AA 500 900 2 3.00 3.50 3.00 0.56 6.75 0.50 0.63 1.75 1/2 UL90-4N4-AA ULA90-4N4-45-AA ULA90-4N4-90-AA 500 900 2 4.00 3.50 4.00 0.56 7.75 0.50 1.13 1.75 1/2 UL100-2N-AA ULA100-2N-45-AA ULA100-2N-90-AA 750 1000 1 2.00 3.50 3.00 0.56 6.88 0.50 0.63 1.75 1/2 UL100-4N-AA ULA100-4N-45-AA ULA100-4N-90-AA 750 1000 2 3.00 3.50 3.00 0.56 6.88 0.50 0.63 1.75 1/2 UL100-4N4-AA ULA100-4N4-45-AA ULA100-4N4-90-AA 750 1000 2 4.00 3.50 4.00 0.56 8.00 0.50 1.13 1.75 1/2 UL127-2N-AA ULA127-2N-45-AA ULA127-2N-90-AA 600 1272 1 2.00 3.50 3.00 0.56 6.75 0.63 0.63 1.75 1/2 UL150-2N-AA ULA150-2N-45-AA ULA150-2N-90-AA 1000 1500 1 2.00 4.50 3.25 0.56 7.75 0.69 0.63 1.75 5/8 UL150-4N-AA ULA150-4N-45-AA ULA150-4N-90-AA 1000 1500 2 3.00 4.50 3.00 0.56 7.75 0.63 0.63 1.75 5/8 UL150-4N4-AA ULA150-4N4-45-AA ULA150-4N4-90-AA 1000 1500 2 4.00 4.50 4.00 0.56 8.75 0.63 1.13 1.75 5/8 UL159-4N-AA ULA159-4N-45-AA ULA159-4N-90-AA — 1590 2 3.00 4.50 3.00 0.56 7.75 0.63 0.63 1.75 5/8 UL159-4N4-AA ULA159-4N4-45-AA ULA159-4N4-90-AA — 1590 2 4.00 4.50 4.00 0.56 8.75 0.56 1.13 1.75 5/8 UL200-2N-AA ULA200-2N-45-AA ULA200-2N-90-AA 1500 2000 1 2.75 4.50 3.00 0.56 7.75 0.69 0.63 1.75 5/8 UL200-4N-AA ULA200-4N-45-AA ULA200-4N-90-AA 1500 2000 2 3.00 4.50 3.00 0.56 7.88 0.69 0.63 1.75 5/8 UL200-4N4-AA ULA200-4N4-45-AA ULA200-4N4-90-AA 1500 2000 2 4.00 4.50 4.00 0.56 9.13 0.69 1.13 1.75 5/8 UL200-4S4-AA ULA200-4S4-45-AA ULA200-4S4-90-AA 1500 2000 2 4.00 4.50 4.00 0.56 8.75 0.69 1.00 2.00 5/8 UL250-4N-AA ULA250-4N-45-AA ULA250-4N-90-AA 2000 2500 2 3.00 4.50 3.00 0.56 7.75 0.75 0.63 1.75 5/8 UL250-4N4-AA ULA250-4N4-45-AA ULA250-4N4-90-AA 2000 2500 2 4.00 4.50 4.00 0.56 8.75 0.75 1.13 1.75 5/8 TYPE UL-N-AA, ULA-N-45-AA, ULA-N-90-AA Aluminum U-Bolt Terminal
Features:
- Aluminum alloy
- Anodized aluminum hardware
- Meets the standards of NEMA CC1
- NEMA pad sizes
Applications:
- Rated for 230 kV
- Substation
- Aluminum cable
A variable clamp type terminal for connecting a cable to a flat bar bus. Each size terminal accommodates a wide range of cable sizes. Designed to carry the full rated load of the maximum conductor without overheating. Pad conforms to NEMA standards.
