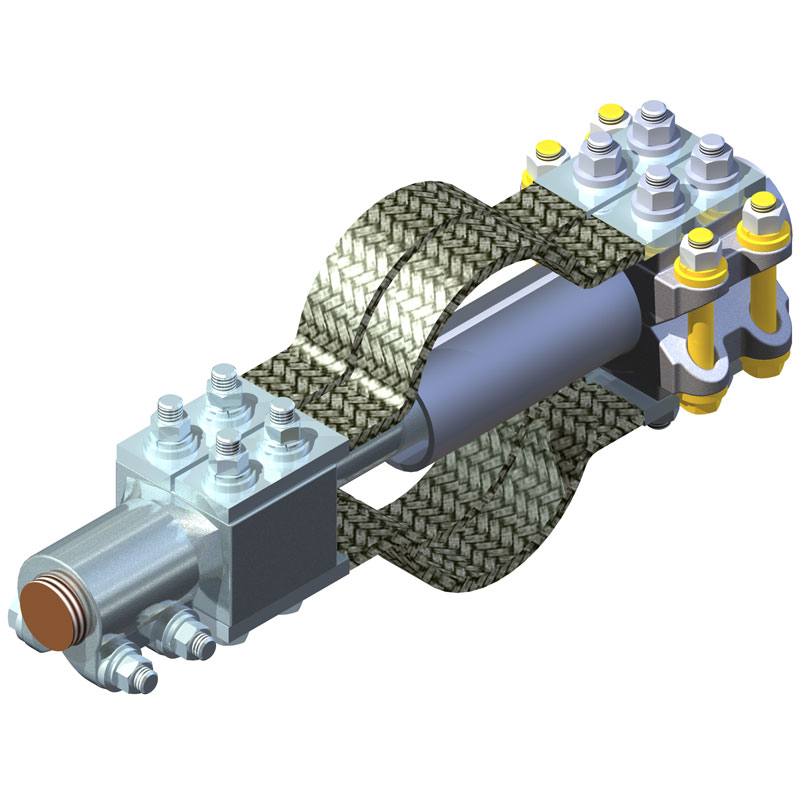

An expansion stud connector used to join a tubular bus to a threaded or unthreaded, transformer or terminal, stud. The movements of the conductors caused by thermal expansion and contraction or settling foundations are efficiently absorbed by the flexible braided linkages.
0404a973ff1249859851295871ad551c
www.AFLglobal.com or 800-890-8878 170 Bronze Stud Connectors Bronze Stud Connectors © 2011, AFL, all rights reserved. PP-3-00465, Revision 0, 1.13.14 Specifications are subject to change without notice. An expansion stud connector for joining a tubular bus to a threaded or unthreaded, transformer or terminal, stud. The movements of the conductors caused by thermal expansion and contraction or settling foundations are efficiently absorbed by the flexible braided linkages. Type SX is furnished with an alignment guide for connections where axial alignment is required. Material Stud - Copper Alloy Bus - Aluminum Alloy Hardware See image Notes For a 90 degree stud connector add -90 to the Catalog Number. EX. For at 1"-T14 stud to 1in SPS connector with 90 degree stud connector order: SX100-100A-T14-90 TYPE SX-A, SX-A-90 Stud Expansion Connector for Pipe Both SX-A and SX-A-90 connect copper stud to aluminum bus. SX-A Ordering Information CATALOG NUMBER STUD DIAMETER THREADS PER INCH SPS FIG. NO. DIMENSIONS IN INCHES BOLT SIZE A B STUD PIPE SX100-200A-T14 1 14 2 1 2 3/4 3 1/4 1/2 1/2 SX112-100A-T12 1 1/8 12 1 1 2 3 1/8 3/8 1/2 SX112-200A-T12 1 1/8 12 2 1 2 3/4 3 1/4 1/2 1/2 SX150-150A-T12 1 1/2 12 1 1/2 1 2 3/4 3 1/4 1/2 1/2 SX150-200A-T12 1 1/2 12 2 1 2 3/4 3 1/4 1/2 1/2 SX150-300A-T12 2 12 3 2 2 3/4 3 1/2 1/2 5/8 SX200-350A-T12 2 12 3 1/2 2 2 3/4 3 1/2 1/2 5/8 SX200-400A-T12 2 12 4 2 2 3/4 3 1/2 1/2 5/8 SX250-300A-T12 2 1/2 12 3 2 2 3 1/2 1/2 5/8 FIG. 1 B B TINNED COPPER BRAIDS TINNED FERRULE (TYP.) BOLTS, NUTS, FLAT AND LOCK WASHERS EVERDUR FIG. 2 BOLTS, NUTS, FLAT AND LOCK WASHERS STAINLESS STEEL BOLTS, NUTS, FLAT AND LOCK WASHERS ALUM A 6 MIN SX-A BOLTS, NUTS, FLAT AND LOCK WASHERS EVERDUR SX-A-90
Features:
- Expansion connector
- Avalible with different angles
- Meets the standards of NEMA CC1
Applications:
- Rated for 230 kV
- Substation
- Copper stud to aluminum bus pipe
An expansion stud connector used to join a tubular bus to a threaded or unthreaded, transformer or terminal, stud. The movements of the conductors caused by thermal expansion and contraction or settling foundations are efficiently absorbed by the flexible braided linkages.
