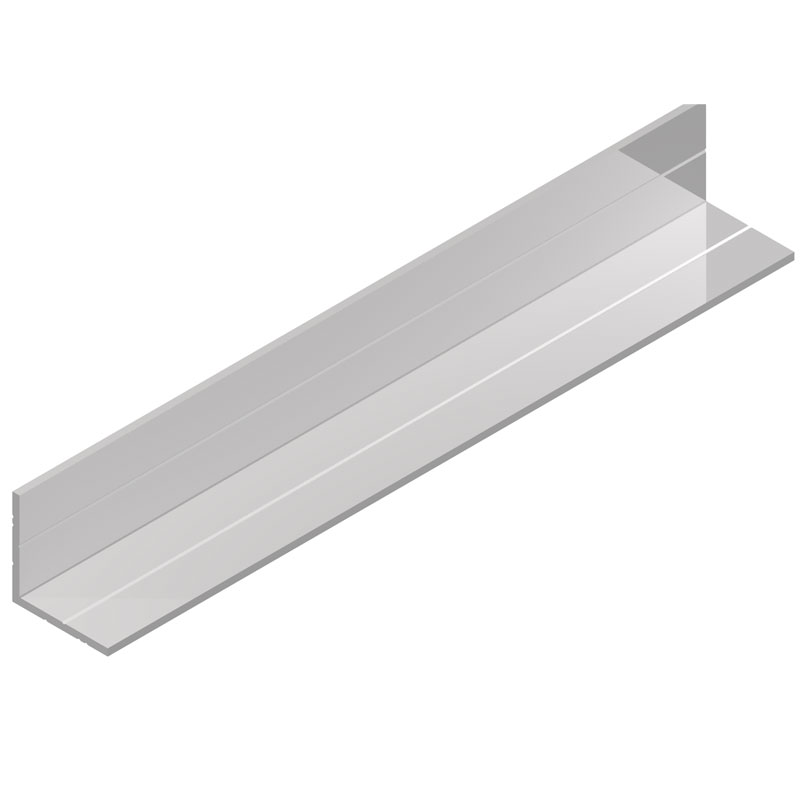

The universal angle bus conductor is used for moderate-size outdoor substations at distribution voltages. Center line grooves make it easy to locate bolt holes. The bus can be mounted directly on insulator caps since both legs are of uniform thickness.
eb2f08a1395942f5915fe791b69341bf
www.AFLglobal.com or 800-890-8878 Bus Conductors 622 Bus Conductors Universal Angle Bus Conductor (UABC) The universal angle bus conductor is used for moderate-size outdoor substations at distribution voltages. Centerline grooves make it easy to locate bolt holes. The bus can be mounted directly on insulator caps, since both legs are of uniform thickness. In contrast to the large number of fittings sometimes required for bus installation, angle can be easily installed using bolts. Terminal connectors are used to make taps or flexible connections. Angle shapes are usually made of 6101-T6 alloy. Size W T Notching Dimensions Area sq in Weight lb/ft in in A B C D lb/ft 3 1/4 1/4 1.500 1.750 --- 2.375 1.57 1.83 4 1/4 1.875 1.750 2.00 2.813 1.93 2.27 4 3/8 1.875 1.750 2.00 2.813 2.85 3.36 4 1/2 3/8 2.187 1.750 2.00 3.006 3.23 3.80 5 3/8 2.313 1.750 2.00 3.256 3.60 4.24 Size of UABC Size Code 3 1/4” A325 4” A400 4 1/2” A450 5” A500 Step 1: Choose Size Step 2: Choose Wall Thickness Wall Thickness Thickness Code 1/4 250W 3/8 375W Step 3: Standard Alloy Alloy Number Alloy Code 6101 Z Step 4: Choose Temper Ordering Instructions: Temper Temper Code T6 T6 T61 T61 T63 T63 Step 5: Build Catalog Number Size Code + Thickness Code + Alloy Code + Temper Example: To order 5” 3/8” Wall Thickness 6106-T6 Alloy UABC A500 + 375W + Z + T6 Completed Catalog Number is A500375WZT6. Standard - Non-Vented © 2011, AFL, all rights reserved. 02.15.11 Specifications are subject to change without notice. B W Z C X D T Same Notching on Other Leg A x y Notch Detail 0 02 IN 0 06 IN
Features:
- Only one-third the weight of copper
- Highly corrosion resistant
- Dissipates heat rapidly and evenly
- Very strong yet lightweight
- Easy to fabricate
- Conducts equivalent loads of eletric power with one-half as much material weight as copper
Applications:
- 6061-T6 alloy used in high strength applications
- 6063-T6 alloy used in higher current carrying applications
- Indoor or outdoor use
The universal angle bus conductor is used for moderate-size outdoor substations at distribution voltages. Center line grooves make it easy to locate bolt holes. The bus can be mounted directly on insulator caps since both legs are of uniform thickness.
In contrast to the large number of fittings sometimes required for bus installation, angle can be easily installed using bolts. Terminal connectors are used to make taps or flexible connections. Angle shapes are usually made of 6101-T6 alloy.
