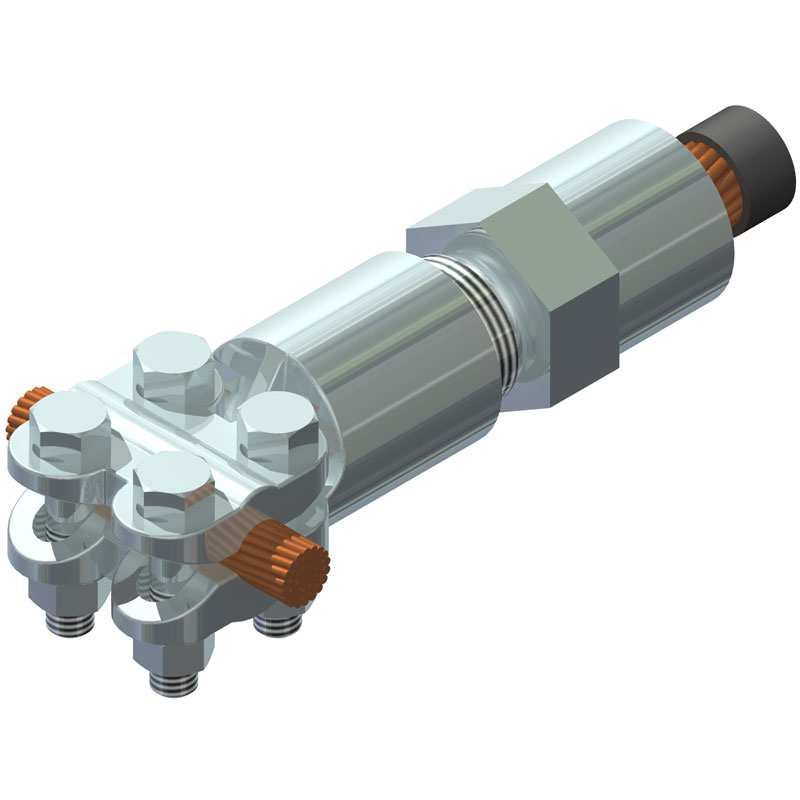

A cast bronze tee connector whose tap element provides a watertight weather seal on the tap cable when the body and shroud is taped to the insulation of the cable.
e520e1308f3c4559a79cbdf2a1f5869f
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00093, Revision 2, 12.5.2025 Specifications are subject to change without notice. 1 Network Underground A cast bronze tee connector whose tap element is provided with a cast hood which serves as a shroud over the insulation of the cable. This accomplishes a watertight weather seal on the tap cable when the body and shroud is taped to the insulation of the cable. The clamping element is a tapered sleeve and gland nut similar to type MA cable receptacles. When ordering specify kV rating and diameter over cable insulation. Type HNT Hood Nut Tee Connector Ordering Information Catalog Number* Cable Size Dimensions in inches Bolt Size Main Tap W L Approx. HNT21-6-X 4/0 #2 2 4.403 3/8 HNT21-10-X 4/0 1/0 2 4.403 3/8 HNT21-13-X 4/0 2/0 2 4.653 3/8 HNT21-21-X 4/0 4/0 2 4.653 3/8 HNT25-6-X 250 #2 2 4.450 3/8 HNT25-10-X 250 1/0 2 4.450 3/8 HNT25-13-X 250 2/0 2 4.450 3/8 HNT25-21-X 250 4/0 2 4.700 3/8 HNT25-25-X 250 250 2 4.700 3/8 HNT35-10-X 350 1/0 2 4.556 3/8 HNT35-13-X 350 2/0 2 4.556 3/8 HNT35-21-X 350 4/0 2 4.556 3/8 HNT35-25-X 350 250 2 4.806 3/8 HNT35-35-X 350 350 2 4.806 3/8 HNT50-13-X 500 2/0 2 5.289 3/8 HNT50-21-X 500 4/0 2 5.539 3/8 Catalog Number* Cable Size Dimensions in inches Bolt Size Main Tap W L Approx. HNT50-25-X 500 250 2 5.539 3/8 HNT50-35-X 500 350 2 5.539 3/8 HNT50-50-X 500 500 2 5.539 3/8 HNT75-13-X 750 2/0 2 5.623 3/8 HNT75-21-X 750 4/0 2 5.873 3/8 HNT75-25-X 750 250 2 5.873 3/8 HNT75-35-X 750 350 2 5.873 3/8 HNT75-50-X 750 500 2 5.873 3/8 HNT75-75-X 750 750 2 5.873 3/8 HNT100-13-X 1000 2/0 2 6.277 3/8 HNT100-21-X 1000 4/0 2 6.527 3/8 HNT100-25-X 1000 250 2 6.527 3/8 HNT100-35-X 1000 350 2 6.527 3/8 HNT100-50-X 1000 500 2 6.527 3/8 HNT100-75-X 1000 750 2 6.527 3/8 HNT100-100-X 1000 1000 2 6.902 3/8 L W MAIN TAP * X in the catalog number is to be replaced with the kV rating. AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
A cast bronze tee connector whose tap element is provided with a cast hood which serves as a shroud over the insulation of the cable. This accomplishes a watertight weather seal on the tap cable when the body and shroud is taped to the insulation of the cable. The clamping element is a tapered sleeve and gland nut similar to type MA cable receptacles. When ordering specify kV rating and diameter over cable insulation.
