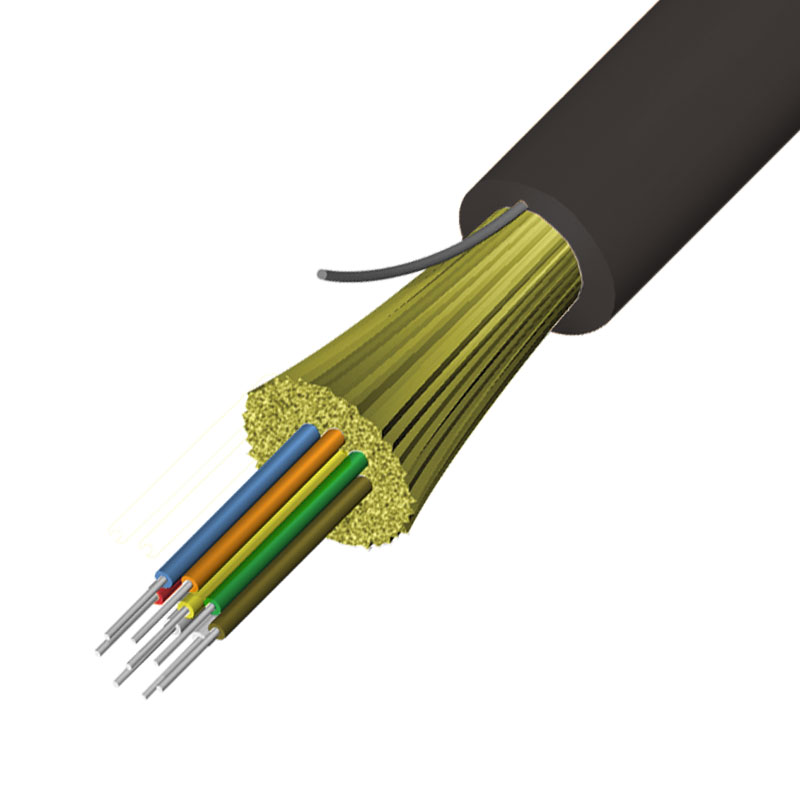

1 Premise Cable © 2002, AFL, all rights reserved. PP-1-00055, Revision 9, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Fiber Optic Cable continued Applications • ONFR inside plant and outside plant environments • Campus LAN • Buiding Interconnections • Mining Features • Available with 2 to 24 fibers • 12-fiber water-blocked sub-units • Moisture-resistant, fungus-resistant and UV-resistant outer jacket A Indoor/Outdoor Riser Tight Buffered Cable Indoor/Outdoor Tight Buffered cables are specified for campus network cabling between buildings where interbuilding lengths are short enough that the installer can recognize savings from the lower costs of terminating tight buffered cables. For indoor applications the cable is OFNR listed. For outdoor applications the cable is manufactured with an outer jacket that incorporates a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications. Cable Components Fiber Specifications CORE SIZE/FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION (dB/km) OVERFILL LAUNCH MIN. BANDWIDTH (MHz•km) EMB c (MHz•km) GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 10 GIGABIT ETHERNET MAX. LINK DISTANCE (meters) 850 nm 1300 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm 850 nm 1300 nm (6) 62.5 Giga-Link ™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link ™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 © 2002, AFL, all rights reserved. PP-1-00055, Revision 9, 9.27.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Premise Cable Fiber Optic Cable Temperature Specifications TEMPERATURE RANGE INSTALLATION -20ºC to +75ºC OPERATION -40ºC to +75ºC STORAGE -40ºC to +75ºC Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT Telcordia GR-20-CORE GR-409-CORE Water-Blocked Cabled Buffer Tube Core Sub-units EIA/TIA 598-A Sub-units ICEA S-104-696 Sub-units MSHA RoHS 2002/95/EC Cable Indoor/Outdoor Riser Tight Buffered Cable Mechanical Data CABLE TYPE AFL NO. FIBER COUNT NOMINAL DIAMETER WEIGHT TENSION BENDING RADIUS lbs (N) inches (cm) RISER inches (mm) lbs/1000 ft (kg/km) INSTALLATION LONG TERM INSTALLATION LONG TERM Indoor/Outdoor Tight Buffered Cable KR002  481#01 2 0.19 (4.8) 14 (21) 150 (660) 45 (198) 2.8 (7.2) 1.9 (4.8) KR004  481#01 4 0.19 (4.8) 15 (23) 150 (660) 45 (198) 2.8 (7.2) 1.9 (4.8) KR006  531#01 6 0.21 (5.3) 19 (28) 150 (660) 45 (198) 3.1 (8.0) 2.1 (5.3) KR008  561#01 8 0.22 (5.6 ) 23 (33) 150 (660) 45 (198) 3.3 (8.4) 2.2 (5.6) KR012  651#01 12 0.26 (6.5) 26 (38) 150 (660) 45 (198) 3.5 (9.0) 2.6 (6.5) KR018  801#01 18 0.31 (8.0) 40 (59) 300 (1320) 90 (396) 4.7 (12.0) 3.1 (8.0) KR024  871#01 24 0.33 (8.7) 46 (69) 300 (1320) 90 (396) 5.2 (13.1) 3.4 (8.7)  Fiber Types – Replace asterisk (  ) in AFL number with number in the Fiber Specifications table on previous page. # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below. Cable Jacket Color* Options 1 - Blue 8 - Black 2 - Orange 9 - Yellow 3 - Green A - Violet 4 - Brown B - Rose 5 - Slate C - Aqua 6 - White K - Erika Violet (RAL 4003) 7 - Red * All jacket colors are UV stable and contain anti-fungal additive. For best performance, AFL recommends Black Outer Jacket.
