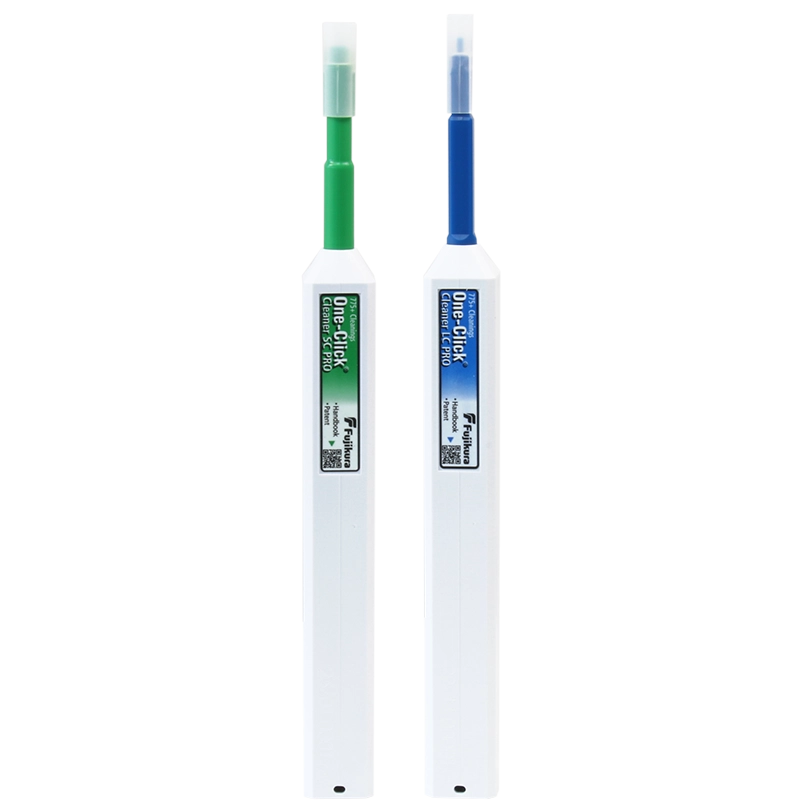

1 Test & Inspection AFLglobal.com | 800.235.3423 Cleaning Supplies Push-Type Cleaners ©2021-2023, AFL, all rights reserved. PTC-00-2000 Revision AC 2023-04-18 Specifications are subject to change without notice . Features • Patented single-action cleaning in a small ergonomic design • Variety of sizes and types for different connector styles • Cleans connectors in both jumpers and bulkhead adapters • Low cost per clean Applications • Removing oil, dust, and dirt without damaging delicate fiber end-faces • Both dry and wet cleaning (add cleaning fluid) • Clean connectors in tight spaces • Field or laboratory use One-Click Cleaner Easy-to-use solution for cleaning fiber optic connectors on jumpers and in adapters. Since over 85% of network outages are attributed to dirty and/or damaged connectors, it is critical to clean every connector! The patented One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently, cleaned. It is a favorite of field technicians for its ease of use, durability, effectiveness, and small size. One-Click ® Cleaner PRO - The One-Click Cleaner PRO is a high-performance cleaner built for speed and efficiency. It features an integrated guide cap design that reduces cleaning time up to 50% by eliminating constant switching of caps for cleaning the ferrule end-face on connectors, in or out of bulkhead adapters. The One-Click Cleaner Pro boasts over 775 clean - ing cycles in an ergonomic push-type cleaner, which is a significant increase from the previous model's 500 clean limitation. Designed to meet the needs of data centers, factories, and FTTH environments, One-Click Cleaner PRO optimizes optical connectivity, reduces downtime, and improves efficiency, making it an essential tool for fiber connector cleaning. Compact One-Click Cleaner Mini - Offering the same technology and perfor - mance as the original, the One-Click Cleaner mini enables cleaning connectors in tighter places. Its smaller size also makes it a great addition to test kits and cleaning kits. The mini One-Click Cleaners come in both 100+ or 500+ cleans per unit. One-Click Ultra Cleaner 2.5 - The One-Click Ultra Cleaner 2.5 has an enlarged cleaning area to clean more of the connector end-face. Cleaning up to a 2 mm diameter area of the connector end-face, the One-Click Ultra Cleaner 2.5 is a superior cleaner for SC, ST, and FC connectors. One-Click Cleaner D-LC (Duplex LC) - The One-Click Cleaner D-LC cuts cleaning time in half by effectively cleaning both connectors of a duplex LC connector simultaneously. Available in a long-lasting 500+ clean pen shape. One-Click ® Cleaners MU/LC SC/ST/FC Ultra 2.5 Mini-100 SC, ST, FC Mini-100 MU/LC D-LC SC PRO LC PRO 2 Test & Inspection AFLglobal.com | 800.235.3423 Cleaning Supplies Push-Type Cleaners ©2021-2023, AFL, all rights reserved. PTC-00-2000 Revision AC 2023-04-18 Specifications are subject to change without notice . One-Click Cleaner MPO and MPO-16 The One-Click Cleaner MPO/MPO-16 is a revolutionary push-type cleaner that simplifies cleaning of the ferrule end-face of MPO/MTP ® connector. The One-Click MPO-16 cleans 16-fiber MPO/MTP connectors, both pinned (male) and socketed (female). MPO-16 is used with IEEE 802.3bs 400G trunk cabling with each fiber carrying 25 Gbps data signals (400GBASE-SR16 for example), among other applications. One-Click Cleaner CS/MDC Duplex The One-Click Cleaner CS/MDC cuts cleaning time in half by effectively cleaning both connectors of a duplex CS/MDC at one time. One-Click Cleaner SN Duplex The One-Click Cleaner SN cuts cleaning time in half by effectively cleaning both connectors of a duplex SN at one time. One-Click Cleaner HOC The Hardened Outdoor Connector (HOC) One-Click Cleaner is an essential cleaning tool for OptiTap ® , TITAN RTD ® , TRIDENT ® , and SC connectors. The new design of the HOC Cleaner allows it to be used for Plug/Receptacle without the need for the conventional guide cap. Ordering Information DESCRIPTION AFL NO. One-Click Cleaner SC, ST, FC (500+ cleans) 8500-05-0001MZ One-Click Cleaner MU/LC (500+ cleans) 8500-05-0002MZ One-Click Cleaner ODC, outdoor connector (500+ cleans) 8500-05-0004MZ One-Click Cleaner Mini-100 SC, ST, FC (100+ cleans) 8500-05-0005MZ One-Click Mini-100 MU/LC (100+ cleans) 8500-05-0006MZ One-Click Cleaner Mini-500 SC, ST, FC (500+ cleans) 8500-05-0009MZ One-Click Cleaner Mini-500 MU/LC (500+ cleans) 8500-05-0010MZ One-Click Ultra Cleaner 2.5 (enlarged cleaning) SC, ST, FC (500+ cleans) 8500-05-0007MZ One-Click Cleaner D-LC, Duplex LC (2 x 500+ cleans) 8500-05-0008MZ One-Click Cleaner MPO (500+ cleans) 8500-05-0030MZ One-Click Cleaner MPO-16 (500+ cleans) 8500-05-0013MZ One-Click Cleaner MT-RJ (500+ cleans) 8500-05-0031MZ One-Click Cleaner M20, 2.0 mm ferrule (500+ cleans) 8500-05-0014MZ One-Click Cleaner CS, MDC Duplex (500+ cleans) 8500-05-0015MZ One-Click Cleaner SN Duplex (500+ cleans) 8500-05-0016MZ One-Click Cleaner HOC, Hardened Optic Connectors (500+ cleans) 8500-05-0018MZ One-Click Cleaner SC Pro (775+ cleans) 8500-05-PRO-SC One-Click Cleaner LC Pro (775+ cleans) 8500-05-PRO-LC BOXES OF 5 UNITS One-Click Cleaner SC, ST, FC (box of 5 units) 8500-05-0021MZ One-Click Cleaner MU/LC (box of 5 units) 8500-05-0022MZ One-Click Cleaner Mini-100 SC, ST, FC (box of 5 units) 8500-05-0025MZ One-Click Cleaner Mini-100 MU/LC (box of 5 units) 8500-05-0026MZ One-Click Ultra Cleaner 2.5 SC, ST, FC (box of 5 units) 8500-05-0027MZ One-Click Cleaner MPO-16 (box of 5 units) 8500-05-0023MZ One-Click ® Cleaners SN Duplex MPO MPO-16 HOC CS, MDC 3 Test & Inspection AFLglobal.com | 800.235.3423 Cleaning Supplies Push-Type Cleaners ©2021-2023, AFL, all rights reserved. PTC-00-2000 Revision AC 2023-04-18 Specifications are subject to change without notice . Features • Push action • Replaceable cleaning cartridge - 750 cleaning per cartridge (NEOCLEAN-E) • Low cost per clean Applications • Cleans connectors on jumpers or in adapters • SC, FC, ST, E2000, LC, and MU connectors • MPO and MTP connectors • Suitable for field or laboratory use NEOCLEAN-E uses a push action to clean contamination from the end-face of connectors on jumpers or in adapters. The replaceable cleaning cartridge can perform 750 cleans, reducing cleaning cost. NEOCLEAN-M is designed for cleaning MPO and MTP multi-fiber connectors used in data centers and other high-density optical networks. It uses a one-push operation, which simplifies cleaning of the ferrule end-face of both MPO and MTP connectors and connectors in adapters. Ordering Information MODEL APPLICABLE CONNECTORS & DESCRIPTION # OF CLEANS AFL NO. NEOCLEAN-E1 For MU, LC with UPC/APC polishes 750+ 8500-15-0900MZ NEOCLEAN-E2 For SC,FC with UPC/APC polishes; OptiTap 8500-15-0901MZ NEOCLEAN-E3 For SC, ST, FC, E2000 with UPC/APC polishes; OptiTap 8500-15-0902MZ NEOCLEAN-M For MPO/MTP 600+ 8500-15-0909MZ NEOCLEAN Cleaners Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Clean to learn more about Push-Type Cleaners. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts FOCIS Flex Connector Inspection • Self-contained, tether-free, hand-held • Auto-focus and auto-centering for fast, easy inspection • IEC, IPC and user-defined pass/fail analysis Recommended Products Cletop Cleaners • Simple push-button shutter application • Easily replaceable cost- effective tape cartridges • Over 400 wipes per tape NEOCLEAN-E Models (E1, E2, E3) NEOCLEAN-M FCC2 Cleaning Fluid • Unique dispenser for use with AFL Connector Cleaning Tips and FiberWipes • Dissipates static charge • Up to 400+ cleanings per can
