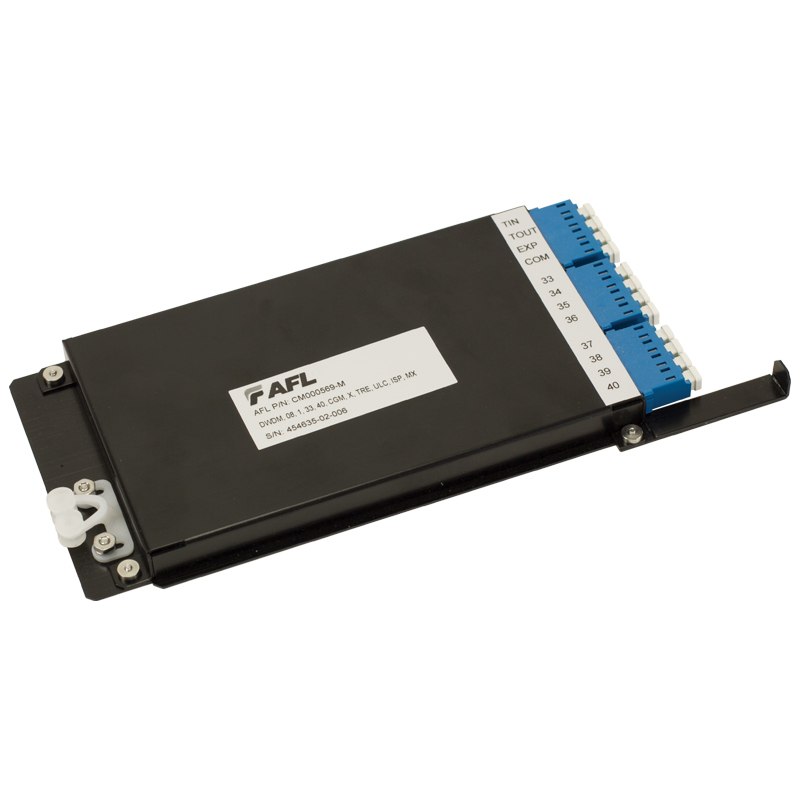

DWDM Card Guide Module (CGM®)

AFL’s DWDM CGM modules provide scalable wavelength management for new deployments and network upgrades, providing increased bandwidth over a single common fiber.

b9b01cbb66a84adb9326d811f4e634fc

Features:

50 GHz and 100 GHz ITU-T channel spacing
Low insertion loss/high isolation
Epoxy-free optical path
Express, upgrade and Tx/Rx test ports

Applications:

CATV Systems
Carrier Infrastructure
Access Networks
Small Cell

AFL’s DWDM CGM modules provide scalable wavelength management for new deployments and network upgrades, providing increased bandwidth over a single common fiber. Passive circuit design utilizes proven thin-film filter technology featuring low insertion loss, high isolation, and superior environmental stability. Modules can be installed in AFL’s CGM Plus chassis and are available with LC bulkheads in select configurations from 4 to 40 channels. The CGM module space efficient design allows for installation quantity of 24 modules in a single 4RU CGM Plus chassis.
