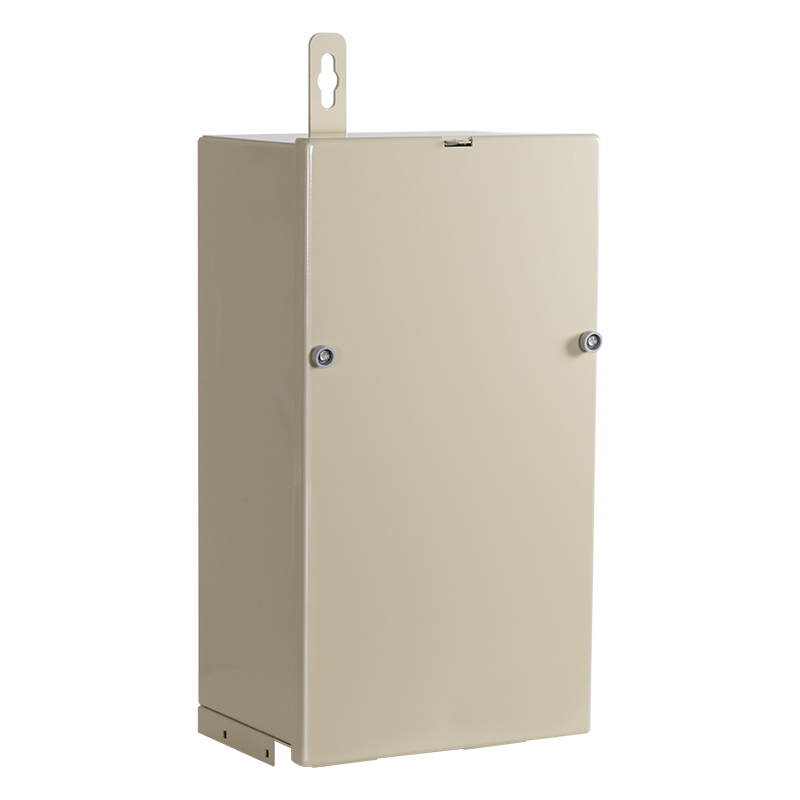

© 2015, AFL, all rights reserved. PP-2-00210, Revision 2, 11.2.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Coupler s / Splitters Ordering Information DESCRIPTION AFL NO. Exterior Distribution Enclosure – Splice Version – Includes 96 distribution pigtails, 12 feeder pigtails and 5 LL-4808 splice trays EA000378 Exterior Distribution Enclosure – Stub Version – Includes 50 ft. 96-fiber loose tube distribution cable stub and 50 ft. 12-fiber loose tube feeder cable stub EA000379 Channell Pedestal Mounting Kit EA000384 Emerson Pedestal Mounting Kit EA000385 IDEAA ® Exterior Distribution Enclosure The IDEAA Exterior Distribution Enclosure (EDE) provides the same convenient modular approach to centralized fiber distribution as the EDC, but in a compact wall or pedestal mountable form factor. The 96 distribution fiber enclosure is designed to contain up to three (3) 1x32 IDEAA modules. The enclosure is available in two configurations. The stubbed version includes the distribution and feeder pigtails terminated inside the unit and stubbed with 50 ft. of distribution and feeder cable stubs. The splice version is equipped with factory-terminated pigtails and splice trays that allows field access to enter the cabinet with the distribution and feeder cables to splice inside the enclosure. Specifications PARAMETER VALUES Material - Housing 16 Gauge Aluminum Dimensions (H x W x D) in. 20.5 x 11.25 x 8.75 Weight 15 lbs. Coating Electrostatically applied powder paint Covers Standard - molded-in snap finger and 3/8 in. hex head fastener Features • Stubbed and splice configurations allow for network design flexibility • Modular distribution platform allows for incremental deployment costs and immediate cost savings • Small size is unobtrusive in residential deployments • Enhanced fiber management provides simplified routing and termination • Wall-mountable and pedestal-mountable with optional bracket kits
