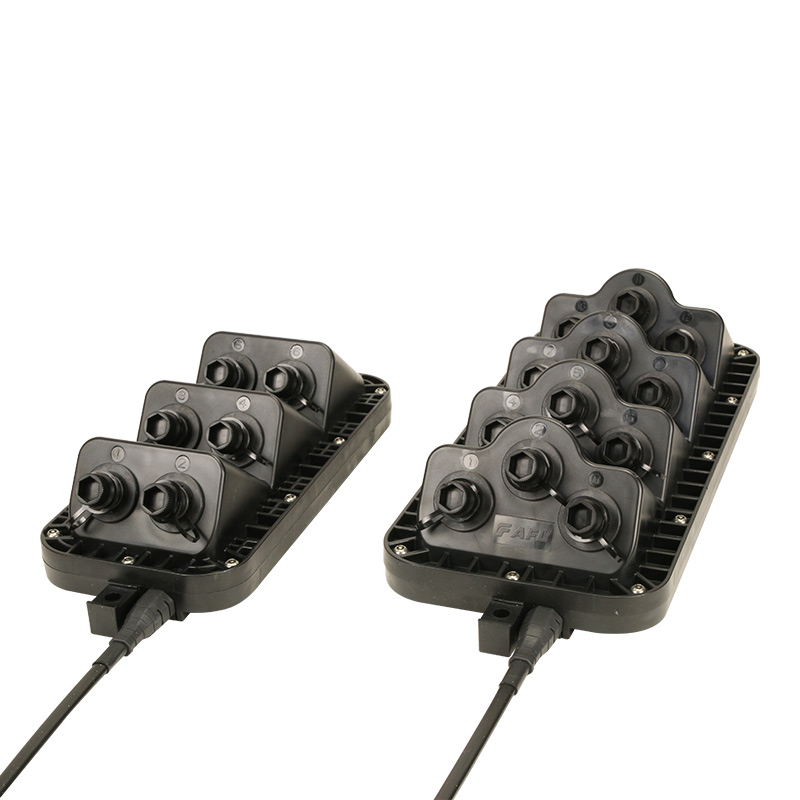

© 2016, AFL, all rights reserved. PP-2-00240, Revision 7, 7.31.20 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 179 Optical Connectivity The AFL TITAN RTD Multiport is a factory terminated OSP fiber terminal designed for quick and easy subscriber connections anywhere in the OSP network when used in conjunction with AFL TRIDENT ® Hardened Fiber Optic Connectors. The sealed and rugged design of both the AFL TITAN RTD Multiport and AFL TRIDENT connector allow for long term reliability when installed anywhere in the network—underground, in pedestals, on poles, or on aerial strand or ADSS cables. The preterminated AFL TITAN RTD Multiport Terminal is available with a variety of cable stub options. Dielectric or toneable flat drop cables are available for underground or short span self-support applications while ADSS cable stubs are available for longer span self-support applications*. Round armored cables are available for rodent protection in aerial or direct buried applications. Lastly, a pushable/air-jettable MicroDrop cable is available for microduct jetting applications. The multiple stub options allow for flexibility when engineering the network and consolidation of multiple terminal stubs into one centralized splice point. The terminal is outfitted with four, six, eight or twelve AFL TRIDENT connector ports. The AFL TITAN RTD Multiport and AFL TRIDENT Hardened Fiber Optic Connector are designed and tested to Telcordia GR-771 and Telcordia GR-3120, respectively. Lengths less than 350 feet ship coiled in low-profile boxes. Lengths more than 350 feet ship on a 33" corrugated plastic reel inside a cardboard box. *Refer to "AFL TITAN/TRIDENT Sag and Tension Guide" Applications Engineering Note for guidance on allowable span lengths for various stub options AFL TITAN RTD ® FTTx System Features • AFL TRIDENT Hardened Connector ports for speedy customer connections • Stubbed with a large variety of cable options including flat drop*, ADSS*, pushable/air-jettable MicroDrop, or armored drop. • Factory sealed for deployment in up to 10 feet of water head, but re-enterable for connector repair • Pole and swing arm mountable; aerial mounting bracket available for strand mount • Low profile design—4 and 6 port fit into 6" pedestals Multiport Terminal Specifications PARAMETER VALUE Dimensions (L x W x H) 4- and 6-port 12.4" x 4.9 " x 3.0" 315 mm x 125 mm x 76 mm 8- and 12-port 15.5" x 6.1" x 3.8" 394 mm x 195 mm x 96 mm Weight 4- and 6-port 1.5 lb (0.7 kg) 8- and 12-port 2.5 lb (1.1 kg) AFL TRIDENT Hardened Connector Specifications PARAMETER VALUE Insertion Loss, Maximum 0.50 dB Insertion Loss, Typical 0.15 dB Reflection ≤ -65 dB Operating Temperature -40°C to +75°C AFL TITAN RTD Multiport Terminal AFL TRIDENT Hardened Connector Fiber Management Qualifications GOVERNING BODY STANDARD CODE Telcordia GR-771, GR-3120
© 2016, AFL, all rights reserved. PP-2-00240, Revision 7, 7.31.20 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 180 Optical Connectivity AFL TITAN RTD ® FTTx System Ordering Information Ports 04 = 4-port 06 = 6-port 08 = 8-port 12 = 12-port 12 RTD Tail Length *4 digits Example: 0050-F for 50 feet 0050 UOM F = Feet M = Meter F Reel Blank = Standard cable-first payout R = Reversed reel, terminal-first payout XXX Cable End XXX = Pigtail DD Cable Type DD = Dielectric Flat Drop TD = Toneable Flat Drop AD = TITAN ADSS Cable PD = Pushable MicroDrop AN = Armored Drop AFL TITAN RTD Accessories DESCRIPTION AFL NO. IMAGE Strand Mount Bracket Kit FC001365 AFL TRIDENT to SC/APC Adapter—for field replacement or jumper referencing FC001366 AFL TRIDENT to SC/APC Test Jumper (1 meter) CS013775-0001 One-Click ® Cleaner SC (500 cleans) 8500-05-0001MZ TITAN RTD Multiport Handhole Hanging Bracket Kit, 4/6 Port FC001474 TITAN RTD Multiport Handhole Hanging Bracket Kit, 8/12 Port FC001475 Pedestal Mount Application AFL TITAN RTD / AFL TRIDENT ® Interface Fiber Management
Features:
- AFL TRIDENT Hardened Connectors for speedy customer connections
- Factory terminated on 250 μm outdoor or 900 μm indoor/outdoor flat drop cable as well as 250 μm armored drop or 900 μm pushable/air-jettable MicroDrop
- Aerial self-support capable
Applications:
- OSP Networks
- FTTx Networks
The AFL TITAN RTD Multiport is a factory terminated OSP fiber terminal designed for quick and easy subscriber connections anywhere in the OSP network when used in conjunction with AFL TRIDENT® Hardened Fiber Optic Connectors. The sealed and rugged design of both the AFL TITAN RTD Multiport and AFL TRIDENT connector allow for long term reliability when installed anywhere in the network—underground, in pedestals, on poles, or on aerial strand or ADSS cables.
The preterminated AFL TITAN RTD Multiport Terminal is available with a variety of cable stub options. Dielectric or toneable flat drop cables are available for underground or short span self-support applications while ADSS cable stubs are available for longer span self-support applications*. Round armored cables are available for rodent protection in aerial or direct buried applications. Lastly, a pushable/air-jettable MicroDrop cable is available for microduct jetting applications.
The multiple stub options allow for flexibility when engineering the network and consolidation of multiple terminal stubs into one centralized splice point. The terminal is outfitted with four, six, eight or twelve AFL TRIDENT connector ports. The AFL TITAN RTD Multiport and AFL TRIDENT Hardened Fiber Optic Connector are designed and tested to Telcordia GR-771 and Telcordia GR-3120, respectively.
Lengths less than 350 feet ship coiled in low-profile boxes. Lengths more than 350 feet ship on a 33" corrugated plastic reel inside a cardboard box.
