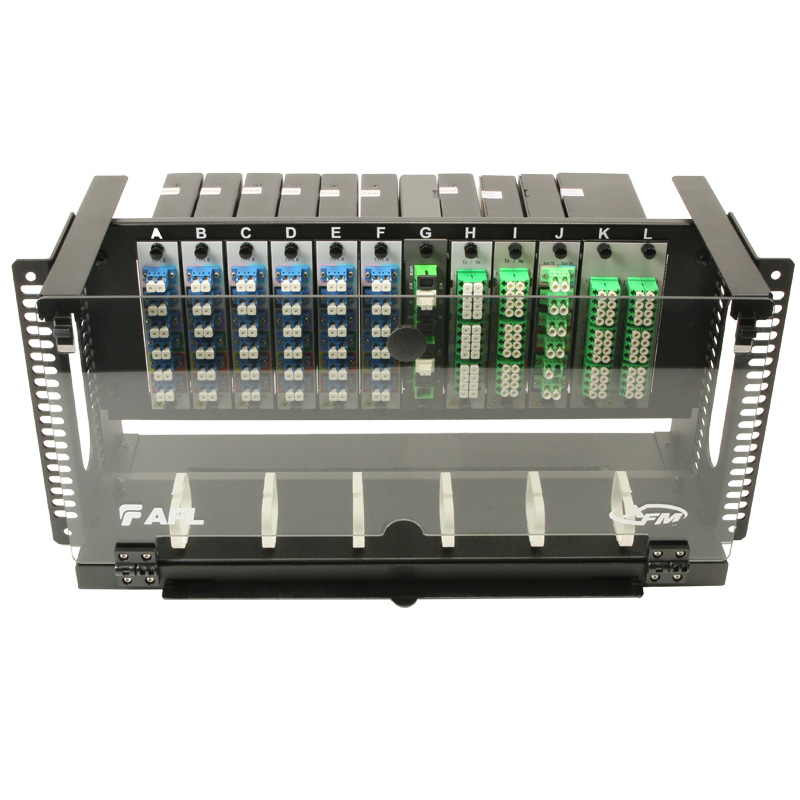

© 2016, AFL, all rights reserved. PP-2-00237, Revision 1, 6.17.20 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Fiber Management Rack-Mount Panels The Xpress Fiber Management (XFM) 5RU Shelf is a rack-mountable interconnect panel specifically designed to manage fibers in Wavelength Division Multiplexing (WDM) applications or in situations where fiber entry will occur only at the front entrance of the panel. Based on the LGX ® intermateability platform, the panel is fully compatible with AFL’s WDM, XFM ® Optical Cassette and Poli-MOD ® solutions. Routing rings on the bottom of the front panel allow cable assemblies to exit comfortably, while the back of the panel is left open to reduce size and weight. The XFM Shelf can be conveniently mounted at three depths within the rack which includes a flush-mount option. The XFM Shelf also features a clear, removable front door and a pull-out cable designator card. Features • Aluminum construction • Textured black powder coat finish • Universal WECO/TIA 19"/23" rack compatibility • (12) LGX 118 module mounting positions Ordering Information DESCRIPTION AFL NO. Xpress Fiber Management 5RU Patch Panel, Shelf, Black FM003626 LGX is a registered trademark of Furukawa Electric North America, Inc. Xpress Fiber Management ® (XFM ® ) 5RU Shelf Specifications DEPTH (A) IN INCHES* FRONT WIDTH (B) IN INCHES REAR WIDTH (C) IN INCHES HEIGHT (D) IN INCHES RACK UNITS CAPACITY UNLOADED WEIGHT 7.5 17 17 8.75 5 (12) LGX 118 4 lbs. Applications • Central Offices / Headends • Data Centers • Wavelength Division Multiplexing A C B D (see dimensions above) *Does not include installed modules
