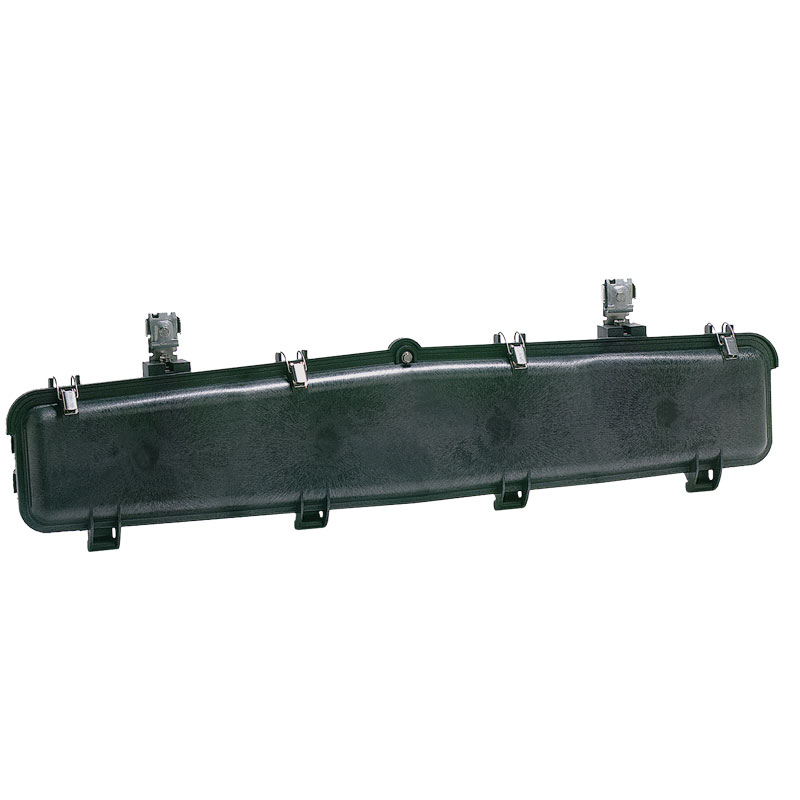

LightGuard® 420 Aerial Weathertight Fiber Optic Splice Closure

The AFL LightGuard® (LG) 420 Aerial Weathertight Fiber Optic Splice Closure is designed to allow for Taut Sheath splicing in aerial applications.

316733ef03f8446f9d83d2e014231fae

Features:

Four individual, self-sizing grommeted cable ports (expandable to six cable entrances)
Taut Sheath splice module accommodates up to twelve fusion splices and supports storage of up to twelve optical connector adapters
Protective channel allowing taut fibers or bundles to pass through the closure
Patented tongue-in-groove cover seal system
Installation and re-entry only require a common can wrench
Cable retention clamps provide pullout
UV-resistant engineered thermoplastic

Applications:

Aerial-mounted splicing

The LightGuard (LG) 420 Aerial Weathertight Fiber Optic Splice Closure is designed for taut sheath (no slack) splicing (up to 24 single or 48 mass) in an in-line configuration. Utilized in aerial applications, the LG-420 is ideal for repairing cable sheath or fibers, providing mid-span access and requires only a common can wrench for installation.
