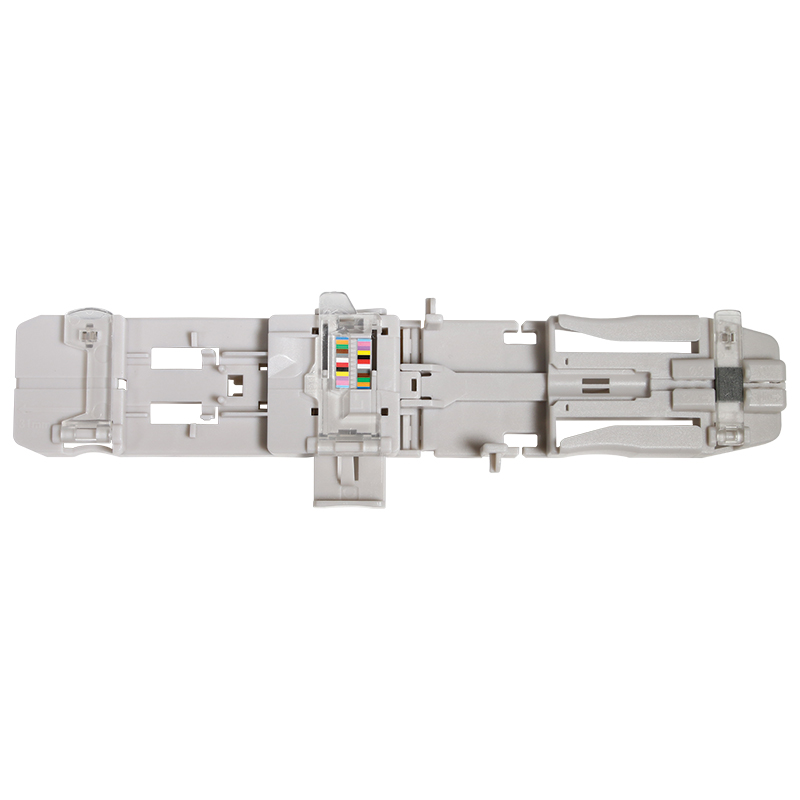

The RT-02 is the latest ribbonizing tool from Fujikura, and the first universal ribbonizing tool on the market suitable for forming a temporary ribbon from loose 200 µm or 250 µm fibers.
49c8f760bd8342ce918b7aefa8e616fa
© 2020, AFL, all rights reserved. PP-4-00117, Revision 1, 12.4.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 22 Fusion Splicing Ribbon Fiber Tools RT-02 Ribbonizing Tool Ordering Information DESCRIPTION AFL NO. RT-02 (tool only) S017465 FH-70-12PC (pair of pitch conversion holders for 200 μm loose fibers) S017464 FH-70-12 (pair – standard 12F ribbon holders) S017119 RT-02 with FH-70-12PC RT-02 The RT-02 is the latest ribbonizing tool from Fujikura, and the first universal ribbonizing tool on the market suitable for forming a temporary ribbon from loose 200 μm or 250 μm fibers. This is also the first tool that features a glue-less process for ribbonizing and splicing 12 fiber ribbons. This saves time and money by eliminating operating inefficiencies such as cure time and contamination of splicing equipment. Simply choose the applicable fiber holder in conjunction with the RT-02 to ribbonize 200 μm or 250 μm fibers. With this tool, you can now realize the benefits of mass fusion splicing when installing the latest generation of loose fiber micro cables. Features • No glue required • 200 μm and 250 μm compatible • Loading with color code sequence not required • Fibers load directly into fiber holder • Left and right fiber holder color codes printed on tool Applications • Ribbonizing 200 μm and 250 μm loose fibers • 200 μm and 250 μm MPO termination • Mass fusion splicing loose fiber cables
Features:
- No glue required
- 200 µm and 250 µm compatible
- Loading with color code sequence not required
- Fibers load directly into fiber holder
- Left and right fiber holder color codes printed on tool
Applications:
- Ribbonizing 200 µm and 250 µm loose fibers
- 200 µm and 250 µm MPO Termination
- Mass fusion splicing loose fiber cables
The RT-02 is the latest ribbonizing tool from Fujikura, and the first universal ribbonizing tool on the market suitable for forming a temporary ribbon from loose 200 µm or 250 µm fibers. This is also the first tool that features a glue-less process for ribbonizing and splicing 12 fiber ribbons. This saves time and money by eliminating operating inefficiencies such as cure time and contamination of splicing equipment. Simply choose the applicable fiber holder in conjunction with the RT-02 to ribbonize 200µm or 250µm fibers. With this tool, you can now realize the benefits of mass fusion splicing when installing the latest generation of loose fiber micro cables.
NOTICE
Fujikura Splicing Equipment is manufactured and supported at the highest caliber for the benefit of our customers and their need to provide continuous high-quality and reliable optical fiber preparations and fusion splices. AFL and Fujikura want to ensure that Fujikura Splicing Equipment is sold by AFL authorized resellers who strive for the same standards (click below to read our official statement on the matter). Please be sure to only purchase Fujikura Splicing Equipment from authorized AFL and Fujikura partners, a list of which can found on our Distribution Partners web page. For Splicer service and repair requests, please complete our Product Service request form.
