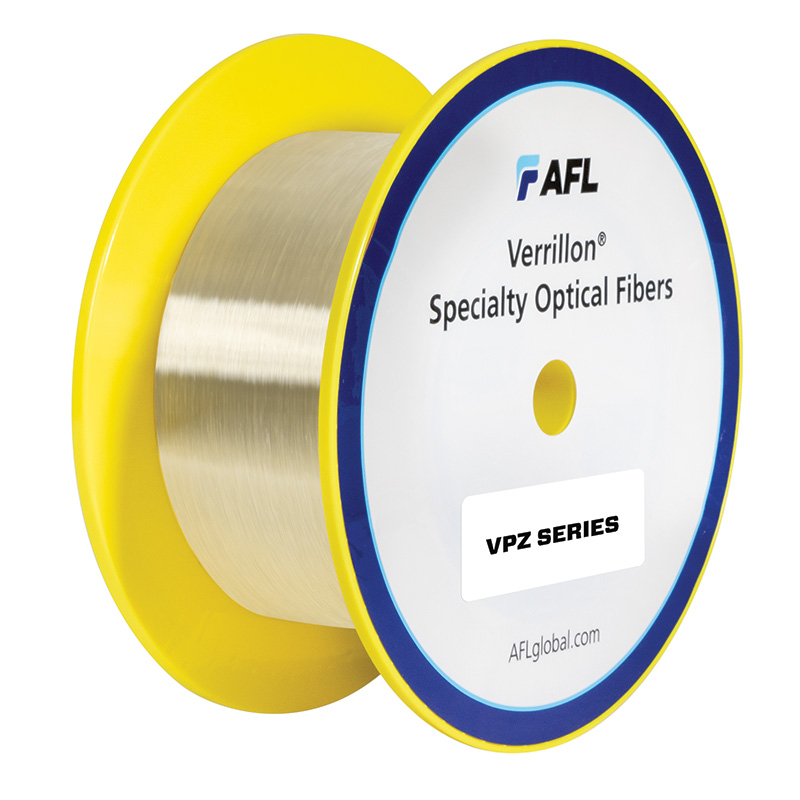

1 Specialty Optical Fiber © 2014, AFL, all rights reserved. PP-6-00019, Revision 2, 5.7.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Features • 1550 nm polarizing wavelength, > 30 dB extinction ratio • Round core • Elliptical Clad design is unique among the few polarizing fibers available. • Available in 125 μm clad diameter • MFD compatible with standard SMF for minimal splice loss • Replace expensive polarizing optics with a small coil of PZ fiber • Other polarizing wavelengths available VPZ600 Series Fibers Single-Polarization (PZ) fibers propagate one, and only one polarization state of the fundamental mode. As opposed to standard and polarization-maintaining single-mode fibers, PZ fibers do not suffer from polarization cross-talk, which makes them highly desirable for applications such as fiber optic gyroscopes, current sensors, coherent communications, polarizers and fiber lasers. AFL’s unique patented PZ Fiber design offers very broad polarizing bandwidth (~200 nm), high extinction ratio (>30 dB), low attenuation and does not require bending to operate. Because of its circular core design, users can routinely splice, connect and integrate AFL’s PZ fiber into their sensing and communications applications. Specifications PART NO. PZF-1-A-125-2 Description 125/245 Dual UV Acrylate coated, Single Polarization Single-mode Fiber, 1550 nm Operating Wavelength PARAMETER VALUE Material Coating Dual UV Acrylate Stress-inducing Design Elliptical Clad Geometry Clad Diameter (μm) 125 ± 2 Core/Clad Offset (μm) ≤ 1.5 Combined Coating Diameter (μm) 245 ± 15 Optical NA (nominal) 0.12 Attenuation @ 1550 nm (dB/m) ≤ 0.05 Mode Field Diameter 1 @ 1550 nm (μm) 10 ± 1.0 Polarization Extinction Ratio 2 (dB) > 30 Mechanical Proof Test (kpsi) > 100 1 Petermann II Definition 2 Measured on a 5 m loose coil Applications • Fiber optic gyroscopes • In-line polarizers • Fiber lasers • Current sensors • Super luminescent sources • Fiber pigtails
