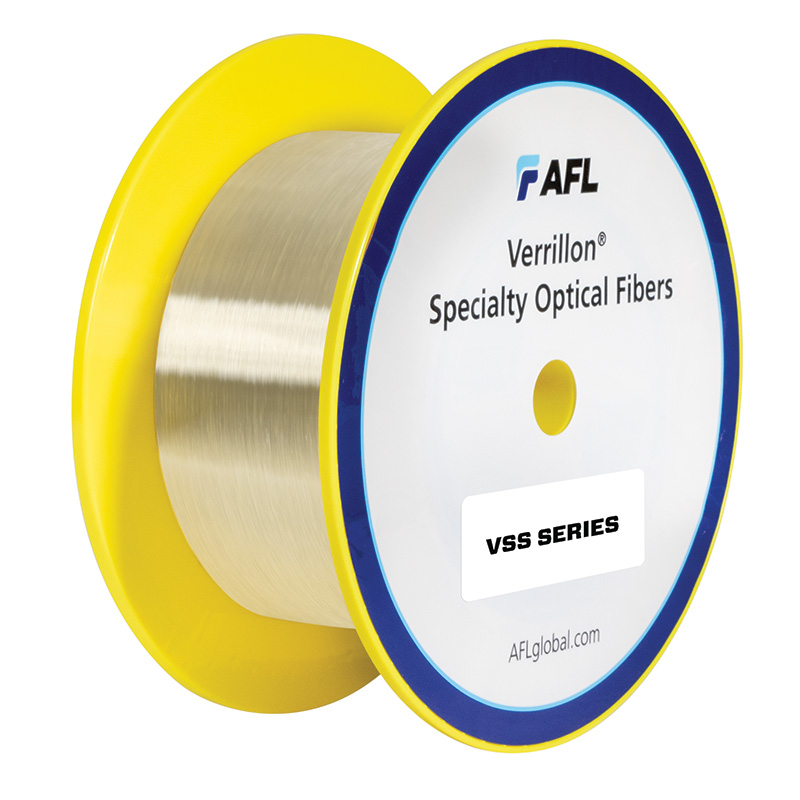

1 Specialty Optical Fiber © 2015, AFL, all rights reserved. PP-6-00026, Revision 2, 4.29.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Features • Designed to provide high level of cladding mode suppression • High level photosensitivity reduces time needed to write gratings • Acrylate coating strips easily to simplify FBG processing • Mode-field compatible with standard SMF to decrease splice loss • Excellent for high-quality Fiber Bragg Gratings (FBGs) Applications • Fiber Bragg Gratings (FBGs) • Telecommunication networks • Quasi-distributed sensing • Optical add/drop filters • Pigtails in telecom devices • Gain-flattening filters (GFF) for EDFAs VSS200 Series Photosensitive Fiber VSS200 Photosensitive Fiber is a single-mode fiber with modified glass chemistry designed to enhance the sensitivity of the glass core to UV light, which allows for high efficiency, high quality Fiber Bragg Grating (FBG) writing with extremely short UV exposure. The high glass sensitivity of this fiber allows for FBG writing 5 times faster than with standard single-mode fibers, which significantly increases productivity in mass production of FBGs. This fiber is also suitable for FBG arrays used in quasi-distributed sensing applications. Specifications PART NO. PSF-1-A-125-1 Description 125/243 μm Acrylate coated, Single-mode Fiber, 0.14 NA, 100 kpsi PARAMETER VALUE Material Coating Dual UV Acrylate Geometry Clad Diameter (μm) 125 ± 1 Core/Clad Offset (μm) ≤ 0.3 Combined Coating Diameter (μm) 243 ± 3 Optical NA (nominal) 0.14 Cutoff Wavelength (nm) ≤ 1300 Mode Field Diameter 1 @ 1550 nm (μm) 9.5 ± 0.2 Mechanical Proof Test (kpsi) ≥ 100 Operating Temperature (°C) -40 to +85 1 Petermann II Definition
