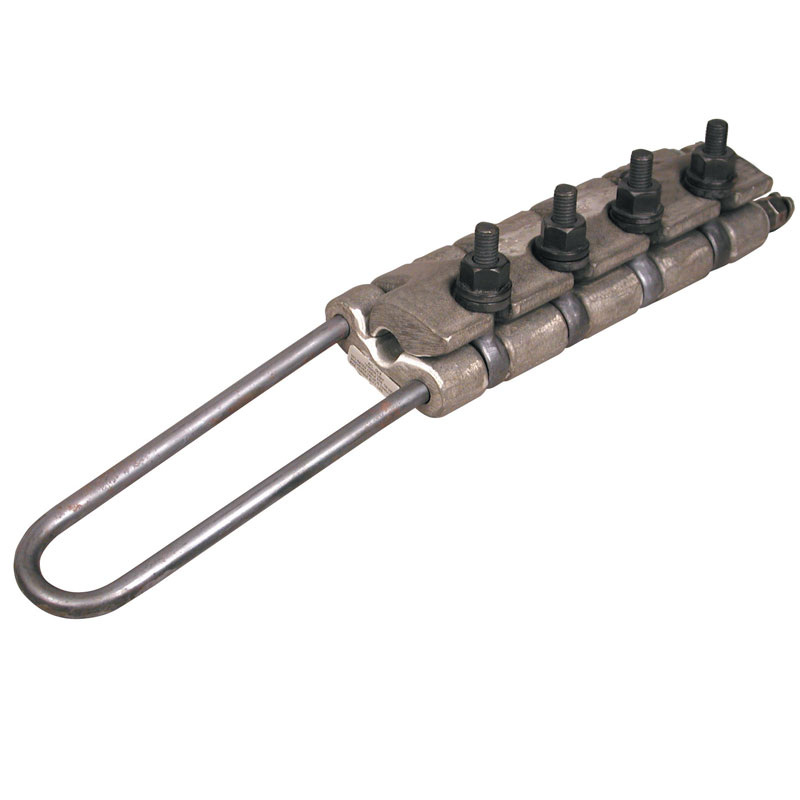

Comealongs are stringing tools designed for pulling conductors up to initial sag tensions. Comealongs for ACSR, AAC, AAAC, ACAR conductors as well as HiTemp® ACSS & HiTemp ACSS/TW conductors. 3000,3100,3200,400000HT and 410000HT Series.
6089f933bbc74977a230a04223d2ba3f
449 Comealongs Comealongs © 2004, AFL, all rights reserved. PP-3-00742, Revision 4, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Comealongs for ACSR, AAC, AAAC and ACAR Conductors, 3000, 3100 and 3200 Series Comealongs are stringing tools designed for pulling conductors up to initial sag tensions. If the required tension is greater than the rated tension of a single comealong, two or more comealongs should be used (see Installation Instructions page 131). When desired sag tension is reached, the conductor should be dead ended promptly and the comealong removed. Comealongs must receive periodic maintenance. This practice should consist of a thorough cleaning with close inspection for nicked or rough conductor grooves, cracked body, bent eye bolts, or damaged bail. The eyebolts should be kept clean and oiled. The conductor groove should be kept clean and dry. After each six months use and at the beginning of each job, all comealongs should be subjected to a pull test equal to its rated strength. If any damage is found, the comealong should be disposed of properly. Features Rugged Design The 3000, 3100 and 3200 Series Comealongs are highly engineered products. The comealong body is heat-treated for increased strength. The eyebolts are forged from high strength steel. The bail receives both magnaflux and dye check inspection to give high assurance of metal quality. Fully Assembled The 3000, 3100 and 3200 Series Comealong comes with all parts fully assembled and ready for use. Double lock nuts with cotter pins maintain proper body location. Peened eye bolts prevent loss of compression nut/washer combination. Angled Bail During installation, the angled bail of the comealong provides clearance between the chain link hoist and the conductor. This prevents damage to the conductor and allows ease of accessory installation. Each Comealong Tested and Rated Each 3000, 3100 and 3200 Series Comealong is designed for ACSR, AAC, AAAC and ACAR conductors. Every comealong ordered is individually tested prior to shipment. W ARNING: Comealongs are not intended for use as dead ends and are not recommended to hold conductors at sag tension limits for longer than 6 hours. COMEALONG CATALOG SERIES DIMENSIONS EYEBOLTS TOTAL A B C DIA NO IN MM IN MM IN MM LBS KG 3050 11.00 279 0.50 13 8.00 203 1/2 4 9.0 4.08 3060 11.00 279 0.50 13 8.00 203 1/2 4 9.0 4.08 3070 12.50 318 0.62 16 8.00 203 5/8 4 16.0 7.26 3080 12.50 318 0.62 16 8.00 203 5/8 4 16.0 7.26 3090 18.12 460 0.62 16 8.00 203 5/8 6 26.0 11.79 3100 18.12 460 0.62 16 8.00 203 5/8 6 26.0 11.79 3110 20.94 532 0.62 16 8.00 203 5/8 7 32.0 14.51 3120 20.94 532 0.62 16 8.00 203 5/8 7 32.0 14.51 3190 21.81 554 0.88 22 10.00 254 5/8 7 47.0 21.32 3200 21.81 554 0.88 22 10.00 254 5/8 7 47.0 21.32 3210 21.81 554 0.88 22 10.00 254 5/8 7 47.0 21.32 3220 21.81 554 0.88 22 10.00 254 5/8 7 47.0 21.32 3230 21.81 554 0.88 22 10.00 254 5/8 7 47.0 21.32
© 2004, AFL, all rights reserved. PP-3-00742, Revision 4, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 450 Comealongs Comealongs CATALOG NUMBER STANDARD RANGE OF CONDUCTOR DIAMETERS TENSION LIMIT MIN MAX IN MM IN MM 3050.1 0.440 11.2 0.459 11.6 3050.1 through 3065—50% of the rated strength of the conductor or 12,000 lbs (5443 kg), whichever value is smaller. 3050 0.460 11.7 0.480 12.1 3051 0.481 12.2 0.500 12.6 3052 0.501 12.7 0.520 13.1 3053 0.521 13.2 0.540 13.7 3054 0.541 13.8 0.560 14.2 3055 0.561 14.3 0.580 14.7 3056 0.581 14.8 0.600 15.2 3057 0.601 15.3 0.620 15.7 3058 0.621 15.8 0.640 16.2 3060 0.641 16.3 0.670 17.0 3061 0.671 17.1 0.700 17.7 3062 0.701 17.8 0.730 18.5 3063 0.731 18.6 0.760 19.2 3064 0.761 19.3 0.790 20.0 3065 0.791 20.1 0.820 20.8 3070 0.821 20.9 0.850 21.5 3070 through 3085—50% of the rated strength of the conductor at 10,000 pounds (5443 kg), whichever is smaller. 3071 0.851 21.6 0.880 22.3 3072 0.881 22.4 0.910 23.1 3073 0.911 23.2 0.940 23.8 3074 0.941 23.9 0.970 24.6 3075 0.971 24.7 1.000 25.3 3080 1.001 25.4 1.030 26.1 3081 1.031 26.2 1.060 26.9 3082 1.061 27.0 1.090 27.6 3083 1.091 27.7 1.120 28.4 3084 1.121 28.5 1.150 29.2 3085 1.151 29.3 1.180 29.9 Ordering Instructions Select the comealong catalog number based on the diameter conductor being used. Example: For 795 Drake, the diameter is 1.108 inches. The comealong catalog number is: 3083 Notes: 1. Installation instructions for comealongs are on pages 452 and 453. Comealongs for ACSR, AAC, AAAC and ACAR Conductors, 3000, 3100 and 3200 Series (cont.) W ARNING: Comealongs are not intended for use as dead ends and are not recommended to hold conductors at sag tension limits for longer than 6 hours. CATALOG NUMBER RANGE OF CONDUCTOR DIAMETER TENSION LIMIT STANDARD HIGH STRENGTH MIN MAX STANDARD HIGH STRENGTH IN MM IN MM 3090 3190 1.181 30.0 1.210 30.7 3090 through 3129—50% of the rated strength of the conductor or 12,000 lbs (5443 kg), whichever is smaller. 3190 through 3233—50% of the rated strength of the conductor or 20,000 lbs (9072 k), whichever is smaller. 3091 3191 1.211 30.8 1.240 31.4 3092 3192 1.241 31.5 1.270 32.2 3093 3193 1.271 32.3 1.300 33.0 3094 3194 1.301 33.1 1.330 33.7 3095 3195 1.331 33.8 1.360 34.5 3096 3196 1.361 34.6 1.412 35.8 3097 3197 1.413 35.9 1.443 36.6 3100 3200 1.444 36.7 1.474 37.4 3101 3201 1.475 37.5 1.505 38.2 3102 3202 1.507 38.3 1.537 39.0 3103 3203 1.538 39.1 1.568 39.8 3104 3204 1.569 39.9 1.599 40.6 3105 3205 1.600 40.7 1.631 41.4 3106 3206 1.632 41.5 1.662 42.1 3107 3207 1.663 42.2 1.693 42.9 3108 3208 1.694 43.0 1.724 43.7 3109 3209 1.725 43.8 1.756 44.5 3110 3210 1.757 44.6 1.787 45.3 3111 3211 1.788 45.4 1.818 46.1 3112 3212 1.819 46.2 1.849 46.9 3112 3213 1.850 47.0 1.881 47.7 3114 3214 1.882 47.8 1.912 48.5 3115 3215 1.913 48.6 1.943 49.3 3116 3216 1.944 49.4 1.974 50.1 3117 3217 1.975 50.2 2.006 50.9 3118 3218 2.070 51.0 2.037 51.7 3119 3219 2.038 51.8 2.068 52.5 3120 3220 2.069 52.6 2.099 53.3 3121 3221 2.100 53.4 2.131 54.1 3122 3222 2.132 54.2 2.162 54.9 3123 3223 2.163 55.0 2.193 55.6 3124 3224 2.194 55.7 2.224 56.4 3125 3225 2.225 56.5 2.256 57.2 3126 3226 2.257 57.3 2.287 58.0 3127 3227 2.288 58.1 2.318 58.8 3128 3228 2.319 58.9 2.349 59.6 3129 3229 2.350 59.7 2.381 60.4 — 3230 2.382 60.5 2.412 61.2 — 3231 2.413 61.3 2.443 62.0 — 3232 2.444 62.1 2.474 62.8 — 3233 2.475 62.9 2.505 63.6
451 Comealongs Comealongs © 2004, AFL, all rights reserved. PP-3-00742, Revision 4, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Rugged Design HiTemp Comealongs are highly engineered products. The comealong body is heat-treated for increased strength. The eyebolts are forged from high strength steel. The bail receives both magnaflux and dye check inspection to give high assurance of metal quality. Fully Assembled The HiTemp Comealong comes with all parts fully assembled and ready for use. Double lock nuts with cotter pins maintain proper body location. Peened eye bolts prevent loss of compression nut/ washer combination. Angled Bail During installation, the angled bail of the comealong provides clearance between the chain link hoist and the fully annealed conductor. This prevents damage to the conductor and allows ease of accessory installation. Each Comealong Tested and Rated Each HiTemp Comealong is designed for a specific ACSS or ACSS/TW conductor. Generally, the rating of the comealong will be between 20% and 50% of the ASTM rated strength of the conductor. The actual rating will be determined after testing and stamped on the comealong in pounds. Every comealong ordered is individually tested prior to shipment. HiTemp Comealongs are stringing tools designed for pulling conductors up to initial sag tensions. If the required tension is greater than the rated tension of a single comealong, two or more comealongs should be used (see Installation Instructions on pages 430 and 431). When desired sag tension is reached, the conductor should be dead ended promptly and the comealong removed. Comealongs must receive periodic maintenance. This practice should consist of a thorough cleaning with close inspection for nicked or rough conductor grooves, cracked body, bent eye bolts, or damaged bail. The eyebolts should be kept clean and oiled. The conductor groove should be kept clean and dry. After each six months use and at the beginning of each job, all comealongs should be subjected to a pull test equal to its rated strength. If any damage is found, the comealong should be disposed of properly. Features HiTemp ® Comealongs for ACSS and ACSS/TW Conductors 400000HT and 410000HT Series WARNING! Comealongs are not intended for use as dead ends and are not recommended to hold conductors at sag tension limits for longer than 6 hours.
© 2004, AFL, all rights reserved. PP-3-00742, Revision 4, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 452 Comealongs Comealongs Select the Comealong catalog number based on the conductor being used. Example: For 795 Drake ACSS Conductor, the Comealong catalog number would be: 401108HT The 400000HT Series Comealong is specifically design for ACSS conductors. Each comealong is tested and identified for a specific conductor size. Fully annealed strands of ACSS conductor will relax in a properly fitted comealong. This relaxation will result in a reduction in clamping force over time. ACSS conductors set quickly, resulting in larger amounts of creep in a shorter period of time compared to ACSR conductors. Therefore, comealongs are NOT intended for use as dead ends and are NOT recommended to hold conductors at sag tension limits for longer than 6 hours. Ordering Instructions HiTemp ® Comealongs for ACSS Conductor, 400000HT Series Notes: 1. For every two Comealongs ordered, the customer must furnish AFL a minimum of 10 feet of the specified conductor. All Comealongs are 100% tension tested. 2. Installation Instructions for Comealongs are on pages 452 and 453. Catalog Number Conductor Dimensions Eyebolts Total Weight Code Name Size Stranding Diameter A C kcmil Al/St in in mm in mm Dia No. lbs kg 400642HT Partridge/ACSS 266.8 26/7 0.642 11.0 279 8.0 203 1/2 4 9.0 4.08 400701HT Woodcock/ACSS 336.4 22/7 0.701 11.0 279 8.0 203 1/2 4 9.0 4.08 400720HT Linnet/ACSS 336.4 26/7 0.720 11.0 279 8.0 203 1/2 4 9.0 4.08 400741HT Oriole/ACSS 336.4 30/7 0.741 11.0 279 8.0 203 1/2 4 9.0 4.08 400752HT Ptarmigan/ACSS 397.5 20/7 0.752 11.0 279 8.0 203 1/2 4 9.0 4.08 400772HT Brant/ACSS 397.5 24/7 0.772 11.0 279 8.0 203 1/2 4 9.0 4.08 400783HT Ibis/ACSS 397.5 26/7 0.783 11.0 279 8.0 203 1/2 4 9.0 4.08 400806HT Lark/ACSS 397.5 30/7 0.806 11.0 279 8.0 203 1/2 4 9.0 4.08 400823HT Tailorbird/ACSS 477.0 20/7 0.823 12.5 318 8.0 203 5/8 4 16.0 7.26 400846HT Flicker/ACSS 477.0 24/7 0.846 12.5 318 8.0 203 5/8 4 16.0 7.26 400858HT Hawk/ACSS 477.0 26/7 0.858 12.5 318 8.0 203 5/8 4 16.0 7.26 400883HT Hen/ACSS 477.0 30/7 0.883 12.5 318 8.0 203 5/8 4 16.0 7.26 400901HT Sapsucker/ACSS 556.5 22/7 0.901 12.5 318 8.0 203 5/8 4 16.0 7.26 400914HT Parakeet/ACSS 556.5 24/7 0.914 12.5 318 8.0 203 5/8 4 16.0 7.26 400927HT Dove/ACSS 556.5 26/7 0.927 12.5 318 8.0 203 5/8 4 16.0 7.26 400953HT Eagle/ACSS 556.5 30/7 0.953 12.5 318 8.0 203 5/8 4 16.0 7.26 400954HT Peacock/ACSS 605.0 24/7 0.953 12.5 318 8.0 203 5/8 4 16.0 7.26 400966HT Squab/ACSS 605.0 26/7 0.966 12.5 318 8.0 203 5/8 4 16.0 7.26 400994HT Wood Duck/ACSS 605.0 30/7 0.994 12.5 318 8.0 203 5/8 4 16.0 7.26 400994HT Teal/ACSS 605.0 30/19 0.994 12.5 318 8.0 203 5/8 4 16.0 7.26 400963HT Goldfinch/ACSS 636.0 22/7 0.963 12.5 318 8.0 203 5/8 4 16.0 7.26 400977HT Rook/ACSS 636.0 24/7 0.977 12.5 318 8.0 203 5/8 4 16.0 7.26 400990HT Grosbeak/ACSS 636.0 26/7 0.990 12.5 318 8.0 203 5/8 4 16.0 7.26
453 Comealongs Comealongs © 2004, AFL, all rights reserved. PP-3-00742, Revision 4, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 HiTemp ® Comealongs for ACSS Conductor, 400000HT Series (cont.) Catalog Number Conductor Dimensions Eyebolts Total Weight Code Name Size Stranding Diameter A C kcmil Al/St in in mm in mm Dia No. lbs kg 401019HT Scoter/ACSS 636.0 30/7 1.019 12.5 318 8.0 203 5/8 4 16.0 7.26 401020HT Egret/ACSS 636.0 30/19 1.019 12.5 318 8.0 203 5/8 4 16.0 7.26 401000HT Flamingo/ACSS 666.6 24/7 1.000 12.5 318 8.0 203 5/8 4 16.0 7.26 401014HT Gannet/ACSS 666.6 26/7 1.014 12.5 318 8.0 203 5/8 4 16.0 7.26 401036HT Stilt/ACSS 715.5 24/7 1.036 12.5 318 8.0 203 5/8 4 16.0 7.26 401051HT Starling/ACSS 715.5 26/7 1.051 12.5 318 8.0 203 5/8 4 16.0 7.26 401081HT Redwing/ACSS 715.5 30/19 1.081 12.5 318 8.0 203 5/8 4 16.0 7.26 401092HT Cuckoo/ACSS 795.0 24/7 1.092 12.5 318 8.0 203 5/8 4 16.0 7.26 401108HT Drake/ACSS 795.0 26/7 1.108 12.5 318 8.0 203 5/8 4 16.0 7.26 401055HT Macaw/ACSS 795.0 42/7 1.055 12.5 318 8.0 203 5/8 4 16.0 7.26 401063HT Tern/ACSS 795.0 45/7 1.063 12.5 318 8.0 203 5/8 4 16.0 7.26 401092HT Condor/ACSS 795.0 54/7 1.092 12.5 318 8.0 203 5/8 4 16.0 7.26 401140HT Mallard/ACSS 795.0 30/19 1.140 12.5 318 8.0 203 5/8 4 16.0 7.26 401131HT Ruddy/ACSS 900.0 45/7 1.131 12.5 318 8.0 203 5/8 4 16.0 7.26 401162HT Canary/ACSS 900.0 54/7 1.162 12.5 318 8.0 203 5/8 4 16.0 7.26 401165HT Corncrake/ACSS 954.0 20/7 1.165 12.5 318 8.0 203 5/8 4 16.0 7.26 401196HT Redbird/ACSS 954.0 24/7 1.196 18.1 460 8.0 203 5/8 6 26.0 11.79 401165HT Rail/ACSS 954.0 45/7 1.165 12.5 318 8.0 203 5/8 4 16.0 7.26 401175HT Towhee/ACSS 954.0 48/7 1.175 12.5 318 8.0 203 5/8 4 16.0 7.26 401196HT Cardinal/ACSS 954.0 54/7 1.196 18.1 460 8.0 203 5/8 6 26.0 11.79 401248HT Canvasback/ACSS 954.0 30/19 1.248 18.1 460 8.0 203 5/8 6 26.0 11.79 401203HT Snowbird/ACSS 1033.5 42/7 1.203 18.1 460 8.0 203 5/8 6 26.0 11.79 401212HT Ortolan/ACSS 1033.5 45/7 1.212 18.1 460 8.0 203 5/8 6 26.0 11.79 401245HT Curlew/ACSS 1033.5 54/7 1.245 18.1 460 8.0 203 5/8 6 26.0 11.79 401259HT Bluejay/ACSS 1113.0 45/7 1.259 18.1 460 8.0 203 5/8 6 26.0 11.79 401293HT Finch/ACSS 1113.0 54/19 1.293 18.1 460 8.0 203 5/8 6 26.0 11.79 401302HT Bunting/ACSS 1192.5 45/7 1.302 18.1 460 8.0 203 5/8 6 26.0 11.79 401338HT Grackle/ACSS 1192.5 54/19 1.338 18.1 460 8.0 203 5/8 6 26.0 11.79 401345HT Bittern/ACSS 1272.0 45/7 1.345 18.1 460 8.0 203 5/8 6 26.0 11.79 401357HT Diver/ACSS 1272.0 48/7 1.357 18.1 460 8.0 203 5/8 6 26.0 11.79 401382HT Pheasant/ACSS 1272.0 54/19 1.382 18.1 460 8.0 203 5/8 6 26.0 11.79 401386HT Dipper/ACSS 1351.5 45/7 1.386 18.1 460 8.0 203 5/8 6 26.0 11.79 401424HT Martin/ACSS 1351.5 54/19 1.424 18.1 460 8.0 203 5/8 6 26.0 11.79 401427HT Bobolink/ACSS 1431.0 45/7 1.427 18.1 460 8.0 203 5/8 6 26.0 11.79 401465HT Plover/ACSS 1431.0 54/19 1.465 18.1 460 8.0 203 5/8 6 26.0 11.79 401466HT Nuthatch/ACSS 1510.0 45/7 1.466 18.1 460 8.0 203 5/8 6 26.0 11.79 401505HT Parrot/ACSS 1510.0 54/19 1.505 18.1 460 8.0 203 5/8 6 26.0 11.79 401492HT Ratite/ACSS 1590.0 42/7 1.492 18.1 460 8.0 203 5/8 6 26.0 11.79 401504HT Lapwing/ACSS 1590.0 45/7 1.504 18.1 460 8.0 203 5/8 6 26.0 11.79 401544HT Falcon/ACSS 1590.0 54/19 1.544 18.1 460 8.0 203 5/8 6 26.0 11.79 401602HT Chukar/ACSS 1780.0 84/19 1.602 18.1 460 8.0 203 5/8 6 26.0 11.79 401681HT Mockingbird/ACSS 2034.5 72/7 1.681 18.1 460 8.0 203 5/8 6 26.0 11.79 401700HT Roadrunner/ACSS 2057.0 76/19 1.700 18.1 460 8.0 203 5/8 6 26.0 11.79 401762HT Bluebird/ACSS 2156.0 84/19 1.762 20.9 532 8.0 203 5/8 7 32.0 14.51 401735HT Kiwi/ACSS 2167.0 72/7 1.735 18.1 460 8.0 203 5/8 6 26.0 11.79 401802HT Thrasher/ACSS 2312.0 76/19 1.802 20.9 532 8.0 203 5/8 7 32.0 14.51 401880HT Joree/ACSS 2515.0 76/19 1.880 20.9 532 8.0 203 5/8 7 32.0 14.51
© 2004, AFL, all rights reserved. PP-3-00742, Revision 4, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 454 Comealongs Comealongs Select the Comealong catalog number based on the conductor being used. Example: For 795 Drake ACSS/TW Conductor, the Comealong catalog number would be: 410993HT The 410000HT Series Comealong is specifically design for ACSS/ TW conductors. Each comealong is tested and identified for a specific conductor size. Fully annealed strands of ACSS/TW conductor will relax in a properly fitted comealong. This relaxation will result in a reduction in clamping force over time. ACSS/TW conductors set quickly, resulting in larger amounts of creep in a shorter period of time compared to ACSR conductors. Therefore, comealongs are NOT intended for use as dead ends and are NOT recommended to hold conductors at sag tension limits for longer than 6 hours. Ordering Instructions HiTemp ® Comealongs for ACSS/TW Conductor, 410000HT Series Notes: 1. For every two Comealongs ordered, the customer must furnish AFL a minimum of 10 feet of the specified conductor. All Comealongs are 100% tension tested. 2. Installation Instructions for Comealongs are on pages 452 and 453. Catalog Number Conductor Dimension Eye Bolts Total Weight A B Code Word Size Type Stranding Diameter kcmil Al/St in in mm in mm Size No. lbs kg 410693HT Oriole/ACSS/TW 336.4 23 18 /7 0.693 11.0 279 8.0 203 1/2 4 9.0 4.08 410776HT Flicker/ACSS/TW 477.0 13 18 /7 0.776 11.0 279 8.0 203 1/2 4 9.0 4.08 410789HT Hawk/ACSS/TW 477.0 16 18 /7 0.789 11.0 279 8.0 203 1/2 4 9.0 4.08 410825HT Hen/ACSS/TW 477.0 23 18 /7 0.825 12.5 318 8.0 203 5/8 4 16.0 7.26 410835HT Parakeet/ACSS/TW 556.5 13 18 /7 0.835 12.5 318 8.0 203 5/8 4 16.0 7.26 410852HT Dove/ACSS/TW 556.5 16 20 /7 0.852 12.5 318 8.0 203 5/8 4 16.0 7.26 410846HT Mohawk/ACSS/TW 571.7 13 18/7 0.846 12.5 318 8.0 203 5/8 4 16.0 7.26 410858HT Calumet/ACSS/TW 565.3 16 18/7 0.858 12.5 318 8.0 203 5/8 4 16.0 7.26 410890HT Rook/ACSS/TW 636.0 13 19 /7 0.890 12.5 318 8.0 203 5/8 4 16.0 7.26 410908HT Grosbeak/ACSS/TW 636.0 16 20 /7 0.908 12.5 318 8.0 203 5/8 4 16.0 7.26 410953HT Scoter/ACSS/TW 636.0 23 18 /7 0.953 12.5 318 8.0 203 5/8 4 16.0 7.26 410927HT Oswego/ACSS/TW 664.8 16 20/7 0.927 12.5 318 8.0 203 5/8 4 16.0 7.26 410913HT Mystic/ACSS/TW 666.6 13 20/7 0.913 12.5 318 8.0 203 5/8 4 16.0 7.26 410977HT Maumee/ACSS/TW 768.2 13 20/7 0.977 12.5 318 8.0 203 5/8 4 16.0 7.26 410990HT Wabash/ACSS/TW 762.8 16 20/7 0.990 12.5 318 8.0 203 5/8 4 16.0 7.26 410960HT Tern/ACSS/TW 795.0 7 17 /7 0.960 12.5 318 8.0 203 5/8 4 16.0 7.26 410980HT Puffin/ACSS/TW 795.0 10 18 /7 0.980 12.5 318 8.0 203 5/8 4 16.0 7.26 410993HT Condor/ACSS/TW 795.0 13 20 /7 0.993 12.5 318 8.0 203 5/8 4 16.0 7.26 411010HT Drake/ACSS/TW 795.0 16 20 /7 1.010 12.5 318 8.0 203 5/8 4 16.0 7.26 411080HT Canary/ACSS/TW 900.0 13 30 /7 1.080 12.5 318 8.0 203 5/8 4 16.0 7.26 411077HT Fraser/ACSS/TW 946.7 10 35/7 1.077 12.5 318 8.0 203 5/8 4 16.0 7.26 411044HT Phoenix/ACSS/TW 954.0 5 30 /7 1.044 12.5 318 8.0 203 5/8 4 16.0 7.26
455 Comealongs Comealongs © 2004, AFL, all rights reserved. PP-3-00742, Revision 4, 8.31.2022 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 HiTemp ® Comealongs for ACSS/TW Conductor, 410000HT Series (cont.) Catalog Number Conductor Dimension Eye Bolts Total Weight A B Code Word Size Type Stranding Diameter kcmil Al/St in in mm in mm Size No. lbs kg 411061HT Rail/ACSS/TW 954.0 7 32 /7 1.061 12.5 318 8.0 203 5/8 4 16.0 7.26 411060HT Kettle/ACSS/TW 957.2 7 32/7 1.060 12.5 318 8.0 203 5/8 4 16.0 7.26 411092HT Columbia/ACSS/TW 966.2 13 21/7 1.092 12.5 318 8.0 203 5/8 4 16.0 7.26 411108HT Suwannee/ACSS/TW 959.6 16 22/7 1.108 12.5 318 8.0 203 5/8 4 16.0 7.26 411089HT Snowbird/ACSS/TW 1033.5 5 30 /7 1.089 12.5 318 8.0 203 5/8 4 16.0 7.26 411102HT Ortolan/ACSS/TW 1033.5 7 32 /7 1.102 12.5 318 8.0 203 5/8 4 16.0 7.26 411128HT Curlew/ACSS/TW 1033.5 13 22 /7 1.128 12.5 318 8.0 203 5/8 4 16.0 7.26 411131HT — 1080.0 7 20/7 1.131 12.5 318 8.0 203 5/8 4 16.0 7.26 411129HT Avocet/ACSS/TW 1113.0 5 30 /7 1.129 12.5 318 8.0 203 5/8 4 16.0 7.26 411143HT Bluejay/ACSS/TW 1113.0 7 33 /7 1.143 12.5 318 8.0 203 5/8 4 16.0 7.26 411185HT Finch/ACSS/TW 1113.0 13 38 /19 1.185 18.1 460 8.0 203 5/8 6 26.0 11.79 411165HT Genesee/ACSS/TW 1158.0 7 33/7 1.165 12.5 318 8.0 203 5/8 4 16.0 7.26 411196HT Hudson/ACSS/TW 1158.4 13 26/7 1.196 18.1 460 8.0 203 5/8 6 26.0 11.79 411155HT Cheyenne/ACSS/TW 1168.1 5 30/7 1.155 12.5 318 8.0 203 5/8 4 16.0 7.26 411167HT Oxbird/ACSS/TW 1192.5 5 30 /7 1.167 18.1 460 8.0 203 5/8 6 26.0 11.79 411181HT Bunting/ACSS/TW 1192.5 7 33 /7 1.181 18.1 460 8.0 203 5/8 6 26.0 11.79 411225HT Grackle/ACSS/TW 1192.5 13 38 /19 1.225 18.1 460 8.0 203 5/8 6 26.0 11.79 411245HT Yukon/ACSS/TW 1233.6 13 38/19 1.245 18.1 460 8.0 203 5/8 6 26.0 11.79 411213HT Nelson/ACSS/TW 1257.1 7 35/7 1.213 18.1 460 8.0 203 5/8 6 26.0 11.79 411202HT Scissortail/ACSS/TW 1272.0 5 30 /7 1.202 18.1 460 8.0 203 5/8 6 26.0 11.79 411203HT Catawba/ACSS/TW 1272.0 5 30/7 1.203 18.1 460 8.0 203 5/8 6 26.0 11.79 411220HT Bittern/ACSS/TW 1272.0 7 35 /7 1.220 18.1 460 8.0 203 5/8 6 26.0 11.79 411264HT Pheasant/ACSS/TW 1272.0 13 39 /19 1.264 18.1 460 8.0 203 5/8 6 26.0 11.79 411290HT Thames/ACSS/TW 1334.6 13 39/19 1.290 18.1 460 8.0 203 5/8 6 26.0 11.79 411256HT Dipper/ACSS/TW 1351.5 7 35 /7 1.256 18.1 460 8.0 203 5/8 6 26.0 11.79 411300HT Martin/ACSS/TW 1351.5 13 39 /19 1.300 18.1 460 8.0 203 5/8 6 26.0 11.79 411259HT Mackenzie/ACSS/TW 1359.7 7 36/7 1.259 18.1 460 8.0 203 5/8 6 26.0 11.79 411248HT Truckee/ACSS/TW 1372.5 5 30/7 1.248 18.1 460 8.0 203 5/8 6 26.0 11.79 411291HT Bobolink/ACSS/TW 1431.0 7 36 /7 1.291 18.1 460 8.0 203 5/8 6 26.0 11.79 411337HT Plover/ACSS/TW 1431.0 13 37 /19 1.337 18.1 460 8.0 203 5/8 6 26.0 11.79 411340HT Merrimack/ACSS/TW 1433.6 13 39/19 1.340 18.1 460 8.0 203 5/8 6 26.0 11.79 411302HT Miramichi/ACSS/TW 1455.3 7 36/7 1.302 18.1 460 8.0 203 5/8 6 26.0 11.79 411292HT St. Croix/ACSS/TW 1467.8 5 33/7 1.292 18.1 460 8.0 203 5/8 6 26.0 11.79 411382HT Rio Grande/ACSS/TW 1533.3 13 39/19 1.382 18.1 460 8.0 203 5/8 6 26.0 11.79 411345HT Potomac/ACSS/TW 1557.4 7 36/7 1.345 18.1 460 8.0 203 5/8 6 26.0 11.79 411334HT Platte/ACSS/TW 1569.0 5 33/7 1.334 18.1 460 8.0 203 5/8 6 26.0 11.79 411358HT Lapwing/ACSS/TW 1590.0 7 36 /7 1.358 18.1 460 8.0 203 5/8 6 26.0 11.79 411408HT Falcon/ACSS/TW 1590.0 13 42 /19 1.408 18.1 460 8.0 203 5/8 6 26.0 11.79 411424HT Pecos/ACSS/TW 1622.0 13 39/19 1.424 18.1 460 8.0 203 5/8 6 26.0 11.79 411386HT Schuylkill/ACSS/TW 1657.4 7 36/7 1.386 18.1 460 8.0 203 5/8 6 26.0 11.79 411470HT James/ACSS/TW 1730.6 13 34/19 1.470 18.1 460 8.0 203 5/8 6 26.0 11.79 411427HT Pee Dee/ACSS/TW 1758.6 7 37/7 1.427 18.1 460 8.0 203 5/8 6 26.0 11.79 411445HT Chukar/ACSS/TW 1780.0 8 37 /19 1.445 18.1 460 8.0 203 5/8 6 26.0 11.79 411545HT Cumberland/ACSS/TW 1926.9 13 42/19 1.545 18.1 460 8.0 203 5/8 6 26.0 11.79 411504HT Athabaska/ACSS/TW 1949.6 7 42/7 1.504 18.1 460 8.0 203 5/8 6 26.0 11.79 411602HT Powder/ACSS/TW 2153.8 8 64/19 1.602 18.1 460 8.0 203 5/8 6 26.0 11.79 411608HT Bluebird/ACSS/TW 2156.0 8 64 /19 1.608 18.1 460 8.0 203 5/8 6 26.0 11.79 411762HT Santee/ACSS/TW 2627.3 8 64/19 1.762 18.1 460 8.0 203 5/8 6 26.0 11.79
Features:
- Rugged design
- Fully assembled
- Angled bailed
- Tested and rated
Applications:
- Stringing tools designed for pulling conductors up to initial sag tensions
Comealongs and HiTemp® Comealongs are stringing tools designed for pulling conductors up to initial sag tensions. If the required tension is greater than the rated tension of a single comealong, two or more comealongs should be used. When desired sag tension is reached, the conductor should be dead ended promptly and the comealong removed.
Comealongs and HiTemp Comealongs must receive periodic maintenance. This practice should consist of a thorough cleaning with close inspection for nicked or rough conductor grooves, cracked body, bent eye bolts or damaged bail. The eyebolts should be kept clean and oiled.
The conductor groove should be kept clean and dry. After each six-month-use and at the beginning of each job, all comealongs should be subjected to a pull test equal to its rated strength. If any damage is found, the comealong should be disposed of properly.
WARNING: Comealongs are not intended for use as dead ends
and are not recommended to hold conductors at
sag tension limits for longer than 6 hours.
