Pad-to-pad connections where the operating temperatures are at or below 250ºC (482ºF). Used for aluminum to aluminum or copper to aluminum application. Ex: Dead ends to terminals, terminals to tee taps
7d91e33ac00b446c9b06a1dcac06d083

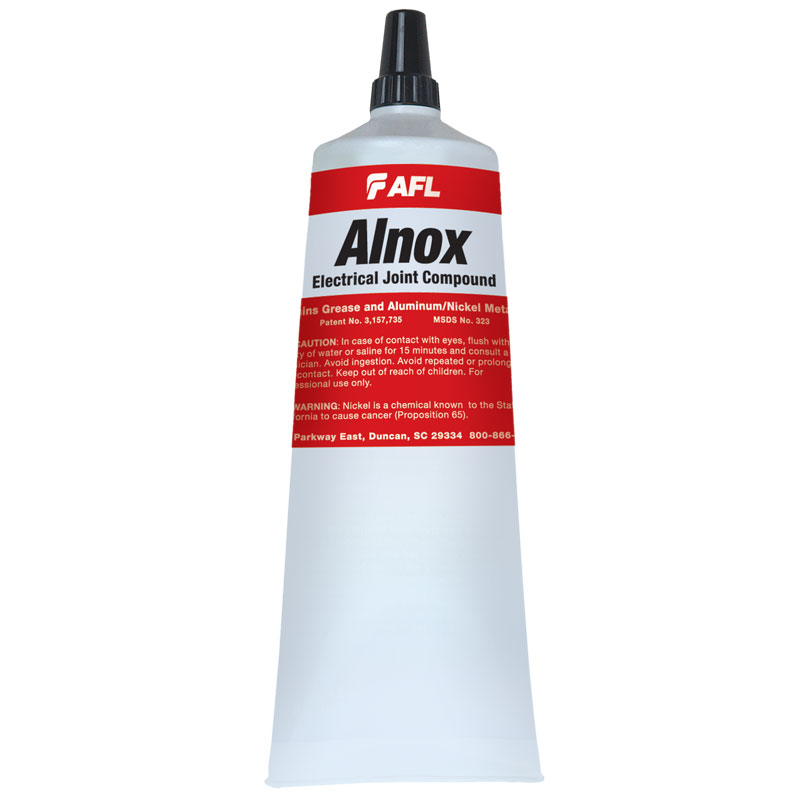

Compounds 1 www.AFLglobal.com or 800-890-8878 © 2011, AFL, all rights reserved. PP-3-00214, Revision 0, 3.22.11 Specifications are subject to change without notice. Application Pad to pad connections where the operating temperatures are at or below 250 ºC (482 ºF). Used for aluminum on aluminum, copper on aluminum, and copper on copper. Ex: Dead ends to terminals, terminals to tee taps Features Lowest Electrical Resistance Alnox ® contains extremely hard metalic particles with sharp and irregular shapes of carefully controlled grain size. This forms many metal to metal contact points for low resistance connections. If Alnox is kept in a dry place, it has an infinite shelf life. Weather Resistant Alnox ® adheres to pad surfaces, protecting the connection against the harmful effects of the environment. Wide Temperature Tolerance Alnox ® has a wide temperature tolerance. It is workable at low temperatures, -18 ºC (0 ºF), and does not drip at high temperatures. It has a melting point above 288 ºC (550 ºF). Alnox ® Electrical Joint Compound CATALOG NUMBER PACKAGING ALNOX10T Carton of 10 - 8.82 oz (250 g) tubes ALNOX12CAN Carton of 12 - 1 lb. (0.45 kg) cans ALNOX1GAL 1 Gallon Pail, 10 lbs. (4.5 kg) ALNOX5GAL 5 Gallon Pail, 50 lbs. (22.7 kg) For more information, contact the AFL Technical Support Team at 1.800.866.7385. Ordering Information
Features:
- Low resistance connections
- Infinite shelf life when kept in a dry place
- Adheres to pad surfaces, protecting the connection against the harmful effects of the environment
- Wide temperature tolerance: -18 ºC (0 ºF) to above 288 ºC (550 ºF).
- Does not drip at high temperatures
