The dead end assembly is specifically designed for ACSS conductors. The body of the HiTemp dead end is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
1d9d61752401476db24988c745894d24
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 285 HiTemp ® ACSS ACCESSORIES The 33100HT Series Dead End Assembly is specifically designed for ACSS conductors The body of the HiTemp Dead End is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight or 30º position All HiTemp Dead Ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor Each dead end assembly comes with terminal and aluminum hardware For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Corona bolts are furnished as standard on 15º terminals for these die sizes The square edges of the bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix "EHV" Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use "NT" For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use "EHV" ( > 345 kV) For Standard Finish, leave blank (< 345 kV) Step 4: Assemble Catalog Number Example: For 795 Drake ACSS Conductor with no terminal and EHV finish, the complete catalog number is: E33142HTNTEHV HiTemp Compression Dead End for ACSS Conductor, Eye Type, Single Tongue, 33100HT Series Notes: 1 Eye Dimensions are on page 339 2 Pad Dimensions are on page 339 3 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 4 Bolt Sizes and Torque Recommendations are on page 340 5 Installation Instructions for Dead Ends are on page 345 6 Installation Instructions for Terminals are on page 351 7 For more information on die selction and ordering instructions, see the Tools and Equipment section of this catalog Assy Catalog Number Terminal Connector EHV Finish + +
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 286 HiTemp ® ACSS ACCESSORIES HiTemp Compression Dead End for ACSS Conductor, Eye Type, Single Tongue, 33100HT Series (cont.) Dead End Assembly Catalog Number Conductor Component Catalog Number Die Size Total Weight Total Dead End Length Pad Size Code Name Size Stranding Diameter Dead End Body Steel Eye 15º Terminal Aluminum Steel kcmil Al/St in lbs kg in mm E33109HT Woodcock/ACSS 336 4 22/7 0 701 8120 781CHT 9176 228 5120 781HT 20AH 76SH 5 8 2 6 27 3 693 D E33113HT Linnet/ACSS 336 4 26/7 0 720 8120 812CHT 9110 277 5120 812HT 20AH 10SH 5 9 2 7 27 3 693 D E33114HT Oriole/ACSS 336 4 30/7 0 741 8120 781CHT 9110 332 5120 781HT 20AH 10SH 5 9 2 7 27 3 693 D E33115HT Ptarmigan/ACSS 397 5 20/7 0 752 8120 812CHT 9110 231 5120 812HT 20AH 10SH 5 6 2 6 26 6 676 D E33116HT Brant/ACSS 397 5 24/7 0 772 8120 812CHT 9110 261 5120 812HT 20AH 10SH 5 6 2 6 26 6 676 D E33117HT Ibis/ACSS 397 5 26/7 0 783 8120 844HT 9110 302 5120 844HT 20AH 10SH 5 4 2 5 26 6 676 D E33118HT Lark/ACSS 397 5 30/7 0 806 8120 844HT 9112 359 5120 844HT 20AH 12SH 5 5 2 5 26 6 676 D E33119HT Tailorbird/ACSS 477 0 20/7 0 823 8120 875HT 9210 231 5120 875HT 20AH 10SH 5 5 2 5 26 6 676 D E33120HT Flicker/ACSS 477 0 24/7 0 846 8124 938HT 9110 295 5124 938HT 24AH 10SH 6 8 3 1 26 7 677 D E33121HT Hawk/ACSS 477 0 26/7 0 858 8124 938HT 9112 332 5124 938HT 24AH 12SH 6 9 3 1 26 7 677 D E33122HT Hen/ACSS 477 0 30/7 0 883 8124 938CHT 9212 397 5124 938HT 24AH 12SH 7 6 3 4 26 8 681 D E33123HT Sapsucker/ACSS 556 5 22/7 0 901 8124 969HT 9210 277 5124 969HT 24AH 10SH 7 4 3 4 27 3 693 D E33124HT Parakeet/ACSS 556 5 24/7 0 914 8124 969HT 9210 316 5124 969HT 24AH 10SH 7 4 3 4 27 3 693 D E33125HT Dove/ACSS 556 5 26/7 0 927 8127 100HT 9212 359 5127 100HT 27AH 12SH 9 0 4 1 28 8 731 D E33126HT Eagle/ACSS 556 5 30/7 0 953 8127 100CHT 9314 432 5127 100HT 27AH 14SH 10 2 4 6 29 0 736 D E33127HT Peacock/ACSS 605 0 24/7 0 953 8127 100HT 9212 332 5127 100HT 27AH 12SH 9 0 4 1 28 8 731 D E33128HT Squab/ACSS 605 0 26/7 0 966 8127 100HT 9212 377 5127 100HT 27AH 12SH 9 3 4 2 28 8 731 D E33130HT Wood Duck/ACSS 605 0 30/7 0 994 8127 106HT 9314 441 5127 106HT 27AH 14SH 10 0 4 6 29 0 736 D E33129HT Teal/ACSS 605 0 30/19 0 994 8127 106HT 9314 441 5127 106HT 27AH 14SH 10 0 4 6 29 0 736 D E33131HT Goldfinch/ACSS 636 0 22/7 0 963 8127 106HT 9210 295 5127 100HT 27AH 10SH 8 8 4 0 28 8 731 D E33132HT Rook/ACSS 636 0 24/7 0 977 8127 106HT 9212 344 5127 106HT 27AH 12SH 9 0 4 1 28 8 731 D E33133HT Grosbeak/ACSS 636 0 26/7 0 990 8127 106HT 9212 386 5127 106HT 27AH 12SH 9 0 4 1 28 8 731 D E33182HT Scoter/ACSS 636 0 30/7 1 019 8127 106HT 9314 453 5127 106HT 27AH 14SH 10 0 4 6 29 0 736 D E33134HT Egret/ACSS 636 0 30/19 1 019 8127 106HT 9314 453 5127 106HT 27AH 14SH 10 0 4 6 29 0 736 D E33135HT Flamingo/ACSS 666 6 24/7 1 000 8127 106HT 9212 351 5127 106HT 27AH 12SH 9 0 4 1 28 8 731 D E33183HT Gannet/ACSS 666 6 26/7 1 014 8127 106HT 9314 397 5127 106HT 27AH 14SH 10 0 4 6 29 0 736 D E33136HT Stilt/ACSS 715 5 24/7 1 036 8130 109HT 9312 359 5130 109HT 30AH 12SH 12 0 5 5 29 3 746 D E33137HT Starling/ACSS 715 5 26/7 1 051 8130 116HT 9314 406 5130 109HT 30AH 14SH 12 2 5 6 29 8 759 D E33138HT Redwing/ACSS 715 5 30/19 1 081 8130 116HT 9316 500 5130 116HT 30AH 16SH 12 2 5 6 29 8 759 D E33141HT Cuckoo/ACSS 795 0 24/7 1 092 8130 116HT 9312 386 5130 116HT 30AH 12SH 11 6 5 3 29 8 759 D E33142HT Drake/ACSS 795 0 26/7 1 108 8130 122HT 9314 432 5130 122HT 30AH 14SH 11 8 5 4 29 8 759 D E33144HT Macaw/ACSS 795 0 42/7 1 055 8130 116HT 9310 261 5130 116HT 30AH 10SH 11 4 5 2 29 8 759 D E33140HT Tern/ACSS 795 0 45/7 1 063 8130 116HT 9310 277 5130 116HT 30AH 10SH 11 4 5 2 29 8 759 D E33141HT Condor/ACSS 795 0 54/7 1 092 8130 116HT 9312 386 5130 116HT 30AH 12SH 12 1 5 5 29 8 759 D E33143HT Mallard/ACSS 795 0 30/19 1 140 8130 122HT 9416 516 5130 122HT 30AH 16SH 12 0 5 5 30 5 774 D E33145HT Ruddy/ACSS 900 0 45/7 1 131 8130 122HT 9310 302 5130 122HT 30AH 10SH 11 2 5 1 30 3 771 D E33146HT Canary/ACSS 900 0 54/7 1 162 8130 122HT 9414 406 5130 122HT 30AH 14SH 12 0 5 5 30 5 774 D E33147HT Corncrake/ACSS 954 0 20/7 1 165 8130 125HT 9412 309 5130 125HT 30AH 12SH 11 7 5 3 30 5 774 D E33184HT Redbird/ACSS 954 0 24/7 1 196 8130 125HT 9414 422 5130 125HT 30AH 14SH 12 0 5 5 30 5 774 D E33148HT Rail/ACSS 954 0 45/7 1 165 8130 122HT 9410 302 5130 122HT 30AH 10SH 11 6 5 3 30 5 774 D E33149HT Towhee/ACSS 954 0 48/7 1 175 8130 125HT 9412 344 5130 125HT 30AH 12SH 11 7 5 3 31 2 793 D E33150HT Cardinal/ACSS 954 0 54/7 1 196 8130 125HT 9414 422 5130 125HT 30AH 14SH 12 0 5 5 31 2 793 D E33151HT Canvasback/ACSS 954 0 30/19 1 248 8134 134CHT E9718 578 5134 134HT 34AH 18SH 14 8 6 7 32 9 836 D E33153HT Snowbird/ACSS 1033 5 42/7 1 203 8134 128HT 9410 277 5134 128HT 34AH 10SH 15 1 6 9 31 5 800 D E33152HT Ortolan/ACSS 1033 5 45/7 1 212 8134 134HT 9410 316 5134 134HT 34AH 10SH 15 1 6 9 31 5 800 D E33154HT Curlew/ACSS 1033 5 54/7 1 245 8134 134HT 9414 432 5134 134HT 34AH 14SH 14 8 6 7 32 1 815 D
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 287 HiTemp ® ACSS ACCESSORIES HiTemp Compression Dead End for ACSS Conductor, Eye Type, Single Tongue, 33100HT Series (cont.) Dead End Assembly Catalog Number Conductor Component Catalog Number Die Size Total Weight Total Dead End Length Pad Size Code Name Size Stranding Diameter Dead End Body Steel Eye 15º Terminal Aluminum Steel kcmil Al/St In Lbs kg In mm E33155HT Bluejay/ACSS 1113 0 45/7 1 259 8134 134HT 9412 332 5134 134HT 34AH 12SH 14 5 6 6 32 1 815 D E33157HT Finch/ACSS 1113 0 54/19 1 293 8134 138CHT E9614 453 5134 138HT 34AH 14SH 14 7 6 6 32 9 836 D E33158HT Bunting/ACSS 1192 5 45/7 1 302 8134 138HT E9512 344 5134 138HT 34AH 12SH 14 5 6 6 32 1 817 D E33159HT Grackle/ACSS 1192 5 54/19 1 338 8136 144CHT E9614 453 5136 144HT 36AH 14SH 16 3 7 4 32 3 820 D E33161HT Bittern/ACSS 1272 0 45/7 1 345 8136 144HT E9512 351 5136 144HT 36AH 12SH 16 1 7 3 32 3 820 D E33162HT Diver/ACSS 1272 0 48/7 1 357 8136 144CHT E9614 406 5136 144HT 36AH 14SH 16 3 7 4 32 3 820 D E33163HT Pheasant/ACSS 1272 0 54/19 1 382 8136 147HT E9616 500 5136 147HT 36AH 16SH 16 7 7 6 32 5 827 D E33164HT Dipper/ACSS 1351 5 45/7 1 386 8136 147HT E9612 377 5136 147HT 36AH 12SH 16 2 7 4 32 5 827 D E33166HT Martin/ACSS 1351 5 54/19 1 424 8138 156HT E9616 500 5138 156HT 38AH 16SH 18 9 8 6 32 8 833 D E33167HT Bobolink/ACSS 1431 0 45/7 1 427 8138 150HT E9612 377 5138 150HT 38AH 12SH 18 4 8 4 32 8 833 D E33169HT Plover/ACSS 1431 0 54/19 1 465 8138 156HT E9616 516 5138 156HT 38AH 16SH 18 6 8 5 32 8 833 D E33170HT Nuthatch/ACSS 1510 0 45/7 1 466 8138 156HT E9612 386 5138 156HT 38AH 12SH 18 1 8 2 32 8 833 D E33172HT Parrot/ACSS 1510 0 54/19 1 505 8140 162HT E9616 531 5140 162HT 40AH 16SH 21 9 10 0 33 6 855 E E33171HT Ratite/ACSS 1590 0 42/7 1 492 8140 162HT E9612 344 5140 162HT 40AH 12SH 21 4 9 7 33 6 855 E E33173HT Lapwing/ACSS 1590 0 45/7 1 504 8140 162HT E9612 397 5140 162HT 40AH 12SH 21 4 9 7 33 6 855 E E33174HT Falcon/ACSS 1590 0 54/19 1 544 8140 162HT E9718 546 5140 162HT 40AH 18SH 23 1 10 5 33 8 858 E E33175HT Chukar/ACSS 1780 0 84/19 1 602 8142 178HT E9714 453 5142 178HT 42AH 14SH 23 5 10 7 35 0 889 E E33176HT Mockingbird/ACSS 2034 5 72/7 1 681 8142 178CHT E9814 359 5142 178HT 42AH 14SH 25 1 11 4 35 0 889 E E33177HT Roadrunner/ACSS 2057 0 76/19 1 700 8142 178CHT E9814 422 5142 178HT 42AH 14SH 25 1 11 4 35 0 889 E E33178HT Bluebird/ACSS 2156 0 84/19 1 762 8144 184HT E9816 516 5144 184HT 44AH 16SH 25 6 11 6 32 8 835 E E33179HT Kiwi/ACSS 2167 0 72/7 1 735 8144 181HT E9812 377 5144 181HT 44AH 12SH 25 6 11 6 32 8 835 E E33180HT Thrasher/ACSS 2312 0 76/19 1 802 8144 188HT E9814 422 5144 188HT 44AH 14SH 25 6 11 6 32 8 835 E E33181HT Joree/ACSS 2515 0 76/19 1 880 8148 197HT E9814 453 5148 197HT 48AH 14SH 29 4 13 4 37 3 948 E
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 288 HiTemp ® ACSS ACCESSORIES The 33300HT Series Double Tongue Dead End Assembly is specifically designed for ACSS conductor The body of the HiTemp Dead Ends are fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight or 30º position All HiTemp Dead Ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor Each dead end assembly comes with two 15º terminals and aluminum hardware For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Corona bolts are furnished as standard on 15º terminals for these die sizes The square edges of the bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix "EHV" Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use "NT" For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use "EHV" ( > 345 kV) For Standard Finish, leave blank (< 345 kV) Step 4: Assemble Catalog Number Example: For 795 Drake ACSS Conductor with no terminal and EHV finish, the complete catalog number is: E33342HTNTEHV HiTemp Compression Dead End for ACSS Conductor, Eye Type, Double Tongue, 33300HT Series Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Eye Dimensions are on page 339 2 Pad Dimensions are on page 339 3 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 4 Bolt Sizes and Torque Recommendations are on page 340 5 Installation Instructions for Dead Ends are on page 345 6 Installation Instructions for Terminals are on page 351 7 For more information on die selction and ordering instructions, see the Tools and Equipment section of this catalog
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 289 HiTemp ® ACSS ACCESSORIES HiTemp Compression Dead End for ACSS Conductor, Eye Type, Double Tongue, 33300HT Series (cont.) Dead End Assembly Catalog Number Conductor Component Catalog Number Die Size Total Weight Total Length L Pad Size Code Name Size Stranding Diameter Dead End Body Steel Eye 15º Terminal Aluminum Steel kcmil Al/St in lbs kg in mm E33309HT Woodcock/ACSS 336 4 22/7 0 701 8220 781CHT 9176 228 5120 781HT 20AH 76SH 6 4 2 9 27 3 693 D E33313HT Linnet/ACSS 336 4 26/7 0 720 8220 812CHT 9110 277 5120 812HT 20AH 10SH 6 4 2 9 27 3 693 D E33314HT Oriole/ACSS 336 4 30/7 0 741 8220 781CHT 9110 332 5120 781HT 20AH 10SH 6 4 2 9 27 3 693 D E33315HT Ptarmigan/ACSS 397 5 20/7 0 752 8220 812CHT 9110 231 5120 812HT 20AH 10SH 6 2 2 8 26 6 676 D E33316HT Brant/ACSS 397 5 24/7 0 772 8220 812CHT 9110 261 5120 812HT 20AH 10SH 6 2 2 8 26 6 676 D E33317HT Ibis/ACSS 397 5 26/7 0 783 8220 844HT 9110 302 5120 844HT 20AH 10SH 6 0 2 7 26 6 676 D E33318HT Lark/ACSS 397 5 30/7 0 806 8220 844HT 9112 359 5120 844HT 20AH 12SH 6 1 2 8 26 6 676 D E33319HT Tailorbird/ACSS 477 0 20/7 0 823 8220 875HT 9210 231 5120 875HT 20AH 10SH 5 8 2 7 26 6 676 D E33320HT Flicker/ACSS 477 0 24/7 0 846 8224 938HT 9110 295 5124 938HT 24AH 10SH 7 4 3 4 26 7 677 D E33321HT Hawk/ACSS 477 0 26/7 0 858 8224 938HT 9112 332 5124 938HT 24AH 12SH 7 5 3 4 26 7 677 D E33322HT Hen/ACSS 477 0 30/7 0 883 8224 938CHT 9212 397 5124 938HT 24AH 12SH 8 0 3 6 26 8 681 D E33323HT Sapsucker/ACSS 556 5 22/7 0 901 8224 969HT 9210 277 5124 969HT 24AH 10SH 7 8 3 6 27 3 693 D E33324HT Parakeet/ACSS 556 5 24/7 0 914 8224 969HT 9210 316 5124 969HT 24AH 10SH 7 8 3 6 27 3 693 D E33325HT Dove/ACSS 556 5 26/7 0 927 8227 100HT 9212 359 5127 100HT 27AH 12SH 10 0 4 6 28 8 731 D E33326HT Eagle/ACSS 556 5 30/7 0 953 8227 100CHT 9314 432 5127 100HT 27AH 14SH 11 2 5 1 28 8 731 D E33327HT Peacock/ACSS 605 0 24/7 0 953 8227 100HT 9212 332 5127 100HT 27AH 12SH 10 0 4 6 28 8 731 D E33328HT Squab/ACSS 605 0 26/7 0 966 8227 100HT 9212 377 5127 100HT 27AH 12SH 10 3 4 7 28 8 731 D E33330HT Wood Duck/ACSS 605 0 30/7 0 994 8227 106HT 9314 441 5127 106HT 27AH 14SH 11 1 5 1 29 0 736 D E33329HT Teal/ACSS 605 0 30/19 0 994 8227 106HT 9314 441 5127 106HT 27AH 14SH 11 1 5 1 29 0 736 D E33331HT Goldfinch/ACSS 636 0 22/7 0 963 8227 100HT 9212 295 5127 100HT 27AH 10SH 10 0 4 6 28 8 731 D E33332HT Rook/ACSS 636 0 24/7 0 977 8227 106HT 9212 344 5127 106HT 27AH 12SH 10 1 4 6 28 8 731 D E33333HT Grosbeak/ACSS 636 0 26/7 0 990 8227 106HT 9212 386 5127 106HT 27AH 12SH 10 1 4 6 28 8 731 D E33382HT Scoter/ACSS 636 0 30/7 1 019 8227 106HT 9314 453 5127 106HT 27AH 14SH 11 1 5 1 29 0 736 D E33334HT Egret/ACSS 636 0 30/19 1 019 8227 106HT 9314 453 5127 106HT 27AH 14SH 11 1 5 1 29 0 736 D E33335HT Flamingo/ACSS 666 6 24/7 1 000 8227 106HT 9212 351 5127 106HT 27AH 12SH 10 1 4 6 28 8 731 D E33383HT Gannet/ACSS 666 6 26/7 1 014 8227 106HT 9314 397 5127 106HT 27AH 14SH 11 1 5 1 29 3 746 D E33336HT Stilt/ACSS 715 5 24/7 1 036 8230 109HT 9312 359 5130 109HT 30AH 12SH 13 1 6 0 29 3 746 D E33337HT Starling/ACSS 715 5 26/7 1 051 8230 116HT 9314 406 5130 116HT 30AH 14SH 13 3 6 1 29 3 746 D E33338HT Redwing/ACSS 715 5 30/19 1 081 8230 116HT 9316 500 5130 116HT 30AH 16SH 13 1 6 0 29 8 759 D E33341HT Cuckoo/ACSS 795 0 24/7 1 092 8230 116HT 9312 386 5130 116HT 30AH 12SH 12 9 5 9 29 8 759 D E33342HT Drake/ACSS 795 0 26/7 1 108 8230 122HT 9314 432 5130 122HT 30AH 14SH 13 1 6 0 29 8 759 D E33344HT Macaw/ACSS 795 0 42/7 1 055 8230 116HT 9310 261 5130 116HT 30AH 10SH 12 7 5 8 29 8 759 D E33340HT Tern/ACSS 795 0 45/7 1 063 8230 116HT 9310 277 5130 116HT 30AH 10SH 12 7 5 8 29 8 759 D E33341HT Condor/ACSS 795 0 54/7 1 092 8230 116HT 9312 386 5130 116HT 30AH 12SH 12 9 5 9 29 8 759 D E33343HT Mallard/ACSS 795 0 30/19 1 140 8230 122HT 9416 516 5130 122HT 30AH 16SH 13 3 6 1 30 5 774 D E33345HT Ruddy/ACSS 900 0 45/7 1 131 8230 122HT 9310 302 5130 122HT 30AH 10SH 12 5 5 7 30 3 771 D E33346HT Canary/ACSS 900 0 54/7 1 162 8230 122HT 9414 406 5130 122HT 30AH 14SH 13 3 6 1 30 5 774 D E33347HT Corncrake/ACSS 954 0 20/7 1 165 8230 125HT 9412 309 5130 125HT 30AH 12SH 13 0 5 9 30 5 774 D E33384HT Redbird/ACSS 954 0 24/7 1 196 8230 125HT 9414 422 5130 125HT 30AH 14SH 13 2 6 0 31 2 793 D E33348HT Rail/ACSS 954 0 45/7 1 165 8230 122HT 9410 302 5130 122HT 30AH 10SH 12 9 5 9 30 5 774 D E33349HT Towhee/ACSS 954 0 48/7 1 175 8230 125HT 9412 344 5130 125HT 30AH 12SH 12 9 5 9 31 2 793 D E33350HT Cardinal/ACSS 954 0 54/7 1 196 8230 125HT 9414 422 5130 125HT 30AH 14SH 13 2 6 0 31 2 793 D E33351HT Canvasback/ACSS 954 0 30/19 1 248 8234 134CHT E9718 578 5134 134HT 34AH 18SH 15 9 7 2 32 9 836 D E33353HT Snowbird/ACSS 1033 5 42/7 1 203 8234 128HT 9410 277 5134 128HT 34AH 10SH 16 2 7 4 31 5 800 D E33352HT Ortolan/ACSS 1033 5 45/7 1 212 8234 134HT 9410 316 5134 134HT 34AH 10SH 15 9 7 2 32 1 817 D E33354HT Curlew/ACSS 1033 5 54/7 1 245 8234 134HT 9414 432 5134 134HT 34AH 14SH 15 9 7 2 32 1 817 D E33355HT Bluejay/ACSS 1113 0 45/7 1 259 8234 134HT 9412 332 5134 134HT 34AH 12SH 14 7 6 7 32 1 817 D E33357HT Finch/ACSS 1113 0 54/19 1 293 8234 138CHT E9614 453 5134 138HT 34AH 14SH 16 3 7 4 32 1 817 D E33358HT Bunting/ACSS 1192 5 45/7 1 302 8234 138HT E9512 344 5134 138HT 34AH 12SH 15 6 7 1 32 1 817 D E33359HT Grackle/ACSS 1192 5 54/19 1 338 8236 144CHT E9614 453 5136 144HT 36AH 14SH 17 3 7 9 32 3 820 D E33361HT Bittern/ACSS 1272 0 45/7 1 345 8236 144HT E9512 351 5136 144HT 36AH 12SH 17 1 7 8 32 9 836 D E33362HT Diver/ACSS 1272 0 48/7 1 357 8236 144CHT E9614 406 5136 144HT 36AH 14SH 17 3 7 9 32 9 836 D E33363HT Pheasant/ACSS 1272 0 54/19 1 382 8236 147HT E9616 500 5136 147HT 36AH 16SH 17 7 8 1 32 5 827 D E33364HT Dipper/ACSS 1351 5 45/7 1 386 8236 147HT E9612 377 5136 147HT 36AH 12SH 17 2 7 8 32 5 827 D E33366HT Martin/ACSS 1351 5 54/19 1 424 8238 156HT E9616 500 5138 156HT 38AH 16SH 20 1 9 1 32 8 833 D
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 290 HiTemp ® ACSS ACCESSORIES HiTemp Compression Dead End for ACSS Conductor, Eye Type, Double Tongue, 33300HT Series (cont.) Dead End Assembly Catalog Number Conductor Component Catalog Number Die Size Total Weight Total Length L Pad Size Code Name Size Stranding Diameter Dead End Body Steel Eye 15º Terminal Aluminum Steel kcmil Al/St in lbs kg in mm E33367HT Bobolink/ACSS 1431 0 45/7 1 427 8238 150HT E9612 377 5138 150HT 38AH 12SH 19 6 8 91 32 8 833 D E33369HT Plover/ACSS 1431 0 54/19 1 465 8238 156HT E9616 516 5138 156HT 38AH 16SH 19 8 9 00 32 8 833 D E33370HT Nuthatch/ACSS 1510 0 45/7 1 466 8238 156HT E9612 386 5138 156HT 38AH 12SH 19 3 8 77 32 8 833 D E33372HT Parrot/ACSS 1510 0 54/19 1 505 8240 162HT E9616 531 5140 162HT 40AH 16SH 24 3 11 05 33 6 855 E E33371HT Ratite/ACSS 1590 0 42/7 1 492 8240 162HT E9612 344 5140 162HT 40AH 12SH 23 8 10 82 33 6 855 E E33373HT Lapwing/ACSS 1590 0 45/7 1 504 8240 162HT E9612 397 5140 162HT 40AH 12SH 23 8 10 82 33 6 855 E E33374HT Falcon/ACSS 1590 0 54/19 1 544 8240 162HT E9718 546 5140 162HT 40AH 18SH 25 5 11 59 33 8 858 E E33375HT Chukar/ACSS 1780 0 84/19 1 602 8242 178HT E9714 453 5142 178HT 42AH 14SH 24 3 11 05 35 0 889 E E33376HT Mockingbird/ACSS 2034 5 72/7 1 681 8242 178CHT E9814 359 5142 178HT 42AH 14SH 25 0 11 36 35 0 889 E E33377HT Roadrunner/ACSS 2057 0 76/19 1 700 8242 178CHT E9814 422 5142 178HT 42AH 14SH 25 0 11 36 35 0 889 E E33378HT Bluebird/ACSS 2156 0 84/19 1 762 8244 184HT E9816 516 5144 184HT 44AH 16SH 26 1 11 86 32 8 835 E E33379HT Kiwi/ACSS 2167 0 72/7 1 735 8244 181HT E9812 377 5144 181HT 44AH 12SH 26 1 11 86 32 8 835 E E33380HT Thrasher/ACSS 2312 0 76/19 1 802 8244 188HT E9814 422 5144 188HT 44AH 14SH 26 3 11 95 32 8 835 E E33381HT Joree/ACSS 2515 0 76/19 1 880 8248 197HT E9814 453 5148 197HT 48AH 14SH 29 2 13 27 37 3 948 E
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Comealongs and HiTemp Comealongs for ACSR AAC AAAC ACAR ACSS and ACSSTW Conductors,AFL Filler Compound,Alnox Electrical Joint Compound,Alnox UG Electrical Joint Compound,HiTemp® AFL Filler Compound (AFCHT™),HiTemp® AFL Universal Compound (HiTUC),No. 2 Electrical Joint Compound,HiTemp® Compression Dead Ends for ACSS/TW Conductors,HiTemp® Compression Joints for ACSS Conductors,HiTemp® Compression Joints for ACSS/TW Conductors,HiTemp® Compression Jumper for ACSS Conductors,HiTemp® Compression Jumper for ACSS/TW Conductors,HiTemp® Compression Repair Sleeve for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS/TW Conductors,HiTemp® Compression Tee Connector for ACSS Conductors
553
Close
HiTemp® Compression Dead Ends for ACSS Conductors
Features:
- Specially tempered aluminum
- Standard AH and SH dies
PRODUCT DESCRIPTION

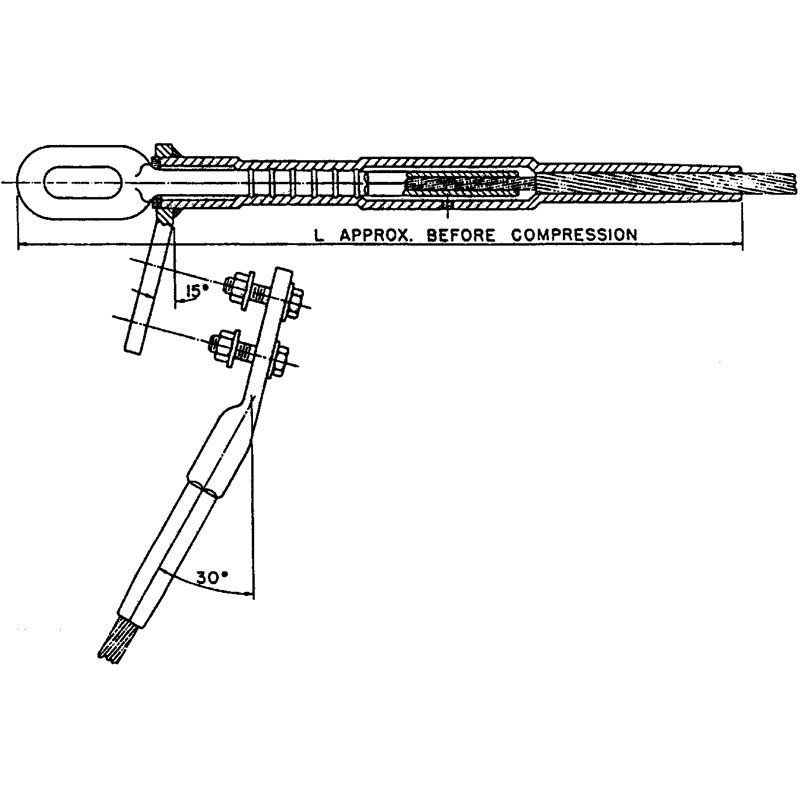

The 33300HT series double tongue dead end assembly is specifically designed for ACSS conductor. The body of the HiTemp® dead ends are fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently. The tongue and terminal pad are constructed with a 15-degree angle, which permits the terminal connector to be bolted in the straight or 30-degree position.
All HiTemp dead ends are designed for full tension use, achieving a minimum of 95% of the ASTM-rated strength of the conductor. Each dead end assembly comes with two 15-degree terminals and aluminum hardware.
For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Corona bolts are furnished as standard on 15-degree terminals for these die sizes.
The square edges of the bolted pads of the compression accessories could cause corona. Pads with edges and rounded corners can be supplied by adding the catalog suffix "EHV."
