The 5000HT Series Jumper Connector is specifically designed for ACSS conductors. The HiTemp Jumper Connector is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
1d9d61752401476db24988c745894d24

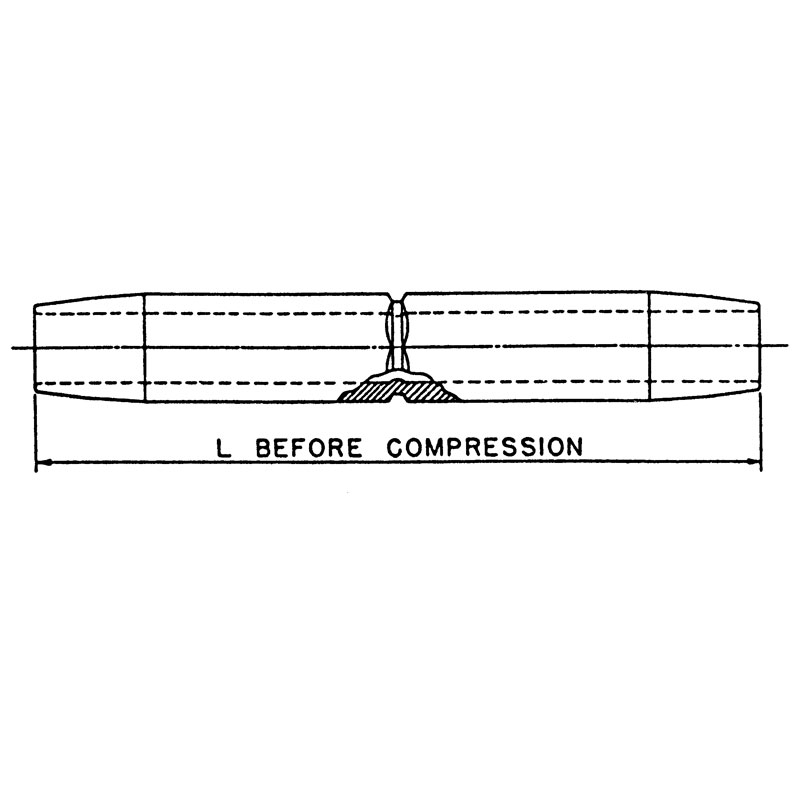

www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 295 HiTemp ® ACSS ACCESSORIES The 5000HT Series Jumper Connector is specifically designed for ACSS and ACSS/TW conductors The HiTemp Jumper Connector is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently All HiTemp Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 795 Drake ACSS Conductor, the complete catalog number is: 5030.116HT HiTemp Jumper Connector for ACSS Conductor, 5000HT Series Catalog Number Conductor Die Size Weight Total Length L Code Name Size Stranding Diameter kcmil Al/St in lbs kg in mm 5076 688HT Partridge/ACSS 266 8 26/7 0 642 76AH 1 2 0 5 17 0 431 5020 781HT Woodcock/ACSS 336 4 22/7 0 701 20AH 1 3 0 6 17 0 431 5020 812HT Linnet/ACSS 336 4 26/7 0 720 20AH 1 3 0 6 18 0 457 5020 781HT Oriole/ACSS 336 4 30/7 0 741 20AH 1 3 0 6 18 0 457 5020 812HT Ptarmigan/ACSS 397 5 20/7 0 752 20AH 1 3 0 6 18 0 457 5020 812HT Brant/ACSS 397 5 24/7 0 772 20AH 1 3 0 6 18 0 457 5020 844HT Ibis/ACSS 397 5 26/7 0 783 20AH 1 2 0 5 18 0 457 5020 844HT Lark/ACSS 397 5 30/7 0 806 20AH 1 2 0 5 18 0 457 5020 875HT Tailorbird/ACSS 477 0 20/7 0 823 20AH 1 2 0 5 19 0 482 5024 938HT Flicker/ACSS 477 0 24/7 0 846 24AH 2 0 0 9 19 0 482 5024 938HT Hawk/ACSS 477 0 26/7 0 858 24AH 2 0 0 9 19 0 482 5024 938HT Hen/ACSS 477 0 30/7 0 883 24AH 2 0 0 9 19 0 482 5024 969HT Sapsucker/ACSS 556 5 22/7 0 901 24AH 1 9 0 9 19 0 482 5024 969HT Parakeet/ACSS 556 5 24/7 0 914 24AH 1 9 0 9 19 0 482 5027 100HT Dove/ACSS 556 5 26/7 0 927 27AH 2 9 1 3 20 0 508 5027 100HT Eagle/ACSS 556 5 30/7 0 953 27AH 2 9 1 3 20 0 508 5027 100HT Peacock/ACSS 605 0 24/7 0 953 27AH 2 9 1 3 20 0 508 5027 100HT Squab/ACSS 605 0 26/7 0 966 27AH 2 9 1 3 20 0 508 5027 106HT Wood Duck/ACSS 605 0 30/7 0 994 27AH 2 6 1 2 20 0 508 5027 106HT Teal/ACSS 605 0 30/19 0 994 27AH 2 6 1 2 20 0 508 5027 106HT Goldfinch/ACSS 636 0 22/7 0 963 27AH 2 6 1 2 20 0 508 5027 106HT Rook/ACSS 636 0 24/7 0 977 27AH 2 6 1 2 20 0 508 5027 106HT Grosbeak/ACSS 636 0 26/7 0 990 27AH 2 6 1 2 20 0 508 Notes: 1 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 2 Installation Instructions for Jumper Connectors are on page 350 3 For more information on die selction and ordering instructions, see the Tools and Equipment section of this catalog
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 296 HiTemp ® ACSS ACCESSORIES HiTemp Jumper Connector for ACSS Conductor, 5000HT Series (cont.) Catalog Number Conductor Die Size Weight Total Length L Code Name Size Stranding Diameter kcmil Al/St in lbs kg in mm 5027 106HT Scoter/ACSS 636 0 30/7 1 019 27AH 2 6 1 2 20 0 508 5027 106HT Egret/ACSS 636 0 30/19 1 019 27AH 2 6 1 2 20 0 508 5027 106HT Flamingo/ACSS 666 6 24/7 1 000 27AH 2 6 1 2 20 0 508 5027 106HT Gannet/ACSS 666 6 26/7 1 014 27AH 2 6 1 2 20 0 508 5030 109HT Stilt/ACSS 715 5 24/7 1 036 30AH 3 6 1 6 21 0 533 5030 116HT Starling/ACSS 715 5 26/7 1 051 30AH 3 6 1 6 21 0 533 5030 116HT Redwing/ACSS 715 5 30/19 1 081 30AH 3 4 1 5 21 0 533 5030 116HT Cuckoo/ACSS 795 0 24/7 1 092 30AH 3 4 1 5 21 0 533 5030 122HT Drake/ACSS 795 0 26/7 1 108 30AH 3 4 1 5 21 0 533 5030 116HT Macaw/ACSS 795 0 42/7 1 055 30AH 3 4 1 5 21 0 533 5030 116HT Tern/ACSS 795 0 45/7 1 063 30AH 3 4 1 5 21 0 533 5030 116HT Condor/ACSS 795 0 54/7 1 092 30AH 3 4 1 5 21 0 533 5030 122HT Mallard/ACSS 795 0 30/19 1 140 30AH 3 2 1 5 21 0 533 5030 122HT Ruddy/ACSS 900 0 45/7 1 13 30AH 3 2 1 5 21 0 533 5030 122HT Canary/ACSS 900 0 54/7 1 16 30AH 3 2 1 5 21 0 533 5030 125HT Corncrake/ACSS 954 0 20/7 1 16 30AH 3 2 1 5 21 0 533 5030 125HT Redbird/ACSS 954 0 24/7 1 19 30AH 3 0 1 4 21 0 533 5030 122HT Rail/ACSS 954 0 45/7 1 16 30AH 3 2 1 5 21 0 533 5030 125HT Towhee/ACSS 954 0 48/7 1 17 30AH 3 0 1 4 21 0 533 5030 125HT Cardinal/ACSS 954 0 54/7 1 19 30AH 3 0 1 4 21 0 533 5034 134HT Canvasback/ACSS 954 0 30/19 1 24 34AH 4 3 2 0 22 0 558 5034 128HT Snowbird/ACSS 1033 5 42/7 1 20 34AH 4 7 2 1 22 0 558 5034 134HT Ortolan/ACSS 1033 5 45/7 1 21 34AH 4 3 2 0 22 0 558 5034 134HT Curlew/ACSS 1033 5 54/7 1 24 34AH 4 3 2 0 22 0 558 5034 134HT Bluejay/ACSS 1113 0 45/7 1 25 34AH 4 3 2 0 22 0 558 5034 138HT Finch/ACSS 1113 0 54/19 1 29 34AH 4 3 2 0 22 0 558 5034 138HT Bunting/ACSS 1192 5 45/7 1 30 34AH 4 4 2 0 22 0 558 5036 144HT Grackle/ACSS 1192 5 54/19 1 33 36AH 5 1 2 3 23 0 584 5036 144HT Bittern/ACSS 1272 0 45/7 1 34 36AH 5 1 2 3 23 0 584 5036 144HT Diver/ACSS 1272 0 48/7 1 35 36AH 5 1 2 3 23 0 584 5036 147HT Pheasant/ACSS 1272 0 54/19 1 38 36AH 5 0 2 3 23 0 584 5036 147HT Dipper/ACSS 1351 5 45/7 1 38 36AH 5 0 2 3 23 0 584 5038 156HT Martin/ACSS 1351 5 54/19 1 42 38AH 5 7 2 6 24 0 609 5038 150HT Bobolink/ACSS 1431 0 45/7 1 42 38AH 6 0 2 7 24 0 609 5038 156HT Plover/ACSS 1431 0 54/19 1 46 38AH 5 7 2 6 24 0 609 5038 156HT Nuthatch/ACSS 1510 0 45/7 1 46 38AH 5 7 2 6 24 0 609 5040 162HT Parrot/ACSS 1510 0 54/19 1 50 40AH 6 7 3 0 25 0 635 5040 162HT Ratite/ACSS 1590 0 42/7 1 49 40AH 6 7 3 0 25 0 635 5040 162HT Lapwing/ACSS 1590 0 45/7 1 50 40AH 6 7 3 0 25 0 635 5040 162HT Falcon/ACSS 1590 0 54/19 1 54 40AH 6 7 3 0 25 0 635 5042 178HT Chukar/ACSS 1780 0 84/19 1 60 42AH 7 0 3 2 25 0 635 5042 178HT Mockingbird/ACSS 2034 5 72/7 1 68 42AH 7 0 3 2 25 0 635 5042 178HT Roadrunner/ACSS 2057 0 76/19 1 70 42AH 7 0 3 2 25 0 635 5044 184HT Bluebird/ACSS 2156 0 84/19 1 76 44AH 7 8 3 5 25 0 635 5044 181HT Kiwi/ACSS 2167 0 72/7 1 73 44AH 7 8 3 5 25 0 635 5044 188HT Thrasher/ACSS 2312 0 76/19 1 80 44AH 7 8 3 5 25 0 635 5048 197HT Joree/ACSS 2515 0 76/19 1 88 48AH 8 9 4 0 27 0 682
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression jumper for ACSS/TW conductors
The 5000HT Series Jumper Connector is specifically designed for ACSS conductors. The HiTemp® Jumper Connector is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently. All HiTemp Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor. For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
