The 5500HT Series Tee Tap is a permanent or temporary drop specifically designed for ACSS/TW conductors. It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
1d9d61752401476db24988c745894d24
www.AFLglobal.com or 800-866-7385 HiTemp ® © 2003, AFL, all rights reserved. PP-3-00748, Revision 3, 9.13.16 Specifications are subject to change without notice. 331 ACSS/TW ACCESSORIES The 5500HT Series Tee Tap is a permanent or temporary drop specifically designed for ACSS/TW conductors It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Square edges of the compression accessory pad can cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix ‘EHV’ Ordering Instructions HiTemp Tee Tap—Open Run for ACSS/TW Conductor, 5300HT Series Step 1: Catalog Number Determine the catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use "EHV" ( > 345 kV) For Standard Finish, leave blank (< 345 kV) Step 3: Assemble Catalog Number Example: For 954 Cardinal ACSS/TW Conductor with EHV finish, the complete catalog number is: 5330.3HTEHV Catalog Number EHV Finish + Notes: 1 Pad Dimensions are on page 339 2 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 3 Bolt Sizes and Torque Recommendations are on page 342 4 Installation Instructions for Tee Taps are on page 351

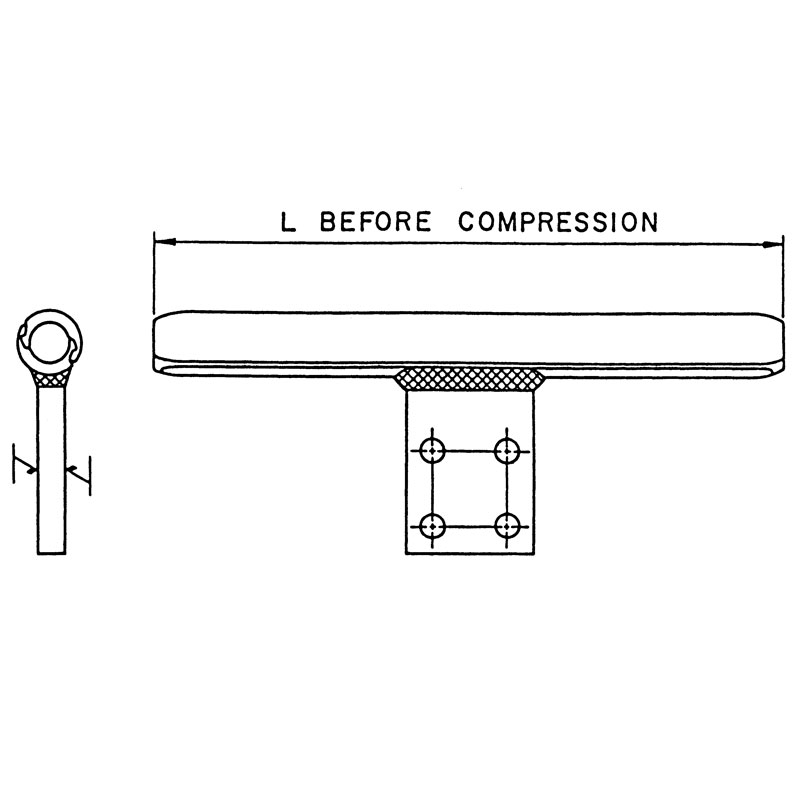

www.AFLglobal.com or 800-866-7385 HiTemp ® © 2003, AFL, all rights reserved. PP-3-00748, Revision 3, 9.13.16 Specifications are subject to change without notice. 332 ACSS/TW ACCESSORIES HiTemp Tee Tap—Open Run for ACSS/TW Conductor, 5300HT Series (cont.) Catalog Number Conductor Die Size Weight Total Length L Pad Size Code Name Size Type Stranding Diameter kcmil Al/St in lbs kg in mm 5320 3HT Oriole/ACSS/TW 336 4 23 18/7 0 693 20AH 2 4 1 1 24 1 608 D 5324 3HT Flicker/ACSS/TW 477 0 13 18/7 0 776 24AH 2 8 1 3 24 9 630 D 5324 3HT Hawk/ACSS/TW 477 0 16 18/7 0 789 24AH 2 8 1 3 24 9 630 D 5324 3HT Hen/ACSS/TW 477 0 23 18/7 0 825 24AH 2 8 1 3 24 9 630 D 5324 3HT Parakeet/ACSS/TW 556 5 13 18/7 0 835 24AH 2 8 1 3 24 9 630 D 5324 3HT Dove/ACSS/TW 556 5 16 20/7 0 852 24AH 2 8 1 3 24 9 630 D 5324 3HT Calumet/ACSS/TW 565 3 16 18/7 0 858 24AH 2 8 1 3 24 9 630 D 5324 3HT Mohawk/ACSS/TW 571 7 13 18/7 0 846 24AH 2 8 1 3 24 9 630 D 5327 3HT Rook/ACSS/TW 636 0 13 19/7 0 890 27AH 3 9 1 8 27 1 685 D 5327 3HT Grosbeak/ACSS/TW 636 0 16 20/7 0 908 27AH 3 9 1 8 27 1 685 D 5327 3HT Scoter/ACSS/TW 636 0 23 18/7 0 953 27AH 3 9 1 8 27 1 685 D 5327 3HT Oswego/ACSS/TW 664 8 16 20/7 0 927 27AH 3 9 1 8 27 1 685 D 5327 3HT Mystic/ACSS/TW 666 6 13 20/7 0 913 27AH 3 9 1 8 27 1 685 D 5330 3HT Wabash/ACSS/TW 762 8 16 20/7 0 990 30AH 4 8 2 2 27 3 690 D 5330 3HT Maumee/ACSS/TW 768 2 13 20/7 0 977 30AH 4 8 2 2 27 3 690 D 5330 3HT Tern/ACSS/TW 795 0 7 17/7 0 960 30AH 4 8 2 2 27 3 690 D 5330 3HT Puffin/ACSS/TW 795 0 10 18/7 0 980 30AH 4 8 2 2 27 3 690 D 5330 3HT Condor/ACSS/TW 795 0 13 20/7 0 993 30AH 4 8 2 2 27 3 690 D 5330 3HT Drake/ACSS/TW 795 0 16 20/7 1 010 30AH 4 8 2 2 27 3 690 D 5330 3HT Canary/ACSS/TW 900 0 13 30/7 1 080 30AH 4 8 2 2 27 3 690 D 5330 3HT Fraser/ACSS/TW 946 7 10 35/7 1 077 30AH 4 8 2 2 27 3 690 D 5330 3HT Phoenix/ACSS/TW 954 0 5 30/7 1 044 30AH 4 8 2 2 27 3 690 D 5330 3HT Rail/ACSS/TW 954 0 7 32/7 1 061 30AH 4 8 2 2 27 3 690 D 5330 3HT Cardinal/ACSS/TW 954 0 13 20/7 1 084 30AH 4 8 2 2 27 3 690 D 5330 3HT Kettle/ACSS/TW 957 2 7 32/7 1 060 30AH 4 8 2 2 27 3 690 D 5330 3HT Suwannee/ACSS/TW 959 6 16 22/7 1 108 30AH 4 8 2 2 27 3 690 D 5330 3HT Columbia/ACSS/TW 966 2 13 21/7 1 092 30AH 4 8 2 2 27 3 690 D 5334 3HT Snowbird/ACSS/TW 1033 5 5 30/7 1 089 34AH 6 3 2 9 28 7 725 D 5334 3HT Ortolan/ACSS/TW 1033 5 7 32/7 1 102 34AH 6 3 2 9 28 7 725 D 5334 3HT Curlew/ACSS/TW 1033 5 13 22/7 1 128 34AH 6 3 2 9 28 7 725 D 5334 3HT ------------------------- 1080 0 7 20/7 1 131 34AH 6 3 2 9 28 7 725 D 5334 3HT Avocet/ACSS/TW 1113 0 5 30/7 1 129 34AH 6 3 2 9 28 7 725 D 5334 3HT Bluejay/ACSS/TW 1113 0 7 33/7 1 143 34AH 6 3 2 9 28 7 725 D 5334 3HT Finch/ACSS/TW 1113 0 13 38/19 1 185 34AH 6 3 2 9 28 7 725 D 5334 3HT Genesee/ACSS/TW 1158 0 7 33/7 1 165 34AH 6 3 2 9 28 7 725 D 5334 3HT Hudson/ACSS/TW 1158 4 13 26/7 1 196 34AH 6 3 2 9 28 7 725 D 5334 3HT Cheyenne/ACSS/TW 1168 1 5 30/7 1 155 34AH 6 3 2 9 28 7 725 D 5334 3HT Oxbird/ACSS/TW 1192 5 5 30/7 1 167 34AH 6 3 2 9 28 7 725 D 5334 3HT Bunting/ACSS/TW 1192 5 7 33/7 1 181 34AH 6 3 2 9 28 7 725 D 5336 3HT Grackle/ACSS/TW 1192 5 13 38/19 1 225 36AH 6 5 3 0 29 6 748 D 5334 3HT Yukon/ACSS/TW 1233 6 13 38/19 1 245 34AH 6 3 2 9 28 7 725 D 5334 3HT Nelson/ACSS/TW 1257 1 7 35/7 1 213 34AH 6 3 2 9 28 7 725 D
www.AFLglobal.com or 800-866-7385 HiTemp ® © 2003, AFL, all rights reserved. PP-3-00748, Revision 3, 9.13.16 Specifications are subject to change without notice. 333 ACSS/TW ACCESSORIES HiTemp Tee Tap—Open Run for ACSS/TW Conductor, 5300HT Series (cont.) Catalog Number Conductor Die Size Weight Total Length L Pad Size Code Name Size Type Stranding Diameter kcmil Al/St in lbs kg in mm 5336 3HT Scissortail/ACSS/TW 1272 0 5 30/7 1 202 36AH 6 5 3 0 29 6 748 D 5334 3HT Catawba/ACSS/TW 1272 0 5 30/7 1 203 34AH 6 3 2 9 28 7 725 D 5336 3HT Bittern/ACSS/TW 1272 0 7 35/7 1 220 36AH 6 5 3 0 29 6 748 D 5336 3HT Pheasant/ACSS/TW 1272 0 13 39/19 1 264 36AH 6 5 3 0 29 6 748 D 5336 34HT Thames/ACSS/TW 1334 6 13 39/19 1 290 36AH 6 5 3 0 29 6 748 D 5336 3HT Dipper/ACSS/TW 1351 5 7 35/7 1 256 36AH 6 5 3 0 29 6 748 D 5338 3HT Martin/ACSS/TW 1351 5 13 39/19 1 300 38AH 7 3 3 3 30 1 762 D 5336 3HT Mackenzie/ACSS/TW 1359 7 7 36/7 1 259 36AH 6 5 3 0 29 6 748 D 5334 3HT Truckee/ACSS/TW 1372 5 5 30/7 1 248 34AH 6 3 2 9 28 7 725 D 5338 3HT Bobolink/ACSS/TW 1431 0 7 36/7 1 291 38AH 7 3 3 3 30 1 762 D 5338 3HT Plover/ACSS/TW 1431 0 13 37/19 1 337 38AH 7 3 3 3 30 1 762 D 5338 3HT Merrimack/ACSS/TW 1433 6 13 39/19 1 340 38AH 7 3 3 3 31 1 787 D 5338 3HT Miramichi/ACSS/TW 1455 3 7 36/7 1 302 38AH 7 3 3 3 31 1 787 D 5338 3HT St Croix/ACSS/TW 1467 8 5 33/7 1 292 38AH 7 3 3 3 31 1 787 D 5338 3HT Rio Grande/ACSS/TW 1533 3 13 39/19 1 382 38AH 7 3 3 3 31 1 787 D 5338 3HT Potomac/ACSS/TW 1557 4 7 36/7 1 345 38AH 7 3 3 3 31 1 787 D 5338 3HT Platte/ACSS/TW 1569 0 5 33/7 1 334 38AH 7 3 3 3 31 1 787 D 5340 3HT Lapwing/ACSS/TW 1590 0 7 36/7 1 358 40AH 8 4 3 8 30 7 776 E 5340 3HT Falcon/ACSS/TW 1590 0 13 42/19 1 408 40AH 8 4 3 8 30 7 776 E 5340 3HT Pecos/ACSS/TW 1622 0 13 39/19 1 424 40AH 8 4 3 8 30 7 776 E 5340 3HT Schuylkill/ACSS/TW 1657 4 7 36/7 1 386 40AH 8 4 3 8 30 7 776 E 5342 3HT James/ACSS/TW 1730 6 13 34/19 1 470 42AH 10 4 4 7 31 6 800 E 5340 3HT Pee Dee/ACSS/TW 1758 6 7 37/7 1 427 40AH 8 4 3 8 30 7 776 E 5342 3HT Chukar/ACSS/TW 1780 0 8 37/19 1 445 42AH 10 4 4 7 31 6 800 E 5342 3HT Cumberland/ACSS/TW 1926 9 13 42/19 1 545 42AH 10 4 4 7 31 6 800 E 5342 3HT Athabaska/ACSS/TW 1949 6 7 42/7 1 504 42AH 10 4 4 7 31 6 800 E 5344 3HT Powder/ACSS/TW 2153 8 8 64/19 1 602 44AH 11 9 5 4 33 6 849 E 5344 3HT Bluebird/ACSS/TW 2156 0 8 64/19 1 608 44AH 11 9 5 4 33 6 849 E 5348 3HT Santee/ACSS/TW 2627 3 8 64/19 1 762 48AH 13 4 6 1 35 0 885 E
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression tee tap connector for ACSS/TW conductors
The 5500HT Series Tee Tap is a permanent or temporary drop specifically designed for ACSS/TW conductors. It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
The run portion incorporates an improved design of interlocking-extrusions, providing a permanent grip on the conductor when compressed.
For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
Square edges of the compression accessory pad can cause corona. Pads with rounded edges and corners can be supplied by adding the catalog suffix “EHV”.
Comealongs and HiTemp Comealongs for ACSR AAC AAAC ACAR ACSS and ACSSTW Conductors,AFL Filler Compound,Alnox Electrical Joint Compound,Alnox UG Electrical Joint Compound,HiTemp® AFL Filler Compound (AFCHT™),HiTemp® AFL Universal Compound (HiTUC),No. 2 Electrical Joint Compound,HiTemp® Compression Dead Ends for ACSS Conductors,HiTemp® Compression Dead Ends for ACSS/TW Conductors,HiTemp® Compression Joints for ACSS Conductors,HiTemp® Compression Joints for ACSS/TW Conductors,HiTemp® Compression Jumper for ACSS Conductors,HiTemp® Compression Jumper for ACSS/TW Conductors,HiTemp® Compression Repair Sleeve for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS/TW Conductors
689
Close
HiTemp® Compression Tee Tap Connector for ACSS/TW Conductors
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression tee tap connector for ACSS/TW conductors
PRODUCT DESCRIPTION
The 5500HT Series Tee Tap is a permanent or temporary drop specifically designed for ACSS/TW conductors. It is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
The run portion incorporates an improved design of interlocking-extrusions, providing a permanent grip on the conductor when compressed.
For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
Square edges of the compression accessory pad can cause corona. Pads with rounded edges and corners can be supplied by adding the catalog suffix “EHV”.
Documents & Downloads
Close
Specification Sheet
- Download Specification Sheet
