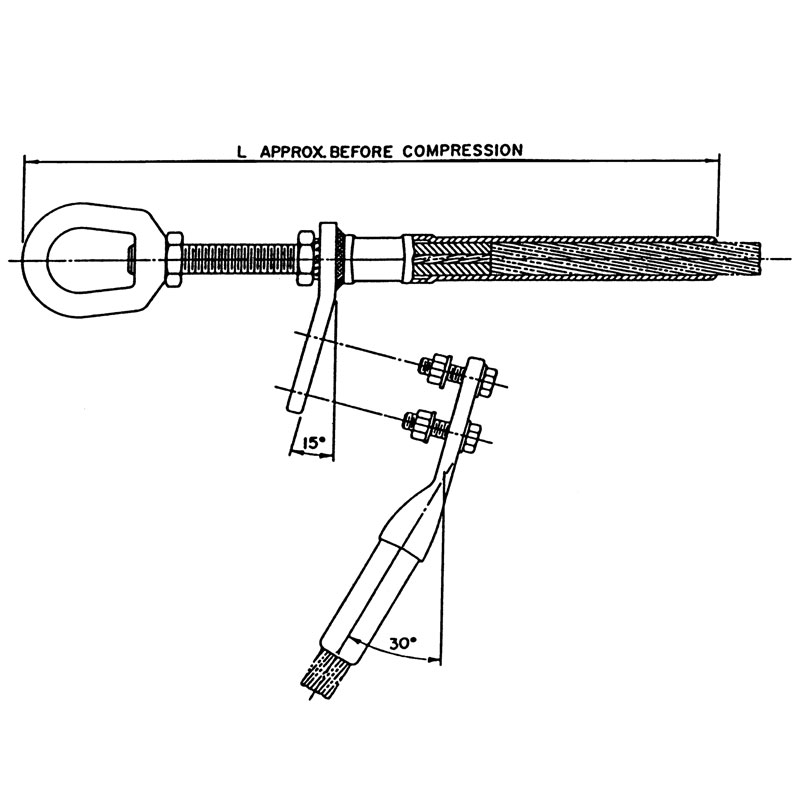

225 Quick Compress ® QuickCompress ® – AAAC & ACAR © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The steel eye is pre-compressed and the dead end pre-filled, eliminat - ing installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For a vertical eye dead end with no terminal and EHV finish for 927 2 Greeley, the complete catalog number is: VES120NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Assembly Catalog Number includes dead end, terminal connector and aluminum hardware 2 Eye Dimensions are on page 257 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAAC and ACAR Conductor, Eye Type, Single Tongue, VES/HES Series HES Style VES Style © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 226 Quick Compress ® QuickCompress ® – AAAC & ACAR Quick Compress Dead Ends for AAAC and ACAR Conductor, Eye Type, Single Tongue, VES/HES Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL DIMENSION L PAD SIZE VERTICAL EYE HORIZONTAL EYE CODE WORD SIZE DIAMETER KCMIL IN LBS KG IN MM VES070 HES070 — 281 4 0 609 07CD 1 8 0 82 11 5 292 B VES070 HES070 Butte 312 8 0 642 07CD 1 8 0 82 11 5 292 B VES080 HES080 — 355 1 0 684 08CD 2 3 1 04 12 3 313 B VES080 HES080 Canton 394 5 0 721 08CD 2 3 1 04 12 3 313 B VES080 HES080 — 419 6 0 743 08CD 2 3 1 04 12 3 313 B VES090 HES090 Cairo 465 4 0 783 09CD 3 1 1 41 13 8 351 B VES090 HES090 — 503 6 0 814 09CD 3 1 1 41 13 8 351 B VES100 VES100 Darien 559 5 0 858 10CD 3 6 1 63 14 7 373 B VES100 VES100 — 587 2 0 879 10CD 3 6 1 63 14 7 373 B VES100 VES100 — 634 9 0 914 10CD 3 6 1 63 14 7 373 B VES100 VES100 — 649 5 0 928 10CD 3 6 1 63 14 7 373 B VES100 VES100 Elgin 652 4 0 927 10CD 3 6 1 63 14 7 373 B VES100 VES100 — 657 3 0 930 10CD 3 6 1 63 14 7 373 B VES110 HES110 Flint 740 8 0 991 11CD 5 5 2 49 15 9 403 D VES120 HES120 — 853 7 1 063 12CD 6 3 2 86 16 7 424 D VES120 HES120 Greeley 927 2 1 108 12CD 6 3 2 86 16 7 424 D VES130 HES130 — 1024 5 1 165 13CD 8 4 3 81 19 0 483 D VES130 HES130 — 1080 6 1 196 13CD 8 4 3 81 19 0 483 D VES130 HES130 — 1108 6 1 212 13CD 8 4 3 81 19 0 483 D VES140 HES140 — 1172 3 1 246 14CD 9 6 4 35 19 8 503 D VES160 HES160 — 1534 0 1 427 16CD 13 4 6 08 22 3 567 D VES160 HES160 — 1700 0 1 502 16CD 13 4 6 08 22 3 567 D VES190 HES190 — 2303 5 1 750 19CD 22 8 10 34 26 2 665 E VES190 HES190 — 2338 0 1 762 19CD 22 8 10 34 26 2 665 E VES200 HES200 — 2493 0 1 821 20CD 24 2 10 98 27 0 686 E 227 Quick Compress ® QuickCompress ® – AAAC & ACAR © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The steel eye is pre-compressed and the dead end pre-filled, eliminat - ing installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' Notes: 1 Assembly Catalog Number includes dead end, two terminal connectors and aluminum hardware 2 Eye Dimensions are on page 257 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAAC and ACAR Conductor, Eye Type, Double Tongue, VED/HED Series Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For a vertical eye dead end with no terminal and EHV finish for 927 2 Greeley, the complete catalog number is: VED120NTEHV Assy Catalog Number Terminal Connector EHV Finish + + HED Style VED Style © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 228 Quick Compress ® QuickCompress ® – AAAC & ACAR Quick Compress Dead Ends for AAAC and ACAR Conductor, Eye Type, Double Tongue, VED/HED Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE VERTICAL EYE HORIZONTAL EYE CODE NAME SIZE DIAMETER KCMIL IN LBS KG IN MM VED070 HED070 — 281 4 0 609 07CD 2 8 1 27 11 5 292 B VED070 HED070 Butte 312 8 0 642 07CD 2 8 1 27 11 5 292 B VED080 HED080 — 355 1 0 684 08CD 3 3 1 5 12 3 313 B VED080 HED080 Canton 394 5 0 721 08CD 3 3 1 5 12 3 313 B VED080 HED080 — 419 6 0 743 08CD 3 3 1 5 12 3 313 B VED090 HED090 Cairo 465 4 0 783 09CD 4 3 1 95 13 8 351 B VED090 HED090 — 503 6 0 814 09CD 4 3 1 95 13 8 351 B VED100 VED100 Darien 559 5 0 858 10CD 5 2 2 36 14 7 373 B VED100 VED100 — 587 2 0 879 10CD 5 2 2 36 14 7 373 B VED100 VED100 — 634 9 0 914 10CD 5 2 2 36 14 7 373 B VED100 VED100 — 649 5 0 928 10CD 5 2 2 36 14 7 373 B VED100 VED100 Elgin 652 4 0 927 10CD 5 2 2 36 14 7 373 B VED100 VED100 — 657 3 0 930 10CD 5 2 2 36 14 7 373 B VED110 HED110 Flint 740 8 0 991 11CD 7 7 3 49 15 9 403 D VED120 HED120 — 853 7 1 063 12CD 9 0 4 06 16 7 424 D VED120 HED120 Greeley 927 2 1 108 12CD 9 0 4 06 16 7 424 D VED130 HED130 — 1024 5 1 165 13CD 11 5 5 22 19 0 483 D VED130 HED130 — 1080 6 1 196 13CD 11 5 5 22 19 0 483 D VED130 HED130 — 1108 6 1 212 13CD 11 5 5 22 19 0 483 D VED140 HED140 — 1172 3 1 246 14CD 13 2 5 99 19 8 503 D VED160 HED160 — 1534 1 427 16CD 18 0 8 16 22 3 567 D VED160 HED160 — 1700 1 502 16CD 18 0 8 16 22 3 567 D VED190 HED190 — 2303 5 1 750 19CD 30 2 13 70 26 2 665 E VED190 HED190 — 2338 1 762 19CD 30 2 13 70 26 2 665 E VED200 HED200 — 2493 1 821 20CD 32 0 14 51 27 0 686 E 229 Quick Compress ® QuickCompress ® – AAAC & ACAR © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The adjustable steel clevis is pre-compressed and the dead end pre- filled, eliminating installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For an adjustable clevis dead end with no terminal and EHV finish for 927 2 Greeley, the complete catalog number is: ACS120NTEHV Notes: 1 Assembly Catalog Number includes dead end, terminal connector and aluminum hardware 2 Clevis Dimensions are on page 258 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAAC and ACAR Conductor, Adjustable Clevis Type, Single Tongue, ACS Series Assy Catalog Number Terminal Connector EHV Finish + + © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 230 Quick Compress ® QuickCompress ® – AAAC & ACAR Quick Compress Dead Ends for AAAC and ACAR Conductor, Adjustable Clevis Type, Single Tongue, ACS Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE DIAMETER KCMIL IN LBS KG IN MM ACS070 — 281 4 0 609 07CD 4 3 1 95 19 3 489 B ACS070 Butte 312 8 0 642 07CD 4 3 1 95 19 3 489 B ACS080 — 355 1 0 684 08CD 5 0 2 31 20 2 513 B ACS080 Canton 394 5 0 721 08CD 5 0 2 31 20 2 513 B ACS080 — 419 6 0 743 08CD 5 0 2 31 20 2 513 B ACS090 Cairo 465 4 0 783 09CD 6 2 2 81 21 7 551 B ACS090 — 503 6 0 814 09CD 6 2 2 81 21 7 551 B ACS100 Darien 559 5 0 858 10CD 6 7 3 04 22 5 572 B ACS100 — 587 2 0 879 10CD 6 7 3 04 22 5 572 B ACS100 — 634 9 0 914 10CD 6 7 3 04 22 5 572 B ACS100 — 649 5 0 928 10CD 6 7 3 04 22 5 572 B ACS100 Elgin 652 4 0 927 10CD 6 7 3 04 22 5 572 B ACS100 — 657 3 0 930 10CD 6 7 3 04 22 5 572 B ACS110 Flint 740 8 0 991 11CD 11 1 5 03 25 9 659 D ACS120 — 853 7 1 063 12CD 11 9 5 40 26 8 679 D ACS120 Greeley 927 2 1 108 12CD 11 9 5 40 26 8 679 D ACS130 — 1024 5 1 165 13CD 15 0 6 80 28 7 729 D ACS130 — 1080 6 1 196 13CD 15 0 6 80 28 7 729 D ACS130 — 1108 6 1 212 13CD 15 0 6 80 28 7 729 D ACS140 — 1172 3 1 246 14CD 16 1 7 30 29 5 749 D ACS160 — 1534 0 1 427 16CD 23 5 10 66 34 4 873 D ACS160 — 1700 0 1 502 16CD 23 5 10 66 34 4 873 D ACS190 — 2303 5 1 750 19CD 36 6 16 60 38 2 970 E ACS190 — 2338 0 1 762 19CD 36 6 16 60 38 2 970 E ACS200 — 2493 0 1 821 20CD 37 9 17 19 39 0 991 E 231 Quick Compress ® QuickCompress ® – AAAC & ACAR © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Dead Ends are designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites while maintaining a minimum 95% of the ASTM rated strength The adjustable steel eye is pre-compressed and the dead end pre- filled, eliminating installation steps The dead end tongue and terminal pad are each constructed with a 15º angle, which permits the terminal connector to be bolted in either the straight or the 30º position Both sides of the pad are finished, creating excellent electrical contact surfaces For pad to pad connections, AFL recommends the use of No 2 EJC The end tapers of the compression portions of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV' Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Terminal Connector For an assembly without a terminal connector, use 'NT' For an assembly with a terminal connector, leave blank Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 4: Assemble Catalog Number. Example: For an adjustable eye dead end with no terminal and EHV finish for 927 7 Greeley, the complete catalog number is: AES120NTEHV Assy Catalog Number Terminal Connector EHV Finish + + Notes: 1 Assembly Catalog Number includes dead end, terminal connector and aluminum hardware 2 Eye Dimensions are on page 258 3 Pad Dimensions are on page 257 4 Installation Instructions for Dead Ends are on page 266 5 Installation Instructions for Terminals are on page 272 6 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Dead Ends for AAAC and ACAR Conductor, Adjustable Eye Type, Single Tongue, AES Series © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 232 Quick Compress ® QuickCompress ® – AAAC & ACAR Quick Compress Dead Ends for AAAC and ACAR Conductor, Adjustable Eye Type, Single Tongue, AES Series (cont.) ASSEMBLY CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L PAD SIZE CODE WORD SIZE DIAMETER KCMIL IN LBS KG IN MM AES070 — 281 4 0 609 07CD 2 6 1 18 16 4 418 B AES070 Butte 312 8 0 642 07CD 2 6 1 18 16 4 418 B AES080 — 355 1 0 684 08CD 3 8 1 72 17 8 453 B AES080 Canton 394 5 0 721 08CD 3 8 1 72 17 8 453 B AES080 — 419 6 0 743 08CD 3 8 1 72 17 8 453 B AES090 Cairo 465 4 0 783 09CD 5 6 2 54 19 7 501 B AES090 — 503 6 0 814 09CD 5 6 2 54 19 7 501 B AES100 Darien 559 5 0 858 10CD 6 1 2 77 20 5 521 B AES100 — 587 2 0 879 10CD 6 1 2 77 20 5 521 B AES100 — 634 9 0 914 10CD 6 1 2 77 20 5 521 B AES100 — 649 5 0 928 10CD 6 1 2 77 20 5 521 B AES100 Elgin 652 4 0 927 10CD 6 1 2 77 20 5 521 B AES100 — 657 3 0 930 10CD 6 1 2 77 20 5 521 B AES110 Flint 740 8 0 991 11CD 9 1 4 13 23 3 591 D AES120 — 853 7 1 063 12CD 9 9 4 49 24 1 611 D AES120 Greeley 927 2 1 108 12CD 9 9 4 49 24 1 611 D AES130 — 1024 5 1 165 13CD 13 9 6 3 26 5 673 D AES130 — 1080 6 1 196 13CD 13 9 6 3 26 5 673 D AES130 — 1108 6 1 212 13CD 13 9 6 3 26 5 673 D AES140 — 1172 3 1 246 14CD 15 0 6 8 27 3 694 D AES160 — 1534 0 1 427 16CD 23 2 10 52 31 7 806 D AES160 — 1700 0 1 502 16CD 23 2 10 52 31 7 806 D AES190 — 2303 5 1 750 19CD 33 4 15 15 35 2 895 E AES190 — 2338 0 1 762 19CD 33 4 15 15 35 2 895 E AES200 — 2493 0 1 821 20CD 35 0 15 88 36 0 915 E
