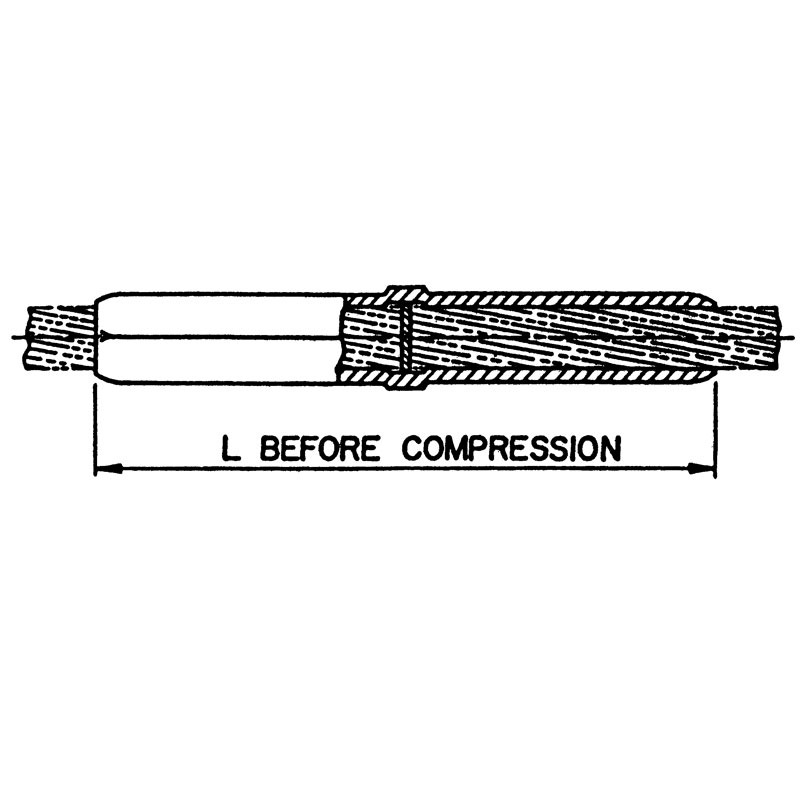

151 Quick Compress ® Quick Compress ® © 2004, AFL, all rights reserved. PP-3-00763, Revision 5, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Accessories for Maximum Conductor Operating Temperatures of 100ºC (212ºF) In the past, three separate compression accessory series were required to connect ACSR, AAC, AAAC and ACAR To assist utilities and distributors in reducing inventory, AFL designed one series of compression accessories that can handle all four conductor types, the Quick Compress Product Line Quick Compress handles these conductors while maintaining the same mechanical and electrical reliability as other AFL product lines There are two primary characteristics that make Quick Compress different from any other accessory line First, it is made of a high strength aluminum alloy, which has a minimum tensile strength nearly twice that of other compression accessory systems This means that for the same conductor size, smaller connectors can be used without any fear of sacrificing strength Secondly, Quick Compress uses an aluminum 'core grip' to hold the steel core of ACSR This eliminates the need to have a dead end steel compression barrel or a steel sleeve for full tension ACSR joints By eliminating the steel, only one set of dies is required for installing Quick Compress Accessories All compression accessories are designed to operate at a temperature 15% to 25% cooler than the conductor Quick Compress accessories are designed for a maximum conductor operating temperature of 100ºC (212ºF) For applications exceeding 100ºC (212ºF) operating temperature, see the Standard and HiTemp ® Compression Accessories sections Features Installs in 40% Less Time Quick Compress Accessories are designed to save valuable time They are made of a high strength alloy allowing for shorter accessories resulting in fewer compression bites The accessories come pre-filled, the steel eye is pre-compressed and a one-piece core grip is included Compared to other two-die accessory systems, Quick Compress Accessories can be installed in 40% less time One-Piece Core Grip When using ACSR conductor, the one-piece core grip eliminates the need for a dead end steel compression barrel or a steel sleeve for full tension compression joints Factory Installed Eye The dead end features a steel eye that is oriented and installed at the factory This decreases installation time and eliminates costly field errors Factory Pre-filled Quick Compress dead ends, joints, terminals and jumper connec - tors are prefilled with AFL Filler Compound (AFC) and capped to prevent loss of compound prior to installation, eliminating an installation step High Voltage Applications The end tapers of all compression accessories are supplied with a high voltage finish for die sizes 12CD and above Corona bolts are furnished standard on 15º terminals for these section sizes The square edges of bolted pads of the compression accessories could cause Corona Pads with rounded edges and corners can be supplied by adding the catalog suffix 'EHV' © 2004, AFL, all rights reserved. PP-3-00763, Revision 5, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 154 Quick Compress ® QuickCompress ® Quick Reference Guide for Quick Compress Accessories for AAC Conductor CONDUCTOR COMPRESSION ACCESSORIES CODE WORD SIZE STRANDING DIA. DEAD END ASSEMBLIES JOINT JUMPER CONNECTOR TERMINAL CONNECTORS OPEN RUN TEE CONNECTOR OPEN RUN TEE TAP REPAIR SLEEVE KCMIL AL/ST IN VERT. EYE SINGLE TONGUE HOR. EYE SINGLE TONGUE VERT. EYE DOUBLE TONGUE HOR. EYE DOUBLE TONGUE ADJ. EYE SINGLE TONGUE ADJ. CLEVIS SINGLE TONGUE STRAIGHT 15º 90º Peony 300 0 19 0 629 VESE070 HESE070 VEDE070 HEDE070 AESE070 ACSE070 CJE07 JC07 TS07 TF07 TN07 TTOC07 TTOP07 RS07 Tulip 336 4 19 0 666 VESE070 HESE070 VEDE070 HEDE070 AESE070 ACSE070 CJE07 JC07 TS07 TF07 TN07 TTOC07 TTOP07 RS07 Daffodil 350 0 19 0 679 VESE070 HESE070 VEDE070 HEDE070 AESE070 ACSE070 CJE07 JC07 TS07 TF07 TN07 TTOC07 TTOP07 RS07 Canna 397 5 19 0 724 VESE080 HESE080 VEDE080 HEDE080 AESE080 ACSE080 CJE08 JC08 TS08 TF08 TN08 TTOC08 TTOP08 RS08 Goldentuft 450 0 19 0 770 VESE090 HESE090 VEDE090 HEDE090 AESE090 ACSE090 CJE09 JC09 TS09 TF09 TN09 TTOC09 TTOP09 RS09 Yarrow 450 0 37 0 770 VESE090 HESE090 VEDE090 HEDE090 AESE090 ACSE090 CJE09 JC09 TS09 TF09 TN09 TTOC09 TTOP09 RS09 Cosmos 477 0 19 0 793 VESE090 HESE090 VEDE090 HEDE090 AESE090 ACSE090 CJE09 JC09 TS09 TF09 TN09 TTOC09 TTOP09 RS09 Syringa 477 0 37 0 795 VESE090 HESE090 VEDE090 HEDE090 AESE090 ACSE090 CJE09 JC09 TS09 TF09 TN09 TTOC09 TTOP09 RS09 Zinnia 500 0 19 0 811 VESE090 HESE090 VEDE090 HEDE090 AESE090 ACSE090 CJE09 JC09 TS09 TF09 TN09 TTOC09 TTOP09 RS09 Hyacinth 500 0 37 0 813 VESE090 HESE090 VEDE090 HEDE090 AESE090 ACSE090 CJE09 JC09 TS09 TF09 TN09 TTOC09 TTOP09 RS09 Dahlia 556 5 19 0 856 VESE100 HESE100 VEDE100 HEDE100 AESE100 ACSE100 CJE10 JC10 TS10 TF10 TN10 TTOC10 TTOP10 RS10 Mistletoe 556 5 37 0 858 VESE100 HESE100 VEDE100 HEDE100 AESE100 ACSE100 CJE10 JC10 TS10 TF10 TN10 TTOC10 TTOP10 RS10 Meadowsweet 600 0 37 0 891 VESE100 HESE100 VEDE100 HEDE100 AESE100 ACSE100 CJE10 JC10 TS10 TF10 TN10 TTOC10 TTOP10 RS10 Orchid 636 0 37 0 918 VESE100 HESE100 VEDE100 HEDE100 AESE100 ACSE100 CJE10 JC10 TS10 TF10 TN10 TTOC10 TTOP10 RS10 Heuchera 650 0 37 0 928 VESE100 HESE100 VEDE100 HEDE100 AESE100 ACSE100 CJE10 JC10 TS10 TF10 TN10 TTOC10 TTOP10 RS10 Verbena 700 0 37 0 963 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Flag 700 0 61 0 964 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Violet 715 5 37 0 974 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Nasturtium 715 5 61 0 975 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Petunia 750 0 37 0 997 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Cattail 750 0 61 0 998 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Arbutus 795 0 37 1 026 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Lilac 795 0 61 1 028 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 — 800 0 37 1 031 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Hellotrope 800 0 61 1 031 VESE110 HESE110 VEDE110 HEDE110 AESE110 ACSE110 CJE11 JC11 TS11 TF11 TN11 TTOC11 TTOP11 RS11 Cockscomb 900 0 37 1 092 VESE120 HESE120 VEDE120 HEDE120 AESE120 ACSE120 CJE12 JC12 TS12 TF12 TN12 TTOC12 TTOP12 RS12 Snapdragon 900 0 61 1 094 VESE120 HESE120 VEDE120 HEDE120 AESE120 ACSE120 CJE12 JC12 TS12 TF12 TN12 TTOC12 TTOP12 RS12 Magnolia 954 0 37 1 124 VESE120 HESE120 VEDE120 HEDE120 AESE120 ACSE120 CJE12 JC12 TS12 TF12 TN12 TTOC12 TTOP12 RS12 Goldenrod 954 0 61 1 126 VESE120 HESE120 VEDE120 HEDE120 AESE120 ACSE120 CJE12 JC12 TS12 TF12 TN12 TTOC12 TTOP12 RS12 Hawkweed 1000 0 37 1 150 VESE130 HESE130 VEDE130 HEDE130 AESE130 ACSE130 CJE13 JC13 TS13 TF13 TN13 TTOC13 TTOP13 RS13 Camellia 1000 0 61 1 152 VESE130 HESE130 VEDE130 HEDE130 AESE130 ACSE130 CJE13 JC13 TS13 TF13 TN13 TTOC13 TTOP13 RS13 Bluebell 1033 5 37 1 170 VESE130 HESE130 VEDE130 HEDE130 AESE130 ACSE130 CJE13 JC13 TS13 TF13 TN13 TTOC13 TTOP13 RS13 Larkspur 1033 5 61 1 172 VESE130 HESE130 VEDE130 HEDE130 AESE130 ACSE130 CJE13 JC13 TS13 TF13 TN13 TTOC13 TTOP13 RS13 Marigold 1113 0 61 1 216 VESE130 HESE130 VEDE130 HEDE130 AESE130 ACSE130 CJE13 JC13 TS13 TF13 TN13 TTOC13 TTOP13 RS13 Hawthorn 1192 5 61 1 258 VESE140 HESE140 VEDE140 HEDE140 AESE140 ACSE140 CJE14 JC14 TS14 TF14 TN14 TTOC14 TTOP14 RS14 — 1250 0 127 1 289 VESE140 HESE140 VEDE140 HEDE140 AESE140 ACSE140 CJE14 JC14 TS14 TF14 TN14 TTOC14 TTOP14 RS14 Narcissus 1272 0 61 1 300 VESE140 HESE140 VEDE140 HEDE140 AESE140 ACSE140 CJE14 JC14 TS14 TF14 TN14 TTOC14 TTOP14 RS14 — 1300 0 127 1 315 VESE140 HESE140 VEDE140 HEDE140 AESE140 ACSE140 CJE14 JC14 TS14 TF14 TN14 TTOC14 TTOP14 RS14 Columbine 1351 0 61 1 340 VESE150 HESE150 VEDE150 HEDE150 AESE150 ACSE150 CJE15 JC15 TS15 TF15 TN15 TTOC15 TTOP15 RS15 Carnation 1431 0 61 1 379 VESE150 HESE150 VEDE150 HEDE150 AESE150 ACSE150 CJE15 JC15 TS15 TF15 TN15 TTOC15 TTOP15 RS15 — 1500 0 91 1 412 VESE150 HESE150 VEDE150 HEDE150 AESE150 ACSE150 CJE15 JC15 TS15 TF15 TN15 TTOC15 TTOP15 RS15 Gladiolus 1510 5 61 1 417 VESE150 HESE150 VEDE150 HEDE150 AESE150 ACSE150 CJE15 JC15 TS15 TF15 TN15 TTOC15 TTOP15 RS15 Coreopsis 1590 0 61 1 454 VESE160 HESE160 VEDE160 HEDE160 AESE160 ACSE160 CJE16 JC16 TS16 TF16 TN16 TTOC16 TTOP16 RS16 Dogwood 1590 0 91 1 454 VESE160 HESE160 VEDE160 HEDE160 AESE160 ACSE160 CJE16 JC16 TS16 TF16 TN16 TTOC16 TTOP16 RS16 Jessamine 1750 0 61 1 525 VESE170 HESE170 VEDE170 HEDE170 AESE170 ACSE170 CJE17 JC17 TS17 TF17 TN17 TTOC17 TTOP17 RS17 Cowslip 2000 0 91 1 630 VESE180 HESE180 VEDE180 HEDE180 AESE180 ACSE180 CJE18 JC18 TS18 TF18 TN18 TTOC18 TTOP18 RS18 Sagebrush 2250 0 91 1 729 VESE190 HESE190 VEDE190 HEDE190 AESE190 ACSE190 CJE19 JC19 TS19 TF19 TN19 TTOC19 TTOP19 RS19 — 2300 0 91 1 750 VESE190 HESE190 VEDE190 HEDE190 AESE190 ACSE190 CJE19 JC19 TS19 TF19 TN19 TTOC19 TTOP19 RS19 Lupine 2500 0 91 1 823 VESE200 HESE200 VEDE200 HEDE200 AESE200 ACSE200 CJE20 JC20 TS20 TF20 TN20 TTOC20 TTOP20 RS20 © 2004, AFL, all rights reserved. PP-3-00763, Revision 5, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 156 Quick Compress ® QuickCompress ® Quick Compress Catalog Numbering System TYPE OF CONNECTOR TUBE CODE CORE GRIP CODE VES (see table below)  XX  Y  Y N T The simplified AFL catalog numbering system for alloy compres - sion connectors facilitates specying, ordering and inventory control The catalog number is stamped on each compression connector for easy and positive field identification Example: Catalog No. VES126 Example: CONDUCTOR DEAD END CORE GRIP DIE SIZE TERMINAL DEAD END ASSEMBLY 795 26/7 ACSR VES12 CG126 12CD TF12 VES126 927 kcmil-6201 VES12 – 12CD TF12 VES120 954 kcmil-1350(EC) VESE12 – 12CD TF12 VES120  TYPE OF CONNECTOR STANDARD U.S. SIZES BRITISH, EUROPEAN AND STANDARD METRIC SIZES ACSR 1350(EC) ALLOY ACAR ACSR 1350(EC) ALLOY ACAR Dead Ends, Vertical Eye, Single Tongue Dead Ends, Vertical Eye, Double Tongue Dead Ends, Horizontal Eye, Single Tongue Dead Ends, Horizontal Eye, Double Tongue VES VED HES HED VESE VEDE HESE HEDE VES VED HES HED VESM VEDM HESM HEDM VESEM VEDEM HESEM HEDEM VESM VEDM HESM HEDM Dead Ends, Adjustable Eye, Single Tongue Dead Ends, Adjustable Eye, Double Tongue AES AED AESE AEDE AES AED AESM AEDM AESEM AEDEM AESM AEDM Dead Ends, Adjustable Clevis, Single Tongue Dead Ends, Adjustable Clevis, Double Tongue ACS ACD ACSE ACDE ACS ACD ACSM ACDM ACSEM ACDEM ACSM ACDM Terminal Connectors, Straight Pad Terminal Connectors, 15° Pad  Terminal Connectors, 45° Pad Terminal Connectors, 90° Pad TS TF T45 TN TS TF T45 TN TS TF T45 TN TSM TFM T45M TNM TSM TFM T45M TNM TSM TFM T45M TNM Compression Joints Jumper Connector Repair Sleeve Core Grip CJ JC RS CG CJE JC RS – CJ JC RS – CJM JCM RSM CG CJEM JCM RSM – CJM JCM RSM – Tee Connector - Closed Run, Cable to Cable Tee Connector - Open Run, Cable to Cable Tee Tap - Closed Run, Cable to Pad Tee Tap - Open Run, Cable to Pad TTCC TTOC TTCP TTOP TTCC TTOC TTCP TTOP TTCC TTOC TTCP TTOP TTCCM TTOCM TTCPM TTOPM TTCCM TTOCM TTCPM TTOPM TTCCM TTOCM TTCPM TTOPM  The two digit number (denoted by XX) defines tube code These numbers will be 07 through 21 inclusive  A single digit suffix (denoted by Y) is used to order the dead end assembly or joint assembly This suffix also shows the core grip code These numbers will be 0 through 7 inclusive, where 0 indicates no core grip and 1 through 7 indicates the core grip for a given tube size  The dead end assembly for an ACSR consists of the prefilled aluminum dead end body precompressed onto the steel eye, the 15° terminal connector, hardware and core grip Double tongue dead end assemblies include two terminal connectors The joint assembly for ACSR consists of a prefilled aluminum sleeve and two core grips  The dead end assembly for SAC conductors consists of the prefilled dead end body, precompressed onto the steel eye, the 15° terminal connector and hardware Double tongue dead end assemblies include two terminal connectors  To order dead end assembly without the jumper terminal, specify VESXXYNT For the VES126NT, the assembly would consist of the VES12 dead end and CG126 core grip for the 795 26/7 ACSR  The 15° terminal connectors are supplied with 1/2 inch aluminum alloy bolts, nuts and washers Terminal sizes 12 and larger are supplied with corona bolts  With the exception of repair sleeves, tee connectors and tee taps all of the compression barrels are prefilled with AFC  Die code for compressors: B – CD Compressor Model: 12A 30 – CD 30A 60 – CD 60A 100 – CD 100A NOTES: 157 Quick Compress ® Quick Compress ® © 2004, AFL, all rights reserved. PP-3-00763, Revision 5, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 CONDUCTOR SIZE TUBE CODE XX ASSEMBLY AND CORE GRIP CODE CG KCMIL MM 2 STRAND 266 8 135 2 6/7 18/1 26/7 07 07 07 075 072 076 300 0 152 0 26/7 08 085 336 4 170 5 18/1 26/7 30/7 08 08 09 082 086 096 397 5 201 4 18/1 24/7 26/7 30/7 08 09 09 10 083 095 096 106 477 0 241 7 18/1 24/7 26/7 30/7 09 09 10 11 092 095 096 106 556 5 282 0 18/1 24/7 26/7 30/7 10 10 10 11 102 105 106 117 605 0 306 8 24/7 26/7 30/19 11 11 12 115 116 126 636 0 322 3 18/1 24/7 26/7 30/19 36/1 10 11 11 12 10 103 115 116 126 101 666 8 337 7 24/7 11 115 715 5 362 6 24/7 26/7 30/19 11 12 13 115 126 138 795 0 402 8 24/7 26/7 30/19 36/1 45/7 54/7 12 12 14 11 12 12 125 126 146 111 123 125 900 0 456 1 45/7 54/7 12 13 124 135 954 0 483 4 36/1 45/7 54/7 12 13 13 121 133 135 1033 5 523 7 36/1 45/7 54/7 13 13 14 131 134 145 1113 0 583 9 45/7 54/19 14 14 143 145 Quick Compress Catalog Numbering System (cont.) TUBE, CORE GRIP AND ASSEMBLY CODES FOR ACSR CONDUCTORS TUBE, CORE GRIP AND ASSEMBLY CODES FOR ACSR CONDUCTORS (cont.) CONDUCTOR SIZE TUBE CODE XX ASSEMBLY AND CORE GRIP CODE CG KCMIL MM 2 STRAND 1192 5 604 3 45/7 54/19 14 15 144 155 1272 0 644 5 45/7 54/19 15 15 153 153 1351 5 685 2 45/7 54/19 15 15 154 155 1431 0 725 2 45/7 54/19 16 16 163 165 1510 5 765 2 45/7 54/19 16 16 164 165 1590 0 805 8 45/7 54/19 16 17 164 175 1780 0 901 9 84/19 17 174 2034 0 1030 6 72/7 18 183 2156 0 1092 3 84/19 19 194 2167 0 1098 1 72/7 19 193 2312 0 1171 5 76/19 19 193 2515 0 1274 4 76/19 20 203 DIAMETER RANGE TUBE CODE XX INCHES MILLIMETERS MIN. MAX. MIN. MAX. 595 680 15 1 17 3 07 680 765 17 3 19 4 08 765 855 19 4 21 7 09 855 950 21 7 24 1 10 950 1 1045 24 1 26 5 11 1 045 1 140 26 5 29 0 12 1 140 1 235 29 0 31 4 13 1 235 1 330 31 4 33 8 14 1 330 1 425 33 8 36 2 15 1 425 1 520 36 2 38 6 16 1 520 1 615 38 6 41 0 17 1 615 1 710 41 0 43 4 18 1 710 1 805 43 4 45 8 19 1 805 1 900 45 8 48 3 20 STRANDED ALUMINUM CONDUCTORS CONDUCTOR DIAMETER RANGE AND TUBE CODE
