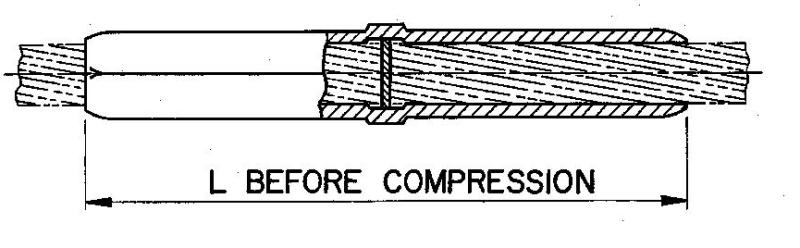

239 Quick Compress ® QuickCompress ® – AAAC & ACAR © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Jumper Connector is designed for fast and easy installation By using a high strength alloy, the compression length has been shortened for less compression bites The jumper connector is pre-filled, eliminating an installation step Each jumper connector has a center stop, making it easy to center the jumper on the conductor All Quick Compress Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: A jumper connector for 927 2 Greeley conductor, the complete catalog number is: JC12 Notes: 1 Installation Instructions for Compression Joints are on page 271 2 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog Quick Compress Jumper Connector for AAAC and ACAR Conductor, JC Series CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE DIAMETER KCMIL IN LBS KG IN MM JC07 — 281 4 0 609 07CD 0 3 0 11 5 6 142 JC07 Butte 312 8 0 642 07CD 0 3 0 11 5 6 142 JC08 — 355 1 0 684 08CD 0 4 0 19 6 4 163 JC08 Canton 394 5 0 721 08CD 0 4 0 19 6 4 163 JC08 — 419 6 0 743 08CD 0 4 0 19 6 4 163 JC09 Cairo 465 4 0 783 09CD 0 6 0 27 7 2 183 JC09 — 503 6 0 814 09CD 0 6 0 27 7 2 183 JC10 Darien 559 5 0 858 10CD 0 8 0 37 8 0 203 JC10 — 587 2 0 879 10CD 0 8 0 37 8 0 203 JC10 — 634 9 0 914 10CD 0 8 0 37 8 0 203 JC10 — 649 5 0 928 10CD 0 8 0 37 8 0 203 JC10 Elgin 652 4 0 927 10CD 0 8 0 37 8 0 203 JC10 — 657 3 0 930 10CD 0 8 0 37 8 0 203 JC11 Flint 740 8 0 991 11CD 1 1 0 50 8 8 224 JC12 — 853 7 1 063 12CD 1 4 0 64 9 6 244 JC12 Greeley 927 2 1 108 12CD 1 4 0 64 9 6 244 © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 240 Quick Compress ® QuickCompress ® – AAAC & ACAR CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE DIAMETER KCMIL IN LBS KG IN MM JC13 — 1024 5 1 165 13CD 1 7 0 77 10 4 264 JC13 — 1080 6 1 196 13CD 1 7 0 77 10 4 264 JC13 — 1108 6 1 212 13CD 1 7 0 77 10 4 264 JC14 — 1172 3 1 246 14CD 2 2 1 00 11 2 284 JC16 — 1534 0 1 427 16CD 3 3 1 50 12 8 325 JC16 — 1700 0 1 502 16CD 3 3 1 50 12 8 325 JC19 — 2303 5 1 750 19CD 5 4 2 45 15 2 386 JC19 — 2338 0 1 762 19CD 5 4 2 45 15 2 386 JC20 — 2493 0 1 821 20CD 6 4 2 90 16 0 406 Quick Compress Jumper Connector for AAAC and ACAR Conductor, JC Series (cont.)
