AFL's Quick Compress Jumper for ACSR Conductors operate at temperatures up 100°C (212°F). The Quick Compress Jumper Connector is designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites. The jumper connector is pre-filled, eliminating an installation step.
16244080c530408699f8cf08187eb53c
177 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The Quick Compress Jumper Connector is designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites. The jumper connector is pre-filled, eliminating an installation step. Each jumper connector has a center stop, making it easy to center the jumper on the conductor. All Quick Compress Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor. The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above. Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Example: A jumper connector for 795 Drake conductor, the complete catalog number is: JC12 Notes: 1. Installation Instructions for Jumpers are on page 271. 2. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. Quick Compress Jumper Connector for ACSR Conductor, JC Series CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM JC07 Owl 266.8 6/7 0.633 07CD 0.3 0.12 5.6 142 JC07 Waxwing 266.8 18/1 0.609 07CD 0.3 0.12 5.6 142 JC07 Partridge 266.8 26/7 0.642 07CD 0.3 0.12 5.6 142 JC08 Ostrich 300.0 26/7 0.680 08CD 0.4 0.19 6.4 163 JC08 Merlin 336.4 18/1 0.684 08CD 0.4 0.19 6.4 163 JC08 Linnet 336.4 26/7 0.720 08CD 0.4 0.19 6.4 163 JC09 Oriole 336.4 30/7 0.741 09CD 0.6 0.27 7.2 183 JC08 Chickadee 397.5 18/1 0.743 08CD 0.4 0.19 6.4 163 JC09 Brant 397.5 24/7 0.772 09CD 0.6 0.27 7.2 183 JC09 Ibis 397.5 26/7 0.783 09CD 0.6 0.27 7.2 183 JC10 Lark 397.5 30/7 0.806 10CD 0.8 0.37 8.0 203 JC09 Pelican 477.0 18/1 0.814 09CD 0.6 0.27 7.2 183 JC09 Flicker 477.0 24/7 0.846 09CD 0.6 0.27 7.2 183 JC10 Hawk 477.0 26/7 0.858 10CD 0.8 0.37 8.0 203 JC11 Hen 477.0 30/7 0.883 11CD 1.1 0.50 8.8 224 JC10 Osprey 556.5 18/1 0.879 10CD 0.8 0.37 8.0 203 JC10 Parakeet 556.5 24/7 0.914 10CD 0.8 0.37 8.0 203 JC10 Dove 556.5 26/7 0.927 10CD 0.8 0.37 8.0 203 JC11 Eagle 556.5 30/7 0.953 11CD 1.1 0.50 8.8 224 JC11 Peacock 605.0 24/7 0.953 11CD 1.1 0.50 8.8 224

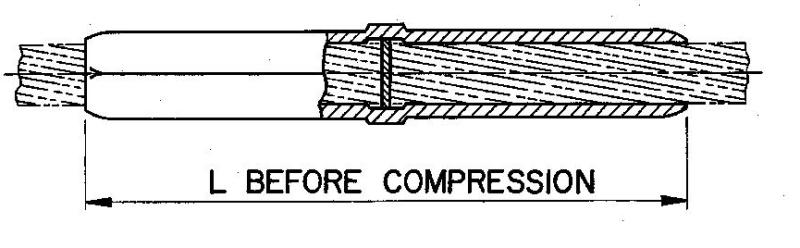

© 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 178 Quick Compress ® QuickCompress ® – ACSR CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE WORD SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM JC11 Squab 605 26/7 0.966 11CD 1.1 0.50 8.8 224 JC12 Teal 605 30/19 0.994 12CD 1.4 0.64 9.6 244 JC10 Kingbird 636 18/1 0.940 10CD 0.8 0.37 8.0 203 JC11 Rook 636 24/7 0.977 11CD 1.1 0.50 8.8 224 JC11 Grosbeak 636 26/7 0.990 11CD 1.1 0.50 8.8 224 JC12 Egret 636 30/19 1.019 12CD 1.4 0.64 9.6 244 JC10 Swift 636 36/1 0.930 10CD 0.8 0.37 8.0 203 JC11 Flamingo 666.6 24/7 1.000 11CD 1.1 0.50 8.8 224 JC11 Stilt 715.5 24/7 1.036 11CD 1.1 0.50 8.8 224 JC12 Starling 715.5 26/7 1.051 12CD 1.4 0.64 9.6 244 JC13 Redwing 715.5 30/19 1.081 13CD 1.7 0.77 10.4 264 JC12 Cuckoo 795.0 24/7 1.092 12CD 1.4 0.64 9.6 244 JC12 Drake 795.0 26/7 1.108 12CD 1.4 0.64 9.6 244 JC14 Mallard 795.0 30/19 1.140 14CD 2.2 1.00 11.2 284 JC11 Coot 795.0 36/1 1.040 11CD 1.1 0.50 8.8 224 JC12 Tern 795.0 45/7 1.063 12CD 1.4 0.64 9.6 244 JC12 Condor 795.0 54/7 1.093 12CD 1.4 0.64 9.6 244 JC12 Ruddy 900.0 45/7 1.131 12CD 1.4 0.64 9.6 244 JC13 Canary 900.0 54/7 1.162 13CD 1.7 0.77 10.4 264 JC12 Catbird 954.0 36/1 1.14 12CD 1.4 0.64 9.6 244 JC13 Rail 954.0 45/7 1.165 13CD 1.7 0.77 10.4 264 JC13 Cardinal 954.0 54/7 1.196 13CD 1.7 0.77 10.4 264 JC13 Tanger 1033.5 36/1 1.186 13CD 1.7 0.77 10.4 264 JC13 Ortolan 1033.5 45/7 1.212 13CD 1.7 0.77 10.4 264 JC14 Curlew 1033.5 54/7 1.244 14CD 2.2 1.00 11.2 284 JC14 Bluejay 1113.0 45/7 1.259 14CD 2.2 1.00 11.2 284 JC14 Finch 1113.0 54/19 1.293 14CD 2.2 1.00 11.2 284 JC14 Bunting 1192.5 45/7 1.302 14CD 2.2 1.00 11.2 284 JC15 Grackle 1192.5 54/19 1.333 15CD 2.7 1.22 12.0 305 JC15 Bittern 1272.0 45/7 1.345 15CD 2.7 1.22 12.0 305 JC15 Pheasant 1272.0 54/19 1.382 15CD 2.7 1.22 12.0 305 JC15 Dipper 1351.5 45/7 1.385 15CD 2.7 1.22 12.0 305 JC15 Martin 1351.5 54/19 1.424 15CD 2.7 1.22 12.0 305 JC16 Bobolink 1431.0 45/7 1.427 16CD 3.3 1.50 12.8 325 JC16 Plover 1431.0 54/19 1.465 16CD 3.3 1.50 12.8 325 JC16 Nuthatch 1510.5 45/7 1.466 16CD 3.3 1.50 12.8 325 JC16 Parrot 1510.5 54/19 1.506 16CD 3.3 1.50 12.8 325 JC16 Lapwing 1590.0 45/7 1.504 16CD 3.3 1.50 12.8 325 JC17 Falcon 1590.0 54/19 1.545 17CD 3.9 1.77 13.6 345 JC17 Chukar 1780.0 84/19 1.602 17CD 3.9 1.77 13.6 345 JC18 — 2034.0 72/7 1.681 18CD 4.7 2.13 14.4 366 JC19 Bluebird 2156.0 84/19 1.762 19CD 5.4 2.45 15.2 386 JC19 Kiwi 2167.0 72/7 1.737 19CD 5.4 2.45 15.2 386 JC19 Thrasher 2312.0 76/19 1.802 19CD 5.4 2.45 15.2 386 JC20 Joree 2515.0 76/19 1.880 20CD 6.4 2.90 16.0 406 Quick Compress Jumper Connector for ACSR Conductor, JC Series (cont.)
Features:
- Installed in 40% less time
- One-piece core grip
- Factory pre-filled quick compress connectors are pre-filled with AFL Filler Compound (AFC)
Applications:
- Compression jumper for ACSR
The Quick Compress® Jumper Connector is designed for fast and easy installation. By using a high strength alloy, the compression length has been shortened for less compression bites. The jumper connector is pre-filled, eliminating an installation step. Each jumper connector has a center stop, making it easy to center the jumper on the conductor. All Quick Compress Jumper Connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor.
