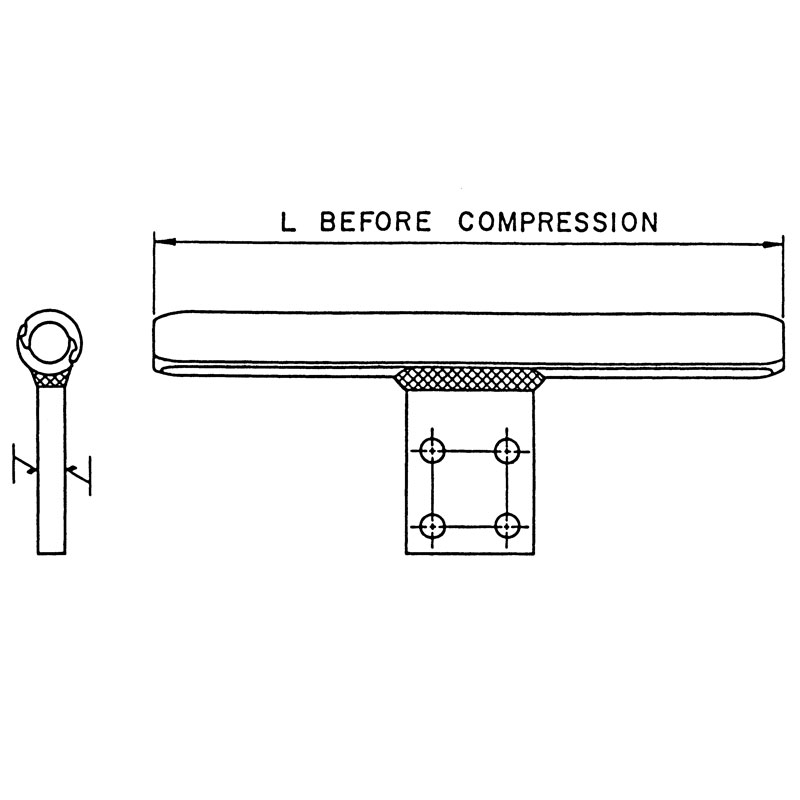

© 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 250 Quick Compress ® QuickCompress ® – AAAC & ACAR The TTOP Series Open Run Tee Tap is a permanent or temporary drop By using a high strength alloy, the compression length has been shortened for less compression bites The run portion incorporates an improved design of interlock - ing extrusions, providing a permanent grip on the conductor when compressed The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above The square edges of bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV' Quick Compress Tee Tap for AAAC and ACAR Conductor, Open Run, TTOP Series Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 3: Assemble Catalog Number. Example: A tee tap for 927 7 Greeley with EHV finish, the complete catalog number is: TTOP12EHV Assy Catalog Number EHV Finish + Notes: 1 Installation Instructions for Tee Taps are on page 274 2 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog 251 Quick Compress ® QuickCompress ® – AAAC & ACAR © 2003, AFL, all rights reserved. PP-3-00758, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Tee Tap for AAAC and ACAR Conductor, Open Run, TTOP Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE DIAMETER ALUMINUM A L AB KCMIL IN LBS KG IN MM IN MM IN MM TTOP07 — 281 4 0 609 07CD 0 6 0 27 0 4 10 7 4 187 2 0 51 B TTOP07 Butte 312 8 0 642 07CD 0 6 0 27 0 4 10 7 4 187 2 0 51 B TTOP08 — 355 1 0 684 08CD 0 7 0 34 0 4 10 8 0 202 2 0 51 B TTOP08 Canton 394 5 0 721 08CD 0 7 0 34 0 4 10 8 0 202 2 0 51 B TTOP08 — 419 6 0 743 08CD 0 7 0 34 0 4 10 8 0 202 2 0 51 B TTOP09 Cairo 465 4 0 783 09CD 0 9 0 41 0 4 10 8 5 215 2 0 51 B TTOP09 — 503 6 0 814 09CD 0 9 0 41 0 4 10 8 5 215 2 0 51 B TTOP10 Darien 559 5 0 858 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 — 587 2 0 879 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 — 634 9 0 914 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 — 649 5 0 928 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 Elgin 652 4 0 927 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 — 657 3 0 930 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP11 Flint 740 8 0 991 11CD 1 7 0 77 0 5 13 10 5 267 3 0 76 D TTOP12 — 853 7 1 063 12CD 2 0 0 91 0 5 13 11 1 281 3 0 76 D TTOP12 Greeley 927 2 1 108 12CD 2 0 0 91 0 5 13 11 1 281 3 0 76 D TTOP13 — 1024 5 1 165 13CD 2 4 1 09 0 5 13 11 6 294 3 0 76 D TTOP13 — 1080 6 1 196 13CD 2 4 1 09 0 5 13 11 6 294 3 0 76 D TTOP13 — 1108 6 1 212 13CD 2 4 1 09 0 5 13 11 6 294 3 0 76 D TTOP14 — 1172 3 1 246 14CD 2 8 1 27 0 5 13 12 1 307 3 0 76 D TTOP16 — 1534 0 1 427 16CD 3 7 1 68 0 5 13 13 2 334 3 0 76 D TTOP16 — 1700 0 1 502 16CD 3 7 1 68 0 5 13 13 2 334 3 0 76 D TTOP19 — 2303 5 1 750 19CD 6 5 2 95 0 8 19 15 5 393 4 0 102 E TTOP19 — 2338 0 1 762 19CD 6 5 2 95 0 8 19 15 5 393 4 0 102 E TTOP20 — 2493 0 1 821 20CD 7 2 3 27 0 8 19 15 9 403 4 0 102 E
