AFL's Quick Compress Tee Tap for AAC Conductors operate at temperatures up 100°C (212°F). The TTOP Series Open Run Tee Tap is a permanent or temporary drop. By using a high strength alloy, the compression length has been shortened for less compression bites.
16244080c530408699f8cf08187eb53c
223 Quick Compress ® QuickCompress ® – AAC © 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The TTOP Series Open Run Tee Tap is a permanent or temporary drop By using a high strength alloy, the compression length has been shortened for less compression bites The run portion incorporates an improved design of interlock - ing extrusions, providing a permanent grip on the conductor when compressed The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above The square edges of bolted pads of the compression accessories could cause Corona Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV' Quick Compress Tee Tap for AAC Conductor, Open Run, TTOP Series Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV' ( ≥ 345 kV) For Standard Finish, leave blank ( < 345 kV) Step 3: Assemble Catalog Number. Example: A tee tap for 795 Arbutus with EHV finish, the complete catalog number is: TTOP11EHV Assy Catalog Number EHV Finish + Notes: 1 Installation Instructions for Tee Taps are on page 274 2 For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog
© 2003, AFL, all rights reserved. PP-3-00759, Revision 3, 3.9.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 224 Quick Compress ® QuickCompress ® – AAC Quick Compress Tee Tap for AAC Conductor, Open Run, TTOP Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRANDING DIAMETER ALUMINUM A L AB KCMIL AL/ST IN LBS KG IN MM IN MM IN MM TTOP07 Peony 300 6 19 0 629 07CD 0 6 0 27 0 4 10 7 4 187 2 0 51 B TTOP07 Tulip 336 4 19 0 666 07CD 0 6 0 27 0 4 10 7 4 187 2 0 51 B TTOP07 Daffodil 350 0 19 0 679 07CD 0 6 0 27 0 4 10 7 4 187 2 0 51 B TTOP08 Canna 397 5 19 0 724 08CD 0 7 0 34 0 4 10 8 0 202 2 0 51 B TTOP09 Goldentuft 450 0 19 0 770 09CD 0 9 0 41 0 4 10 8 5 215 2 0 51 B TTOP09 Cosmos 477 0 19 0 793 09CD 0 9 0 41 0 4 10 8 5 215 2 0 51 B TTOP09 Zinnia 500 0 19 0 811 09CD 0 9 0 41 0 4 10 8 5 215 2 0 51 B TTOP10 Dahlia 556 5 19 0 856 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 Meadowsweet 600 0 37 0 891 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 Orchid 636 0 37 0 918 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP10 Heuchera 650 0 37 0 928 10CD 1 0 0 45 0 4 10 9 0 229 2 0 51 B TTOP11 Verbena 700 0 37 0 963 11CD 1 7 0 77 0 5 13 10 5 267 3 0 76 D TTOP11 Violet 715 5 37 0 974 11CD 1 7 0 77 0 5 13 10 5 267 3 0 76 D TTOP11 Petunia 750 0 37 0 997 11CD 1 7 0 77 0 5 13 10 5 267 3 0 76 D TTOP11 Arbutus 795 0 37 1 026 11CD 1 7 0 77 0 5 13 10 5 267 3 0 76 D TTOP11 — 800 0 61 1 031 11CD 1 7 0 77 0 5 13 10 5 267 3 0 76 D TTOP12 Cockscomb 900 0 37 1 092 12CD 2 0 0 91 0 5 13 11 1 281 3 0 76 D TTOP12 Magnolia 954 0 37 1 124 12CD 2 0 0 91 0 5 13 11 1 281 3 0 76 D TTOP13 Hawkweed 1000 0 37 1 151 13CD 2 4 1 09 0 5 13 11 6 294 3 0 76 D TTOP13 Bluebell 1033 5 37 1 170 13CD 2 4 1 09 0 5 13 11 6 294 3 0 76 D TTOP13 Marigold 1113 0 61 1 216 13CD 2 4 1 09 0 5 13 11 6 294 3 0 76 D TTOP14 Hawthorn 1192 5 61 1 258 14CD 2 8 1 27 0 5 13 12 1 307 3 0 76 D TTOP14 — 1250 0 91 1 289 14CD 2 8 1 27 0 5 13 12 1 307 3 0 76 D TTOP14 Narcissus 1272 0 61 1 300 14CD 2 8 1 27 0 5 13 12 1 307 3 0 76 D TTOP14 — 1300 0 91 1 315 14CD 2 8 1 27 0 5 13 12 1 307 3 0 76 D TTOP15 Columbine 1351 5 61 1 340 15CD 3 3 1 50 0 5 13 12 6 321 3 0 76 D TTOP15 Carnation 1431 0 61 1 379 15CD 3 3 1 50 0 5 13 12 6 321 3 0 76 D TTOP15 — 1500 0 91 1 412 15CD 3 3 1 50 0 5 13 12 6 321 3 0 76 D TTOP15 Gladiolus 1510 5 61 1 417 15CD 3 3 1 50 0 5 13 12 6 321 3 0 76 D TTOP16 Coreopsis 1590 0 61 1 454 16CD 3 7 1 68 0 5 13 13 2 334 3 0 76 D TTOP17 Jessamine 1750 0 61 1 525 17CD 5 2 2 36 0 8 19 14 6 370 4 0 102 E TTOP18 Cowslip 2000 0 91 1 630 18CD 5 9 2 68 0 8 19 15 0 380 4 0 102 E TTOP19 Sagebrush 2250 0 91 1 729 19CD 6 5 2 95 0 8 19 15 5 393 4 0 102 E TTOP19 — 2300 0 91 1 750 19CD 6 5 2 95 0 8 19 15 5 393 4 0 102 E TTOP20 Lupine 2500 0 91 1 823 20CD 7 2 3 27 0 8 19 15 9 403 4 0 102 E
Features:
- Installed in 40% less time
- One-piece core grip
- Factory pre-filled quick compress connectors are prefilled with AFL Filler Compound (AFC)
Applications:
- Compression tee tap connector for AAC conductors
The TTOP Series Open Run Tee Tap is a permanent or temporary drop. By using a high strength alloy, the compression length has been shortened for less compression bites.
The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
The end tapers of all compression accessories are supplied with a high voltage finish for die size sections 12CD and above.
The square edges of bolted pads of the compression accessories could cause corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix ‘EHV’.
Comealongs and HiTemp Comealongs for ACSR AAC AAAC ACAR ACSS and ACSSTW Conductors,AFL Filler Compound,Alnox Electrical Joint Compound,Alnox UG Electrical Joint Compound,HiTemp® AFL Filler Compound (AFCHT™),HiTemp® AFL Universal Compound (HiTUC),No. 2 Electrical Joint Compound,HiTemp® Compression Dead Ends for ACSS Conductors,HiTemp® Compression Dead Ends for ACSS/TW Conductors,HiTemp® Compression Joints for ACSS Conductors,HiTemp® Compression Joints for ACSS/TW Conductors,HiTemp® Compression Jumper for ACSS Conductors,HiTemp® Compression Jumper for ACSS/TW Conductors,HiTemp® Compression Repair Sleeve for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS/TW Conductors
633
Quick Compress Tee Tap Connector for AAC Conductors
Close

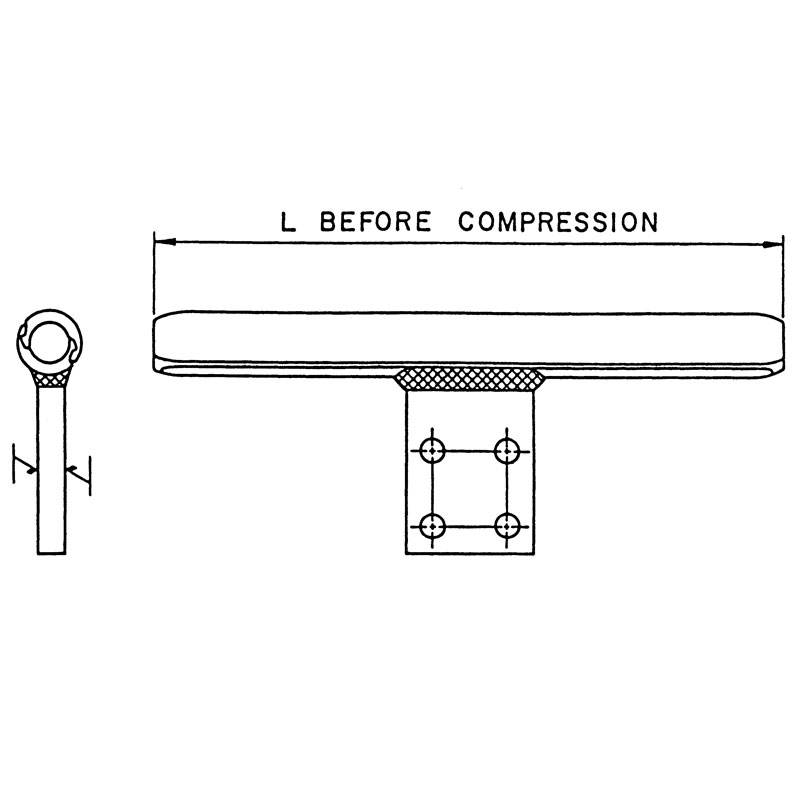

Quick Compress® Tee Tap Connector for AAC Conductors
Features:
- Installed in 40% less time
- One-piece core grip
- Factory pre-filled quick compress connectors are prefilled with AFL Filler Compound (AFC)
Applications:
- Compression tee tap connector for AAC conductors
PRODUCT DESCRIPTION
The TTOP Series Open Run Tee Tap is a permanent or temporary drop. By using a high strength alloy, the compression length has been shortened for less compression bites.
The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
The end tapers of all compression accessories are supplied with a high voltage finish for die size sections 12CD and above.
The square edges of bolted pads of the compression accessories could cause corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix ‘EHV’.
