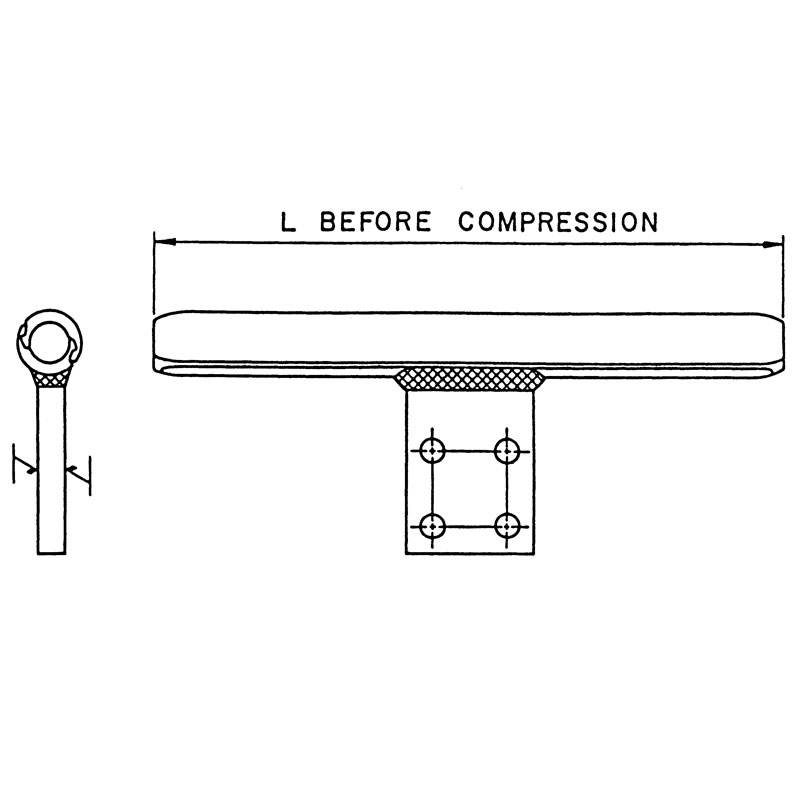

193 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 The TTOP Series Open Run Tee Tap is a permanent or temporary drop. By using a high strength alloy, the compression length has been shortened for less compression bites. The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed. The end tapers of all compression accessories are supplied with a High Voltage finish for die size sections 12CD and above. The square edges of bolted pads of the compression accessories could cause Corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix 'EHV'. Quick Compress Tee Tap for ACSR Conductor, Open Run, TTOP Series Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use 'EHV'. ( ≥ 345 kV) For Standard Finish, leave blank. ( < 345 kV) Step 3: Assemble Catalog Number. Example: A tee tap for 795 Drake with EHV finish, the complete catalog number is: TTOP12EHV Assy Catalog Number EHV Finish + Notes: 1. Installation Instructions for Tee Taps are on page 274. 2. For more information on die selection and ordering instructions, see Tools and Equipment tab in this catalog. © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 194 Quick Compress ® QuickCompress ® – ACSR CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRAND - ING DIAMETER ALUMINUM A L AB KCMIL AL/ST IN LBS KG IN MM IN MM IN MM TTOP07 Owl 266.8 6/7 0.633 07CD 0.6 0.27 0.4 10 7.4 187 2.0 51 B TTOP07 Waxwing 266.8 18/1 0.609 07CD 0.6 0.27 0.4 10 7.4 187 2.0 51 B TTOP07 Partridge 266.8 26/7 0.642 07CD 0.6 0.27 0.4 10 7.4 187 2.0 51 B TTOP08 Ostrich 300 26/7 0.680 08CD 0.7 0.34 0.4 10 8.0 202 2.0 51 B TTOP08 Merlin 336.4 18/1 0.684 08CD 0.7 0.34 0.4 10 8.0 202 2.0 51 B TTOP08 Linnet 336.4 26/7 0.720 08CD 0.7 0.34 0.4 10 8.0 202 2.0 51 B TTOP09 Oriole 336.4 30/7 0.741 09CD 0.9 0.41 0.4 10 8.5 215 2.0 51 B TTOP08 Chickadee 397.5 18/1 0.743 08CD 0.7 0.34 0.4 10 8.0 202 2.0 51 B TTOP09 Brant 397.5 24/7 0.772 09CD 0.9 0.41 0.4 10 8.5 215 2.0 51 B TTOP09 Ibis 397.5 26/7 0.783 09CD 0.9 0.41 0.4 10 8.5 215 2.0 51 B TTOP10 Lark 397.5 30/7 0.806 10CD 1.0 0.45 0.4 10 9.0 229 2.0 51 B TTOP09 Pelican 477 18/1 0.814 09CD 0.9 0.41 0.4 10 8.5 215 2.0 51 B TTOP09 Flicker 477 24/7 0.846 09CD 0.9 0.41 0.4 10 8.5 215 2.0 51 B TTOP10 Hawk 477 26/7 0.858 10CD 1.0 0.45 0.4 10 9.0 229 2.0 51 B TTOP11 Hen 477 30/7 0.883 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP10 Osprey 556.5 18/1 0.879 10CD 1.0 0.45 0.4 10 9.0 229 2.0 51 B TTOP10 Parakeet 556.5 24/7 0.914 10CD 1.0 0.45 0.4 10 9.0 229 2.0 51 B TTOP10 Dove 556.5 26/7 0.927 10CD 1.0 0.45 0.4 10 9.0 229 2.0 51 B TTOP11 Eagle 556.5 30/7 0.953 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP11 Peacock 605 24/7 0.953 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP11 Squab 605 26/7 0.966 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP12 Teal 605 30/19 0.994 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP10 Kingbird 636 18/1 0.940 10CD 1.0 0.45 0.4 10 9.0 229 2.0 51 B TTOP11 Rook 636 24/7 0.977 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP11 Grosbeak 636 26/7 0.990 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP12 Egret 636 30/19 1.019 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP10 Swift 636 36/1 0.930 10CD 1.0 0.45 0.4 10 9.0 229 2.0 51 B TTOP11 Flamingo 666.6 24/7 1.000 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP11 Stilt 715.5 24/7 1.036 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP12 Starling 715.5 26/7 1.051 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP13 Redwing 715.5 30/19 1.081 13CD 2.4 1.09 ,50 13 11.6 294 3.0 76 D TTOP12 Cuckoo 795 24/7 1.092 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP12 Drake 795 26/7 1.108 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP14 Mallard 795 30/19 1.140 14CD 2.8 1.27 0.5 13 12.1 307 3.0 76 D TTOP11 Coot 795 36/1 1.040 11CD 1.7 0.77 0.5 13 10.5 267 3.0 76 D TTOP12 Tern 795 45/7 1.063 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D Quick Compress Tee Tap for ACSR Conductor, Open Run, TTOP Series (cont.) 195 Quick Compress ® Quick Compress ® – ACSR © 2003, AFL, all rights reserved. PP-3-00760, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Quick Compress Tee Tap for ACSR Conductor, Open Run, TTOP Series (cont.) CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT DIMENSIONS PAD SIZE CODE WORD SIZE STRAND - ING DIAMETER ALUMINUM A L AB KCMIL AL/ST IN LBS KG IN MM IN MM IN MM TTOP12 Condor 795 54/7 1.093 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP12 Ruddy 900 45/7 1.131 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP13 Canary 900 54/7 1.162 13CD 2.4 1.09 ,50 13 11.6 294 3.0 76 D TTOP12 Catbird 954 36/1 1.140 12CD 2.0 0.91 0.5 13 11.1 281 3.0 76 D TTOP13 Rail 954 45/7 1.165 13CD 2.4 1.09 ,50 13 11.6 294 3.0 76 D TTOP13 Cardinal 954 54/7 1.196 13CD 2.4 1.09 ,50 13 11.6 294 3.0 76 D TTOP13 Tanger 1033.5 36/1 1.186 13CD 2.4 1.09 ,50 13 11.6 294 3.0 76 D TTOP13 Ortolan 1033.5 45/7 1.212 13CD 2.4 1.09 ,50 13 11.6 294 3.0 76 D TTOP14 Curlew 1033.5 54/7 1.244 14CD 2.8 1.27 0.5 13 12.1 307 3.0 76 D TTOP14 Bluejay 1113 45/7 1.259 14CD 2.8 1.27 0.5 13 12.1 307 3.0 76 D TTOP14 Finch 1113 54/19 1.293 14CD 2.8 1.27 0.5 13 12.1 307 3.0 76 D TTOP14 Bunting 1192.5 45/7 1.302 14CD 2.8 1.27 0.5 13 12.1 307 3.0 76 D TTOP15 Grackle 1192.5 54/19 1.333 15CD 3.3 1.50 0.5 13 12.6 321 3.0 76 D TTOP15 Bittern 1272 45/7 1.345 15CD 3.3 1.50 0.5 13 12.6 321 3.0 76 D TTOP15 Pheasant 1272 54/19 1.382 15CD 3.3 1.50 0.5 13 12.6 321 3.0 76 D TTOP15 Dipper 1351.5 45/7 1.385 15CD 3.3 1.50 0.5 13 12.6 321 3.0 76 D TTOP15 Martin 1351.5 54/19 1.424 15CD 3.3 1.50 0.5 13 12.6 321 3.0 76 D TTOP16 Bobolink 1431 45/7 1.427 16CD 3.7 1.68 0.5 13 13.2 334 3.0 76 D TTOP16 Plover 1431 54/19 1.465 16CD 3.7 1.68 0.5 13 13.2 334 3.0 76 D TTOP16 Nuthatch 1510.5 45/7 1.466 16CD 3.7 1.68 0.5 13 13.2 334 3.0 76 D TTOP16 Parrot 1510.5 54/19 1.506 16CD 3.7 1.68 0.5 13 13.2 334 3.0 76 D TTOP16 Lapwing 1590 45/7 1.504 16CD 3.7 1.68 0.5 13 13.2 334 3.0 76 D TTOP17 Falcon 1590 54/19 1.545 17CD 5.2 2.36 0.8 19 14.6 370 4.0 102 E TTOP17 Chukar 1780 84/19 1.602 17CD 5.2 2.36 0.8 19 14.6 370 4.0 102 E TTOP18 — 2034 72/7 1.681 18CD 5.9 2.68 0.8 19 15.0 380 4.0 102 E TTOP19 Bluebird 2156 84/19 1.762 19CD 6.5 2.95 0.8 19 15.5 393 4.0 102 E TTOP19 Kiwi 2167 72/7 1.737 19CD 6.5 2.95 0.8 19 15.5 393 4.0 102 E TTOP19 Thrasher 2312 76/19 1.802 19CD 6.5 2.95 0.8 19 15.5 393 4.0 102 E TTOP20 Joree 2515 76/19 1.880 20CD 7.2 3.27 0.8 19 15.9 403 4.0 102 E
