AFL's standard compression joints are designed for AWAC conductors. The aluminum body of the dead end is fabricated from AFL seamless drawn aluminum.
dc6391443a6048128573f9da2acf7eaf
www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00767, Revision 1, 7.18.12 Specifications are subject to change without notice. 105 Standard Compression AWAC ACCESSORIES Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 336 4 18/1 AWAC, the complete catalog number is: 8576.719 Compression Joints—7500 and 8500 Series for AWAC Conductors Notes: 1 Joints are lined with compound 2 Installation Instructions for Joints are on page 140 JOINT CATALOG NUMBER CONDUCTOR DIE SIZE WEIGHT COLOR CODE DIMENSION L SIZE STRANDING DIA. ALUMINUM HEX DIES IN LBS KG IN MM 7500 SERIES 7506 298 4 6/1 0 245 06AH 0 2 0 08 Orange 12 0 305 7509 375 2 6/1 0 309 09AH 0 3 0 15 Red 12 0 305 7511 453 1/0 6/1 0 390 11AH 0 6 0 28 Yellow 14 0 356 7512 484 2/0 6/1 0 438 12AH 0 8 0 37 Gray 14 0 356 7513 625 4/0 6/1 0 552 13AH 1 0 0 45 Pink 16 0 406 8500 SERIES 8508 312 4 5/2 0 261 08AH 0 2 0 10 Red 9 4 238 8510 344 4 4/3 0 281 10AH 0 5 0 23 Red 12 3 313 8510 438 2 5/2 0 330 10AH 0 4 0 20 Red 12 3 313 8511 438 2 4/3 0 355 11AH 0 6 0 27 Yellow 13 0 330 8512 516 1/0 5/2 0 416 12AH 0 7 0 32 Clear 12 8 324 8513 531 1/0 4/3 0 447 13AH 1 3 0 59 Clear 16 8 425 8513 542 2/0 5/2 0 467 13AH 1 3 0 59 Clear 16 8 425 8576 594 2/0 4/3 0 502 76AH 1 7 0 77 Clear 20 5 521 8576 656 4/0 15/4 0 575 76AH 1 6 0 73 Clear 20 5 521 8576 719 336 4m 18/1 0 679 76AH 1 4 0 64 Clear 20 5 521 The 7500 and 8500 Series Compression Joints are specifically designed for AWAC conductors The aluminum joint is fabricated from AFL seamless drawn aluminum All compression joints are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish
Features:
- ANSI C119.4 Class A qualified
- Designed for full-tension use; maintaining a minimum of 95% of the ASTM-rated strength of the conductor
- Permanent markings for ease of installation and identification
Applications:
- Compression joints for AWAC conductors

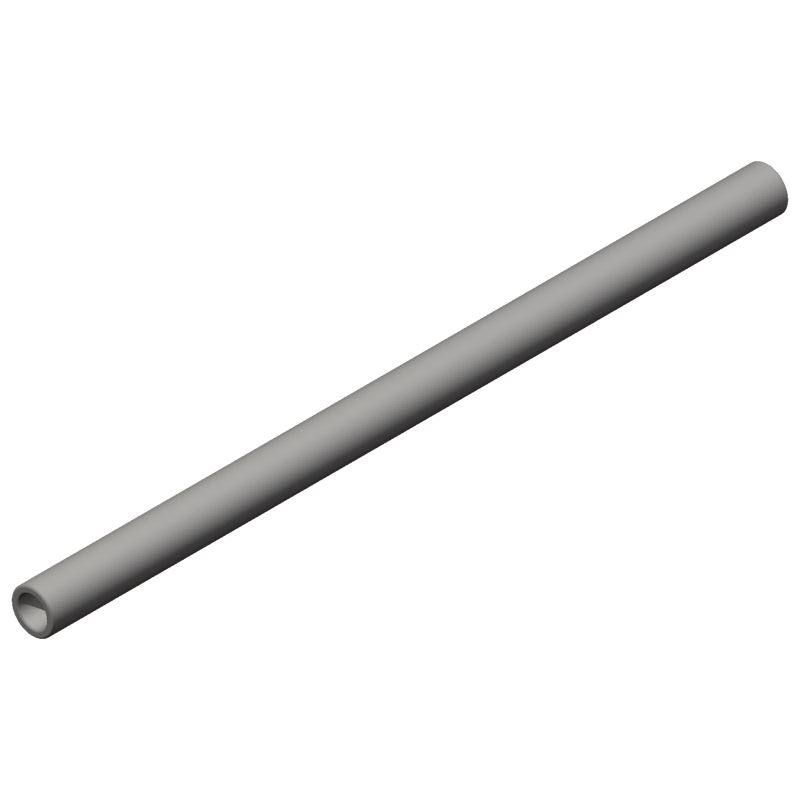

The7500 and 8500 Series Compression Joint Assembly is specifically designed for AWAC conductors. The aluminum body is fabricated from AFL seamless drawn aluminum.
All compression joints are designed for full tension use, achieving a minimum of 95% of the ASTM-rated strength of the conductor on which they are used. Each compression joint assembly comes with an aluminum joint and a steel sleeve.
For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
