The 5000 Series Jumper Connector is designed for ACSR conductors. The jumper connector is fabricated from AFL seamless drawn aluminum.
dc6391443a6048128573f9da2acf7eaf

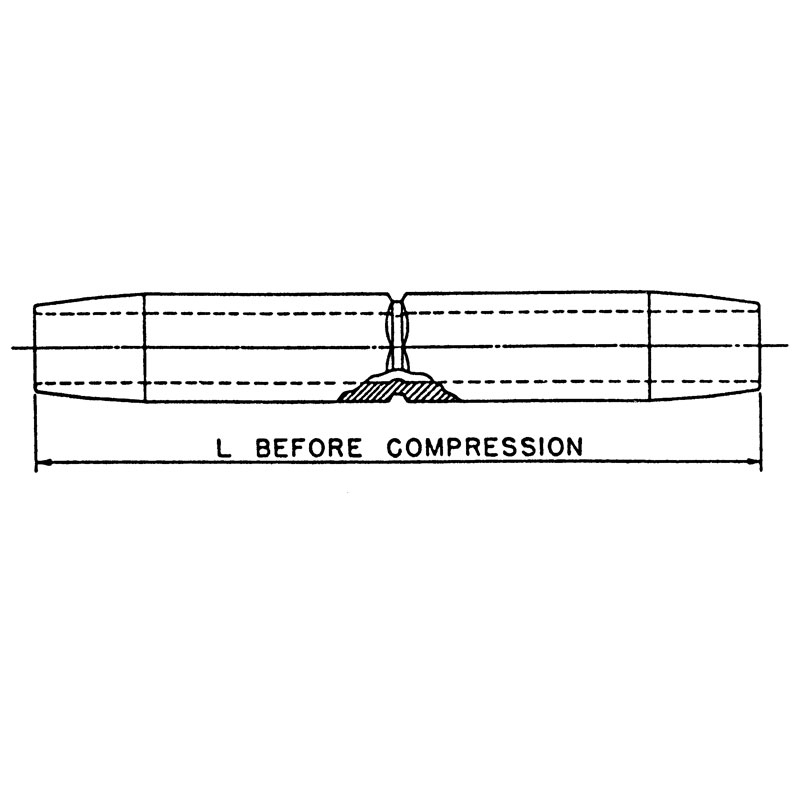

www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. 34 Standard Compression ACSR ACCESSORIES Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 795 Drake conductor, the complete catalog number is: 5030.116 Jumper Connectors—5000 Series for ACSR Conductors The 5000 Series Jumper Connector is designed for ACSR conductors The jumper connector is fabricated from AFL seamless drawn aluminum All jumper connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor on which it is being used For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish JUMPER CONNECTOR CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE NAME SIZE STRANDING DIA. ALUMINUM HEX DIES KCMIL AL/ST IN LBS KG IN MM 5074 438 Raven 1/0 6/1 0 398 74AH 0 3 0 11 7 0 178 5074 484 Quail 2/0 6/1 0 447 74AH 0 2 0 10 7 0 178 5075 547 Pigeon 3/0 6/1 0 502 75AH 0 4 0 20 8 0 203 5075 609 Penguin 4/0 6/1 0 563 75AH 0 4 0 18 8 0 203 5076 656 Waxwing 266 8 18/1 0 609 76AH 0 7 0 31 9 0 229 5076 688 Owl 266 8 6/7 0 633 76AH 0 7 0 29 9 0 229 5076 688 Partridge 266 8 26/7 0 642 76AH 0 7 0 29 9 0 229 5076 719 Ostrich 300 0 26/7 0 680 76AH 0 6 0 28 9 0 229 5076 719 Merlin 336 4 18/1 0 684 76AH 0 6 0 28 9 0 229 5076 781 Linnet 336 4 26/7 0 720 76AH 0 6 0 27 9 0 229 5076 781 Chickadee 397 5 18/1 0 743 76AH 0 6 0 27 9 0 229 5020 781 Linnet 336 4 26/7 0 720 20AH 0 7 0 33 10 0 254 5020 781 Oriole 336 4 30/7 0 741 20AH 0 7 0 33 10 0 254 5020 781 Chickadee 397 5 18/1 0 743 20AH 0 7 0 33 10 0 254 5020 812 Brant 397 5 24/7 0 772 20AH 0 7 0 31 10 0 254 5020 844 Ibis 397 5 26/7 0 783 20AH 0 6 0 29 10 0 254 5020 844 Lark 397 5 30/7 0 806 20AH 0 6 0 29 10 0 254 5024 875 Pelican 477 0 18/1 0 814 24AH 1 2 0 54 11 0 279 Notes: 1 AFL Filler Compound (AFC) Requirements are on page 115 2 Installation Instructions for Jumper Connectors are on page 143
www.AFLglobal.com or 800-866-7385 35 Standard Compression © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. ACSR ACCESSORIES JUMPER CONNECTOR CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE NAME SIZE STRANDING DIA. ALUMINUM HEX DIES KCMIL AL/ST IN LBS KG IN MM 5024 938 Flicker 477 0 24/7 0 846 24AH 1 1 0 50 11 0 279 5024 938 Hawk 477 0 26/7 0 858 24AH 1 1 0 50 11 0 279 5024 938 Hen 477 0 30/7 0 883 24AH 1 1 0 50 11 0 279 5024 938 Osprey 556 5 18/1 0 879 24AH 1 1 0 50 11 0 279 5024 969 Parakeet 556 5 24/7 0 914 24AH 1 0 0 45 11 0 279 5024 969 Dove 556 5 26/7 0 927 24AH 1 0 0 45 11 0 279 5027 100 Eagle 556 5 30/7 0 953 27AH 1 6 0 73 12 0 305 5027 100 Peacock 605 0 24/7 0 953 27AH 1 6 0 73 12 0 305 5027 100 Squab 605 0 26/7 0 966 27AH 1 6 0 73 12 0 305 5027 100 Swift 636 0 36/1 0 930 27AH 1 6 0 73 12 0 305 5027 100 Kingbird 636 0 18/1 0 940 27AH 1 6 0 73 12 0 305 5027 106 Teal 605 0 30/19 0 994 27AH 1 5 0 68 12 0 305 5027 106 Rook 636 0 24/7 0 977 27AH 1 5 0 68 12 0 305 5027 106 Grosbeak 636 0 26/7 0 990 27AH 1 5 0 68 12 0 305 5027 106 Egret 636 0 30/19 1 019 27AH 1 5 0 68 12 0 305 5027 106 Flamingo 666 6 24/7 1 000 27AH 1 5 0 68 12 0 305 5030 109 Stilt 715 5 24/7 1 036 30AH 2 1 0 95 13 0 330 5030 109 Starling 715 5 26/7 1 051 30AH 2 1 0 95 13 0 330 5030 116 Redwing 715 5 30/19 1 081 30AH 2 0 0 91 13 0 330 5030 109 Coot 795 0 36/1 1 040 30AH 2 1 0 95 13 0 330 5030 116 Tern 795 0 45/7 1 063 30AH 2 0 0 91 13 0 330 5030 116 Condor 795 0 54/7 1 093 30AH 2 0 0 91 13 0 330 5030 116 Drake 795 0 26/7 1 108 30AH 2 0 0 91 13 0 330 5030 122 Mallard 795 0 30/19 1 140 30AH 1 8 0 82 13 0 330 5030 116 Cuckoo 795 0 24/7 1 092 30AH 2 0 0 91 13 0 330 5030 122 Ruddy 900 0 45/7 1 131 30AH 1 8 0 82 13 0 330 5030 122 Canary 900 0 54/7 1 162 30AH 1 8 0 82 13 0 330 5030 122 Catbird 954 0 36/1 1 140 30AH 1 8 0 82 13 0 330 5030 122 Rail 954 0 45/7 1 165 30AH 1 8 0 82 13 0 330 5030 125 Cardinal 954 0 54/7 1 196 30AH 1 8 0 82 13 0 330 5030 125 Tanager 1033 5 36/1 1 186 30AH 1 8 0 82 13 0 330 5034 128 0rtolan 1033 5 45/7 1 212 34AH 2 8 1 27 14 0 356 5034 134 Curlew 1033 5 54/7 1 244 34AH 2 6 1 18 14 0 356 5034 134 Bluejay 1113 0 45/7 1 259 34AH 2 6 1 18 14 0 356 5034 138 Bunting 1192 5 45/7 1 302 34AH 2 5 1 13 14 0 356 5036 144 Bittern 1272 0 45/7 1 345 36AH 3 2 1 45 15 0 381 5036 147 Pheasant 1272 0 54/19 1 382 36AH 3 1 1 41 15 0 381 5036 147 Dipper 1351 5 45/7 1 386 36AH 3 1 1 41 15 0 381 5038 150 Martin 1351 5 54/19 1 424 38AH 4 0 1 81 16 0 406 5038 150 Bobolink 1431 0 45/7 1 427 38AH 4 0 1 81 16 0 406 5038 156 Plover 1431 0 54/19 1 465 38AH 3 8 1 72 16 0 406 5038 156 Nuthatch 1510 5 45/7 1 466 38AH 3 8 1 72 16 0 406 Jumper Connectors—5000 Series for ACSR Conductors (cont.)
www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. 36 Standard Compression ACSR ACCESSORIES JUMPER CONNECTOR CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION L CODE NAME SIZE STRANDING DIA. ALUMINUM HEX DIES KCMIL AL/ST IN LBS KG IN MM 5040 162 Parrot 1510 5 54/19 1 506 40AH 4 5 2 04 17 0 432 5040 162 Lapwing 1590 0 45/7 1 504 40AH 4 5 2 04 17 0 432 5040 162 Falcon 1590 0 54/19 1 545 40AH 4 5 2 04 17 0 432 5042 178 Chukar 1780 0 84/19 1 602 42AH 4 6 2 09 17 0 432 5042 178 — 2034 0 72/7 1 681 42AH 4 6 2 09 17 0 432 5044 184 Bluebird 2156 0 84/19 1 762 44AH 5 4 2 45 17 0 432 5044 181 Kiwi 2167 0 72/7 1 737 44AH 5 4 2 45 17 0 432 5044 188 Thrasher 2312 0 76/19 1 802 44AH 5 0 2 27 17 0 432 5048 197 Joree 2515 0 76/19 1 880 48AH 7 3 3 31 19 0 483 Jumper Connectors—5000 Series for ACSR Conductors (cont.)
Features:
- ANSI C119.4 Class A qualified
- Permanent markings for ease of installation and identification
Applications:
- Compression jumper for ACSR conductors
The 5000 Series Jumper Connector is designed for ACSR conductors. The jumper connector is fabricated from AFL seamless drawn aluminum. All jumper connectors are designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor on which it is being used.
For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
