The 5200 Series Repair Sleeve is designed for AAC conductors. The repair sleeve incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
dc6391443a6048128573f9da2acf7eaf

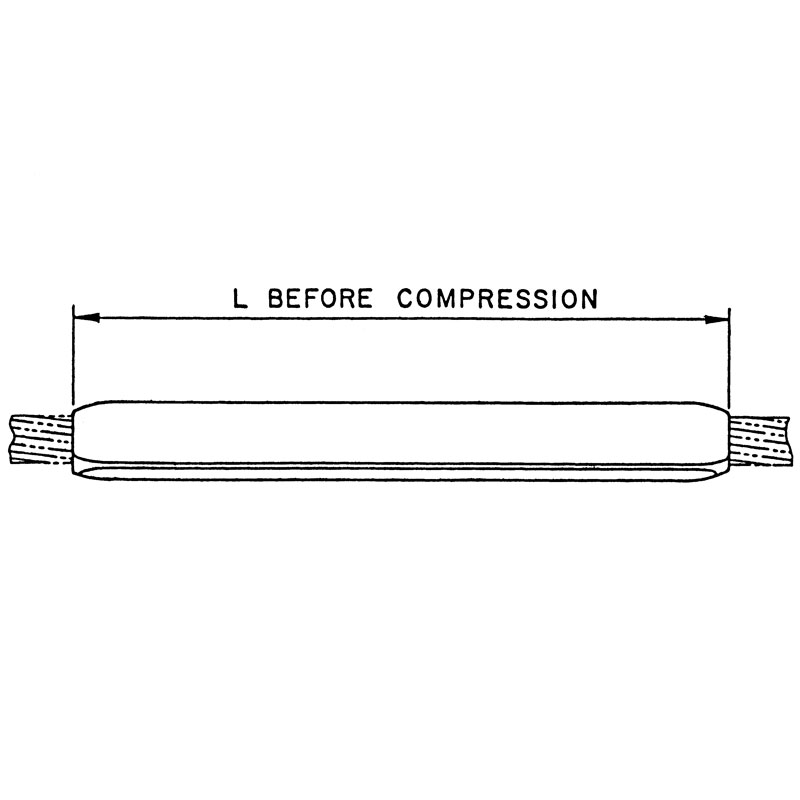

www.AFLglobal.com or 800-866-7385 Standard Compression © 2004, AFL, all rights reserved. PP-3-00765, Revision 1, 7.18.12 Specifications are subject to change without notice. 71 AAC ACCESSORIES Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 795 Arbutus conductor, the complete catalog number is: 5230.3 Repair Sleeves—5200 Series for AAC Conductors The 5200 Series Repair Sleeve is designed for AAC conductors The repair sleeve incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed The repair sleeve will restore 95% of the rated strength of the conductor with up to one-third of the aluminum strands damaged Notes: 1 AFL Filler Compound (AFC) Requirements are on page 115 2 Installation Instructions for Repair Sleeves are on page 142 REPAIR SLEEVE AFL NO. CONDUCTOR DIE SIZE WEIGHT DIMENSION L CODE NAME SIZE STRANDING DIA. ALUMINUM HEX DIE KCMIL/AWG AL IN LBS KG IN MM 5274 Aster 2/0 7 0 414 74AH 0 2 0 10 7 6 192 5274 Phlox 3/0 7 0 464 74AH 0 2 0 10 7 6 192 5275 Oxlip 4/0 7 0 522 75AH 0 4 0 18 8 6 217 5275 Valerian 250 0 19 0 575 75AH 0 4 0 18 8 6 217 5275 Laurel 266 8 19 0 593 75AH 0 4 0 18 8 6 217 5276 Peony 300 0 19 0 629 76AH 0 7 0 30 10 0 254 5276 Tulip 336 4 19 0 666 76AH 0 7 0 30 10 0 254 5276 Daffodil 350 0 19 0 679 76AH 0 7 0 30 10 0 254 5276 Canna 397 5 19 0 724 76AH 0 7 0 30 10 0 254 5220 3 Goldentuft 450 0 19 0 770 20AH 1 0 0 45 14 5 368 5220 3 Yarrow 450 0 37 0 772 20AH 1 0 0 45 14 5 368 5220 3 Cosmos 477 0 19 0 793 20AH 1 0 0 45 14 5 368 5224 3 Syringa 477 0 37 0 795 24AH 1 7 0 77 15 5 394 5224 3 Cosmos 477 0 19 0 793 24AH 1 7 0 77 15 5 394 5224 3 Syringa 477 0 37 0 795 24AH 1 7 0 77 15 5 394 5224 3 Zinnia 500 0 19 0 811 24AH 1 7 0 77 15 5 394 5224 3 Hyacinth 500 0 37 0 813 24AH 1 7 0 77 15 5 394 5224 3 Dahlia 556 5 19 0 856 24AH 1 7 0 77 15 5 394 5224 3 Mistletoe 556 5 387 0 858 24AH 1 7 0 77 15 5 394 5224 3 Meadowsweet 600 0 37 0 891 24AH 1 7 0 77 15 5 394 5224 3 Orchid 636 0 37 0 918 24AH 1 7 0 77 15 5 394
www.AFLglobal.com or 800-866-7385 Standard Compression © 2004, AFL, all rights reserved. PP-3-00765, Revision 1, 7.18.12 Specifications are subject to change without notice. 72 AAC ACCESSORIES REPAIR SLEEVE AFL NO. CONDUCTOR DIE SIZE WEIGHT DIMENSION L CODE NAME SIZE STRANDING DIA. ALUMINUM HEX DIE KCMIL/AWG AL IN LBS KG IN MM 5227 3 Heuchera 650 0 37 0 928 27AH 2 6 1 18 18 3 464 5227 3 Flag 700 0 61 0 964 27AH 2 6 1 18 18 3 464 5227 3 Violet 715 5 37 0 974 27AH 2 6 1 18 18 3 464 5227 3 Nasturtium 715 5 61 0 975 27AH 2 6 1 18 18 3 464 5227 3 Petunia 750 0 37 0 997 27AH 2 6 1 18 18 3 464 5227 3 Cattail 750 0 61 0 998 27AH 2 6 1 18 18 3 464 5230 3 Arbutus 795 0 37 1 026 30AH 3 0 1 36 19 1 486 5230 3 Lilac 795 0 61 1 028 30AH 3 0 1 36 19 1 486 5230 3 — 800 0 37 1 031 30AH 3 0 1 36 19 1 486 5230 3 Heliotrope 800 0 61 1 031 30AH 3 0 1 36 19 1 486 5230 3 Snapdragon 900 0 61 1 094 30AH 3 0 1 36 19 1 486 5230 3 Magnolia 954 0 37 1 124 30AH 3 0 1 36 19 1 486 5230 3 Goldenrod 954 0 61 1 126 30AH 3 0 1 36 19 1 486 5230 3 Camellia 1000 0 61 1 152 30AH 3 0 1 36 19 1 486 5230 3 Bluebell 1033 5 37 1 170 30AH 3 0 1 36 19 1 486 5230 3 Larkspur 1033 5 61 1 172 30AH 3 0 1 36 19 1 486 5234 3 Marigold 1113 0 61 1 216 34AH 4 2 1 91 20 1 511 5234 3 Hawthorn 1192 5 61 1 258 34AH 4 2 1 91 20 1 511 5234 3 Narcissus 1272 0 61 1 300 34AH 4 2 1 91 20 1 511 5236 3 Columbine 1351 0 61 1 340 36AH 4 4 2 00 21 0 533 5236 3 Carnation 1431 0 61 1 379 36AH 4 4 2 00 21 0 533 5236 3 — 1500 0 91 1 412 36AH 4 4 2 00 21 0 533 5236 3 Gladiolus 1510 5 61 1 187 36AH 4 4 2 00 21 0 533 5238 3 Coreopsis 1590 0 61 1 250 38AH 5 2 2 36 21 9 556 5238 3 Dogwood 1590 0 91 1 454 38AH 5 2 2 36 21 9 556 5240 3 Jessamine 1750 0 61 1 525 40AH 6 1 2 77 22 8 578 5242 3 Cowslip 2000 0 91 1 630 42AH 6 8 3 08 23 6 600 5244 3 Sagebrush 2250 0 91 1 729 44AH 8 7 3 95 24 5 622 5244 3 — 2300 0 61 1 750 44AH 8 7 3 95 24 5 622 5244 3 — 2300 0 91 1 750 44AH 8 7 3 95 24 5 622 5244 3 Lupine 2500 0 91 1 823 44AH 8 7 3 95 24 5 622 5248 3 Bitterroot 2750 0 91 1 912 48AH 9 1 4 13 24 5 622 Repair Sleeves—5200 Series for AAC Conductors (cont.)
Features:
- Restores the conductor to 95% of its rated strength, where up to one-third of the aluminum strands are damaged
- ANSI C119.4 Class A qualified
- Permanent markings for ease of installation and identification
Applications:
- Compression repair sleeve for AAC conductors
The 5200 Series Repair Sleeve is designed for AAC conductors. The repair sleeve incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
The repair sleeve will restore 95% of the rated strength of the conductor with up to one-third of the aluminum strands damaged.
