The 5500 Series Tee Connector is a permanent drop designed for AAC conductors. The tee connector is fabricated from AFL seamless drawn aluminum.
dc6391443a6048128573f9da2acf7eaf

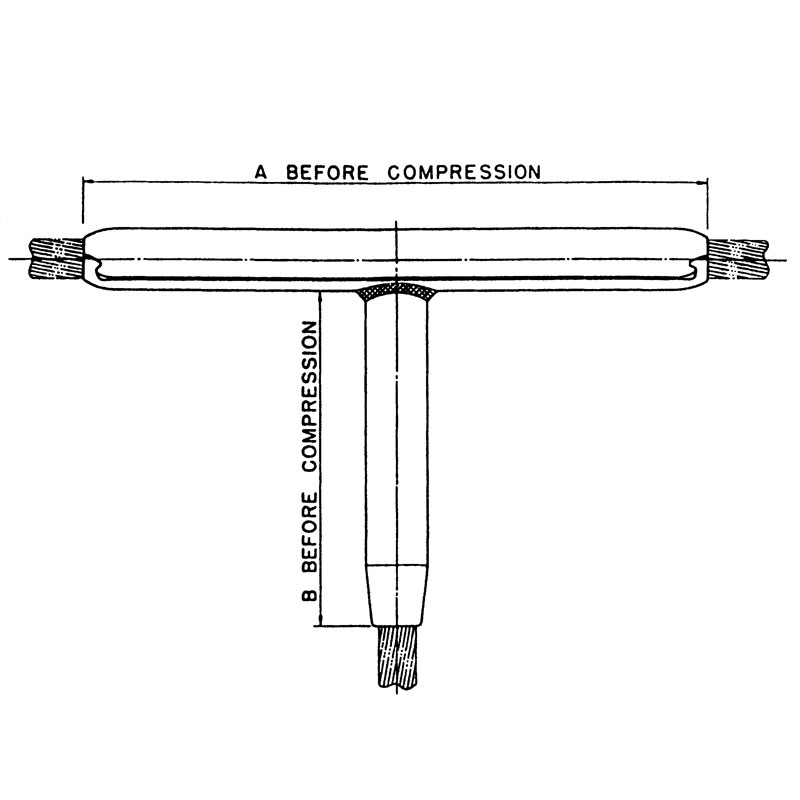

www.AFLglobal.com or 800-866-7385 Standard Compression © 2004, AFL, all rights reserved. PP-3-00765, Revision 1, 7.18.12 Specifications are subject to change without notice. 82 AAC ACCESSORIES Tee Connector—5500 Series for AAC Conductors, Open Run The 5500 Series Tee Connector is a permanent drop designed for AAC conductors The tee connector is fabricated from AFL seamless drawn aluminum The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed The branch portion of the tee connector is designed for limited tension use, maintaining a minimum of 40% of the ASTM rated strength of the conductor on which it is being used For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Ordering Instructions Step 1: Determine Run Catalog Number Determine the run catalog number based on the conductor being used Step 2: Determine Branch Catalog Number Determine the branch catalog number based on the conductor being used Step 3: Assemble Catalog Number Example: For 795 Arbutus conductor in both the Run and Branch, the complete catalog number is: 5530.3 – 30.109 Run Catalog Number + Notes: 1 AFL Filler Compound (AFC) Requirements are on page 115 2 Installation Instructions for Open Run Tee Connectors are on page 145 Branch Catalog Number
www.AFLglobal.com or 800-866-7385 Standard Compression © 2004, AFL, all rights reserved. PP-3-00765, Revision 1, 7.18.12 Specifications are subject to change without notice. 83 AAC ACCESSORIES Tee Connector—5500 Series for AAC Conductors, Open Run (cont.) CONDUCTOR CATALOG NUMBER DIE SIZE WEIGHT DIMENSIONS CODE WORD SIZE STRANDING DIA. RUN CONDUCTOR BRANCH CONDUCTOR RUN BRANCH A B KCMIL AL IN LBS KG LBS KG IN MM IN MM Aster 2/0 7 0 414 5574 74 438 74AH 0 2 0 10 0 2 0 09 7 6 192 5 5 140 Phlox 3/0 7 0 464 5574 74 484 74AH 0 2 0 10 0 8 0 09 7 6 192 5 5 140 Oxlip 4/0 7 0 522 5575 75 547 75AH 0 4 0 18 0 3 0 14 8 6 217 6 0 152 Laurel 266 8 19 0 593 5575 75 609 75AH 0 4 0 18 0 3 0 14 8 6 217 6 0 152 Tulip 336 4 19 0 666 5576 76 688 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Canna 397 5 19 0 724 5576 76 750 76AH 0 7 0 30 0 5 0 23 10 0 254 6 5 165 Goldentuft 450 0 19 0 770 5520 3 20 812 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 164 Yarrow 450 0 37 0 772 5520 3 20 812 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 164 Cosmos 477 0 19 0 793 5520 3 20 812 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 164 Syringa 477 0 37 0 795 5520 3 20 812 20AH 1 0 0 45 0 6 0 27 14 5 368 7 6 164 Cosmos 477 0 19 0 793 5524 3 24 875 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Syringa 477 0 37 0 795 5524 3 24 875 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Zinnia 500 0 19 0 811 5524 3 24 875 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Hyacinth 500 0 37 0 813 5524 3 24 875 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Dahlia 556 5 19 0 856 5524 3 24 938 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Mistletoe 556 5 37 0 858 5524 3 24 938 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Meadowsweet 600 0 37 0 891 5524 3 24 938 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Orchid 636 0 37 0 918 5524 3 24 969 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Heuchera 650 0 37 0 928 5524 3 24 969 24AH 1 7 0 77 0 8 0 36 15 5 394 8 3 210 Flag 700 0 61 0 964 5527 3 27 100 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Violet 715 5 37 0 974 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Nasturtium 715 5 61 0 975 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Petunia 750 0 37 0 997 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Cattail 750 0 61 0 998 5527 3 27 106 27AH 2 7 1 22 1 3 0 59 18 3 464 8 8 225 Arbutus 795 0 37 1 026 5530 3 30 109 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Lilac 795 0 61 1 028 5530 3 30 109 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 — 800 0 37 1 031 5530 3 30 109 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Heliotrope 800 0 61 1 031 5530 3 30 109 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Snapdragon 900 0 61 1 094 5530 3 30 116 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Magnolia 954 0 37 1 124 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Goldenrod 954 0 61 1 126 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Camellia 1000 0 61 1 152 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Bluebell 1033 5 37 1 170 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Larkspur 1033 5 61 1 172 5530 3 30 122 30AH 3 3 1 50 1 7 0 77 19 1 486 9 4 240 Marigold 1113 0 61 1 216 5534 3 34 128 34AH 4 5 2 04 2 2 1 00 20 1 511 10 1 256 Hawthorn 1192 5 61 1 258 5534 3 34 134 34AH 4 5 2 04 2 2 1 00 20 1 511 10 1 256
www.AFLglobal.com or 800-866-7385 Standard Compression © 2004, AFL, all rights reserved. PP-3-00765, Revision 1, 7.18.12 Specifications are subject to change without notice. 84 AAC ACCESSORIES CONDUCTOR CATALOG NUMBER DIE SIZE WEIGHT DIMENSIONS CODE WORD SIZE STRANDING DIA. RUN CONDUCTOR BRANCH CONDUCTOR RUN BRANCH A B KCMIL AL IN LBS KG LBS KG IN MM IN MM Narcissus 1272 0 61 1 300 5534 3 34 134 34AH 4 5 2 04 2 2 1 00 20 1 511 10 1 256 Columbine 1351 0 61 1 340 5536 3 36 144 36AH 5 0 2 27 2 5 1 13 21 0 533 10 6 270 Carnation 1431 0 61 1 379 5536 3 36 144 36AH 5 0 2 27 2 5 1 13 21 0 533 10 6 270 — 1500 0 91 1 412 5536 3 36 147 36AH 5 0 2 27 2 5 1 13 21 0 533 10 6 270 Gladiolus 1510 5 61 1 187 5536 3 36 147 36AH 5 0 2 27 2 5 1 13 21 0 533 10 6 270 Coreopsis 1590 0 61 1 250 5538 3 38 156 38AH 5 9 2 68 3 0 1 36 21 9 556 11 2 284 Dogwood 1590 0 91 1 454 5538 3 38 156 38AH 5 9 2 68 3 0 1 36 21 9 556 11 2 284 Jessamine 1750 0 61 1 525 5540 3 40 162 40AH 6 6 2 99 3 4 1 54 22 8 578 11 8 298 Cowslip 2000 0 91 1 630 5542 3 42 178 42AH 7 7 3 49 3 9 1 77 23 6 600 12 4 314 Sagebrush 2250 0 91 1 729 5544 3 44 181 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 — 2300 0 61 1 750 5544 3 44 181 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 — 2300 0 91 1 750 5544 3 44 181 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 Lupine 2500 0 91 1 823 5544 3 44 188 44AH 6 8 3 08 4 0 1 81 24 5 622 12 0 305 Bitterroot 2750 0 91 1 912 5548 3 48 197 48AH 9 1 4 13 5 2 2 36 24 5 622 14 0 358 Tee Connector—5500 Series for AAC Conductors, Open Run (cont.)
Features:
- ANSI C119.4 Class A qualified
- Permanent markings for ease of installation and identification
Applications:
- Compression tee connector for AAC conductors
The 5500 Series Tee Connector is a permanent drop designed for AAC conductors. The tee connector is fabricated from AFL seamless drawn aluminum.
The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
The branch portion of the tee connector is designed for limited tension use, maintaining a minimum of 40% of the ASTM-rated strength of the conductor on which it is being used.
For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
