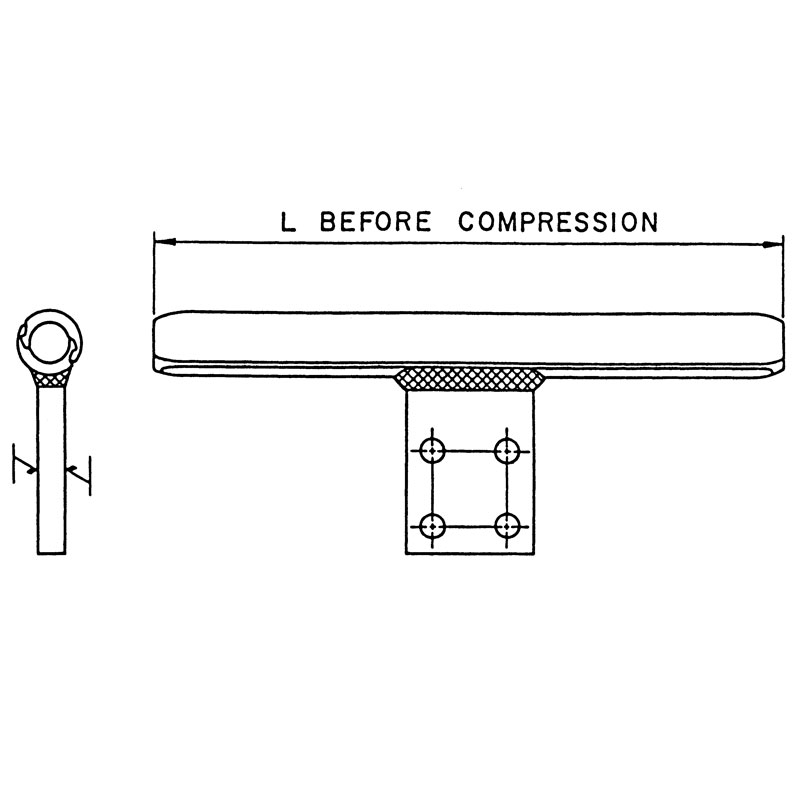

The 5300 Series Tee Tap is a permanent or temporary drop designed for ACSR conductors. It is fabricated from AFL seamless drawn aluminum.
dc6391443a6048128573f9da2acf7eaf
49 Standard Compression ACSR Accessories Standard Compression – ACSR © 2004, AFL, all rights reserved. PP-3-00766, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Tee Tap—5300 Series for ACSR Conductors, Open Run The 5300 Series Tee Tap is a permanent or temporary drop designed for ACSR conductors. It is fabricated from AFL seamless drawn aluminum. The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed. For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Ordering Instructions Step 1: Catalog Number Determine the catalog number based on the conductor being used. Step 2: Extra High Voltage Finish For Extra High Voltage Finish, use ‘EHV’. For Standard Finish, leave blank. Step 3: Assemble Catalog Number. Example: For 795 Drake conductor with EHV finish, the complete catalog number is: 5330.3EHV Catalog Number EHV Finish + Notes: 1. Pad Dimensions are on page 117. 2. AFL Filler Compound (AFC) requirements are on page 115. 3. Bolt sizes and torque recommendations are on page 118. 4. Installation Instructions for Open Run Tee Taps are on page 144.
© 2004, AFL, all rights reserved. PP-3-00766, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 50 Standard Compression ACSR Accessories Standard Compression – ACSR Tee Tap—5300 Series for ACSR Conductors, Open Run (cont.) TEE TAP CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION A PAD SIZE CODE WORD SIZE STRANDING DIA. ALUMINUM HEX DIE KCMIL AL/ST IN LBS KG IN MM 5374 Raven 1/0 6/1 0.398 74AH 0.5 0.20 7.6 192 B 5374 Quail 2/0 6/1 0.447 74AH 0.5 0.20 7.6 192 B 5375 Pigeon 3/0 6/1 0.502 75AH 0.7 0.34 8.6 217 B 5375 Penguin 4/0 6/1 0.563 75AH 0.7 0.34 8.6 217 B 5376 Waxwing 266.8 18/1 0.609 76AH 1.1 0.50 10.0 254 B 5376 Owl 266.8 6/7 0.633 76AH 1.1 0.50 10.0 254 B 5376 Partridge 266.8 26/7 0.642 76AH 1.1 0.50 10.0 254 B 5376 Ostrich 300.0 26/7 0.680 76AH 1.1 0.50 10.0 254 B 5376 Merlin 336.4 18/1 0.684 76AH 1.1 0.50 10.0 254 B 5376 Linnet 336.4 26/7 0.720 76AH 1.1 0.50 10.0 254 B 5376 Chickadee 397.5 18/1 0.743 76AH 1.1 0.50 10.0 254 B 5320.3 Linnet 336.4 26/7 0.720 20AH 1.2 0.54 12.5 318 B 5320.3 Oriole 336.4 30/7 0.741 20AH 1.2 0.54 12.5 318 B 5320.3 Chickadee 397.5 18/1 0.743 20AH 1.2 0.54 12.5 318 B 5320.3 Brant 397.5 24/7 0.772 20AH 1.2 0.54 12.5 318 B 5320.3 Ibis 397.5 26/7 0.783 20AH 1.2 0.54 12.5 318 B 5320.3 Lark 397.5 30/7 0.806 20AH 1.2 0.54 12.5 318 B 5324.3 Pelican 477.0 18/1 0.814 24AH 1.8 0.82 13.3 337 B 5324.3 Flicker 477.0 24/7 0.846 24AH 1.8 0.82 13.3 337 B 5324.3 Hawk 477.0 26/7 0.858 24AH 1.8 0.82 13.3 337 B 5324.3 Hen 477.0 30/7 0.883 24AH 1.8 0.82 13.3 337 B 5324.3 Osprey 556.5 18/1 0.879 24AH 1.8 0.82 13.3 337 B 5234.3 Parakeet 556.5 24/7 0.914 24AH 1.8 0.82 13.3 337 B 5324.3 Dove 556.5 26/7 0.927 24AH 1.8 0.82 13.3 337 B 5327.3 Eagle 556.5 30/7 0.953 27AH 3.0 1.36 15.3 387 D 5327.3 Peacock 605.0 24/7 0.953 27AH 3.0 1.36 15.3 387 D 5327.3 Squab 605.0 26/7 0.966 27AH 3.0 1.36 15.3 387 D 5327.3 Teal 605.0 30/19 0.994 27AH 3.0 1.36 15.3 387 D 5327.3 Swift 636.0 36/1 0.930 27AH 3.0 1.36 15.3 387 D 5327.3 Kingbird 636.0 18/1 0.940 27AH 3.0 1.36 15.3 387 D 5327.3 Rook 636.0 24/7 0.977 27AH 3.0 1.36 15.3 387 D 5327.3 Grosbeak 636.0 26/7 0.990 27AH 3.0 1.36 15.3 387 D 5327.3 Egret 636.0 30/19 1.019 27AH 3.0 1.36 15.3 387 D 5327.3 Flamingo 666.6 24/7 1.000 27AH 3.0 1.36 15.3 387 D 5330.3 Stilt 715.5 24/7 1.036 30AH 3.4 1.54 16.8 425 D 5330.3 Starling 715.5 26/7 1.051 30AH 3.4 1.54 16.8 425 D 5330.3 Redwing 715.5 30/19 1.081 30AH 3.4 1.54 16.8 425 D 5330.3 Coot 795.0 36/1 1.040 30AH 3.4 1.54 16.8 425 D 5330.3 Tern 795.0 45/7 1.063 30AH 3.4 1.54 16.8 425 D 5330.3 Condor 795.0 54/7 1.093 30AH 3.4 1.54 16.8 425 D
51 Standard Compression ACSR Accessories Standard Compression – ACSR © 2004, AFL, all rights reserved. PP-3-00766, Revision 5, 9.29.2021 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 Tee Tap—5300 Series for ACSR Conductors, Open Run (cont.) TEE TAP CATALOG NUMBER CONDUCTOR DIE SIZE TOTAL WEIGHT DIMENSION A PAD SIZE CODE WORD SIZE STRANDING DIA. ALUMINUM HEX DIE KCMIL AL/ST IN LBS KG IN MM 5330.3 Drake 795.0 26/7 1.108 30AH 3.4 1.54 16.8 425 D 5330.3 Mallard 795.0 30/19 1.140 30AH 3.4 1.54 16.8 425 D 5330.3 Cuckoo 795.0 24/7 1.092 30AH 3.4 1.54 16.8 425 D 5330.3 Ruddy 900.0 45/7 1.131 30AH 3.4 1.54 16.8 425 D 5330.3 Canary 900.0 54/7 1.162 30AH 3.4 1.54 16.8 425 D 5330.3 Catbird 954.0 36/1 1.140 30AH 3.4 1.54 16.8 425 D 5330.3 Rail 954.0 45/7 1.165 30AH 3.4 1.54 16.8 425 D 5330.3 Cardinal 954.0 54/7 1.196 30AH 3.4 1.54 16.8 425 D 5330.3 Tanager 1033.5 36/1 1.186 30AH 3.4 1.54 16.8 425 D 5334.3 0rtolan 1033.5 45/7 1.212 34AH 4.5 2.04 17.8 451 D 5334.3 Curlew 1033.5 54/7 1.244 34AH 4.5 2.04 17.8 451 D 5334.3 Bluejay 1113.0 45/7 1.259 34AH 4.5 2.04 17.8 451 D 5334.3 Bunting 1192.5 45/7 1.302 34AH 4.5 2.04 17.8 451 D 5336.3 Bittern 1272.0 45/7 1.345 36AH 4.7 2.13 18.5 470 D 5336.3 Pheasant 1272.0 54/19 1.382 36AH 4.7 2.13 18.5 470 D 5336.3 Dipper 1351.5 45/7 1.386 36AH 4.7 2.13 18.5 470 D 5338.3 Martin 1351.5 54/19 1.424 38AH 5.3 2.40 19.0 483 D 5338.3 Bobolink 1431.0 45/7 1.427 38AH 5.3 2.40 19.0 483 D 5338.3 Plover 1431.0 54/19 1.465 38AH 5.3 2.40 19.0 483 D 5338.3 Nuthatch 1510.5 45/7 1.466 38AH 5.3 2.40 19.0 483 D 5340.3 Parrot 1510.5 54/19 1.506 40AH 6.1 2.77 19.5 495 D 5340.3 Lapwing 1590.0 45/7 1.504 40AH 6.1 2.77 19.5 495 D 5340.3 Falcon 1590.0 54/19 1.545 40AH 6.1 2.77 19.5 495 D 5342.3 Chukar 1780.0 84/19 1.602 42AH 7.7 3.49 21.0 533 E 5344.3 — 2034.0 72/7 1.681 44AH 9.7 4.40 22.8 578 E 5344.3 Bluebird 2156.0 84/19 1.762 44AH 9.7 4.40 22.8 578 E 5344.3 Kiwi 2167.0 72/7 1.737 44AH 9.7 4.40 22.8 578 E 5344.3 Thrasher 2312.0 76/19 1.802 44AH 9.7 4.40 22.8 578 E 5348.3 Joree 2515.0 76/19 1.880 48AH 10.6 4.81 24.0 610 E 5344.3 Kiwi 2167.0 72/7 1.737 44AH 9.7 4.40 22.8 578 E 5344.3 Thrasher 2312.0 76/19 1.802 44AH 9.7 4.40 22.8 578 E 5348.3 Joree 2515.0 76/19 1.880 48AH 10.6 4.81 24.0 610 E
Features:
- ANSI C119.4 Class A qualified
- Permanent markings for ease of installation and identification
Applications:
- Compression tee tap connector for ACSR conductors
The 5300 Series Tee Tap is a permanent or temporary drop designed for ACSR conductors. It is fabricated from AFL seamless drawn aluminum.
The run portion incorporates an improved design of interlocking extrusions, providing a permanent grip on the conductor when compressed.
For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
