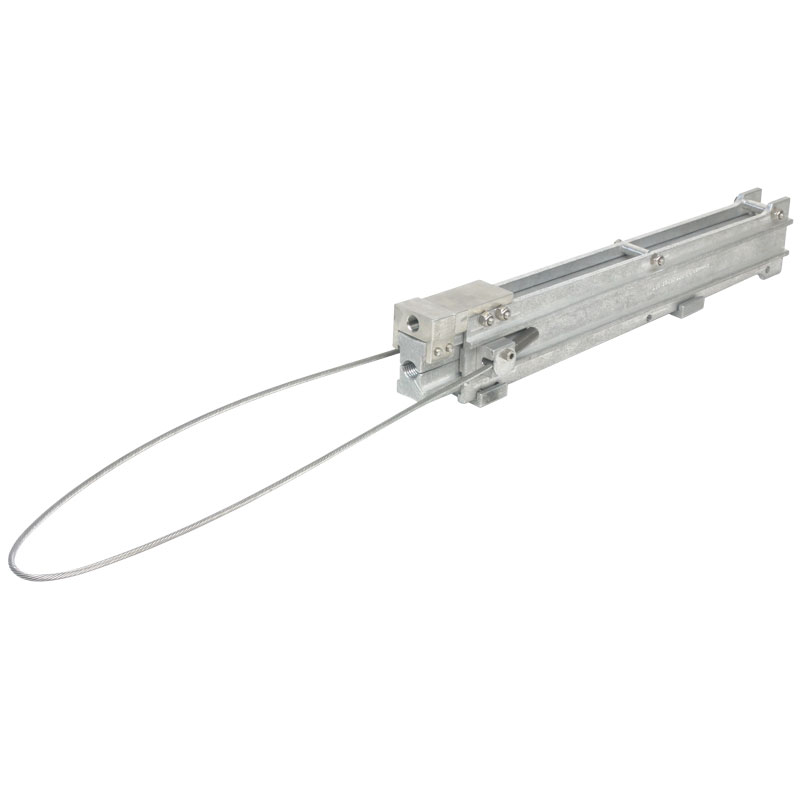

Temporary grips are used in stringing the ADSS during sagging and where it is necessary to make short-term catch on the ADSS.
de002252e39640519d4a8c663f67be99
1 FIBER OPTIC CABLE H ARDWARE Fiber Optic Cable Hardware © 2008, AFL, all rights reserved. PP-3-00061, Revision 3, 7.9.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Temporary Grip Temporary Grips are used in stringing the ADSS during sagging and where it is necessary to make short term catch on the ADSS. The Temporary grip for ADSS is a high strength aluminum body designed to hold 2,500 pounds or 50% of MRCL of the cable. ADSS ADSS Cable Diameter (in Decimal Inches) A Ordering Information TG MEM XXX A Temporary Grip VISE SCREW VISE BODY VISE PLATE 1.58" (40.1 MM) 17.00" (432 MM) APPROX. 19.0" (483 MM) 3.00" (76.2 MM) ADSS Wedge Set Cable O.D. in Inches x 1000 (Cable Dia. = 0.420" - 0.890") Ordering Information for Additional Wedges Temporary Grip A TG W XXX CAUTION : 1. The Temporary Grip is only to be used for AFL's ADSS fiber optic cables with standard polyethylene jackets with the O.D. ranging from 0.420" - 0.890". 2. For cables with an O.D. outside of this range, please contact AFL. Maximum load is 2,500 lbs. Thimble Clevis is included to attach temporary grip bail to chain hoist. Application Notes: 1. Mechanical Grip for Use with Polyethylene Outer Jackets Only
Temporary grips are used in stringing the ADSS during sagging and where it is necessary to make short-term catch on the ADSS.
