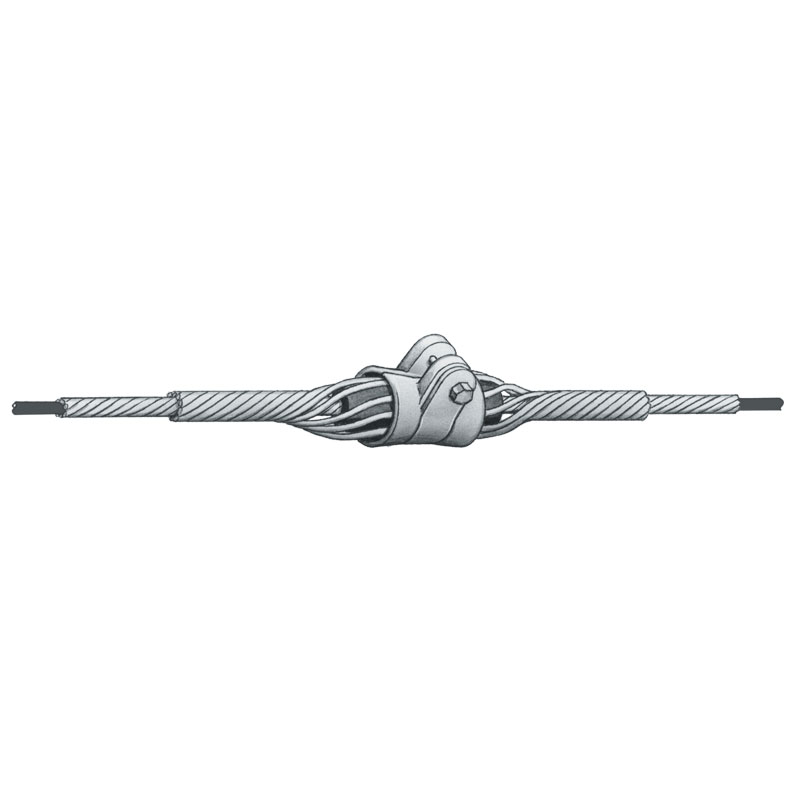

This is a formed wire suspension for ADSS cables.
de002252e39640519d4a8c663f67be99
108 AFLglobal.com 1 (800) 235-3423 © 2002, AFL, all rights reserved. PP-3-00022, Revision 4, 3.18.2025 Speci cations are subject to change without notice. 108 Fiber Optic C able Accessories Formed Wire Suspension for ADSS Cable Ordering Information Cable O.D. Range Structural Reinforcement Rods Outer Rods AFL No. Length "L1" (inches) Rod Dia. (inches) Rods Per Set Color Code Length "L2" (inches) Rod Dia. (inches) Rods Per Set Color Code 0.399" - 0.418" 80 .146 10 Yellow 42 .204 11 Yellow ASU399/418 0.419" - 0.439" 80 .146 10 Black 42 .204 11 Black ASU419/439 0.440" - 0.458" 81 .146 11 White 43 .204 11 White ASU440/458 0.459" - 0.461" 84 .167 10 Purple 46 .250 10 Orange ASU459/461 0.462" - 0.476" 84 .167 10 Purple 46 .250 10 Purple ASU462/476 0.477" - 0.503" 84 .146 12 Orange 46 .250 10 Orange ASU477/503 0.504" - 0.511" 84 .146 12 Red 46 .250 10 Purple ASU504/511 0.512" - 0.536" 87 .167 11 Blue 49 .250 11 Blue ASU512/536 0.537" - 0.559" 87 .167 11 Green 49 .250 11 Green ASU537/559 0.560" - 0.565" 87 .167 11 Green 49 .250 11 Green ASU560/565 0.566" - 0.573" 92 .182 11 Black 54 .250 12 Black ASU566/573 0.574" - 0.598" 92 .182 11 Black 54 .250 12 White ASU574/598 0.599" - 0.625" 92 .182 12 Brown 54 .310 12 Brown ASU599/625 0.626" - 0.632" 102 .204 11 Red 63 .310 11 Red ASU626/632 0.633" - 0.666" 102 .204 11 Red 63 .310 11 Blue ASU633/666 0.667" - 0.682" 102 .204 12 Yellow 63 .310 11 Green ASU667/682 0.683" - 0.710" 102 .204 12 Yellow 63 .310 11 Yellow ASU683/710 0.711" - 0.728" 102 .204 12 White 63 .310 12 Black ASU711/728 0.729" - 0.744" 102 .204 12 White 63 .310 12 White ASU729/744 0.745" - 0.750" 102 .204 12 White 63 .310 12 White ASU745/750 0.751" - 0.786" 102 .204 13 White 63 .310 12 Brown ASU751/786 0.787" - 0.814" 111 .250 11 Green 72 .365 11 Green ASU787/814 0.815" - 0.845" 111 .250 12 Yellow 72 .365 11 Yellow ASU815/845 0.846" - 0.855" 111 .250 12 Green 72 .365 12 Blue ASU846/855 0.856" - 0.894" 119 .250 12 Black 80 .365 12 Black ASU856/894 0.895" - 0.907" 119 .250 12 White 80 .365 12 White ASU895/907 0.908" - 0.916" 119 .250 13 Purple 80 .365 12 Purple ASU908/916 0.917" - 0.929" 119 .250 13 Brown 80 .365 12 Brown ASU917/929 0.930" - 0.942" 119 .250 13 Red 80 .365 12 Red ASU930/942 0.943" - 0.977" 119 .250 13 Orange 80 .365 13 Orange ASU943/977 Features • For line or elevation angle changes less than 30º • Max vertical load—20,000 lbs. Item Description Material 1a,c Suspension Housing Aluminum Alloy 1b Insert (2 Halves) Elastomer 2 Reinforcing Rods (SRR) Aluminum Alloy 3 Outer Support Rods Aluminum Alloy L1 L2 2 3 1c 1b 1a
Features:
- For line or elevation angle changes less than 30º
- Max vertical load—20,000 lbs.
