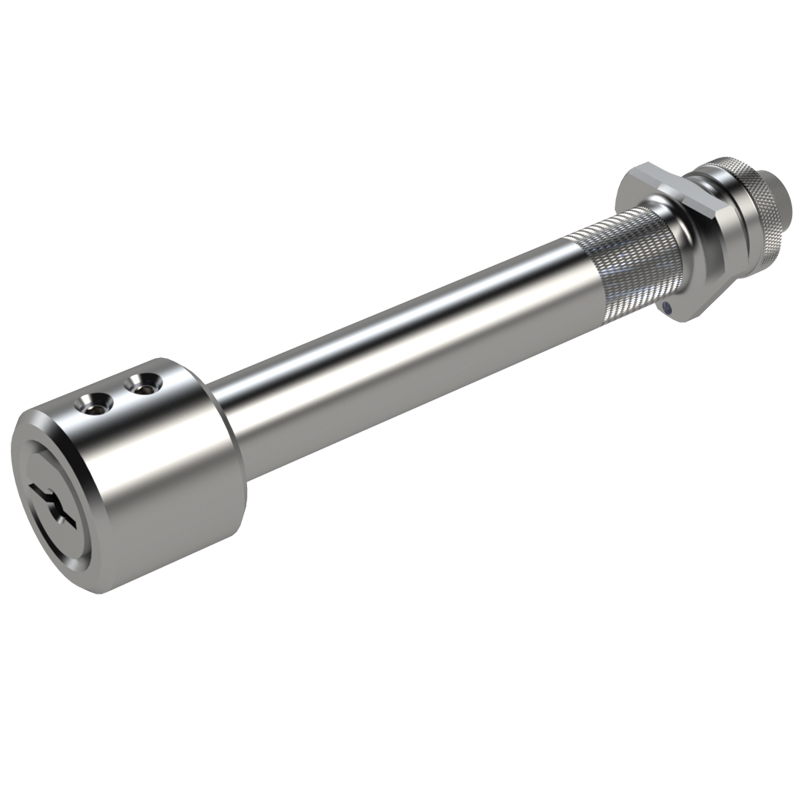

1 AFLglobal.com 1 ( 800) 890-8878 © 2025, AFL, all rights reserved. PP-3-00900, R evision 2, 4.17.2025 Specications are subject to change without notice. 1 Fiber Optic Cable Hardware continued Apex ® OPGW Connector Kits Apex OPGW Connector Kit – AX-APCK and AX-SCK Connector Kit for OPGW into Apex X-1, X-2 and X-2S Splice Closures Ordering Example: For cable DNO-12776, with an Outer Layer Diameter of 0.528", AlumaCore Inner Diameter of 0.3315", the AFL Number is AX-APCK-D-522/537. Connector Kits are assembled based on the OPGW cable that is being utilized. They are typically installed in pairs and can be modified to accommodate a wide range of OPGW cables. Both a downlead clamp (FDOA-XXYY; sold separately) and a furcation kit (AXOFC01; sold separately) are recommended for torsional resistance and ease of installation. AX ZZZZ XXX/XXX Y See Table 1 below APCK = CentraCore, AlumaCore SCK = MiniCore, TriCore, PentaCore, HexaCore Ordering Information Apex Closure OPGW Connector Kit Cable Type Range Code in Decimal Inches See Table 2 below Cable Diameter Range Code in Decimal Inches Table 1 – Inner Layer Range Codes Range Code MiniCore, HexaCore or PentaCore Layer 1 Diameter CentraCore or AlumaCore Pipe Diameter A 0.000 - 0.584 0.185 - 0.227 B — 0.228 - 0.264 C — 0.265 - 0.300 D — 0.301 - 0.374 E — 0.375 - 0.479 F — 0.480 - 0.550 G — 0.551 - 0.630 H — 0.631 - 0.700 Range Code Cable Diameter Range Min. Max 225/240 0.225 0.240 241/255 0.241 0.255 256/271 0.256 0.271 272/286 0.272 0.286 287/302 0.287 0.302 303/318 0.303 0.318 319/333 0.319 0.333 334/349 0.334 0.349 350/365 0.350 0.365 366/380 0.366 0.380 381/396 0.381 0.396 Table 2 – Cable Diameter Range Codes MiniCore, HexaCore or PentaCore CentraCore or AlumaCore Range Code Cable Diameter Range Min. Max 397/412 0.397 0.412 413/427 0.413 0.427 428/443 0.428 0.443 444/459 0.444 0.459 460/474 0.460 0.474 475/490 0.475 0.490 491/506 0.491 0.506 507/521 0.507 0.521 522/537 0.522 0.537 538/553 0.538 0.553 554/568 0.554 0.568 Range Code Cable Diameter Range Min. Max 569/583 0.569 0.583 584/599 0.584 0.599 600/615 0.600 0.615 616/630 0.616 0.630 631/646 0.631 0.646 647/662 0.647 0.662 663/677 0.663 0.677 678/693 0.678 0.693 694/708 0.694 0.708 709/727 0.709 0.727 728/740 0.728 0.740 2 AFLglobal.com 1 ( 800) 890-8878 © 2025, AFL, all rights reserved. PP-3-00900, R evision 2, 4.17.2025 Specications are subject to change without notice. 2 Fiber Optic Cable Hardware Apex ® OPGW Connector Kits Accessories Engineered to resist small firearms, even at close range, AFL's BPC-AX-BG2 Bullet Guard ensures unparalleled security. Its drop-in hinge design simplifies attachment to the coil bracket, while stainless steel construction with a bead-blasted finish ensures durability. Equipped with an attached lifting hook and hardware retention cables, installation and maintenance are made effortless. For more information, see spec sheet . BPC-AX-BG2 Bullet Guard BPC-AX-BG2 Ordering Information Model AFL NO. BPC-AX-BG2 Bullet Guard Canister BPC-AX-BG2 AFL Downlead Clamps are used to guide Optical Ground Wire from the top of the structure to the splice box. AFL’s Downlead Clamps install easily and provide proper spacing and hold strength without damage to the cable. Recommended for tying multiple cable together in order to avoid torsion or twisting of cables inside Apex Splice Closure. See spec sheet for FDOA XXYY for ordering information. OPGW Downlead Clamp FDOA XXYY No Adapter The Apex Furcation Kit for OPGW includes the materials required to properly divide fibers into groups inside the Apex X-1, X-2 and X-2S Splice Closures. Apex OPGW Connector Kit – Furcation Kit Ordering Information Model AFL NO. Apex OPGW Furcation Kit AXOFK01 The CB-44-3AL is 44 inches wide and stores extra length of ADSS or OPGW cable. It is used with AFL's Apex ® sealed splice closure and the SB01 and Opti-Guard ® splice enclosures. CB-44-3AL Coil Bracket Ordering Information Model AFL NO. CB-44-3AL External Coil Bracket CB-44-3AL
