The anti-rotational device provides a means of stringing fiber optic cable without introducing torsion stress.
e990f6cb2c5c415792cae837c8a72223

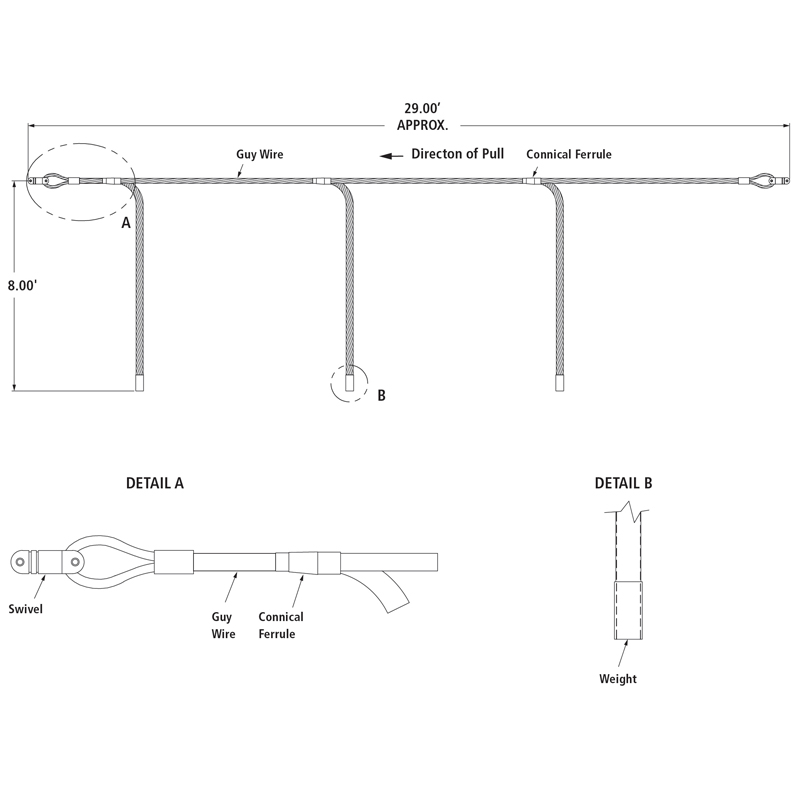

1 FIBER OPTIC CABLE H ARDWARE Fiber Optic Cable Hardware © 2008, AFL, all rights reserved. PP-3-00006, Revision 5, 1.6.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 OPGW Anti-Rotational Device Directon of Pull DETAIL A 8.00' 29.00’ APPROX. Ordering Information AFL NO. ARD-OPGW-29 The Anti-Rotational Device provides a means of stringing fiber optic cable without introducing torsion stress. This unique concept prevents the cable from twisting as it travels over the pulling blocks. Left uncontrolled, the optical cable’s delicate fibers could be permanently damaged during installation. Notes 1. Make sure all hoses and guy grip fall in the direction of the pull. 2. Connical ferrules allow easy transition through sheave. 3. Estimated weight of attachment is 14 lbs. each. 4. Working load is 5,000 lbs. Guy Wire Guy Wire A B DETAIL B Swivel Weight Connical Ferrule Connical Ferrule
The anti-rotational device provides a means of stringing fiber optic cable without introducing torsion stress.
